Help Turbo charge my RO/DI machine

[Blue Spot Octopus]

Here is my Refurbish SpectraPure 75 gallon RO/DI machine, I replace the 3 filters back in July of this year. My original RO membrane is a 75 gallon a day. My BRS upgrade kit has a 150 gallon membrane up grade.

Do the RO membrane have to match meaning if you have a 75 gallon does the other have to be a 75 gallon one as well?

My incoming water is about 450 and before the DI it is 8 or 10 tds. After the single DI it is ) TDS
I just purchased the 2 chamber from BRS, how should I reconfigure the reactors. 2 DI or 3? Then what about the carbon filters if I do two DI I then could add another carbon filter. Thanks in advance



[Blue Spot Octopus]

Silicate Buster in 7 Stage

Hello, I have a 7 stage BRS RO/DI unit. Does anyone know which stage DI I would replace with a SpectraPure SilicaBuster? I placed it in stage 6, but now my TDS is higher that it was before the change. I'm going to replace the resin in the other DI cartridges but I would like to confirm which is...

www.reef2reef.com

See this thread for links to what I purchased.



[Blue Spot Octopus]



[Gtinnel]

I'm almost positive the 150gpd water saver is a 75gpd membrane. It makes the whole system 150gpd.



[Blue Spot Octopus]

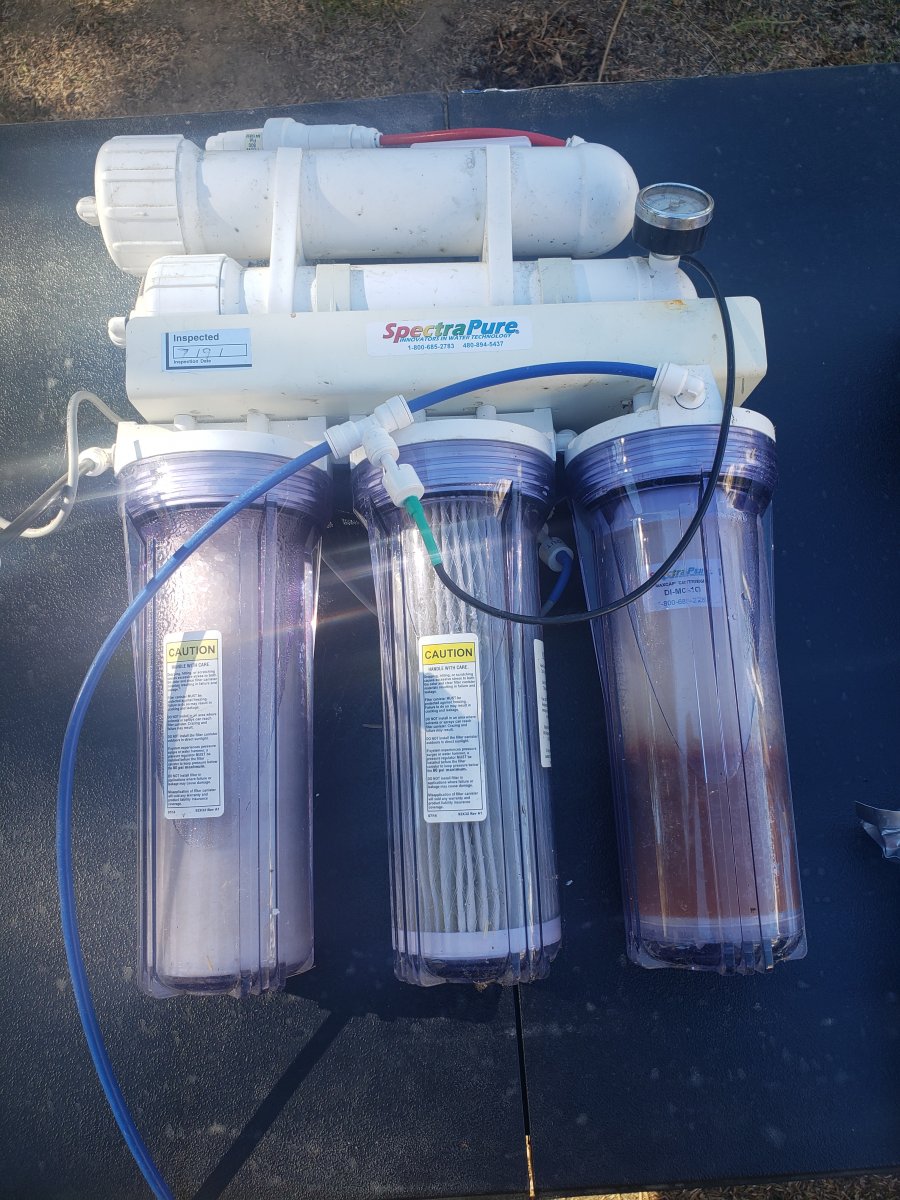

So this is how my filters are, do they look correct?



[hhaase]

Can't quite tell what you have in the canisters there but it doesn't quite look right.
Here's where I usually run mine.....
5 Micron Sediment ----> 5 Micron Carbon -----> 1 Micron Carbon -----> Dual 75gpd Membranes -------> Mixed Bed Resin.


If you're going to be running two cannisters for DI..... I'm not sure how that works. Usually I see it with three cannisters. Cation, then Anion, then a mixed bed. Or you can run both canisters with mixed bed.



[Gtinnel]

Also with your source water being 450tds and running a second membrane you may deplete di too quickly. I use a second membrane and love it (I'm considering adding a third) but the input to the second membrane will be around 25% higher than the feed to the first membrane. If you deplete your di too quickly you may need to go back to one membrane.



[Blue Spot Octopus]



[Blue Spot Octopus]

Is the middle filter suppose to be pleated? The first one is like a rolled up paper towel.



[Blue Spot Octopus]

Gtinnel I am off on my terminology, what is "Second Membrane" ?



[Gtinnel]

Is the middle filter suppose to be pleated? The first one is like a rolled up paper towel.

It should be a carbon filter after the sediment and none that I've ever used were pleated. I'd guess it's not carbon if I had to guess. It looks like a pool filter honestly. If it's a used system and it came with those pre filters, I'd replace them anyway.



[Blue Spot Octopus]

hhasse. The dual reactors are brand new with nothing in them, I just received them from BRS. I wan to to add them to my system hence Turbo Charging my RO/DI. I want to optimize my system with best option for the filters.



[Gtinnel]

Gtinnel I am off on my terminology, what is "Second Membrane" ?

Excuse my terrible handwriting, if you can even read it.



[Blue Spot Octopus]

Thanks it will much easier to talk about individual reactors this way. So the second reactor on the pre-filter side, does the pleated one look correct?



[Blue Spot Octopus]



[Blue Spot Octopus]

SpectraPure® Mega MaxCap® DI Cartridge
minus9 recommends one of these first the first chamber, very pricey.



[Blue Spot Octopus]

Gtinnel. " It should be a carbon filter after the sediment and none that I've ever used were pleated. I'd guess it's not carbon if I had to guess. It looks like a pool filter honestly. If it's a used system and it came with those pre filters, I'd replace them anyway."

0.35 Micron Pleated Sediment Filter Cartridge 10"
This is the filter, the Refurbished units from Spectrapure are new units, and my filters have been replaced since new. Should I put this is pre filter one and toss the first filter and in #2 place a carbon filter?



[Blue Spot Octopus]

I do not know how to quote on this site, it is different from other sites.



[Blue Spot Octopus]

I have two of these
SpectraPure® SilicaBuster DI Cartridge - Color-Indicating - SuperDI DI-SB-CI-10HC



[hhaase]

Personally, I'd grab the BRS 6-stage replacement filter kit. This will give you all new sediment and carbon blocks plus resin for both cartridges. Should give you quite good water coming out of that system. Though it does show out of stock at the moment.

If you know for sure that your water is treated with chlorine and not chloramines, you could use their "Matrikx" 6-stage refill kit instead. I'd also use this refill kit if you have well water instead of municipal water.

Might need to do some re-plumbing of the RO/DI though to make sure everything is going in the right sequence.

-Hans
