    Putting aside the hotly debated UV or no UV discussion, for those who have UV sterilizers, how did you plumb it into your setup? Picture would be appreciated!


  2. Jimbo662

    Jimbo662 Valuable Member Partner Member 2019

    Joined:
    Oct 1, 2013
    Messages:
    3,219
    Likes Received:
    1,312
    Location:
    Austin, Tx
    I'm running mine off my manifold.

  3. PeterNockner

    PeterNockner Member

    Joined:
    Apr 18, 2017
    Messages:
    13
    Likes Received:
    5

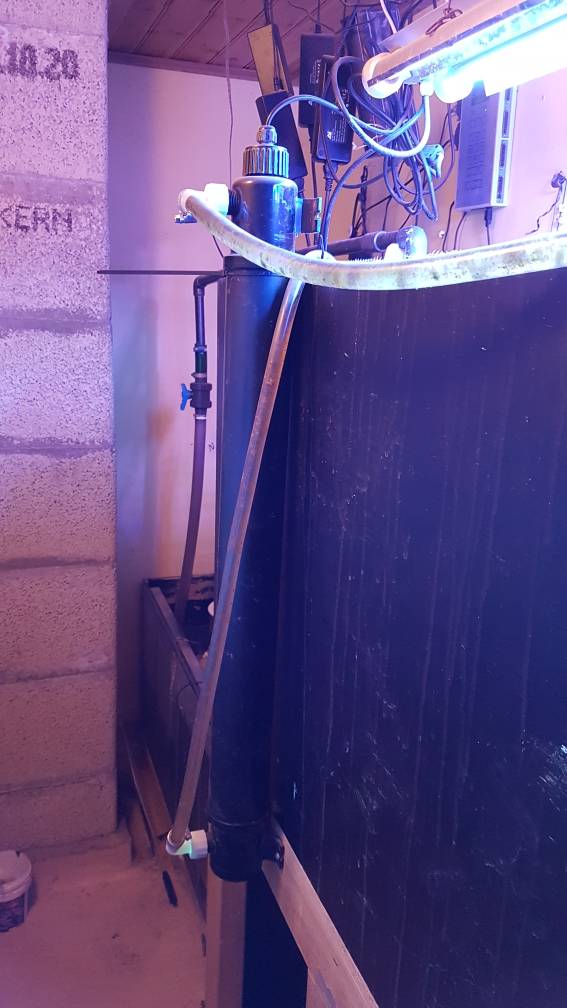

    Hangs at the back of the aquarium. 20190515_173420.jpeg

  4. MaccaPopEye

    MaccaPopEye Well-Known Member

    Joined:
    Jan 5, 2016
    Messages:
    650
    Likes Received:
    1,035
    ATM I have mine plumbed in with soft tubing. It is fed from a separate pump that sits at the start of my sump and the UV exits into the return of my sump after going through a ball valve to slow the flow down.

    I will be re-plumbing my return to include a manifold and will eventually hard plumb the UV to that. When I am eventually feeding the UV off of the return, I will put the output into the start of the sump to try and keep the feed and output semi separated (so at least hopefully most of the water going through it will still be "dirty"). I'm at work now so I don't have any pics but just imagine a mess of wires, tubes and salt creep :p

  5. NotASpammerDude

    NotASpammerDude Active Member Build Thread Contributor

    Joined:
    Oct 25, 2018
    Messages:
    478
    Likes Received:
    394
    I have a separate 60GPH circulation pump in the sump that feeds into the UV unit, it overflows back into the sump

  6. ca1ore

    ca1ore Valuable Member R2R Supporter CTARS Member R2R Excellence Award R2R TV Featured Reef Tank 365 Article Contributor Build Thread Contributor

    Joined:
    Oct 28, 2014
    Messages:
    6,884
    Likes Received:
    8,721
    Location:
    Stamford, CT
    I take advantage of gravity - mine is on my siphon drain.


  7. MrPorter

    MrPorter Member

    Joined:
    Aug 21, 2017
    Messages:
    18
    Likes Received:
    6
    Location:
    Richmond
    Tied mine into it's own pump I can shut off and on. Planning on building a manifold though.

  8. MrPorter80

    MrPorter80 Member

    Joined:
    Sep 1, 2017
    Messages:
    33
    Likes Received:
    35
    Location:
    Richmond Texas
    [​IMG]

  9. shred5

    shred5 Valuable Member R2R Supporter Build Thread Contributor

    Joined:
    Jun 7, 2007
    Messages:
    4,478
    Likes Received:
    2,139
    Location:
    Waukesha, Wi
    Pictures...
    Interested because I am plumbing them into my aquaculture system as a precaution.

    I pretty much have it set on what I am going to do but would love pictures of what others are going to do!

  10. Variant

    Variant Active Member Build Thread Contributor

    Joined:
    Oct 23, 2018
    Messages:
    116
    Likes Received:
    89
    Bump!!

    I know you UV users are out there! Don't be shy~

  11. Mattman1977

    Mattman1977 Member Louisiana Reef Club

    Joined:
    Nov 27, 2018
    Messages:
    25
    Likes Received:
    17
    I like this idea the most. Everything goes through the UV this way. In theory of course haha.
    What type of drain do you use herbie, bean etc. any drain noise from it that normally wouldn’t be because of the horizontal pipes? Do you
    Have the UV power tied to cut off when the return pump shuts down or does it keep water in the lines by itself? Thinking this is how I wanna run mine

    Matt

  12. ca1ore

    ca1ore Valuable Member R2R Supporter CTARS Member R2R Excellence Award R2R TV Featured Reef Tank 365 Article Contributor Build Thread Contributor

    Joined:
    Oct 28, 2014
    Messages:
    6,884
    Likes Received:
    8,721
    Location:
    Stamford, CT

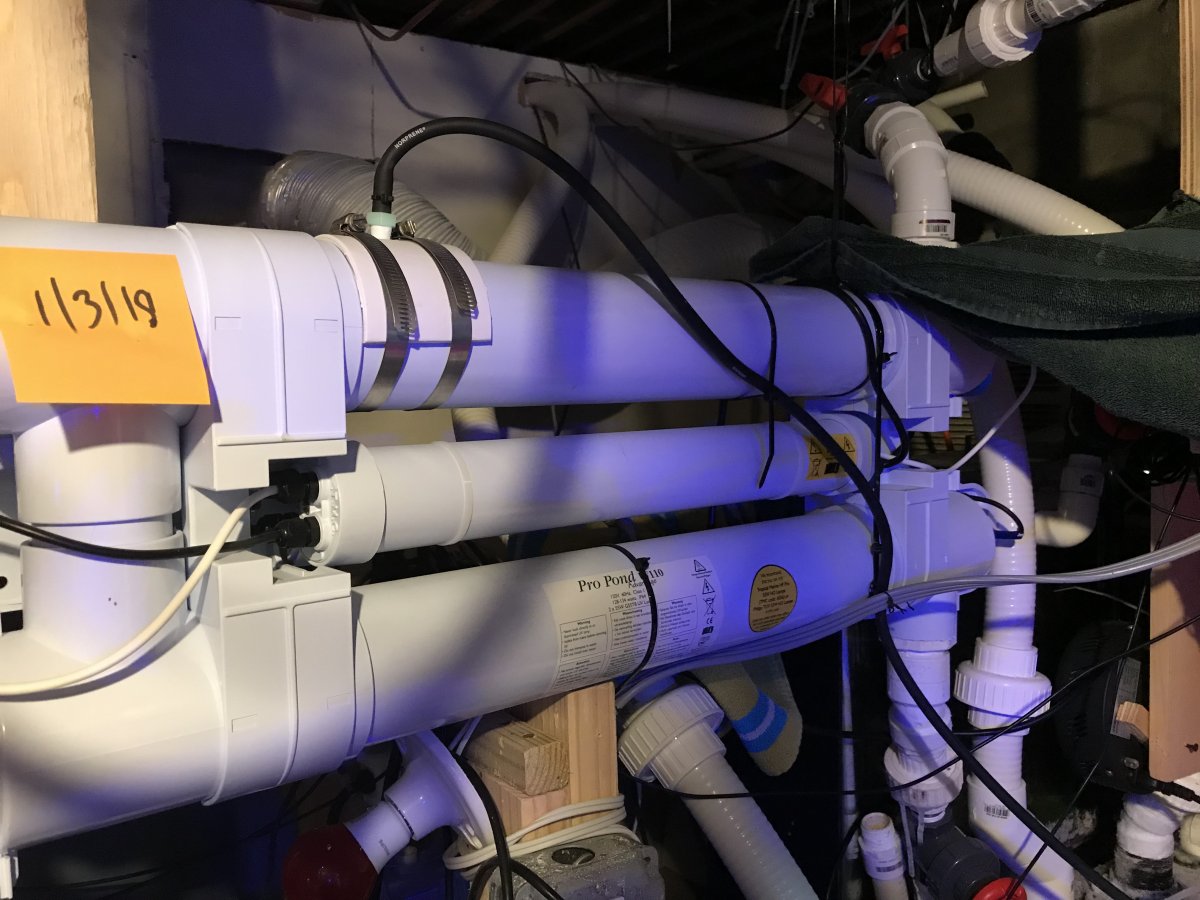

    It is installed on the main siphon line of my modified bean drain (nominally 1,000 gph through the UV). Tank is one floor up, so there's plenty of gravity to ensure the UV doesn't air lock the siphon drain. That black line you see out of the top is something I added to allow the horizontal housing to more easily vent air. Once the drain is fully restarted, water jets out of that black hose into my sump. I've got the 1/4" apex flow sensor on the line and if flow is measured below a certain level (indicating the UV housing is not flooded), apex turns off the UV. Apex will also turn off the UV if the main pump is not running.

    The only thing you have to be mindful of is detritus buildup inside the housing since it is on the drain. I have screens on all my bean drains so nothing big can get in there but there will be shmutz accumulation over time.

  13. Mattman1977

    Mattman1977 Member Louisiana Reef Club

    Joined:
    Nov 27, 2018
    Messages:
    25
    Likes Received:
    17
    Thanks @ca1ore for the fast response. Wish I had a basement some times to put my sump but basements are unheard of down in Louisiana. I’m going to try and do the same except in stand, I’m sure I’ll be replumbing it several times before I get it right lol.

    Matt

Draft saved Draft deleted
