Interesting 'New' LED Light

Top Shelf Aquatics

lexinverts

Well-Known Member
View Badges
Joined
Jan 1, 2015
Messages
562
Reaction score
971
Location
Corvallis, OR

Here’s another user’s thoughts on these lights.


um02122

Community Member
View Badges
Joined
Oct 25, 2016
Messages
66
Reaction score
62
I like your way of disassembling the lights even befor ready to test.

One of my personal curiosities is related to the brand.

I can recognise the Cree XPG2 or 3 in the whites. Not much else I recognise.

OP
Dana Riddle

Dana Riddle

2500 Club Member
View Badges
Joined
Sep 10, 2011
Messages
2,834
Reaction score
6,561
Location
Dallas, Georgia

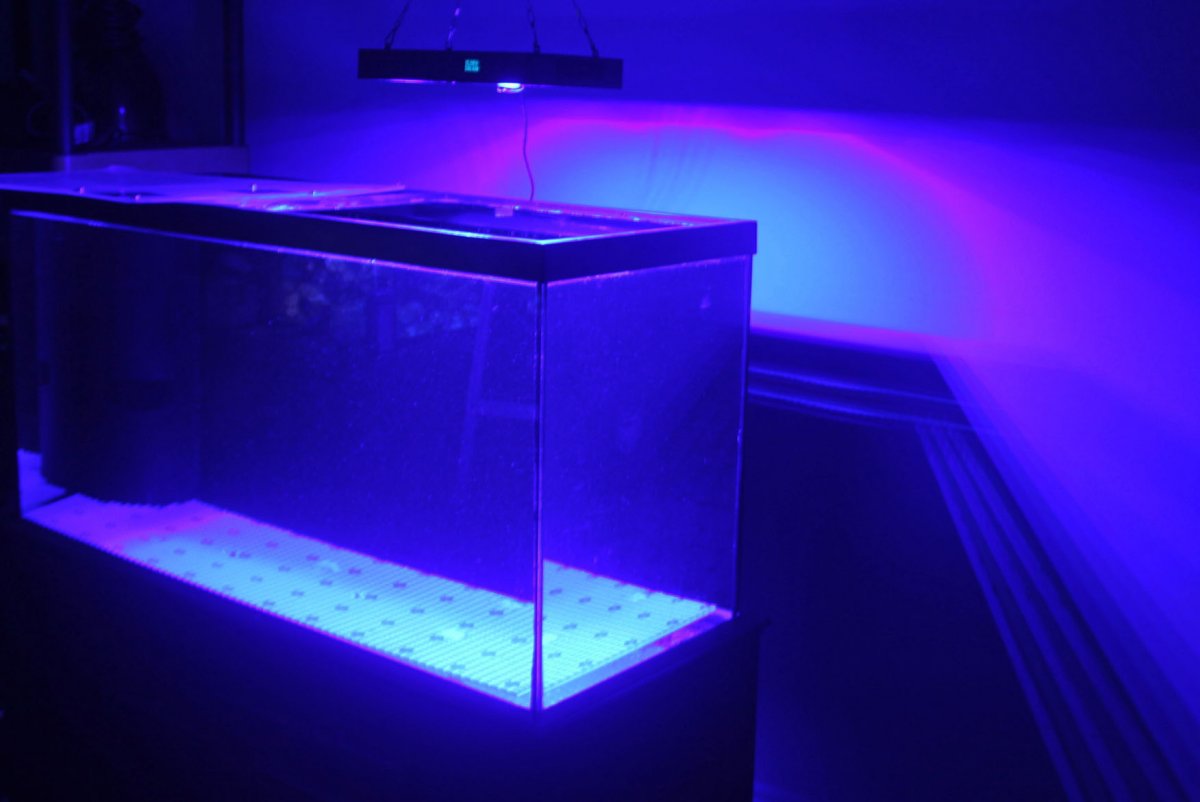

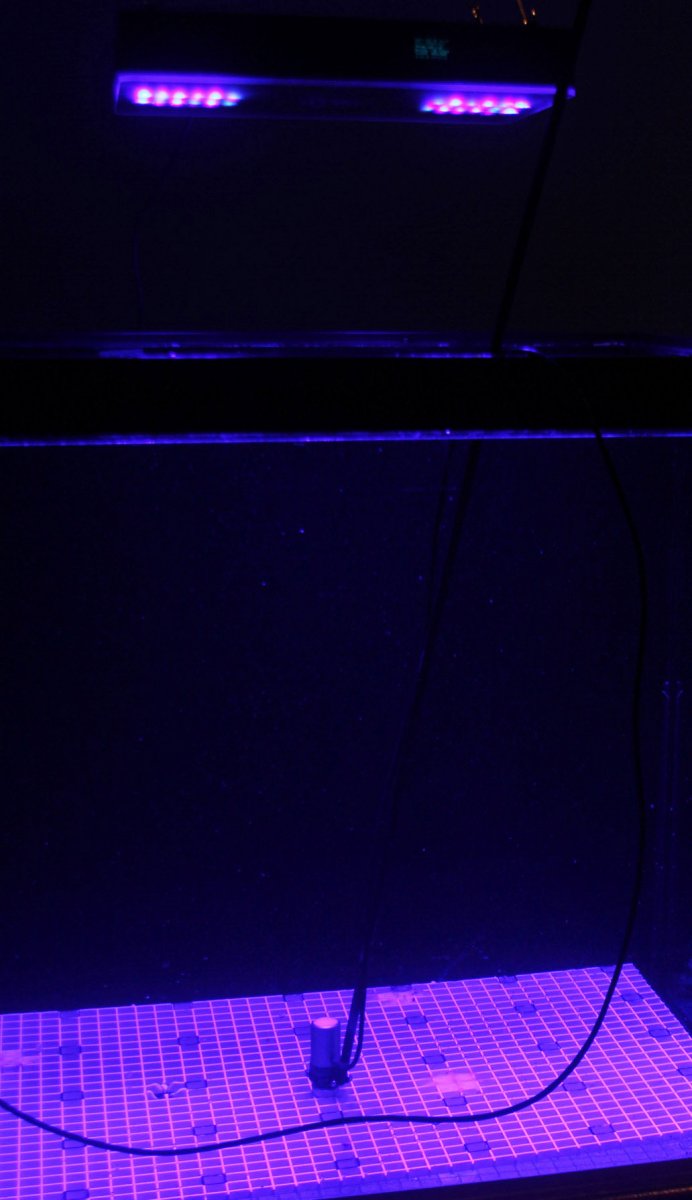

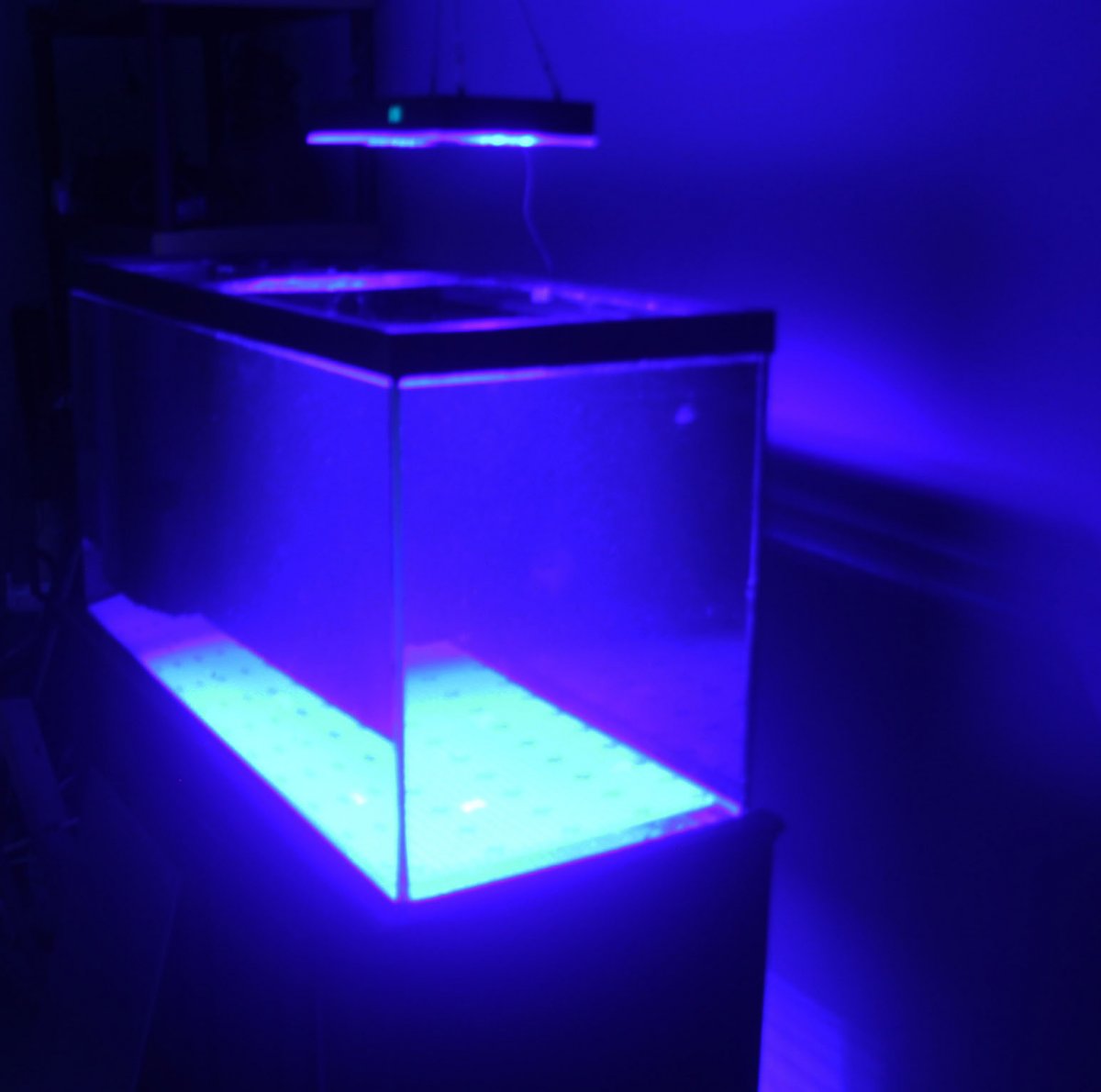

After cutting the grid system to fit the 90-gallon test tank, draining/cleaning/refilling the tank, hanging the light, programming the quantum meter for datalogging, etc., testing is finally underway. Light is 9.5" off the water surface and the sensor is about 22" below the surface. PPFD at this depth is 184 but light will not be at full intensity until 2 pm (now 10:30 am). Attached photos: 1. Light without reflectors. 2. Light with reflectors. 3. PAR sensor on eggcrate grid. Notes: Back of aquarium is painted black. No substrate other than eggcrate hence sump area is illuminated - light is not reflected upwards.Will have more data in 24 hours if all goes well.

reefiwithout.jpg reefiwith.jpg reefiPAR.jpg


oreo5457

Valuable Member
View Badges
Joined
Sep 18, 2017
Messages
2,195
Reaction score
1,376
FYI, painting glass (any color) will cut down on PPFD...
After some investigation, it turned out that this was being caused because there is an effect where the interface between water and glass, and then the interface between glass and air, both reflect a notable amount of light back into the tank. By painting the back, you lose that glass to air reflection effect and this can cause a measurable drop in light level in the tank. I'm paraphrasing all of this based on a presentation he gave at a local club meeting a while back. Not sure where a specific and more detailed write up could be found, and also not sure what the name of that reflection effect is, but it does have a name..

OP
Dana Riddle

Dana Riddle

2500 Club Member
View Badges
Joined
Sep 10, 2011
Messages
2,834
Reaction score
6,561
Location
Dallas, Georgia
FYI, painting glass (any color) will cut down on PPFD...
Thanks. I can test this in another tank. In the meantime, PPFD at 1 pm is 272. Maximum intensity, per this program, is at 2 pm.


oreo5457

Valuable Member
View Badges
Joined
Sep 18, 2017
Messages
2,195
Reaction score
1,376
for the curious..
not sure why my AV tells me this site in insecure. May want to tell them their cert has issues..

OP
Dana Riddle

Dana Riddle

2500 Club Member
View Badges
Joined
Sep 10, 2011
Messages
2,834
Reaction score
6,561
Location
Dallas, Georgia
for the curious..
not sure why my AV tells me this site in insecure. May want to tell them their cert has issues..
I've had the same issues. I'll PM Randy.
Thanks. I can test this in another tank. In the meantime, PPFD at 1 pm is 272. Maximum intensity, per this program, is at 2 pm.
2 pm, light is at maximum intensity using the vendor's preprogrammed settings. PPFD = 303; watts - 160. I'll have 24-hour intensities tomorrow and will calculate total light dosage.

Top Shelf Aquatics
OP
Dana Riddle

Dana Riddle

2500 Club Member
View Badges
Joined
Sep 10, 2011
Messages
2,834
Reaction score
6,561
Location
Dallas, Georgia
for the curious..
not sure why my AV tells me this site in insecure. May want to tell them their cert has issues..
Contacted Randy, who will contact Josh.

OP
Dana Riddle

Dana Riddle

2500 Club Member
View Badges
Joined
Sep 10, 2011
Messages
2,834
Reaction score
6,561
Location
Dallas, Georgia
Photosynthetically Usable Radiation (PUR), as determined by the Seneye device, is 79-84% about 6 inches below the sensor (in air) indicating blending of differently colored light from the LEDs is pretty good. I'll look at PUR in water once the PPFD datalogging is over.


oreo5457

Valuable Member
View Badges
Joined
Sep 18, 2017
Messages
2,195
Reaction score
1,376
Contacted Randy, who will contact Josh.
This certificate has expired (16 days ago). Renew now.

Common name: advancedaquarist.com
SANs: advancedaquarist.com, www.advancedaquarist.com
Valid from May 8, 2019 to August 6, 2019
Serial Number: 0378878dfe6d4466873aac94c223e3d331ed
Signature Algorithm: sha256WithRSAEncryption
Issuer: Let's Encrypt Authority X3
Common name: Let's Encrypt Authority X3
Organization: Let's Encrypt
Location: US
Valid from March 17, 2016 to March 17, 2021
Serial Number: 0a0141420000015385736a0b85eca708
Signature Algorithm: sha256WithRSAEncryption
Issuer: DST Root CA X3


Eagle_Steve

To many tanks!!!!!
View Badges
Joined
Jan 30, 2018
Messages
3,004
Reaction score
12,398
Location
Eagleville, TN
Thx agai
Photosynthetically Usable Radiation (PUR), as determined by the Seneye device, is 79-84% about 6 inches below the sensor (in air) indicating blending of differently colored light from the LEDs is pretty good. I'll look at PUR in water once the PPFD datalogging is over.
Thx again for this.

It looks like this thing is a powerful light.

OP
Dana Riddle

Dana Riddle

2500 Club Member
View Badges
Joined
Sep 10, 2011
Messages
2,834
Reaction score
6,561
Location
Dallas, Georgia
Thx agai

Thx again for this.

It looks like this thing is a powerful light.
A little too early to say for sure, but one of these every 4 feet might be enough. Will know much more tomorrow.


HCl+NaHO=

Active Member
View Badges
Joined
May 30, 2019
Messages
125
Reaction score
104
This is how the Photography Industry is using LEDs to provide a diffused light source.


With more LEDs spread out, AND densely packed. The less shadowing, self shadowing, and TV static effect. While retaining shimmer and caustics.

A diffuser panel over the LEDs is an obvious workaround, say with the XR15s, but you lose PAR and shimmer, and distance from the water surface.

The guy’s website appears to be down. I haven’t checked LEDs, specs, or anything else.

We may someday get to the holy grail of LEDs that act just like MH and T5s. They are going to be large panels, with hundreds of individual diodes, mounted close together.

Last edited:
OP
Dana Riddle

Dana Riddle

2500 Club Member
View Badges
Joined
Sep 10, 2011
Messages
2,834
Reaction score
6,561
Location
Dallas, Georgia
This is how the Photography Industry is using LEDs to provide a diffused light source.


With more LEDs spread out, AND densely packed. The less shadowing, self shadowing, and TV static effect. While retaining shimmer and caustics.

A diffuser panel over the LEDs is an obvious workaround, say with the XR15s, but you lose PAR and shimmer, and distance from the water surface.

The guy’s website appears to be down. I haven’t checked LEDs, specs, or anything else.

We may someday get to the holy grail of LEDs that act just like MH and T5s. They are going to be large panels, with hundreds of individual diodes, mounted close together.
You used the term 'caustics.' Big thumbs up!
