Discussion in 'Orphek' started by Orphek, Oct 17, 2017.

New product launch Atlantik V4 Compact

  1. Orphek

    Orphek Orphek- The world's premier LED light. R2R Supporter Platinum Sponsor

    Joined:
    Jul 8, 2012
    Messages:
    231
    Likes Received:
    105
    Location:
    US
    After bringing the Atlantik series one step forward, Orphek is now launching and introducing to you the New Orphek Atlantik V4 Compact Reef LED Lighting For Optimal Coral Growth and Color.
    Orphek is now offering the same exquisite quality LED solution for reefers owning aquariums with the size of 39″ x 27″/ 100 x 70cm!



    The light comes with 42 customized dual chip LEDs with infra red spectrum, rendering a natural color to your tank.

    The Atlantik V4 Compact technology brings built-in wireless control allowing you to easily program, control, and monitor your light(s) from your cell phone or tablet, any time and any place you are in the world, where internet access is available – Internet of Things or IoT.

    SO LET’S CHECK WHAT IS NEW?
    LEDS

    CHECK THE NEW SPECTRUM FOR OPTIMAL CORAL BEAUTY, GROWTH, COLOR & HEALTH!

    • New 42 customized high efficiency 5w Dual-Chip power LEDs – total of 84 individual LEDs.
    • New 16 different types of Dual chip wide range LEDs. 380nm UV to 850nm Infra red! (YES! Orphek is the first company to introduce the Infra red 850nm).
    • New Spectrum for better coral growth, color and health.
    • Four separate control and programming channels.
    Why the New ATLANTIK V4 /ATLANTIK V4 COMPACT is the best product Orphek has produced today?
    • Contains Full dimming capacity in all channels, 0-100% with progressive dimming.
    • Provides IoT technology & Free apps available (App Store & Google play)
    • Gives the ability to control and program 200+ individual units!
    • Provides the best: PAR/PUR per watt; Highest Spectrum output; and Highest efficiency power supply.
    • 16 new types of custom made dual core LEDs in the nanometer range from 380nm to 850nm.
    • Renders most natural appearance to the tank form 10K to 50K.
    • Provides enough RED and IR LEDs needed.
    • It is a product that has been already reviewed by experts.
    What else Orphek is offering you that others are not?
    • A LED light that is made of full body acrylic. Our light is not only solid and durable, but also beautiful to display.
    • A LED light that has a length of 13.58” (345mm), a width of 9.37” (238mm) and a height of 2.11” (53.6mm) .
    • A LED light that comes not with any driver, but with Mean Well driver (model CLG-150-36A) – we give you what the market has best to offer!
    • A LED light that comes with a free customized plug for your region.
    • A LED light that comes with a hanging kit with no extra costs.



    Orphek has already settled the standard in the market for its advanced comprehension of color spectrums and its influences on coral physiology and once again is releasing another cutting-edge and groundbreaking technology, by bringing a revolutionary change in the spectrum provided by diodes and supplying its best product developed specifically for the needs of photosynthetic marine invertebrates.

    Check the Atlantik V4 spectrum that comes now in the Compact version too!

    WITH A SURPRISING ELEMENT!

    One of our target goals with the V4 was also to try to minimize as much as possible the outbreak of cyanobacteria and/or the growth of nuisance algae. Of course we all realize that without keeping proper parameters and religious tank maintenance is crucial and no light or system will prevent that, but Orphek succeeded to offer a new spectrum that balances just enough red with other colors of the spectrum to create a healthy balance of light.

    We at Orphek feel that this is the most complete and beneficial spectrum ever created for a coral reef aquarium.

    The new ATLANTIK V4 spectrum (now in the Compact version) research resulted into the perfect balance between the light corals need and the overall appearance you want to see in your tank.

    Internet of Things Reef Aquarium LED Lighting for both Atlantik v4 Compact and Atlantik v4

    ORPHEK CHANGING HISTORY!

    We are very happy to announce that now we have the research to share with you about our new spectrum and the penetration of infrared into the water.

    Till today you heard that in general infrared light from 780 nm can no longer penetrate the water. In addition, that light waves above 780 Nm are no longer perceptible to the human eye.

    So Infrared 850nm is one of the new improvements?

    Orphek innovations are mostly focused on the research to improve LED light spectrums and by doing so we have been a leader in the market for years.

    The starting point of this new Orphek product started with the idea of developing a new LED Lighting solution that would mimic Nature by providing spectrums that are present in a natural environment.

    Sun light provides a range of wavelengths and different lengths of light waves do not penetrate through the water equally. Infra Red light is the first to be filtered out and can only penetrate a short distance. If you look at a coral reef in Nature you will notice that shallow reef corals live in warm waters.

    The idea was to add to the ATLANTIK V4 Compact enough infrared color to satisfy coral of all habitats. This new development isn’t something that happened overnight. A year of testing and experimenting went into this project before we were convinced that we came up with the ultimate spectrum for growing coral and the added benefit of viewing the coral with a more natural look.

    FEATURES

    PROGRAM/CONTROL/MONITORING (IoT)

    CHECK ATLANTIK V4 VERSATILITY AND WHAT IT CAN DO FOR YOU!

    Connectivity & Monitorning

    • Built- in Wireless Worldwide Remote and Local programming, control and monitoring
    • Compatible with Wi-Fi/ 3G and 4G Internet connectivity
    • Compatible with IOS (Iphone and Ipad) and Android (Cell and tablet)
    • Free apps available (App Store & Google play)
    Programming

    • Ability to program multiple Atlantiks individually, in groups or in unison.
    • Eight pre-installed programs/ unlimited custom programs and group programming.
    • Large storage with capacity for additional programs.
    • Sunrise / Sunset Full dimming capacity in all channels, 0-100% with progressive dimming.
    • Strong clouds / soft clouds
    • Demo Mode Color Change (Jellyfish Mode)
    SPECTRUM & EFFICIENCY
    • Highest PAR/PUR per watt.
    • Highest Spectrum output.
    • High efficiency power supply.
    CHECK WHAT COMES WITH YOUR LIGHT! (INCLUDED)

    • Power cord with waterproof connector
    • Stainless steel hanging kit
    • Driver
    • Mean well Fan-less IP65 power supply
    CHECK WHAT IS ALSO AVAILABLE TO PURCHASE! (NOT INCLUDED)

    • 3m extension cable
    • ORPHEK Router (You can use your own)
    • ORPHEK Gateway – ability to control 200+ units.

    CHECK MORE DETAILS ABOUT ORPHEK ATLANTIK V4 COMPACT

    WHAT CAN I DO WITH 4 CHANNELS?
    • Achieve a Kelvin temperature between 18k and 30k: Channels 1 and 2.
    • Achieve that deep blue/purple actinic look that causes coral to fluoresce and show color that are not visible in the higher range of the visible spectrum: Channels 2 and 3.
    • Achieve a warm shallow sunlit reef and extend the range from 10K to 18K: combining Channel 4 with 1.
    • Increase the overall range of the light to 10k-30k: combining all 4 channels and adjusting to your preferences.
    WHAT ABOUT PAR & PUR PARAMETERS?
    The Atlantik V4 employs high wattage and cool running five watt LEDs to produce PAR levels rivaling metal halide, but with a very high Photosynthetic Useable Radiation (PUR).

    ARE THE APPS REALLY FREE OF CHARGE?

    YES! THEY ARE! JUST CLICK ON THE OPTION COMPATIBLE TO YOUR PHONE!

    WHAT ABOUT THE GATEWAY? IS IT NECESSARY TO PURCHASE IT?

    YES! YOU NEED TO PURCHASE ORPHEK MASTER GATEWAY.

    By launching a ground breaking technology Orphek’s goal is to provide a solid and reliable control system that enables you to get the look that you want for your tank, while providing the best light possible for your corals.

    By combining the wifi connection with the Orphek Gateway you will be able to enjoy fast, out-of-the-box setup & the ability to control and program your lights from

    anywhere in the world where internet access is available.

    THE GREAT NEWS ARE: One Orphek Gateway has the ability to control and program 200+ individual units!


    DO YOU NEED MORE DETAILS BEFORE PURCHASING?

    Here you can have all the specifications:

    Specifications:

    Color/Materials

    • Light Unit Body Material: Black acrylic housing and silver stainless steel grill
    Weight

    • Light Unit Weight: 16.7 lbs (7.6kg)
    • Mean Well Driver Weight: 2.2 lbs (1.02 kg)
    Dimensions

    • Length: 13.58” (345mm)
    • Width: 9.37” (238mm)
    • Height: 2.11” (53.6mm)
    Package Dimensions / Weight

    • Length: 22.8″ (580 mm)
    • Width: 13.8″ (350 mm)
    • Height: 6.7″ (170 mm)
    • Package Weight: 13.4 lbs ( 6.1 kg )
    • Package Volume/Weight: 15.4 lbs (7.0 kg )
    Cords

    • Power extension cord with waterproof connector from Light Unit to Power Box: total 118″ (3.00m)
    • Power Cord: 70.86″ (1.8 m)
    Hanging Kit

    • 2 steel cables: 9.84” (250 mm)
    • 1 steel cable: 70.86” (1.8 m)
    Electrical

    • Mean Well Driver Model: CLG-150-36A
    • Input voltage: 100-240VAC (277VAC for North America only)
    • Frequency: 47 ~ 63Hz
    • Power consumption: 120~130 watt
    • PF (power Factor) 0.966
    • Input Current (Amps) 0.833
    • Output Voltage (VDC) 36
    • Electrical outlet: Region appropriate
    Read More : https://orphek.com/new-product-launch-atlantik-v4-compact/
    Atlantik V4 compact product page : https://orphek.com/atlantik-v4-compact-aquarium-led-lighting/


  2. Zoaeasy

    Zoaeasy Active Member R2R Supporter Partner Member 2018

    Joined:
    Sep 19, 2015
    Messages:
    452
    Likes Received:
    261
    Location:
    Calgary
    I love this light so far!

    Unregistered User and Orphek like this.
  3. Insane320

    Insane320 Active Member Partner Member 2018

    Joined:
    Jul 20, 2017
    Messages:
    142
    Likes Received:
    84
    Location:
    Clovis, CA
    It seams dark is that just the setting or camera?

  4. Orphek

    Orphek Orphek- The world's premier LED light. R2R Supporter Platinum Sponsor

    Joined:
    Jul 8, 2012
    Messages:
    231
    Likes Received:
    105
    Location:
    US
    HI
    Thank you for mansion this i also thought about it .
    probably not all channels at 100% it depend at what time at the day he took the photos and the program setting ,IF it slow acclimation then it give this kind of look dark blue ,or it might be the camera because the LEDs look bright and the aquarium look blue dark .
    when i take photos pointed to the LEDs all around look much more darker and the blue look stronger.

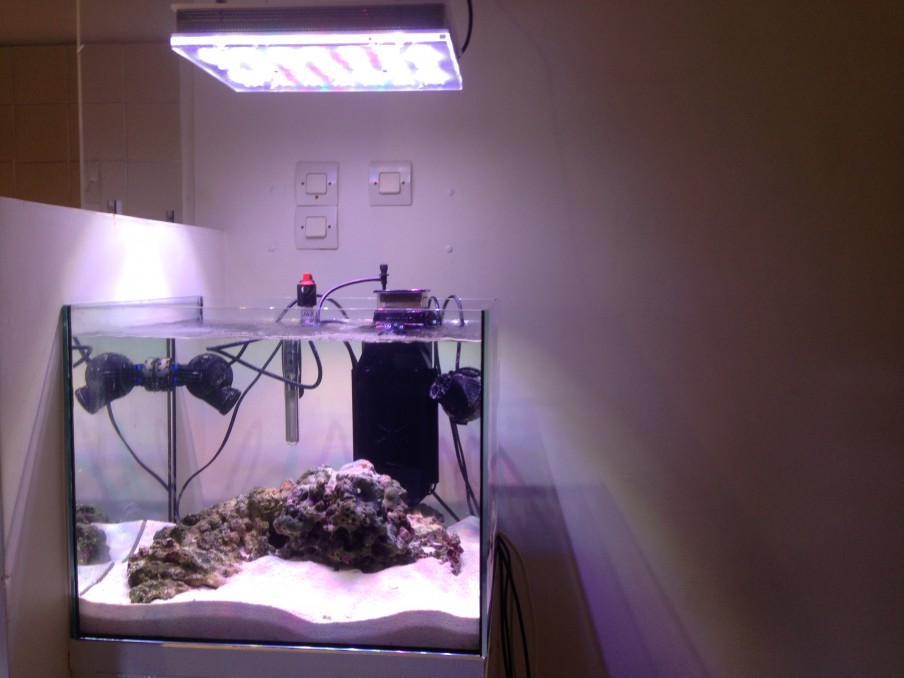

    I add here some full aquarium photos with the Atlantik Compact V.X LED light .Some photos are from the older version when the LEDs was not a dual chip and the power was 30Watt Less then the New Compact V4 version . we will be happy to receive more photos from
    Zoaeasy here .












    Ashish Patel likes this.
  5. Wrasse-cal

    Wrasse-cal Active Member R2R Supporter Build Thread Contributor

    Joined:
    Nov 21, 2017
    Messages:
    272
    Likes Received:
    125
    Is the V4 compact available now? I can't find it on the bulkreefsupply.com website.

    An adjustable tank or stand mounting arm/bracket (with cord concealing capability) would also be nice. Is that in the works, or is there an existing product that fills this need?

  6. Insane320

    Insane320 Active Member Partner Member 2018

    Joined:
    Jul 20, 2017
    Messages:
    142
    Likes Received:
    84
    Location:
    Clovis, CA
    I heard from BRS they might go on sale for black friday. Not for sure though so I am waiting tell Friday.

    Wrasse-cal likes this.
  7. James Emory

    James Emory Orphek R2R Supporter Gold Sponsor

    Joined:
    Mar 24, 2014
    Messages:
    88
    Likes Received:
    43
    Location:
    Michigan
    Hello Insane 320. BRS does not carry the Atlantik Compact and I do not believe they will be featuring a sale on the full size model. Thank you.

    Ergodyne likes this.
  8. Insane320

    Insane320 Active Member Partner Member 2018

    Joined:
    Jul 20, 2017
    Messages:
    142
    Likes Received:
    84
    Location:
    Clovis, CA
    OOPS sorry about that I read it wrong.

  9. James Emory

    James Emory Orphek R2R Supporter Gold Sponsor

    Joined:
    Mar 24, 2014
    Messages:
    88
    Likes Received:
    43
    Location:
    Michigan
    No problem my friend. We have two Compacts left in stock as they sold out very fast at 620.00 including shipping. We will honor the price of 620.00 on all pre-orders.

    Ergodyne likes this.
  10. Insane320

    Insane320 Active Member Partner Member 2018

    Joined:
    Jul 20, 2017
    Messages:
    142
    Likes Received:
    84
    Location:
    Clovis, CA
    I am actually in the market for Atlantic full size.

  11. James Emory

    James Emory Orphek R2R Supporter Gold Sponsor

    Joined:
    Mar 24, 2014
    Messages:
    88
    Likes Received:
    43
    Location:
    Michigan
    We still have those in stock and they are selling for 899.00 shipped.

    Ergodyne likes this.
  12. Insane320

    Insane320 Active Member Partner Member 2018

    Joined:
    Jul 20, 2017
    Messages:
    142
    Likes Received:
    84
    Location:
    Clovis, CA
    What company do you work for James?

  13. James Emory

    James Emory Orphek R2R Supporter Gold Sponsor

    Joined:
    Mar 24, 2014
    Messages:
    88
    Likes Received:
    43
    Location:
    Michigan
    I'm with Orphek.

    Ergodyne likes this.
  14. Insane320

    Insane320 Active Member Partner Member 2018

    Joined:
    Jul 20, 2017
    Messages:
    142
    Likes Received:
    84
    Location:
    Clovis, CA
    My aquarium is 6feet on one side of the aquarium and 5feet on the other side.
    It is 30 inches wide
    It is 24 inches high
    How many would you recommend for SPS

  15. James Emory

    James Emory Orphek R2R Supporter Gold Sponsor

    Joined:
    Mar 24, 2014
    Messages:
    88
    Likes Received:
    43
    Location:
    Michigan
    Two should do the trick if you hang them so they offset slightly toward the rear of the tank. Most of the front area is usually reserved for swimming room for the fish.

    Ergodyne and Insane320 like this.
  16. James Emory

    James Emory Orphek R2R Supporter Gold Sponsor

    Joined:
    Mar 24, 2014
    Messages:
    88
    Likes Received:
    43
    Location:
    Michigan
    Mmmmmm, just saw all SPS. For all SPS I would go with three and hang them perpendicular to the length of the tank. This will provide high PAR in any area of the tank.

  17. Paul C.

    Paul C. Well-Known Member R2R Supporter

    Joined:
    May 2, 2012
    Messages:
    954
    Likes Received:
    20
    Location:
    Western MA
    How many for a 96X32x24? 75% fish tank 25% coral.

  18. James Emory

    James Emory Orphek R2R Supporter Gold Sponsor

    Joined:
    Mar 24, 2014
    Messages:
    88
    Likes Received:
    43
    Location:
    Michigan
    Hi Paul, a minimum of three and these would have to be hung perpendicular to the tanks length for full coverage. Wow, that is a big tank. How many reinforcing straps are there across the tank and what is the width of them?

  19. Paul C.

    Paul C. Well-Known Member R2R Supporter

    Joined:
    May 2, 2012
    Messages:
    954
    Likes Received:
    20
    Location:
    Western MA
    Tank is eurobraced with no center straps.

    So, James your saying 3 of these Mini's will take care of my tank or should i just go with a pair of the full-size units? And again, tank is mainly going to be fish. But do want some corals for that pop in color.

    Last edited: Nov 24, 2017
  20. James Emory

    James Emory Orphek R2R Supporter Gold Sponsor

    Joined:
    Mar 24, 2014
    Messages:
    88
    Likes Received:
    43
    Location:
    Michigan
    No, the Compacts would not do it. My suggestioon is for the full size Atlantik V4's.
