It's time to start a build thread for my new tank that I ordered today, finally.

- Planet Aquariums tank ordered through Paradise Aquatics in Kansas City
- 70x48x24"
- Peninsula
- Low Iron on 3 sides
- Black back glass
- External overflow, notched upper back glass
- PVC bottom
- Eurobraced
- Open 2" steel tube stand with adjustable feet

Lighting
- 6 Radion xr30 g4
- 2 Aquatic Life t5 hybrid fixtures

Flow
- 4 Vortech mp40wqd
- 1 mp60

This new tank replaces a 220g (Link Here) that started falling apart about 2 years ago. I had a friend weld me a metal frame for the top to keep the thing from falling apart, which I document in that thread. Taking a tank down is such a process that I decided that I would take the opportunity to roll that in with a remodel of that room which is also falling apart. My house was built in 1975 and was kept up very nice but never remodeled before we bought it 13 years ago. Every other year we remodel a room and we are about out of rooms, so this one's ticket is up. This room has 15 feet of single pane glass windows that are 6' tall, wood rot on the exterior, carpet ruined by my German Shepherds, popcorn texture on the ceilings, old outlets and trim, etc. So out with the old and in with the new. Carpet will be replaced with hardwoods that match our media room, the windows replaced with double pane picture windows, ceiling scraped and skim coated, new trim to match the updated trim in the rest of the house. I'll pay to have the giant windows installed, but I will do the rest of the work myself.

The room is L shaped and the tank will separate the rooms, with a sitting room on one side and formal dining room on the other. I have a 10' x 36" piece of live edge oak slab curing in my garage that I'll make in to the dining table once the room and tank build is complete. The tank will be off of an exterior wall and centered along a structural I-beam underneath.

I started the move 3 months ago in the middle of August by moving all of my SPS colonies to a 72x24x12 rimless lowbow along with 2 of the 4 Ecotech mp40wqd for flow and the lighting, which is 3x Ecotech Radion xr30 g4 in an Aquatic Life Hybrid t5 fixture. I plumbed in a Vectra s2 as the return pump for that new Frag Lagoon which I love. The Ecosmart Live app is great for hitting a button to turn off all the flow and return pump in that tank so I can target feed my corals with Benepets and Oyster Feast, check out the eye candy, and move things back to where the go after the Turbo snails have been up all night remodeling the tank. I enjoy looking in at the tank top down which is why I have the new tank a little shorter and as wide as I could make it. A 4x6 lagoon frag tank has been my favorite tank to this day, followed closely by the new Frag Lagoon. The new penensula I hope will be my all time fave.

Last week the LPS moved down to the sump room, followed by some of the rock each day over the next week. Once the fish were out and spread out to the other tanks, complete teardown insued. Carpet and trim tearout, drained the tank, tore out plumbing, moved the tank to a local reef shop in trade for some store credit. I have picked up the hardwood for the floors and have it in the room adjusting to the humidity of the house for 2 weeks before I install it. I scraped all the texture off the ceiling and am skim coating it now - awesome shoulder workout! I have to run the drain and return to the position of the new tank also before the floor goes in, and update the electrical. It's going to be a busy 2 weeks!

AS
OP
panic

panic

Well-Known Member
Review score
+0 /0 /-0
View Badges
Joined
Aug 6, 2018
Messages
540
Reaction score
1,212
Review score
+0 /0 /-0
Location
KCMO

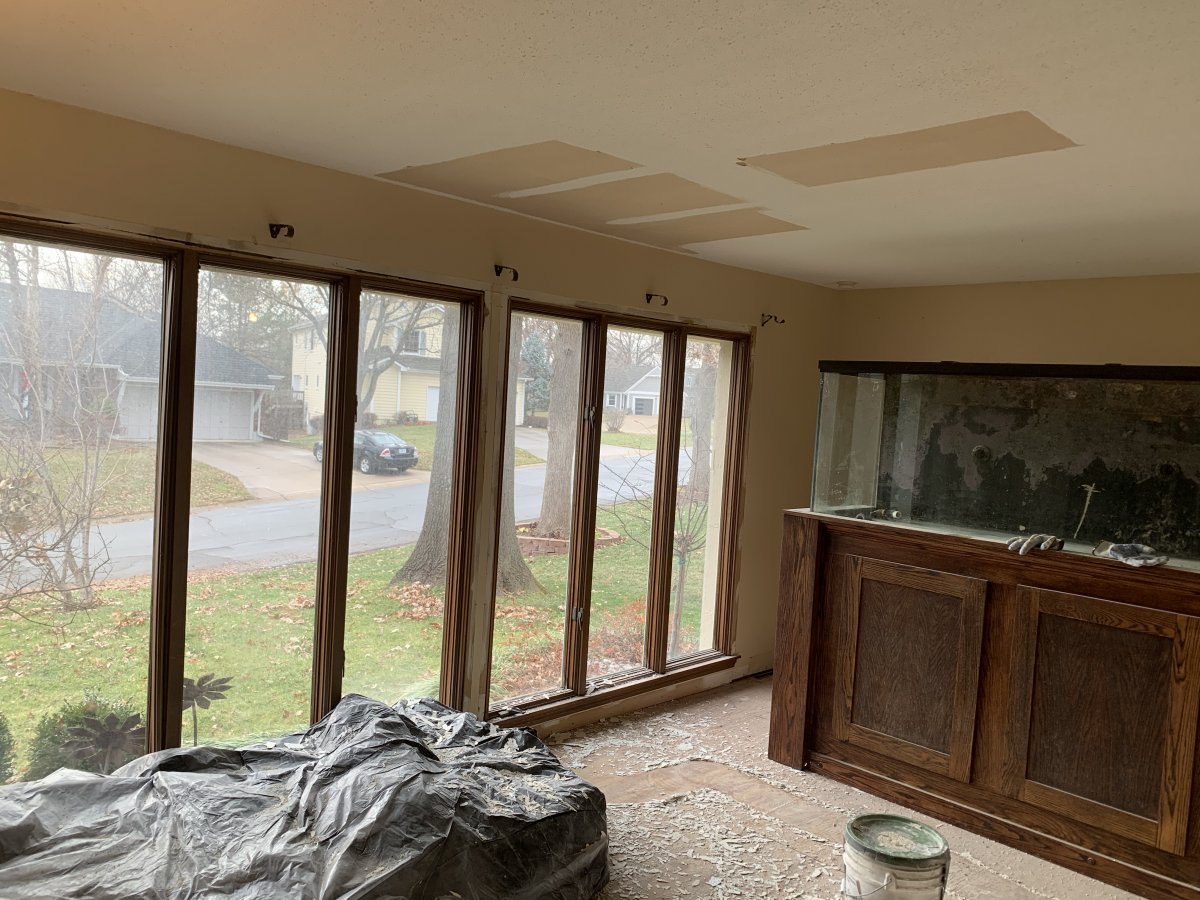

The tear out




OP
panic

panic

Well-Known Member
Review score
+0 /0 /-0
View Badges
Joined
Aug 6, 2018
Messages
540
Reaction score
1,212
Review score
+0 /0 /-0
Location
KCMO
Here are a few ideas that I found for my stand. I’ll do 4 uprights on the long side, 3 on the ends, 5 across the top. Once I get the exact footprint dimensions from Planet, I can get the 2” tube and start the stand. What I mean is that I will buy the tubing and have the shop cut it, then take it to my friend’s house who will then weld it together for me. I have a nice welder and can weld ok, but I don’t trust myself to make it square enough to support a really expensive glass box. I’ll weld the nuts under the bottom support for the adjustable feet and prep it for powdercoat. I will leave the stand open to give the room a more open feel.

I’ll use an adjustable foot under each of the 10 uprights in my stand





OP
panic

panic

Well-Known Member
Review score
+0 /0 /-0
View Badges
Joined
Aug 6, 2018
Messages
540
Reaction score
1,212
Review score
+0 /0 /-0
Location
KCMO
The lowboy is packed and the stonies are growing like crazy right now. Hopefully I have a tank to put them in soon.





I put some rock in my 270, some in my frag tank, some in the fuge, the sump, and the rest in the Rubbermaid tubs below the lowboy.




Here’s my frag tank housing some of the lower light lps. I had to move the sps to the lowboy along with one of the Mp40s. This tank doesn’t need much flow with these corals in there.



Orphek OR3 reef aquarium LED lighting
OP
panic

panic

Well-Known Member
Review score
+0 /0 /-0
View Badges
Joined
Aug 6, 2018
Messages
540
Reaction score
1,212
Review score
+0 /0 /-0
Location
KCMO
That's a nice little project you have going on there! Super nice coral selection as well!

Thank you! There is always a project at my house...

Found this handy chart I used as a quick reference. I have a 4x8 #15 I-beam at 10’ span.


OP
panic

panic

Well-Known Member
Review score
+0 /0 /-0
View Badges
Joined
Aug 6, 2018
Messages
540
Reaction score
1,212
Review score
+0 /0 /-0
Location
KCMO
I have my plan drawn out for the stand and hopefully get that started this week. I finished the skim coat on my ceiling and I start the wood floor install Monday morning when I get off work. It will be a long 2 days...

The stand feet will add an inch plus, and the 3/4” plywood and 1/2” foam will raise the bottom of the tank to around 45”

I’ll use .125 2” steel tube. I see stands made out of 2” with thinner wall and less bracing, so I figure I’d go a little heavier wall and more bracing. It’s not going to buckle and fall. I only worry about it leaning and collapsing so I’m using some angle braces to avoid the leeeeeeeean.


Last edited:
OP
panic

panic

Well-Known Member
Review score
+0 /0 /-0
View Badges
Joined
Aug 6, 2018
Messages
540
Reaction score
1,212
Review score
+0 /0 /-0
Location
KCMO
The room. I found the popcorn texture on the ceiling to have been painted over, so it didn’t scrape off by simply wetting it. I had to scrape off the points, sand it down mostly with an orbital sander with 80 grit, then skim coat it 3 times. It suuuuuuucked. Looks great though - nice and smooth. Also patched up the walls.

I confirmed that the steel I-beam was where I thought it was, ripped out the old plumbing from the floor, cut a new hole in the floor under the new tank position for the drain and return, and laid the hardwood floors. It has been a busy week!

My daughter helped me with the floor and she got the hang of it within minutes, although her interest ran out after a couple of hours. A good friend was there from the beginning and we almost finished in one day.








OP
panic

panic

Well-Known Member
Review score
+0 /0 /-0
View Badges
Joined
Aug 6, 2018
Messages
540
Reaction score
1,212
Review score
+0 /0 /-0
Location
KCMO
The adjustable feet arrived for the stand. They are huge! I went with 3” with 5/8” bolts. I plan to use them for leveling the tank of course, but also to raise the base of the stand so that I can get my dust mop under it for my daily dog hair collection. Between two 100 pound German Shepherds, I have enough shedded fur to make a full size wookie costume for my whole family every Halloween.

750 for size reference

AS
OP
panic

panic

Well-Known Member
Review score
+0 /0 /-0
View Badges
Joined
Aug 6, 2018
Messages
540
Reaction score
1,212
Review score
+0 /0 /-0
Location
KCMO
Once this cures I can start on trim, paint, and then it’s tank time. I paid the pros to do the finish since I would have only saved $200 after I rented the sanders for 2 days. It’s a day between each coat and needs lightly sanded between each coat.


OP
panic

panic

Well-Known Member
Review score
+0 /0 /-0
View Badges
Joined
Aug 6, 2018
Messages
540
Reaction score
1,212
Review score
+0 /0 /-0
Location
KCMO
Here I am debating between 30 and 36” width for a mini peninsula, 48” is crazy good build!

Go wide! My favorite reef I’ve seen in person was a 240 - 4x4x2. I decided then that I would hold out getting a new tank until I could get that. Once I started working on the logistics I realized that I would have a bunch of wasted space at the end of the tank that wasn’t big enough to put a barstool or anything next to the wall, so the longer tank came in to play. The jump past 48” to 60” long made the cost a lot more, but not much more than that to go out to 70”

AS
OP
panic

panic

Well-Known Member
Review score
+0 /0 /-0
View Badges
Joined
Aug 6, 2018
Messages
540
Reaction score
1,212
Review score
+0 /0 /-0
Location
KCMO
that looks amazing and you have dang good taste in the bourbon selection as well. I am a newbie here in the kc area

Hey what’s up?! We have several guys in KC with new really nice reefs or are in the process of rebuilding them. I can never remember their names on r2r though.

I love the fancy brown water (non-rye, and never Scotch) but am not much of a winter drinker. I stockpile bottles over the cold months as my liver hibernates, preparing for drinking season which is from April thru October. I log crazy long hours on my dock absorbing as much Vitamin D during the day and hydrating with a vengeance thru the wee hours of the night. Repeat.


LowDime

Community Member
Review score
+0 /0 /-0
View Badges
Joined
Dec 22, 2017
Messages
47
Reaction score
16
Review score
+0 /0 /-0
I am not a rye or scotch guy either. I find I tend to drink more dirty water in the winter and more beer during the summer. I have been in the reef work for years but just started back up a 120 setup with the wife


revhtree

Owner Administrator
Review score
+1 /0 /-0
View Badges
Joined
May 8, 2006
Messages
43,680
Reaction score
68,695
Review score
+1 /0 /-0
Already a great build!
