I have it in a Terrarium setup so Yes its between 70-100% I have no idea how to change the heating interval i think this is an isue for @Ranjib to sort out? XD

What i do know is that i do have a more " correct" reading with the new update. (beatuiful 3 day interval below with 3 spikes of spraying every day!). Ofcourse i do not have 96.21% atm. This would be more 86.21% this time of day. So the sensor works but is 10 knots to high up!


I would not recomend it to be near a fan, this would affect the reading to much!
I'm also putting my reef-pi in a vivarium! Possible frogs too in the future.

Why do you think putting it in front of a fan would effect readings? I'm not talking about a fan blowing in air from outside, I mean an internal fan inside the vivarium in my case.

And yes, the heating/reading cycle is something for the devs to look into ;) You and me we just reap the rewards of their hard work haha!


theatrus

Valuable Member
View Badges
Joined
Mar 26, 2016
Messages
1,319
Reaction score
2,551
Location
Sacramento, CA area
I'm also putting my reef-pi in a vivarium! Possible frogs too in the future.

Why do you think putting it in front of a fan would effect readings? I'm not talking about a fan blowing in air from outside, I mean an internal fan inside the vivarium in my case.

And yes, the heating/reading cycle is something for the devs to look into ;) You and me we just reap the rewards of their hard work haha!
A lot of humidity sensors start to struggle near 80%+ RH since everything just condenses. A fan would probably affect the temperature reading as you're going to be actually pushing a little bit of evaporation cooling on the sensor?

TBQH I've never dealt with environments fully saturated with water so I may be totally guessing


Mandelstam

Well-Known Member
View Badges
Joined
Oct 29, 2017
Messages
679
Reaction score
1,101
Location
Malmö, Sweden
A lot of humidity sensors start to struggle near 80%+ RH since everything just condenses. A fan would probably affect the temperature reading as you're going to be actually pushing a little bit of evaporation cooling on the sensor?

TBQH I've never dealt with environments fully saturated with water so I may be totally guessing

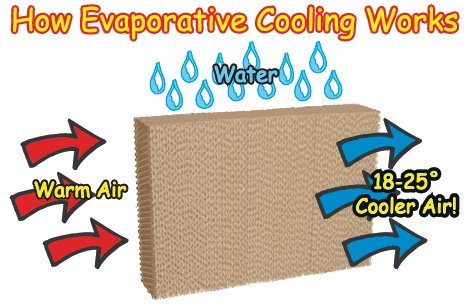

You're probably right above the temp reading being affected by the evaporation... And maybe cooling it could cause further condensation issues too... Good point. I'm going to have separate temp sensors in the tank as well though so it wouldn't be too big of an issue in my case. But the fan cooling the sensor might be counter productive.

I guess I'll just have to play around with it when it's all set up and see how it behaves.


DeeEmm

New Member
View Badges
Joined
Sep 20, 2020
Messages
24
Reaction score
27
Location
RADelaide
I had to fork embd and apply pi4 specific patches for 3.5 release. I am planning to remove the embd dependency and use periph or go-rpio or just roll our own,, going forward. I have tried to minimize external dependencies.. even for embd we only use the gpio bits. pwm and i2c are all from reef-pi/rpi.
Yes, being dependent on other libraries always carries an element of risk. maintaining overall control by removing them is always preferably, but this comes at the expense of system compatibility. Not really an issue in this case.

Of course an alternate solution is to write your own HAL as a seperate controller (assuming something like a MVC architecture) which then makes it fairly trivial to utilise whatever libraries you wish, making it easy to change down the track should you need as it's all on one place. It also make it easy for others to modify the HAL and swap the libraries out for whatever other library they may need. (for example orange Pi :D ).

Of course it could be a massive headache to implement this half way through a project if the code has not been structured this way. (I've not looked at your source so not sure how it is structured)

I think I could possibly make the Orange Pi work by fixing the issue in the EMBD library, but I already have too many other projects on the go. So that's likely never going to happen, plus there's a high possibility that it would break again in future Reef-Pi updates so I've started a build using a RPi3B+

I've made a start - still a long way to go tho.



If anyone is interested, I've documented what I've done so far...



DeeEmm

New Member
View Badges
Joined
Sep 20, 2020
Messages
24
Reaction score
27
Location
RADelaide
Is it possible to trigger a macro from an external input or sensor value?

I note that it's possible to create a simple driver using a text file to read an input into the system, but is it possible to use this in an if-this-then-that type of scenario. Or even do the same from an input from the GPIO.

I have a built in switch on the case I'm using and I'm thinking of using it to trigger things like feeding mode. So when the switch is pressed it can trigger a 'feed' macro or start a timer that calls a feed macro.

The macro would turn my power heads off, reduce return pump flow (more on that later), turn my roll filter off and optionally other stuff.

TIA

/DM


Yov

Community Member
View Badges
Joined
May 24, 2020
Messages
47
Reaction score
41
You're probably right above the temp reading being affected by the evaporation... And maybe cooling it could cause further condensation issues too... Good point. I'm going to have separate temp sensors in the tank as well though so it wouldn't be too big of an issue in my case. But the fan cooling the sensor might be counter productive.

I guess I'll just have to play around with it when it's all set up and see how it behaves.

It wil have the same effect as when blowing on youre hand when it's wet! You instantly feel cooler there. Also becous the constant flow of air i think you wil have some sort of "micro" climate that tends to be les humid, misreading the info and then maybe driving up the humidity in the rest of the vivarium thinking "its to dry".

OP
Ranjib

Ranjib

7500 Club Member
View Badges
Joined
Apr 16, 2016
Messages
8,286
Reaction score
14,758
Location
Palo Alto, Bay Area
Is it possible to trigger a macro from an external input or sensor value?

I note that it's possible to create a simple driver using a text file to read an input into the system, but is it possible to use this in an if-this-then-that type of scenario. Or even do the same from an input from the GPIO.

I have a built in switch on the case I'm using and I'm thinking of using it to trigger things like feeding mode. So when the switch is pressed it can trigger a 'feed' macro or start a timer that calls a feed macro.

The macro would turn my power heads off, reduce return pump flow (more on that later), turn my roll filter off and optionally other stuff.

TIA

/DM
Should be. Model the switch as ato sensor with a target macro


Weasel1960

Active Member
View Badges
Joined
Aug 22, 2020
Messages
410
Reaction score
1,176
Location
Monticello, WI
hello
new to the hobby and have looked at the apex system setup but its out of the question.
Been trying to read thru the multi hundred pages. does get over whelming
Is the a shopping list of items needed? like what probes are the best? what connectors are best?
is there a compiled shopping list?
I did the same a few weeks ago. Started reading the first 20 and last 20 pages. Ranjib is very helpful with questions as are many others


DeeEmm

New Member
View Badges
Joined
Sep 20, 2020
Messages
24
Reaction score
27
Location
RADelaide
hello
new to the hobby and have looked at the apex system setup but its out of the question.
Been trying to read thru the multi hundred pages. does get over whelming
Is the a shopping list of items needed? like what probes are the best? what connectors are best?
is there a compiled shopping list?

I've just jumped in to this as well. It appears there there are some items that will work 'out of the box' whereas other items may need some configuration / assembly to get working. There's also the option of using a number of reef-pi 'hats' to help make the connection process easier.

Things I have noted so far:

The preferred temp probes are DS18B20's
For PWM control the PCA9685 16 channel driver seems to be the one to use
A variety of relay options are available for equipment control (such as heaters) but all require some assembly. There are however some pre-packaged solutions available too such as Robo Tank.
I used the typical Arduino 8 way relay boards but I'll need to make an interface to get them to work.

I guess it depends on how much actual DIYing you want (or are able) to do. The 'Hats' make it more of a plug and play exercise or just roll up your sleeves and dive in.

There's a list of build threads here - https://reef-pi.github.io/additional-documentation/resources/ I got a pretty good idea of what was involved by reading through these

EDIT: Just reading the changelog and note that there are some smart outlets supported -
  • Smart outlets & powerstrip support. (TPlink-HS110, HS103, HS300), with current monitoring capabilities

Last edited:

DeeEmm

New Member
View Badges
Joined
Sep 20, 2020
Messages
24
Reaction score
27
Location
RADelaide
I have released reef-pi 3.4. Following is the summary:

...I have also added a new subsystem called "journal" for manual testing like workflow where users want to record specific values on-demand, manually. At this time its API ready with minimal UI support. i.e users can only create/update/delete the journal parameters (e.g. alk test results) but not enter their values via UI (API is done, UI still pending). We intend to wrap up the UI in next release.
Ranjib, Is there any more info on this feature? Does this allow us to be able to manually journal test results?

I currently use Aquarimate Live and would love to be able to junk it in favour of being able to log test results on my Reef-Pi and chart them on the dashboard.

Is there any more info on your API?

EDIT: Just found the link in the footer ;) :)

Last edited:

Smin

New Member
View Badges
Joined
Apr 25, 2019
Messages
21
Reaction score
17
Hi @Ranjib
Thanks for the update, it's great!

I have a suggestion for lighting. At the moment I have a DIY light with 6 channels 3 different whites and RB(+V)G(+Aqua).
At the moment I have each channel set up as a jack on a PCA9685, then I have created a light for each channel eg:
1) Cool white 2)Warm White 3) Very Warm white 4)Red 5)Green 6) Blue
I then set the timings for each channel throughout the day.

However, while messing around with the new profiles I found that I can create mixes eg
Sunrise, Afternoon, Moon by creating a Jack that has multiple pins on the PCA9685.
When I add that Jack I can set the values for each pin and then get reefpi to dim - this seemed great.
After doing sunrise I went on to do Morning.
What I found is reefpi always sets the channels to the last light in the list even if the channels should be on in another combination light.
Would there a way in the future to stop reefpi iterating through all the channels and taking the last set of values?

If I've not made sense I'll try to take some screenshots!


Mandelstam

Well-Known Member
View Badges
Joined
Oct 29, 2017
Messages
679
Reaction score
1,101
Location
Malmö, Sweden

It wil have the same effect as when blowing on youre hand when it's wet! You instantly feel cooler there. Also becous the constant flow of air i think you wil have some sort of "micro" climate that tends to be les humid, misreading the info and then maybe driving up the humidity in the rest of the vivarium thinking "its to dry".
Yes, didn't think about the cooling aspect. Not really a big issue for me as I'm using other temp sensors as well and can just disregard that one. The air should have the same humidity though as the rest of the viv. At least as the other parts of the viv that's open and subject to the same air circulation. Of course you can have pockets where air is stagnant and where humidity can rise much higher.

Starting to get too off topic here I think lol. I'll get my build thread up quite soon and I can start reporting my experiences there instead.

Top Shelf Aquatics
OP
Ranjib

Ranjib

7500 Club Member
View Badges
Joined
Apr 16, 2016
Messages
8,286
Reaction score
14,758
Location
Palo Alto, Bay Area
Hi @Ranjib
Thanks for the update, it's great!

I have a suggestion for lighting. At the moment I have a DIY light with 6 channels 3 different whites and RB(+V)G(+Aqua).
At the moment I have each channel set up as a jack on a PCA9685, then I have created a light for each channel eg:
1) Cool white 2)Warm White 3) Very Warm white 4)Red 5)Green 6) Blue
I then set the timings for each channel throughout the day.

However, while messing around with the new profiles I found that I can create mixes eg
Sunrise, Afternoon, Moon by creating a Jack that has multiple pins on the PCA9685.
When I add that Jack I can set the values for each pin and then get reefpi to dim - this seemed great.
After doing sunrise I went on to do Morning.
What I found is reefpi always sets the channels to the last light in the list even if the channels should be on in another combination light.
Would there a way in the future to stop reefpi iterating through all the channels and taking the last set of values?

If I've not made sense I'll try to take some screenshots!
Give me some time to test and reproduce this. If you are correct it’s a bug. I’ll get back to you shortly.


andieasy

New Member
View Badges
Joined
Dec 15, 2019
Messages
2
Reaction score
2
Hi @Ranjib
Thank you for the Reef-pi, It is really great, very helpful, and makes all things possible and affordable.

i have a suggestion anyway, do you think it is possible to have the temperature set up in certain points? i mean Exactly what we want to see in a range (for example, i like to see it between 24 C to 29 C range).


as you can see here, the range is always start on 0 C, while its never possible to have such condition. it prevent us from seeing the detail of fluctuation. well its just and idea for observational only.
Another one, i think its too long for the time legend.
well just want to share my thought. Once again it is a really great app and thank you for that.

OP
Ranjib

Ranjib

7500 Club Member
View Badges
Joined
Apr 16, 2016
Messages
8,286
Reaction score
14,758
Location
Palo Alto, Bay Area
Hi @Ranjib
Thank you for the Reef-pi, It is really great, very helpful, and makes all things possible and affordable.

i have a suggestion anyway, do you think it is possible to have the temperature set up in certain points? i mean Exactly what we want to see in a range (for example, i like to see it between 24 C to 29 C range).


as you can see here, the range is always start on 0 C, while its never possible to have such condition. it prevent us from seeing the detail of fluctuation. well its just and idea for observational only.
Another one, i think its too long for the time legend.
well just want to share my thought. Once again it is a really great app and thank you for that.
@andieasy we plan to make this range configurable in future version. The recent change was introduced to fix a different bug


robsworld78

Active Member
View Badges
Joined
Feb 14, 2020
Messages
218
Reaction score
474
Location
Edmonton, Canada
@andieasy we plan to make this range configurable in future version. The recent change was introduced to fix a different bug
Whatever you fixed seems to have cured that issue I was seeing with 3.4, now I'm back to thinking it was a code issue as it only happened with 3.4 and those who got the error don't get it anymore with 3.5. :) Maybe it only happened with a fresh install of 3.4 (no update) if that's possible.


Matevz Savarin

Active Member
View Badges
Joined
Dec 5, 2018
Messages
202
Reaction score
158
Hi all! Its been too long and I totally forgot about pwm lights I recived my 3 black boxes and I will change some leds. I noticed that drivers are pwm driven. There is 3.3v, pwm and ground. So if I wire this to mikes hat this should work. Ok ground and pwm. What do I do with 3.3v coming out of driver? Sorry its been a while..thank you for the help!
