i bet its some missing passives.. somewhere in the circuit. im not good at hunting those down.. but i strongly feel thats what it.. passives to filter out noise, aberration (capacitors, resistor etc)
reef-pi :: An opensource reef tank controller based on Raspberry Pi.
- Thread starter Ranjib
- Start date
-
- Tags
- controller raspberry-pi
- Tagged users Ranjib
OP
OP

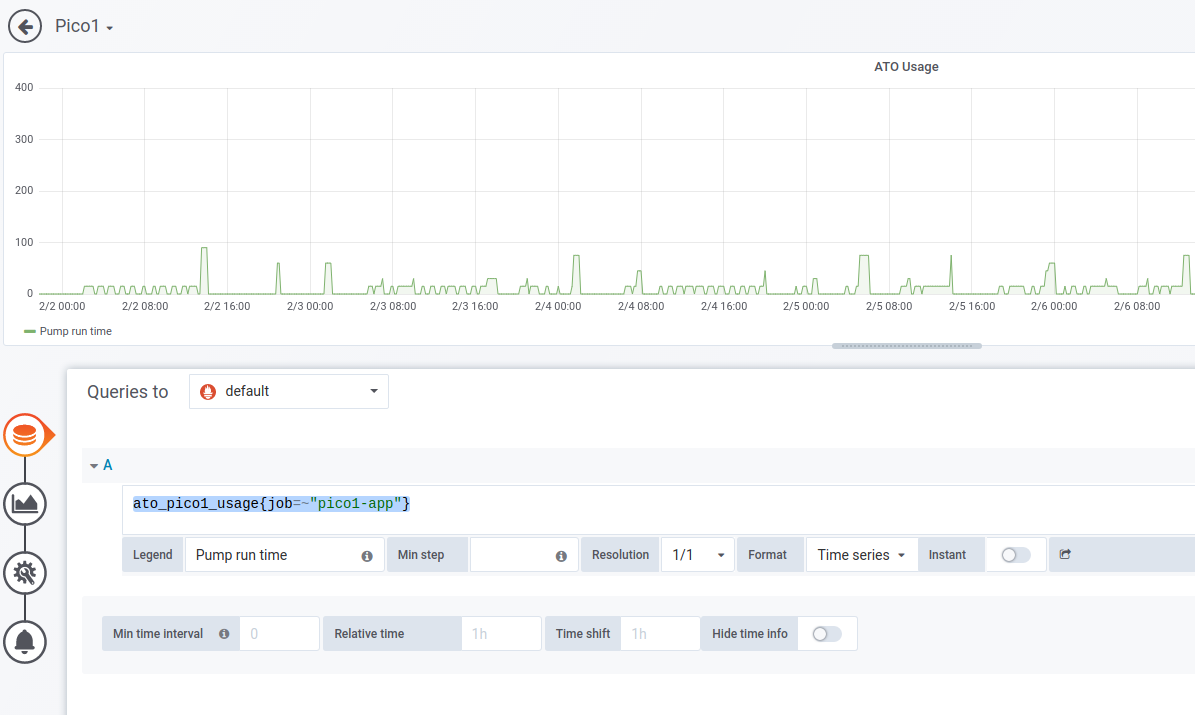

i changed the metrics emission code during 4.0 https://github.com/reef-pi/reef-pi/pull/1121 , so this is expected in all 4.0 installations,Updated to 4.1 and its reporting correctly the usage but it doesn't reset to 0 once it runs, the reading stays at the last value. I thought it would read the value and then reset to 0 like its doing on the ATO graph, I'm obviously missing something.
Here is the journalctl entries...
Code:Feb 09 12:55:57 octopi reef-pi[17454]: 2021/02/09 12:55:57 ato-subsystem: sensor: ato-dt usage: 10 Feb 09 12:56:02 octopi reef-pi[17454]: 2021/02/09 12:56:02 ato-subsystem: sensor: ato-dt state: 1 Feb 09 12:56:02 octopi reef-pi[17454]: 2021/02/09 12:56:02 ato-subsystem: sensor: ato-dt usage: 10 Feb 09 12:56:05 octopi reef-pi[17454]: 2021/02/09 12:56:05 API Request:' GET /api/atos/3/usage' from: 10.99.99.146:52618 Feb 09 12:56:07 octopi reef-pi[17454]: 2021/02/09 12:56:07 ato-subsystem: sensor: ato-dt state: 1 Feb 09 12:56:07 octopi reef-pi[17454]: 2021/02/09 12:56:07 ato-subsystem: sensor: ato-dt usage: 10 Feb 09 12:56:12 octopi reef-pi[17454]: 2021/02/09 12:56:12 ato-subsystem: sensor: ato-dt state: 1 Feb 09 12:56:12 octopi reef-pi[17454]: 2021/02/09 12:56:12 ato-subsystem: sensor: ato-dt usage: 10 Feb 09 12:56:15 octopi reef-pi[17454]: 2021/02/09 12:56:15 API Request:' GET /api/atos/3/usage' from: 10.99.99.146:52632 Feb 09 12:56:17 octopi reef-pi[17454]: 2021/02/09 12:56:17 ato-subsystem: sensor: ato-dt state: 1 Feb 09 12:56:17 octopi reef-pi[17454]: 2021/02/09 12:56:17 ato-subsystem: sensor: ato-dt usage: 10 Feb 09 12:56:22 octopi reef-pi[17454]: 2021/02/09 12:56:22 ato-subsystem: sensor: ato-dt state: 1
Looks like at the top of the hour it reset to 0, scratching my head now since I am not sure how this is supposed to work.
OP
OP
Just to explain furthers, this is as expected. there was a bug in 3.x , which is why you saw the change in 4.0 upgrade. The current graph is correct, as in it "charts hourly usage, aka pump run time", this metric is useful as the exact time you can see when the pump started (increments should reflect your check interval in seconds) and it will reset to 0 every hour. In long term (2-7 days) this should show the hourly pattern and its variation in seasons and help you set the alert threshold (which is in pump usage / hour).
OP
OP
Just to reiterate, there was no errors in reef-pi log?
OP
OP
i mean, we have to do some design & coding work, and follow up testing/validation. The design work will involve at least settling on a common stepper driver (e.g. 8825??) for the standard build, the coding work i.e. HAL integration and any UI(driver??) work, and finally testing it out.
Correct no errors.
And I have a different relay stuck on. I came downstairs to find my sump lights on despite being turned off in the UI. When I manually turned it on then back off nothing happened. I have moved my sump light over to a mechanical timer just in case its causing the issue. Its a zet light LED and its plug converts ac to 24 v DC. I will restart and hope the relay starts working again.
OP
OP
You probed the GPIO output at every junction till it connects to the relay input, and validated the voltages are as expect (if i recall correctly, it should be around 3.3v at GPIO on). This should help you isolate the problem at circuit vs relay itself.
I think I know what is happening. Power off the reboot did nothing. Power off, tap the relay with a screw driver and reboot and it functions correctly. That suggests they are sticking due to arcing right? If that is the case what do I do?
bishoptf
Valuable Member
Thanks @Ranjib for the quick reply that is exactly what I am seeing, I knew it had to be coded since it reset on the hour. I will update my other reefpi installation to the latest, the upgrade so far was painless and everything appears to be working fine. My goal is to replicate all the graphs with grafana and just use it to monitor vs the dashboard, that way I will free up resources on the pi.
One more question, I am using a dosing module but do not see anything on prometheus to allow to monitor the dosing module, is that correct or did I miss it?
Thanks
GaryE
Well-Known Member
Nope. After I removed the pots, I noticed the blue channel on that light wasn't dimming. Tested everything and came down to something in the driver. Had power, ground and pwm signal all the way to the driver.
Traced the pwm pin from the jst on the driver board to something that looked suspiciously like a smoked AO3400 mosfet. Just so happened to have a spare on my desk.
May not be that exact mosfet, but good enough. It's working correctly now.
Well, more like the d@mned thing is off like it should be for this time of night. We'll see tomorrow.. ;-)
It is possible to rig up an Arduino board to read the doser signal from reef-pi and then run stepper motor drivers. This is what I did on my tank for dosing and AWC with DIY peristaltic pumps. You can read about it on my build thread.
Thanks for letting me know. I assume you just unplugged JST from dimmer and can wire to it? Just lost that nice carrier board? Seemed too good to be true.
Yeah you can do that, plug the doser signal into an analog pin on Arduino and have code monitor it for action.
How would it work with an analog pin? I have the Arduino reading the duty cycle of the PWM signal from the reef pi with a digital pin. Every second or so, it measures the length of the duty cycle by averaging a large number of samples from pulseIn(), to filter out noise. A bit elaborate, though it's been pretty reliable. Would be nice to have a simpler solution, though!
I'm assuming you have the Arduino able to run the dosing pumps so all you need to know is when to start/stop the pump. If you connect PWM signal to an analog pin you can read the voltage from the PWM pin and use that to trigger things. When the PWM is off you'll have 0v and on you'll have 3.3v-5v depending on your setup. If you map out the voltage in Arduino code you can use the speed control feature in reef-pi for whatever but this is all you need to for start/stop. If you have the timing setup in Arduino code just add a flag to the start dosing pump section so it only runs once until you reset flag in Arduino.
C++:
int analogPin = A0;
int analogValue = 0;
void setup() {
}
void loop() {
analogValue = analogRead(analogPin);
if (analogValue > 100) {
// start dosing pump
}
else {
// stop dosing pump
}
}
Des Westcott
Well-Known Member
Does reef-pi support control for smart switches running Tasmota?
GaryE
Well-Known Member
Thanks for letting me know. I assume you just unplugged JST from dimmer and can wire to it? Just lost that nice carrier board? Seemed too good to be true.
I did.. but I just butted the jst connectors on my wires together and used some pins I had laying around (ends from large axial resistors) to connect them together. The real question I have is what caused the mosfet to blow in the driver..
No but I certainly can.
GaryE
Well-Known Member
and I think the mosfet blew again.. or something equally stupid. The wife just texted me and that light has no blues on right now. I'd like to swap out the driver with a meanwell, but I have yet go find one that matches the specs closely enough to make me feel good about doing it.
