@Ranjib can I set a doser to dose in milliseconds ? Or in seconds with a decimal value, like 68.124 seconds.
The error message shown if no duration is set is saying "An integer number >= 1 is required!" so I think i can't use float values. (but they are accepted, but converted from dot to comma ie 12.345 => 12,345 strange for an english app, as decimal part is delimited with dot in english)

To be short, setting 58.812 is converted to 58,812, will I dose for 58 seconds and 812 milliseconds or 58812 seconds ?

OP
Ranjib

Ranjib

7500 Club Member
Review score
+0 /0 /-0
View Badges
Joined
Apr 16, 2016
Messages
9,479
Reaction score
16,437
Review score
+0 /0 /-0
Location
Pleasant Hill, Concord
@Ranjib can I set a doser to dose in milliseconds ? Or in seconds with a decimal value, like 68.124 seconds.
The error message shown if no duration is set is saying "An integer number >= 1 is required!" so I think i can't use float values. (but they are accepted, but converted from dot to comma ie 12.345 => 12,345 strange for an english app, as decimal part is delimited with dot in english)

To be short, setting 58.812 is converted to 58,812, will I dose for 58 seconds and 812 milliseconds or 58812 seconds ?
This is for dc or stepper based doser? for dc motor based doser that uses pwm, it s 58812 seconds

Top Shelf Aquatics

iLMaRiO

Active Member
Review score
+0 /0 /-0
View Badges
Joined
Jun 24, 2020
Messages
343
Reaction score
70
Review score
+0 /0 /-0
This is for dc or stepper based doser? for dc motor based doser that uses pwm, it s 58812 seconds

It's a DC doser, I need to dose a fraction of second, is this possible in some way ?

Other question: i've noticed that when reef-pi shuts down, all dosing pumps start to dose, is anything wrong in my configuration or my controller ? (i'm using Robo-Tank). I did a simple raspberry reboot and all dosing started, forcing me to unplug the cables.


Tom Bishop

Well-Known Member
Review score
+0 /0 /-0
View Badges
Joined
Jan 1, 2019
Messages
866
Reaction score
1,322
Review score
+0 /0 /-0
Location
Missouri
Can you be specific which part is unclear from this guide: https://learn.adafruit.com/reef-pi-lighting-controller?view=all

you can use pi pwm directly instead of pca9685
Yeah its the 10v going through a resistor then we peel off the pwm connection going to the Kessil. I do not understand how that signal is being adjusted since its not going through the NPN, the pwm signal from the PI comes through the NPN and somehow switches the pwm signal to the kessil I just do not understand how its doing it.

I'm using pca9685, @Michael Lane hat or will be once I get the circtui soldered up.


robsworld78

Well-Known Member
Review score
+0 /0 /-0
View Badges
Joined
Feb 14, 2020
Messages
798
Reaction score
1,070
Review score
+0 /0 /-0
Location
Edmonton, Canada
It's a DC doser, I need to dose a fraction of second, is this possible in some way ?

Other question: i've noticed that when reef-pi shuts down, all dosing pumps start to dose, is anything wrong in my configuration or my controller ? (i'm using Robo-Tank). I did a simple raspberry reboot and all dosing started, forcing me to unplug the cables.
That doesn't sound good, has this happened before? I can't see reef-pi turning on the outputs and the DC ports have a pulldown resistor so they are forced off if no signal is present.

AS

Atrumblood

Active Member
Review score
+0 /0 /-0
View Badges
Joined
Mar 10, 2021
Messages
190
Reaction score
230
Review score
+0 /0 /-0
Location
Salt Lake City, Utah
Something changed with build 5.1 or 5.2 where setting up the dosing timers will not longer accept */4 to run every 4 hours. I get the error.

[ An integer, a range (e.g. 1-5) or * is required! ]

I am having issues figuring out the new requirements for scheduling. It used to be in cronjob format, now it's not?

OP
Ranjib

Ranjib

7500 Club Member
Review score
+0 /0 /-0
View Badges
Joined
Apr 16, 2016
Messages
9,479
Reaction score
16,437
Review score
+0 /0 /-0
Location
Pleasant Hill, Concord
Something changed with build 5.1 or 5.2 where setting up the dosing timers will not longer accept */4 to run every 4 hours. I get the error.

[ An integer, a range (e.g. 1-5) or * is required! ]

I am having issues figuring out the new requirements for scheduling. It used to be in cronjob format, now it's not?
this is a UI validation bug :-( . I'll fix it by next release

OP
Ranjib

Ranjib

7500 Club Member
Review score
+0 /0 /-0
View Badges
Joined
Apr 16, 2016
Messages
9,479
Reaction score
16,437
Review score
+0 /0 /-0
Location
Pleasant Hill, Concord
Getting some work done on the hardware side. Due to the supply chain shortage, I am out of supply for new pi. That means no pi zero w specifically. While strategically I am paying some attention to other boards (risc v in particularly ), tactically I need to increase the bench strength (of reef-pi controllers ) for backup and new tanks .

with that goal in mind, I started working on the older pi 3, 2 even model B . I had stopped using them in lieu of zero or 3a due to their smaller form factor and power consumption .

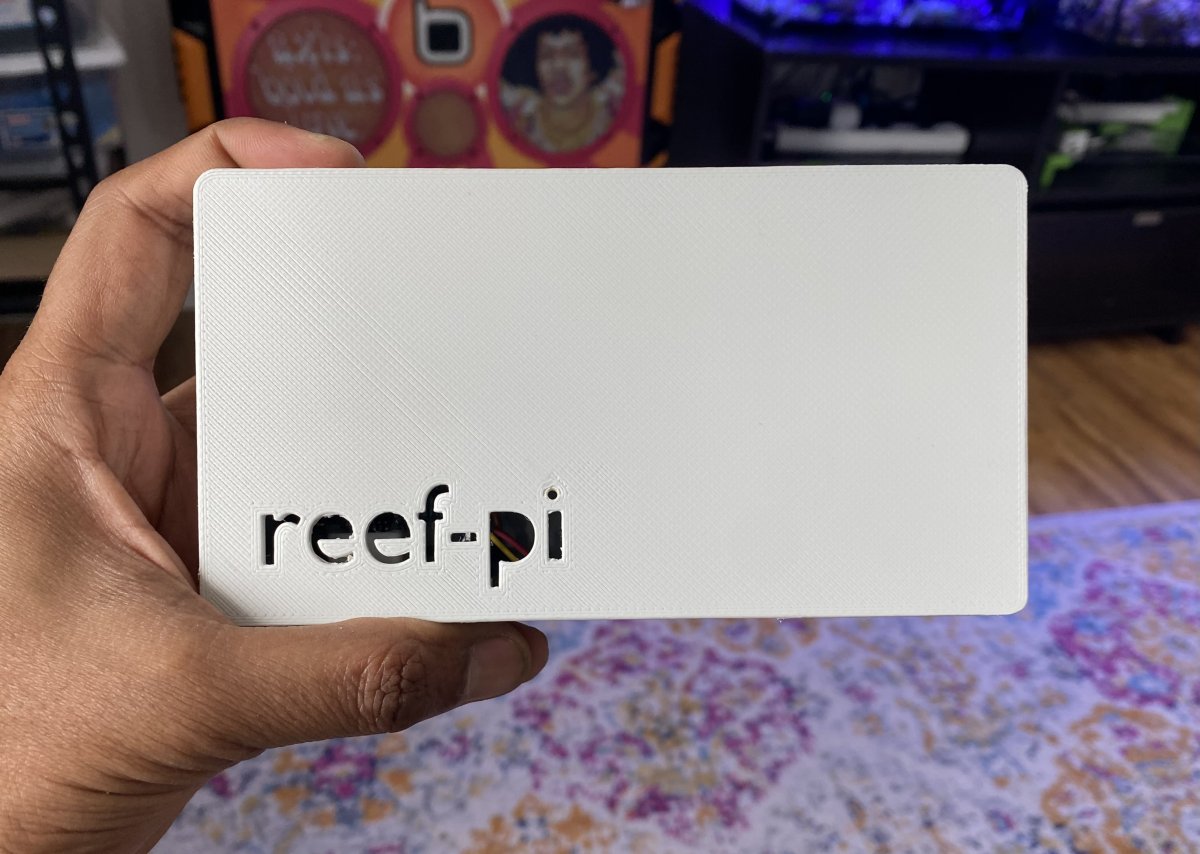

anyhow, this is one of the styles I settled with. This 3D printed enclosure houses a pi 3/4/2 , a temp sensor, a ph sensor and a ato sensor . It has recessed holes at the back and stand-off inside to mount the pi. This means the m2.5 steel screws are almost flat to the surface . Two less extra standoff required as well (compared to the previous ones). The wall is 3mm , feels very solid :). I used to stick to 2mm due to the smaller wall thickness required to mount the 3.5 mm female jacks . I addressed it by creating a small beveled segment in the bottom wall which has only 2mm wall thickness, with mounting holes for two 3.5 mm connectors . All corners are beveled and the lid + enclosure is designed for minimal exposed are , but all pi ports (usb, audio, hdmi etc) are still accessible . I’m very happy with the result . It’s captures my learning from past 3 years . If you check out my very first housing , you’ll know what I mean .

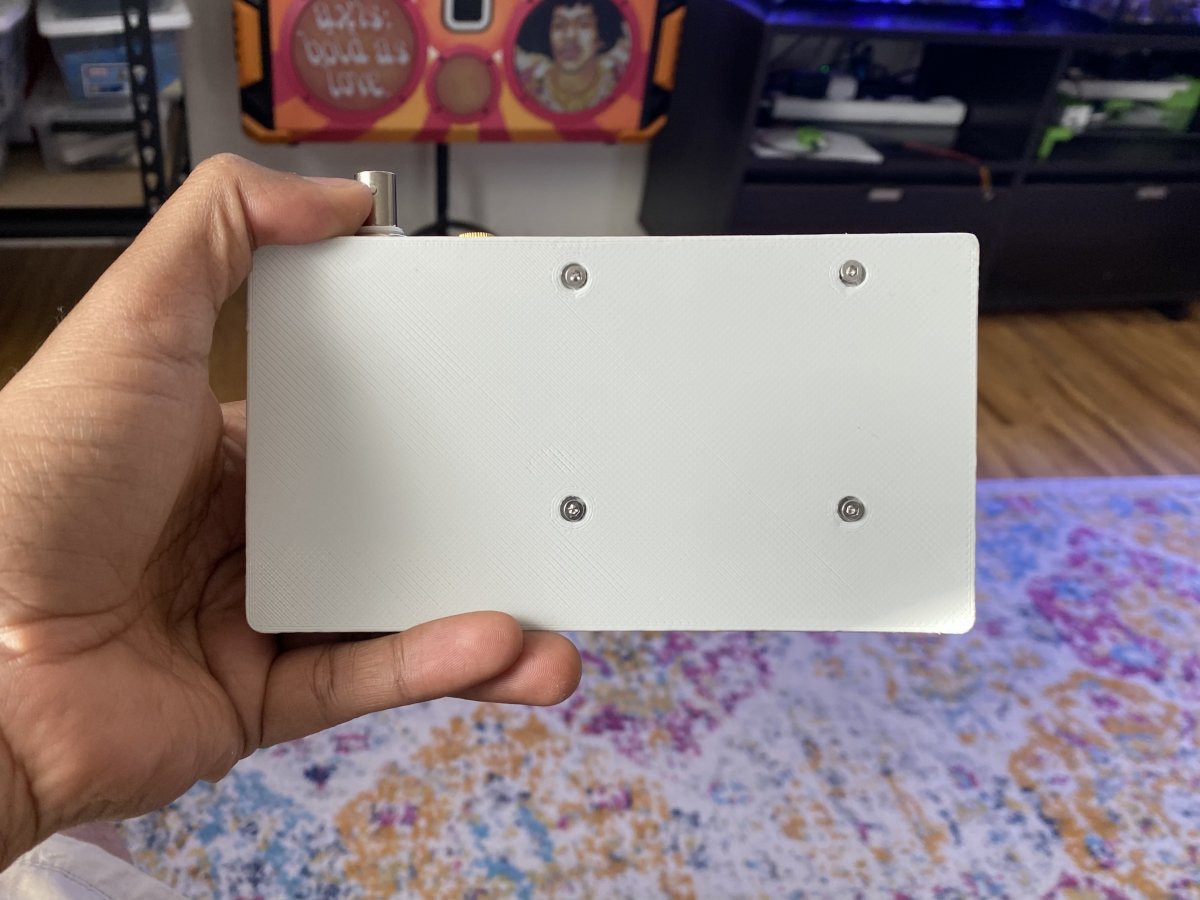

Back side

notice I moved from nylon screws to steel screws.

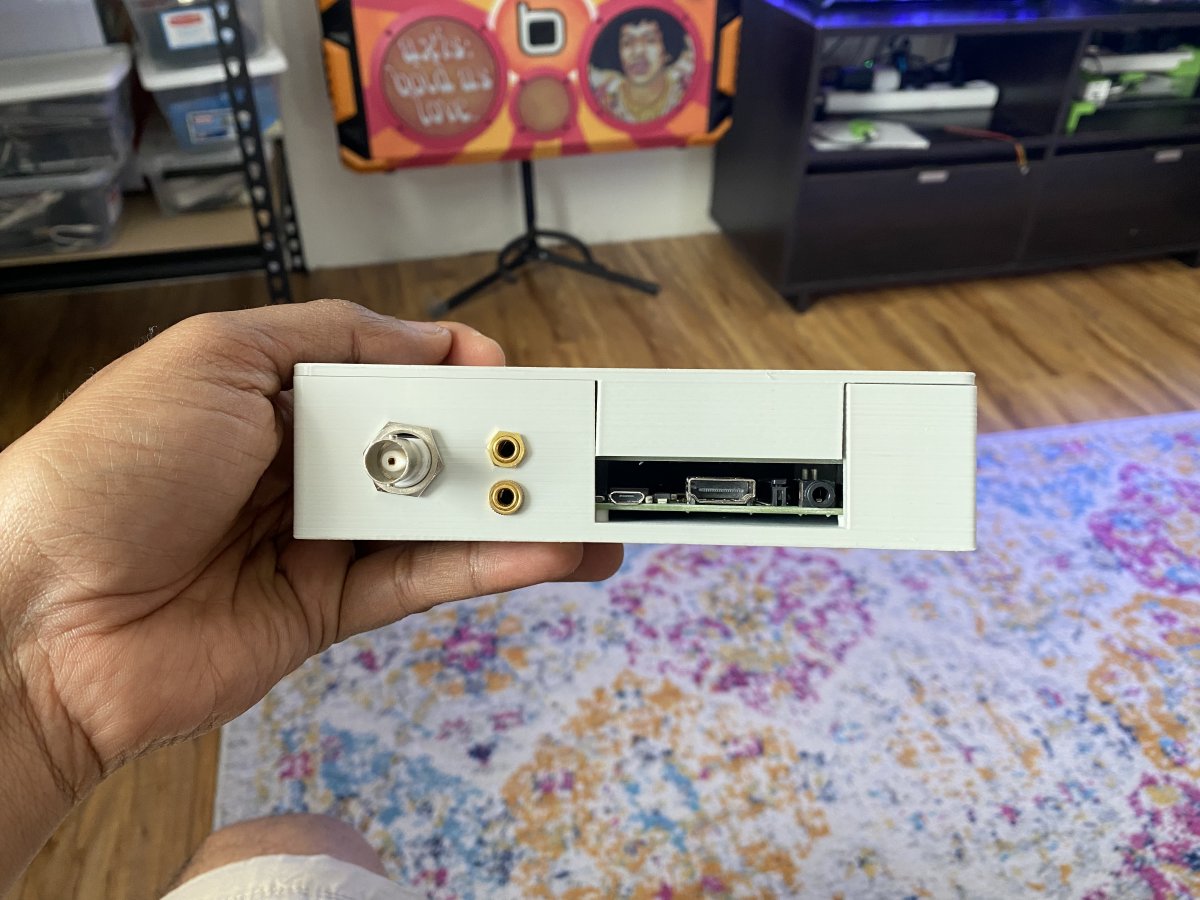

bottom side with all the connectors


side view , all pi ports are accessible

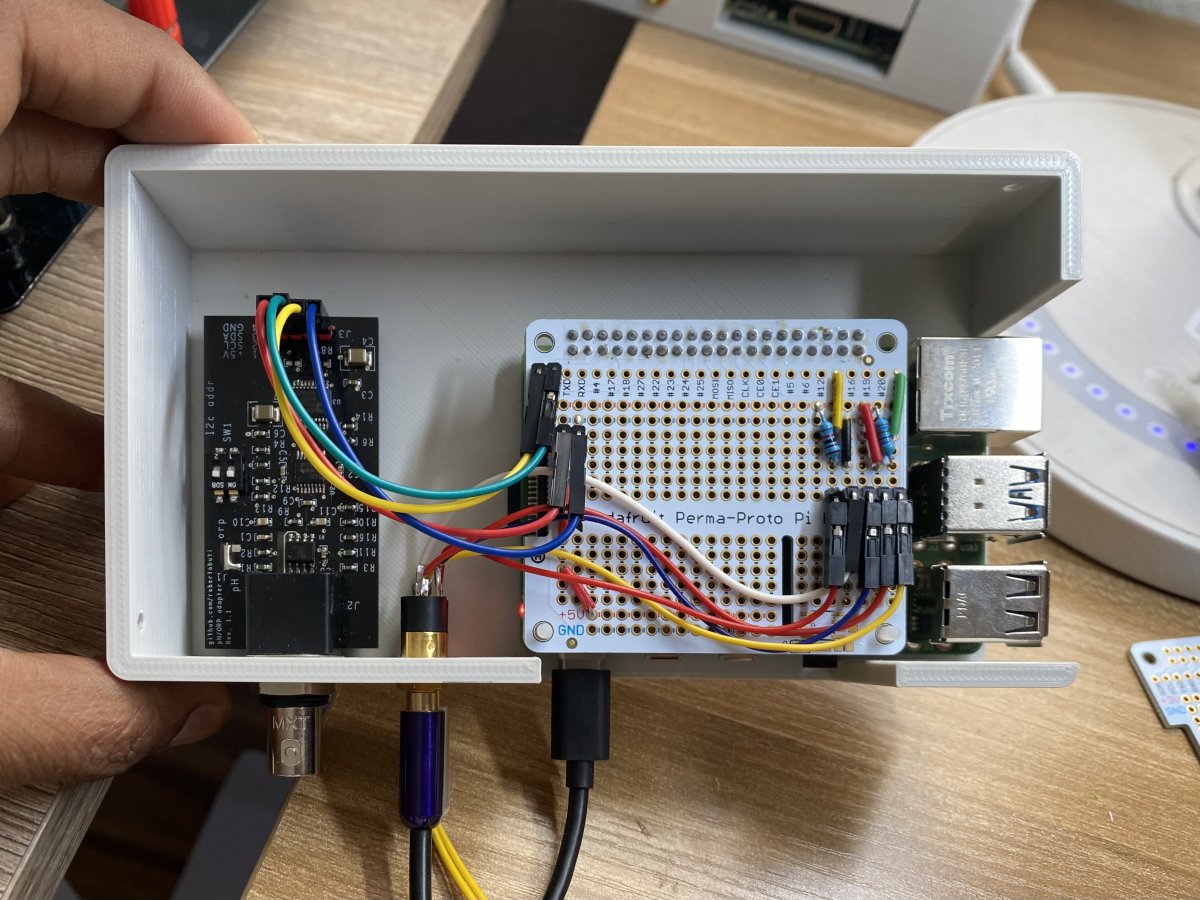

Here is how internally parts are arranged
