Hi guys, I'm trying to find a replacement union for my varios pump, unfortunately I did glued bad with the PVC pipe so I need to buy two 1" fittings, I already bought one but it seems like the threading is not the same.

OP
OP
E

enb141

Active Member
View Badges
Joined
May 20, 2018
Messages
303
Reaction score
75
Rating - 0%
0   0   0
Are you or have you tried to plug directly to the pump or are you using something after the included union?

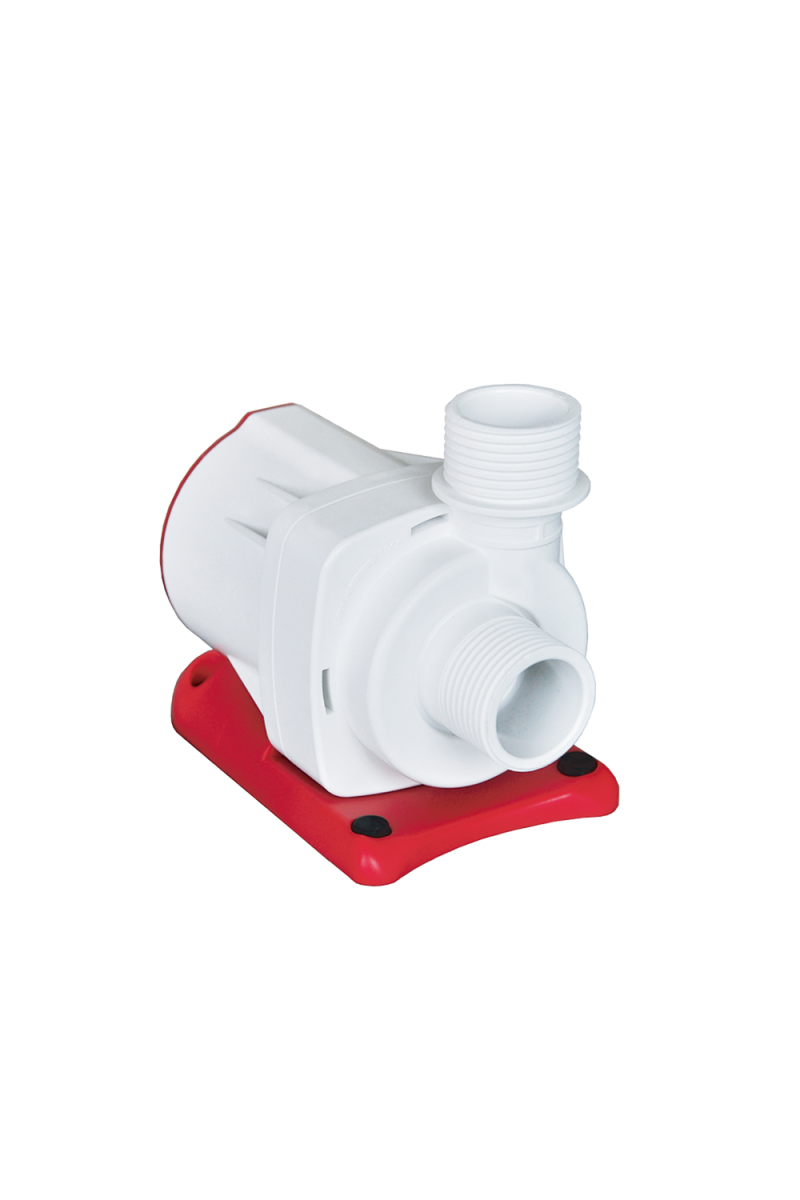

I'm looking for a union that fits the white threads of the pump as seen in the picture.


Attachments

  • VarioS-2-1.png
    253 KB · Views: 20
OP
OP
E

enb141

Active Member
View Badges
Joined
May 20, 2018
Messages
303
Reaction score
75
Rating - 0%
0   0   0
Those are metric threads. I bought a PVC threader for standard on Amazon and used the 1" on the pump. I then used a Home Depot threaded union. worked great
Do you have some pictures or links of the parts you got?


TangerineSpeedo

Valuable Member
View Badges
Joined
Jun 8, 2022
Messages
2,078
Reaction score
2,791
Location
SoCal
Rating - 0%
0   0   0
OP
OP
E

enb141

Active Member
View Badges
Joined
May 20, 2018
Messages
303
Reaction score
75
Rating - 0%
0   0   0

TangerineSpeedo

Valuable Member
View Badges
Joined
Jun 8, 2022
Messages
2,078
Reaction score
2,791
Location
SoCal
Rating - 0%
0   0   0
Thanks, but I think I found the replacement parts in UK, is cheaper an easier.



That is BSP (British Pipe Thread) it is not going to work. US is NPT (National Pipe Thread) not the same thread pitch as BSP. That is also Solvent weld metric (slip) to BSP

OP
OP
E

enb141

Active Member
View Badges
Joined
May 20, 2018
Messages
303
Reaction score
75
Rating - 0%
0   0   0
That is BSP (British Pipe Thread) it is not going to work. US is NPT (National Pipe Thread) not the same thread pitch as BSP. That is also Solvent weld metric (slip) to BSP

Actually the threaded part I needed to be BSP, as far as I know the Varios uses them instead of NPT. then for the Solvent is 1", that's supposed to be NPT that's why it shows as metric and imperial.


slogan315

Active Member
View Badges
Joined
Feb 6, 2023
Messages
285
Reaction score
143
Location
Fort Worth
Rating - 100%
1   0   0
Actually the threaded part I needed to be BSP, as far as I know the Varios uses them instead of NPT. then for the Solvent is 1", that's supposed to be NPT that's why it shows as metric and imperial.
I am having the same issue as you: Needing a replacement for the Varios 4 starting at the white threads. Can you elaborate more on your solution? Do you use the threaded female side of the union on the male pump threads?


SteveMM62Reef

Valuable Member
View Badges
Joined
Sep 21, 2020
Messages
2,201
Reaction score
1,410
Location
La Plata
Rating - 0%
0   0   0

Hope this helps. BTW, I believe most of the 24Vdc and 36Vdc Pumps with the Controller are BSPT, “British Standard Pipe Tread.” You will still need the Gasket, that came with the pump, for a water tight seal.

OP
OP
E

enb141

Active Member
View Badges
Joined
May 20, 2018
Messages
303
Reaction score
75
Rating - 0%
0   0   0

Hope this helps. BTW, I believe most of the 24Vdc and 36Vdc Pumps with the Controller are BSPT, “British Standard Pipe Tread.” You will still need the Gasket, that came with the pump, for a water tight seal.
Thanks for the link but what I need is this part


Attachments

  • Plastic-UPVC-PVC-Pipe-Union-Pipe-Fitting-Union-Connector-Coupling-ASTM-Sch-Grey-S-S-BS-ANSI-DI...jpg
    Plastic-UPVC-PVC-Pipe-Union-Pipe-Fitting-Union-Connector-Coupling-ASTM-Sch-Grey-S-S-BS-ANSI-DI...jpg
    71.1 KB · Views: 18

slogan315

Active Member
View Badges
Joined
Feb 6, 2023
Messages
285
Reaction score
143
Location
Fort Worth
Rating - 100%
1   0   0

Hope this helps. BTW, I believe most of the 24Vdc and 36Vdc Pumps with the Controller are BSPT, “British Standard Pipe Tread.” You will still need the Gasket, that came with the pump, for a water tight seal.
Thanks Steve! this is exactly what I needed


slogan315

Active Member
View Badges
Joined
Feb 6, 2023
Messages
285
Reaction score
143
Location
Fort Worth
Rating - 100%
1   0   0
Thanks for the link but what I need is this part
Looks like the you could use the adapter that steve provided to convert from metric threads to us standard, then it'll fit the standard schedule 40 pipe and fittings commonly available. So convert from metric to standard, then use any standard union you want

OP
OP
E

enb141

Active Member
View Badges
Joined
May 20, 2018
Messages
303
Reaction score
75
Rating - 0%
0   0   0
Looks like the you could use the adapter that steve provided to convert from metric threads to us standard, then it'll fit the standard schedule 40 pipe and fittings commonly available. So convert from metric to standard, then use any standard union you want
Unfortunately I'm space limited :(
