How do I set up the Rev C sensor extension board? There's a bunch of pads on the back, and it says 'All jumpers must be set to O or N' but it also says 'Default = Optical sensors', which is what I want to do...

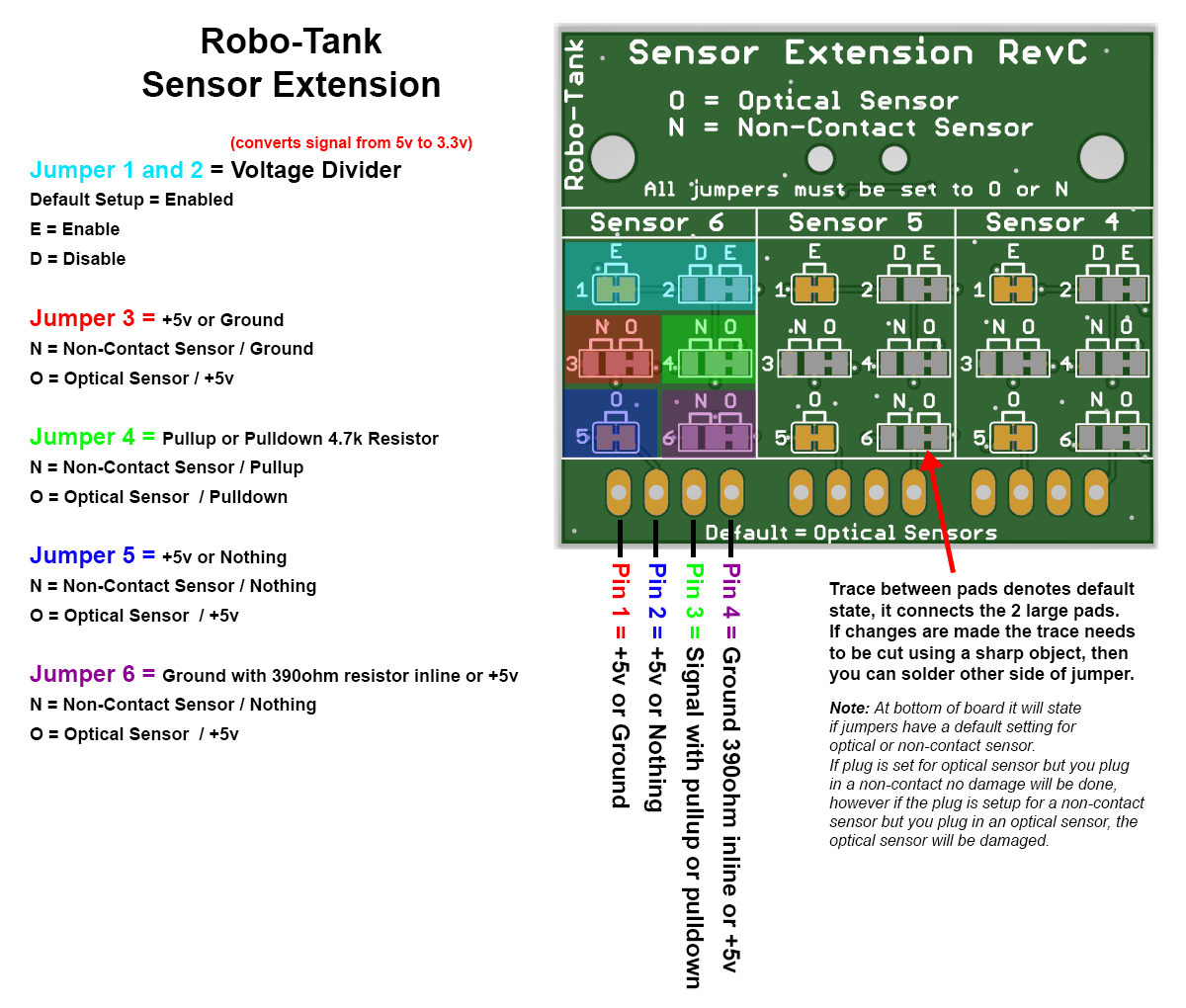

That board's for v1 controller, I had two types, one setup for optical sensors and one for non-contacts but those jumpers allow for both types if necessary. As yours says 'Default = Optical sensors' that board is already setup for optical sensors so it sounds like you don't need to do anything. For reference here's what those solder pads mean.


Corals.com
OP
robsworld78

robsworld78

Well-Known Member
Review score
+0 /0 /-0
View Badges
Joined
Feb 14, 2020
Messages
925
Reaction score
1,229
Review score
+0 /0 /-0
Location
Edmonton, Canada
Rating - 0%
0   0   0
Got my Robo-tank last week. Completed the setup and install. It was a breeze. Got the ATO working a day before leaving on vacation, threw in the ph probe and temp sensor as well, but didn’t have time to calibrate them. Seems the values are close enough, ok for now.

I used a tunze osmolator pump for the Ato, works well, but I had to get a 12v power supply, initially I had it set up with a 24v left over from a jebao power head and didn’t have time for a buck converter. Had a little bit of confusion with the DC outlets, buys simply moved the pump wires around to find the one that was working with the backup float.

Also set up remote access through duckdns on home assistant and a camera looking at the tank. Have checked it every day and it’s working pretty much on auto pilot.

I can see how many seconds and when the ATO came on which I can’t do with my apex.

Have not been able to send emails, I didn’t create an Adafruit account, just entered info in the email section, but have not received any alerts yet, nor the test email. Will figure it out once I get back.

Will try to start a build journal and throw up some pics and config.

As a bonus I got 3D printer too ….
Nice to hear you got it. Here's another manual with pictures showing the Gmail side of things


For reference DC port 1, 2 and 3 have a backup port marked DC1 Float, DC2 Float, etc... If no jumper is added to those ports the DC ports won't work. The idea with these is you can add a float switch which will turn off the port no matter what the Pi or reef-pi says, maybe an SD card fails or something this will still turn off the port. If you don't need that adding a jumper will bypass it. You'll also see AC1 and AC2 float, these are the same idea for AC outlet 1 and 2, without a jumper added those outlets won't work.


Adahm

Community Member
Review score
+0 /0 /-0
View Badges
Joined
Jan 25, 2017
Messages
33
Reaction score
24
Review score
+0 /0 /-0
Rating - 0%
0   0   0
Thanks guys, got the gmail working. I was missing the step about app passwords and reloading Reef-pi.

Getting Alerts for temp :eek: I didn’t set my heater high enough.

Thanks @robsworld78 I have two floats hooked up and working one for AC Return pump so it doesn’t run dry and one for DC ATO to prevent over filling, love this extra failsafe feature of Robo-tank.

OP
robsworld78

robsworld78

Well-Known Member
Review score
+0 /0 /-0
View Badges
Joined
Feb 14, 2020
Messages
925
Reaction score
1,229
Review score
+0 /0 /-0
Location
Edmonton, Canada
Rating - 0%
0   0   0
Thanks guys, got the gmail working. I was missing the step about app passwords and reloading Reef-pi.

Getting Alerts for temp :eek: I didn’t set my heater high enough.

Thanks @robsworld78 I have two floats hooked up and working one for AC Return pump so it doesn’t run dry and one for DC ATO to prevent over filling, love this extra failsafe feature of Robo-tank.
Great, good to hear.
