dang. It's not *quite* enough. As I understand it, it should be trivial to create a simple on/off relay box, the same as the power strip, but with DC in and DC out, yeah? 5.5mm jacks are pretty much ubiqutious. I bet that's something a lot of people are looking for but don't know they're looking for - you'd get all the benefits of a power bar but without all the extra bricks.
I discovered that link I posted was useless, I couldn't really find anything nice and relay modules are only those blue things so I am going to make one this week, it'll work directly with a Pi or controller.


level16gazebo

Active Member
Review score
+0 /0 /-0
View Badges
Joined
Apr 29, 2017
Messages
175
Reaction score
91
Review score
+0 /0 /-0
Rating - 0%
0   0   0
I discovered that link I posted was useless, I couldn't really find anything nice and relay modules are only those blue things so I am going to make one this week, it'll work directly with a Pi or controller.
Am I wrong to think that you could just replace the connectors on the existing AC power strip design, and instead of feeding in 120vAC, you could feed in 24vDC? It'd be much bigger than needed, but should be drop-in.

Aquarium Specialty - dry goods & marine livestock
OP
robsworld78

robsworld78

Well-Known Member
Review score
+0 /0 /-0
View Badges
Joined
Feb 14, 2020
Messages
925
Reaction score
1,229
Review score
+0 /0 /-0
Location
Edmonton, Canada
Rating - 0%
0   0   0
Am I wrong to think that you could just replace the connectors on the existing AC power strip design, and instead of feeding in 120vAC, you could feed in 24vDC? It'd be much bigger than needed, but should be drop-in.
That could be done but it would get quite messy. It would be easier to use something like this.


You could use something like this to connect easily to controller.



level16gazebo

Active Member
Review score
+0 /0 /-0
View Badges
Joined
Apr 29, 2017
Messages
175
Reaction score
91
Review score
+0 /0 /-0
Rating - 0%
0   0   0
That could be done but it would get quite messy. It would be easier to use something like this.


You could use something like this to connect easily to controller.

I've now got a working prototype on my desk. Now I just need to figure out how to house it. Which is really 'how small of a junction box can I get away with'. Thanks for the help!

OP
robsworld78

robsworld78

Well-Known Member
Review score
+0 /0 /-0
View Badges
Joined
Feb 14, 2020
Messages
925
Reaction score
1,229
Review score
+0 /0 /-0
Location
Edmonton, Canada
Rating - 0%
0   0   0
I've now got a working prototype on my desk. Now I just need to figure out how to house it. Which is really 'how small of a junction box can I get away with'. Thanks for the help!
Good to hear, yeah now the fun begins with packaging haha.

Top Shelf Aquatics

Adahm

Community Member
Review score
+0 /0 /-0
View Badges
Joined
Jan 25, 2017
Messages
33
Reaction score
24
Review score
+0 /0 /-0
Rating - 0%
0   0   0
Hello, I was planning to build a Reefpi controller using a rpi zero and came across the robo-tank board. This is excellent work you have done @robsworld78 !

I’ll be using it for a new 40 breeder build with at least 1 temp sensor, 1 ph, ATO, wave maker pump, and lights.

I have a question regarding the power strip. I already purchased an American DJ scrp8 relay pack and would like to know if it would work with the db9 connectors on the Robo-tank board?

OP
robsworld78

robsworld78

Well-Known Member
Review score
+0 /0 /-0
View Badges
Joined
Feb 14, 2020
Messages
925
Reaction score
1,229
Review score
+0 /0 /-0
Location
Edmonton, Canada
Rating - 0%
0   0   0
Hello, I was planning to build a Reefpi controller using a rpi zero and came across the robo-tank board. This is excellent work you have done @robsworld78 !

I’ll be using it for a new 40 breeder build with at least 1 temp sensor, 1 ph, ATO, wave maker pump, and lights.

I have a question regarding the power strip. I already purchased an American DJ scrp8 relay pack and would like to know if it would work with the db9 connectors on the Robo-tank board?
Thanks Adahm, unfortunately it won't work with those power bars, they require +12v to switch each relay. I designed my power bar so I could run the DB9 directly to various GPIO pins on the Pi so they could be used for other things as well. To use that power bar you would need to build out the circuit shown here. Where the ULN2803A connects to the 8 Pi GPIOs would instead go to the DB9.



Adahm

Community Member
Review score
+0 /0 /-0
View Badges
Joined
Jan 25, 2017
Messages
33
Reaction score
24
Review score
+0 /0 /-0
Rating - 0%
0   0   0
Thanks Adahm, unfortunately it won't work with those power bars, they require +12v to switch each relay. I designed my power bar so I could run the DB9 directly to various GPIO pins on the Pi so they could be used for other things as well. To use that power bar you would need to build out the circuit shown here. Where the ULN2803A connects to the 8 Pi GPIOs would instead go to the DB9.

No worries, thanks for responding. I already placed an order on your website. Can't wait to set it up!

Top Shelf Aquatics
OP
robsworld78

robsworld78

Well-Known Member
Review score
+0 /0 /-0
View Badges
Joined
Feb 14, 2020
Messages
925
Reaction score
1,229
Review score
+0 /0 /-0
Location
Edmonton, Canada
Rating - 0%
0   0   0
@robsworld78 Are you shipping the 2.0 version yet?
Hi @BlakeL, I do have and shipping v2 however I'm not liking it mainly due to assembly as things are so cramped, it's turning out to be more difficult than v1 which isn't good for me or others who get DIY. This is rather unfortunate and now I'm working hard on making a big change, I'll post about it when it's complete. At this point I'm not planning to get anymore v2 and hoping to have this ready to ship in the next 2-3 weeks.

Top Shelf Aquatics

BlakeFL

Community Member
Review score
+0 /0 /-0
View Badges
Joined
Dec 8, 2012
Messages
29
Reaction score
31
Review score
+0 /0 /-0
Rating - 0%
0   0   0
Hi @BlakeL, I do have and shipping v2 however I'm not liking it mainly due to assembly as things are so cramped, it's turning out to be more difficult than v1 which isn't good for me or others who get DIY. This is rather unfortunate and now I'm working hard on making a big change, I'll post about it when it's complete. At this point I'm not planning to get anymore v2 and hoping to have this ready to ship in the next 2-3 weeks.
Thanks for the response. I was looking at the DIY kit so I'll check back in a few weeks.


Daveh99

New Member
Review score
+0 /0 /-0
View Badges
Joined
Aug 2, 2021
Messages
1
Reaction score
2
Review score
+0 /0 /-0
Location
North Yorkshire
Rating - 0%
0   0   0
@robsworld78 I just received my V2 today, is there anything I should be aware of as it sounds like you are not happy with the board? also, can you tell me which resistors I need to remove on the sensor extension board so I can use non-optical level sensors please?

World Wide Corals
OP
robsworld78

robsworld78

Well-Known Member
Review score
+0 /0 /-0
View Badges
Joined
Feb 14, 2020
Messages
925
Reaction score
1,229
Review score
+0 /0 /-0
Location
Edmonton, Canada
Rating - 0%
0   0   0
@robsworld78 I just received my V2 today, is there anything I should be aware of as it sounds like you are not happy with the board? also, can you tell me which resistors I need to remove on the sensor extension board so I can use non-optical level sensors please?
Sorry for taking so long to get back, it should work ok, if you have any problems let me know. The main reason is assembly but the boards also seem lower quality, I don't know if it's because they are cheap 4 layer boards but something different about them and I don't like it, the more I touch them the less I like. It's really disappointing for lots of reasons and really sorry to everyone for getting exciting and I drop this. I need to make this as easy as possible for it to work and unfortunately this was a step back.

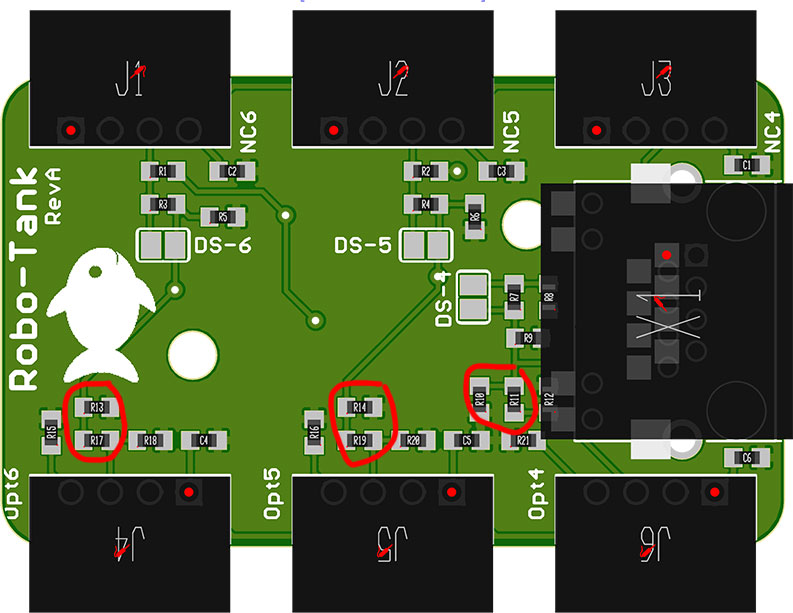

Ah yes those resistors, something I do have fixed. Here's an image showing the 2 resistors circled for each port. Once you remove those the Optical port won't work and the non-contact should.


Attachments

  • v2_sensor_extension_no_jumpers.jpg
    88.7 KB · Views: 70
OP
robsworld78

robsworld78

Well-Known Member
Review score
+0 /0 /-0
View Badges
Joined
Feb 14, 2020
Messages
925
Reaction score
1,229
Review score
+0 /0 /-0
Location
Edmonton, Canada
Rating - 0%
0   0   0
Maybe a discount on leftover V2 boards?
Probably but they will be DIY which in a sense I'm setting people up for trouble. The RJ45 isn't fun especially with things in the way and the 40 pin header for Pi is in the middle of a bunch of connectors, SMH...


Adahm

Community Member
Review score
+0 /0 /-0
View Badges
Joined
Jan 25, 2017
Messages
33
Reaction score
24
Review score
+0 /0 /-0
Rating - 0%
0   0   0
Got my Robo-tank last week. Completed the setup and install. It was a breeze. Got the ATO working a day before leaving on vacation, threw in the ph probe and temp sensor as well, but didn’t have time to calibrate them. Seems the values are close enough, ok for now.

I used a tunze osmolator pump for the Ato, works well, but I had to get a 12v power supply, initially I had it set up with a 24v left over from a jebao power head and didn’t have time for a buck converter. Had a little bit of confusion with the DC outlets, buys simply moved the pump wires around to find the one that was working with the backup float.

Also set up remote access through duckdns on home assistant and a camera looking at the tank. Have checked it every day and it’s working pretty much on auto pilot.

I can see how many seconds and when the ATO came on which I can’t do with my apex.

Have not been able to send emails, I didn’t create an Adafruit account, just entered info in the email section, but have not received any alerts yet, nor the test email. Will figure it out once I get back.

Will try to start a build journal and throw up some pics and config.

As a bonus I got 3D printer too ….

World Wide Corals

Ranjib

7500 Club Member
Review score
+0 /0 /-0
View Badges
Joined
Apr 16, 2016
Messages
9,770
Reaction score
16,911
Review score
+0 /0 /-0
Location
Pleasant Hill, Concord
Rating - 0%
0   0   0
Got my Robo-tank last week. Completed the setup and install. It was a breeze. Got the ATO working a day before leaving on vacation, threw in the ph probe and temp sensor as well, but didn’t have time to calibrate them. Seems the values are close enough, ok for now.

I used a tunze osmolator pump for the Ato, works well, but I had to get a 12v power supply, initially I had it set up with a 24v left over from a jebao power head and didn’t have time for a buck converter. Had a little bit of confusion with the DC outlets, buys simply moved the pump wires around to find the one that was working with the backup float.

Also set up remote access through duckdns on home assistant and a camera looking at the tank. Have checked it every day and it’s working pretty much on auto pilot.

I can see how many seconds and when the ATO came on which I can’t do with my apex.

Have not been able to send emails, I didn’t create an Adafruit account, just entered info in the email section, but have not received any alerts yet, nor the test email. Will figure it out once I get back.

Will try to start a build journal and throw up some pics and config.

As a bonus I got 3D printer too ….
you can test the email integration by sending a test email


Adahm

Community Member
Review score
+0 /0 /-0
View Badges
Joined
Jan 25, 2017
Messages
33
Reaction score
24
Review score
+0 /0 /-0
Rating - 0%
0   0   0
you can test the email integration by sending a test email
Thanks Ranjib

I did try sending the test email

I have input the information like below:
of course the password is for my gmail account. I will try a few different emails and see if it comes through.

Currently I tried sending as a text to my phone, which I tested to be working when I send an email to it with my gmail account, I receive a test message.

The test email is just not coming through from reef-pi
