The new SLIP.7 for nano back compartments

SantaMonica

Valuable Member
View Badges
Joined
Sep 16, 2008
Messages
1,948
Reaction score
522
Location
Santa Monica, California, USA
a slip.7-front-corner-right.jpg


a slip.7-front-corner-left.jpg


a slip.7-parts.jpg


a slip.7-parts2.jpg



The new SLIP.7 for nano back compartments. It can be operated in these combinations:


Waterfall algae scrubber for up to 0.7 frozen cubes of food a day.
- Fed from top water tubing
- Fed from bottom water tubing
- Fed from display overflow into back compartment

Chaeto reactor for up to 0.3 frozen cubes of food a day.
- Fed from top water tubing
- Fed from bottom water tubing
- Fed from display overflow into back compartment

Upflow algae scrubber for up to 0.7 frozen cubes of food a day.
- Fed from top air line
- Fed from bottom air line

Combo waterfall and chaeto.
- Fed from top water tubing
- Fed from bottom water tubing
- Fed from display overflow into back compartment

Combo waterfall and upflow (when compartment is halfway full).
- Fed from top water tubing and top air line
- Fed from top water tubing and bottom air line
- Fed from bottom water tubing and top air line
- Fed from bottom water tubing and bottom air line
- Fed from display overflow into back compartment, and top air line
- Fed from display overflow into back compartment, and bottom air line

Combo chaeto and upflow (grow chaeto first, then turn on bubbles to grow algae on chaeto).
- Fed from top water tubing, and top air line on switch
- Fed from top water tubing, and bottom air line on switch
- Fed from bottom water tubing, and top air line on switch
- Fed from bottom water tubing, and bottom air line on switch
- Fed from display overflow into back compartment, and top air line on switch
- Fed from display overflow into back compartment, and bottom air line on switch

Combo waterfall, chaeto and upflow (when compartment is halfway full; grow chaeto first, then turn on bubbles to grow algae on chaeto).
- Fed from top water tubing, and top air line on switch
- Fed from top water tubing, and bottom air line on switch
- Fed from bottom water tubing, and top air line on switch
- Fed from bottom water tubing, and bottom air line on switch
- Fed from display overflow into back compartment, and top air line on switch
- Fed from display overflow into back compartment, and bottom air line on switch

Happy filtering!

OP
SantaMonica

SantaMonica

Valuable Member
View Badges
Joined
Sep 16, 2008
Messages
1,948
Reaction score
522
Location
Santa Monica, California, USA
SLIP.7 setup for chaeto only (saltwater), overflow fed.


slip.7 setup vid thumb - chaeto only overflow fed.JPG





















Using the overflow from a nano display, to feed into the top of the SLIP.7 which slips down into the back of nano AIO back compartment sumps.

Not shown is the GEM5 black shade screen inside.

Dimensions:

9 inches tall (23 cm)
3 1/2 inches wide (9 cm)
1 3/4 inches thick (4.5 cm)

Also, a small block of black filter foam could be added at the botton to catch any chaeto particles, and to block all remaining light out of the bottom.

Version 1.1

SLIP and SLIP.7 are (TM) trademarks of Santa Monica Filtration®

Patents 9115008, 9708207, 9334184, CN203392929U, and other patents pending.

OP
SantaMonica

SantaMonica

Valuable Member
View Badges
Joined
Sep 16, 2008
Messages
1,948
Reaction score
522
Location
Santa Monica, California, USA
SLIP.7 setup for waterfall only (freshwater or saltwater), bottom fed.


slip.7 setup vid thumb - waterfall only - bottom fed.JPG



Use a small water pump to feed into the bottom of the SLIP.7 which then slips down into the back of nano AIO back compartment sumps.

Dimensions:
9 inches tall (23 cm)
3 1/2 inches wide (9 cm)
1 3/4 inches thick (4.5 cm)

Not shown is the GEM5 black shade screen inside.

Also, a small block of black filter foam could be added at the botton to catch any algae particles, and to block all remaining light out of the bottom.

Version 1.1

SLIP and SLIP.7 are (TM) trademarks of Santa Monica Filtration®

Patents 9115008, 9708207, 9334184, CN203392929U, and other patents pending.

OP
SantaMonica

SantaMonica

Valuable Member
View Badges
Joined
Sep 16, 2008
Messages
1,948
Reaction score
522
Location
Santa Monica, California, USA
SLIP.7 setup for upflow only (saltwater or freshwater), top fed








Use a small air pump to air into the top of the SLIP.7 which then slips down into the back of nano AIO back compartment sumps.

Dimensions:
9 inches tall (23 cm)
3 1/2 inches wide (9 cm)
1 3/4 inches thick (4.5 cm)

Not shown is the GEM5 black shade screen inside.

Also, a small block of black filter foam could be added at the botton to catch any algae particles, and to block all remaining light out of the bottom.

Version 1.1

SLIP and SLIP.7 are (TM) trademarks of Santa Monica Filtration®

Patents 9115008, 9708207, 9334184, CN203392929U, and other patents pending.

OP
SantaMonica

SantaMonica

Valuable Member
View Badges
Joined
Sep 16, 2008
Messages
1,948
Reaction score
522
Location
Santa Monica, California, USA
SLIP.7 setup for chaeto with bubbles, bottom fed



Neat trick for saltwater: Grow chaeto first, then turn on air bubbles to grow slime, GHA, or cyano on the chaeto, then harvest all of it together.

Use a small water pump and air pump for the bottom of the SLIP.7 which then slips down into the back of nano AIO back compartment sumps.

Dimensions:
9 inches tall (23 cm)
3 1/2 inches wide (9 cm)
1 3/4 inches thick (4.5 cm)

Not shown is the GEM5 black shade screen inside.

Also, a small block of black filter foam could be added at the botton to catch any algae particles, and to block all remaining light out of the bottom.

Version 1.1

SLIP and SLIP.7 are (TM) trademarks of Santa Monica Filtration®

Patents 9115008, 9708207, 9334184, CN203392929U, and other patents pending.

OP
SantaMonica

SantaMonica

Valuable Member
View Badges
Joined
Sep 16, 2008
Messages
1,948
Reaction score
522
Location
Santa Monica, California, USA

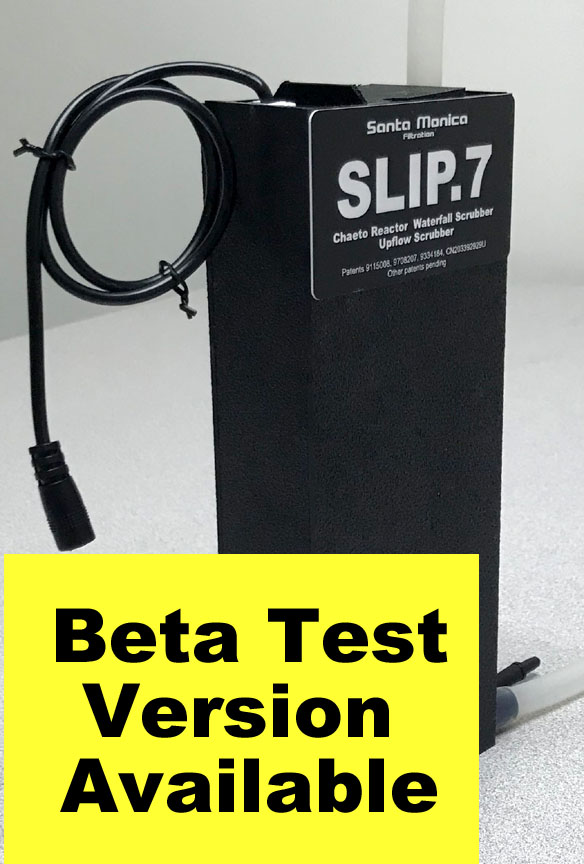

The SLIP.7 is the world's first combo scrubber: It's a chaeto reactor, and a waterfall algae scrubber, and a UAS® upflow algae scrubber® built into one. It slips into the back of almost all nano aquarium back compartments


Attachments

  • slip.7 coming soon.jpg
    slip.7 coming soon.jpg
    102.9 KB · Views: 20
OP
SantaMonica

SantaMonica

Valuable Member
View Badges
Joined
Sep 16, 2008
Messages
1,948
Reaction score
522
Location
Santa Monica, California, USA
SLIP.7 diagrams and photos have been added...

http://algaescrubber.net/SLIP.7-Instructions.pdf

...for the test model SLIP.7 combo scrubber for small sump compartments. In freshwater it can be configured to be an upflow scrubber (preferred), or a waterfall scrubber, or both at the same time, and for saltwater it can be configured to be a chaeto reactor, or upflow scrubber, or waterfall scrubber, or a combination of these. It is available here:
