I’m planning a DIY project for my local club. I’d like to make really simple top down viewers so people can learn to weld acrylic. Finding the rounds for the bottom is easy but I’m having no luck with tubing. I’m looking for 6” od in 4” lengths. The best I have found is like $20 a foot. Is there a better source?
What type of tube are you looking for? Cast tube is really expensive, extruded tube is cheaper. I'm guessing you're looking at extruded tube if youre looking at $20/foot. That's actually very cheap considering this http://www.eplastics.com/Plastic/extruded-plexiglass-acrylic-tubing where the cheapest 6" OD tube is $176 for 6 feet, before shipping.


TheEngineer

Formerly icecool2
View Badges
Joined
Nov 26, 2011
Messages
7,296
Reaction score
7,695
Location
PA
Rating - 0%
0   0   0
What type of tube are you looking for? Cast tube is really expensive, extruded tube is cheaper. I'm guessing you're looking at extruded tube if youre looking at $20/foot. That's actually very cheap considering this http://www.eplastics.com/Plastic/extruded-plexiglass-acrylic-tubing where the cheapest 6" OD tube is $176 for 6 feet, before shipping.
I found a bunch of 4” on eBay. I may just do that. Can I use a miter saw to cut them down? I’m assuming I need a fine tooth blade.

OP
OP
Turbo's Aquatics

Turbo's Aquatics

Super Duper Member
View Badges
Joined
Jun 7, 2011
Messages
2,799
Reaction score
4,022
Location
West Des Moines, IA
Rating - 0%
0   0   0
Took on a bit of a different project, a buddy of mine owns a company related to chemical supplies and testing, and one of the nuclear plants he works with needed a couple environmental test boxes. Basically they fill these with zebra mussels, pump water through them, and test the survival rates. It's been at least a year (probably 3) since I built an actual tank or something like it...every once in a while it's good to hone the skills, or even just make sure I got 'em.

Rest assured...still got game

Here's the rendering



Got the parts Friday and just finished assembly, here's the step by step

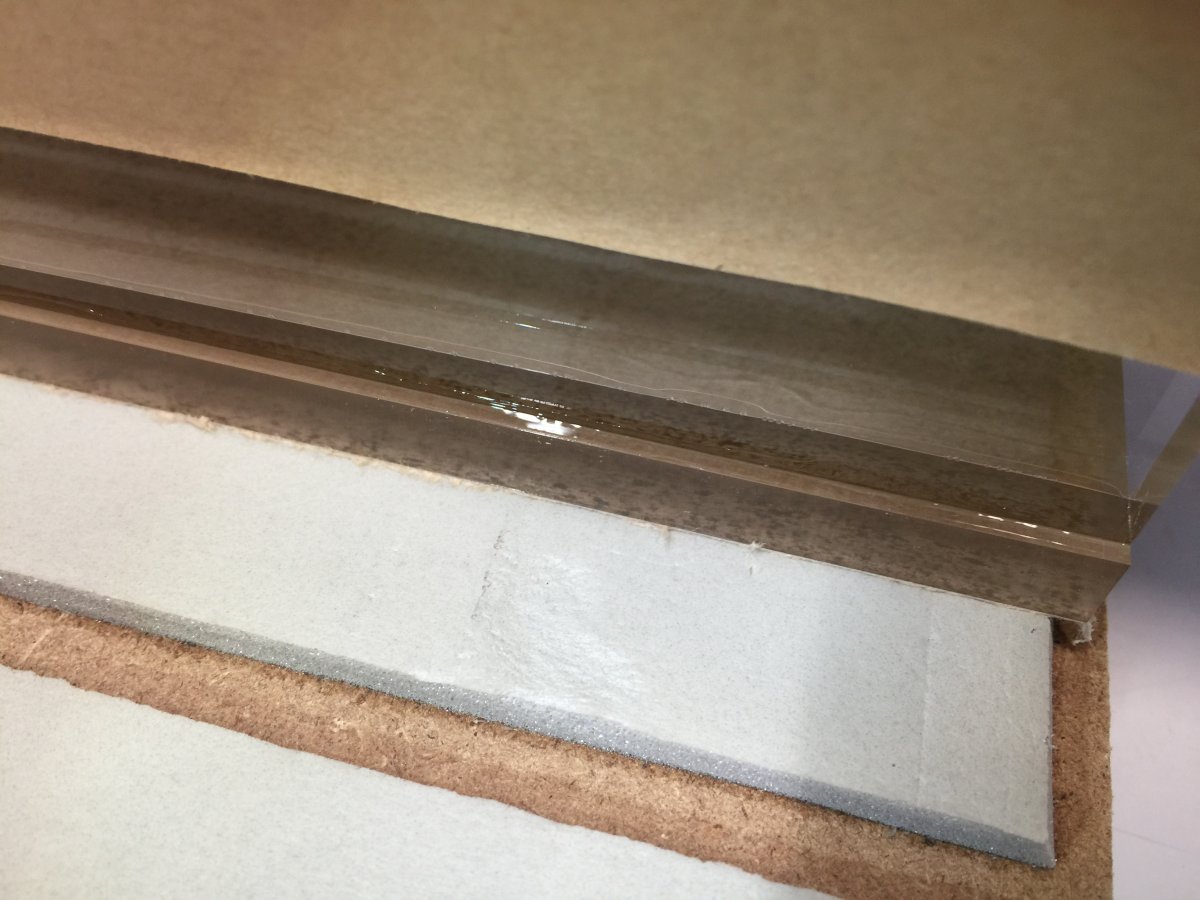

After a few more of those steps, walls done. I flush trimmed and rounded the vertical edges, then rounded all the rest of the parts.



First though, I scraped off the good left from lining up the parts after setting the joints



before



after

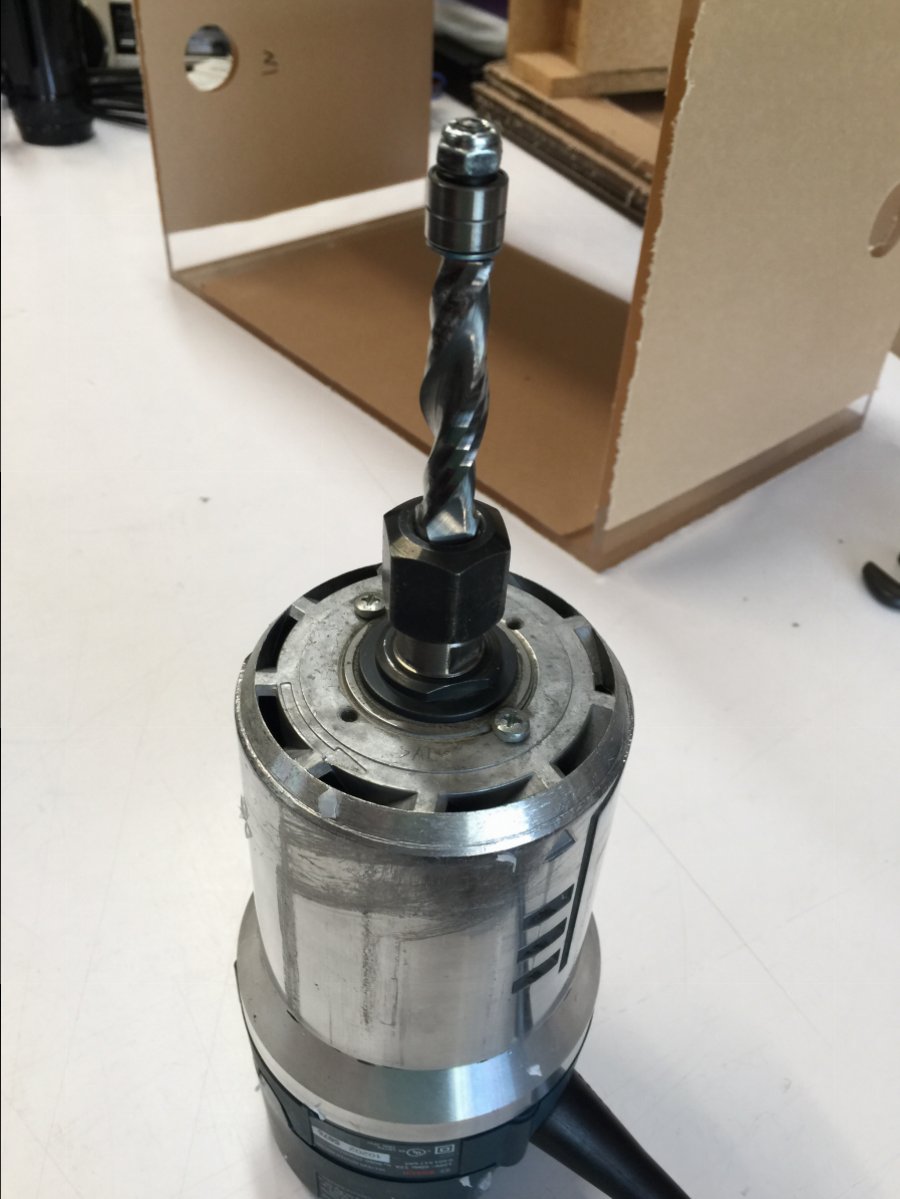

Been a while since I broke out this bad boy - 1/2" diameter 2" shank flush cutter (Amana)





Top on, bottom going on





The other box



Squishy



melev

Avid Hobbyist
View Badges
Joined
Jul 12, 2010
Messages
2,141
Reaction score
1,623
Location
Ft Worth, Tx
Rating - 0%
0   0   0
I was going to say "that looks heavy" and then I scrolled down to see the picture with all the weights.... lol


litenyaup

2500 Club Member
View Badges
Joined
Sep 30, 2009
Messages
3,420
Reaction score
3,286
Location
Florida
Rating - 0%
0   0   0
While the acrylic work looks awesome, I have to say I noticed the the old cassette tape mini boom box radio lol. Nice work

OP
OP
Turbo's Aquatics

Turbo's Aquatics

Super Duper Member
View Badges
Joined
Jun 7, 2011
Messages
2,799
Reaction score
4,022
Location
West Des Moines, IA
Rating - 0%
0   0   0
Yeah I'm old school, it's a lot easier to flip a switch or dial the volume vs a bluetooth speaker/phone/iHeartradio/etc, plus I only listen to AM talk radio while I'm slaving away, nothing keeps the mind awake late at night like a little Coast-to-Coast AM


TaylorPilot

Valuable Member
View Badges
Joined
Aug 8, 2015
Messages
1,454
Reaction score
1,251
Rating - 0%
0   0   0
Yeah I'm old school, it's a lot easier to flip a switch or dial the volume vs a bluetooth speaker/phone/iHeartradio/etc, plus I only listen to AM talk radio while I'm slaving away, nothing keeps the mind awake late at night like a little Coast-to-Coast AM

Those guys are crazy. LOL They talk about some next level conspiracy stuff....


Trickman2

Well-Known Member
View Badges
Joined
Jan 31, 2018
Messages
576
Reaction score
483
Location
Poway, Ca
Rating - 0%
0   0   0

rbarr110

Active Member
View Badges
Joined
Oct 31, 2017
Messages
145
Reaction score
77
Location
Seattle, WA
Rating - 0%
0   0   0
The bigger question is which bit's do you use and recommend? Basically, I plan on doing a small acrylic project and am just looking for good general list of bits and blades to get you going.
How are you cutting the acrylic? Table saw? If so, you probably just need a flush trim bit. I use a CNC so I use an 1/8" single flute (o-flute) bit.


thinwall

New Member
View Badges
Joined
Jan 17, 2015
Messages
4
Reaction score
0
Rating - 0%
0   0   0
Hello everybody, I have been reading and haven't been able read every bit of this thread. I finally have the guts to try and build a sump. This may have been covered at some point but this thread is super long. I have cut and routed and now I'm seeing what looks like voids in the acrylic. I'm not sure if I should worry about it or not. TIA


Scrubber_steve

2500 Club Member
View Badges
Joined
Feb 19, 2018
Messages
3,224
Reaction score
4,826
Location
down under
Rating - 0%
0   0   0
Hello everybody, I have been reading and haven't been able read every bit of this thread. I finally have the guts to try and build a sump. This may have been covered at some point but this thread is super long. I have cut and routed and now I'm seeing what looks like voids in the acrylic. I'm not sure if I should worry about it or not. TIA

I have found that a large diameter router bit (1") gives a far smoother edge than a smaller diameter router bit. Use high speed if router is adjustable.
In any case, if you are using a thick consistency cement (rather than a cement that is the consistency of water) that edge would be fine.


thinwall

New Member
View Badges
Joined
Jan 17, 2015
Messages
4
Reaction score
0
Rating - 0%
0   0   0
The router bit I'm using is a Bosch 3/4-1/2 shank in craftsman variable speed router. I'm not to concerned with the chatter. What concerns me is the pitting/pin holes. I was planning on using WO4.
