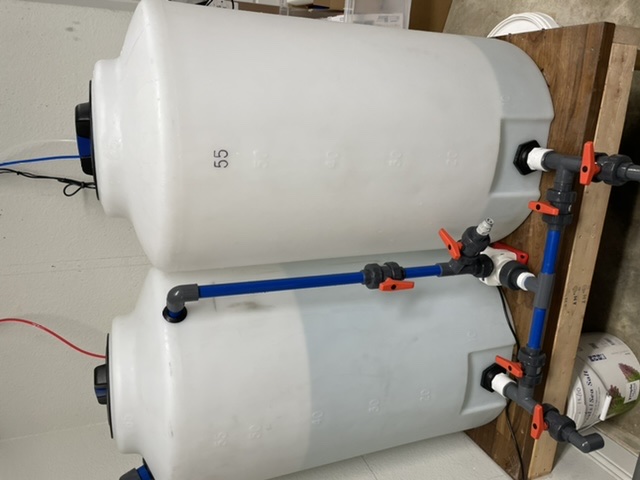

Two 35g drums for the 7 Stage RODI system. Iwaki pump giving more than enough flow between the two tubs. Added DIY classic sight levels with clear PVC and an 8” screw cap to drop in salt mix. Everything is set up on smart switches and hopefully in the future to have this piped directly to my tank.


Attachments

  • AF988A91-6D4C-46C7-B040-F1A0CAD850F3.jpeg
    114 KB · Views: 112
  • C7D04C99-3286-483D-A334-E86E272EB4DA.jpeg
    133.7 KB · Views: 109

Russell G

Meh...
View Badges
Joined
Aug 25, 2020
Messages
108
Reaction score
79
Location
Fontana
Rating - 0%
0   0   0

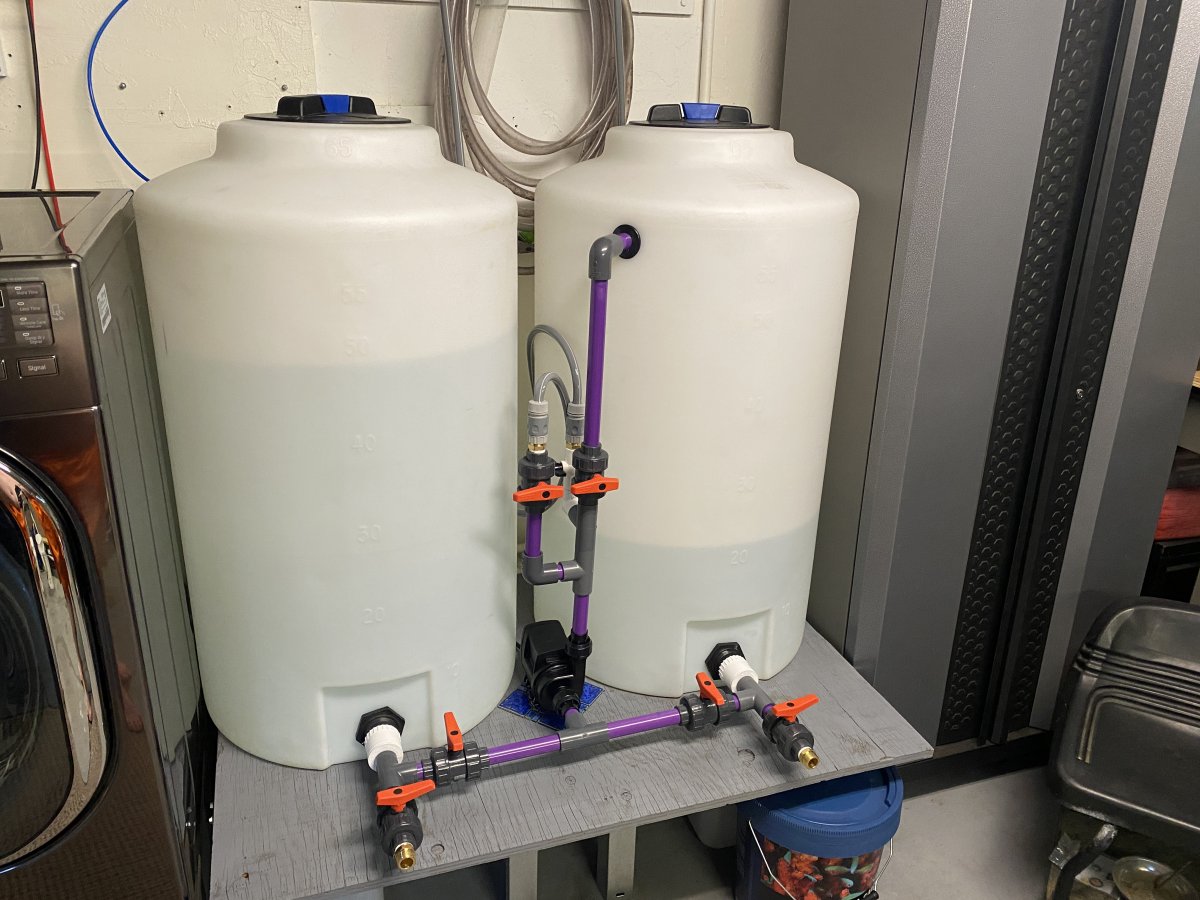

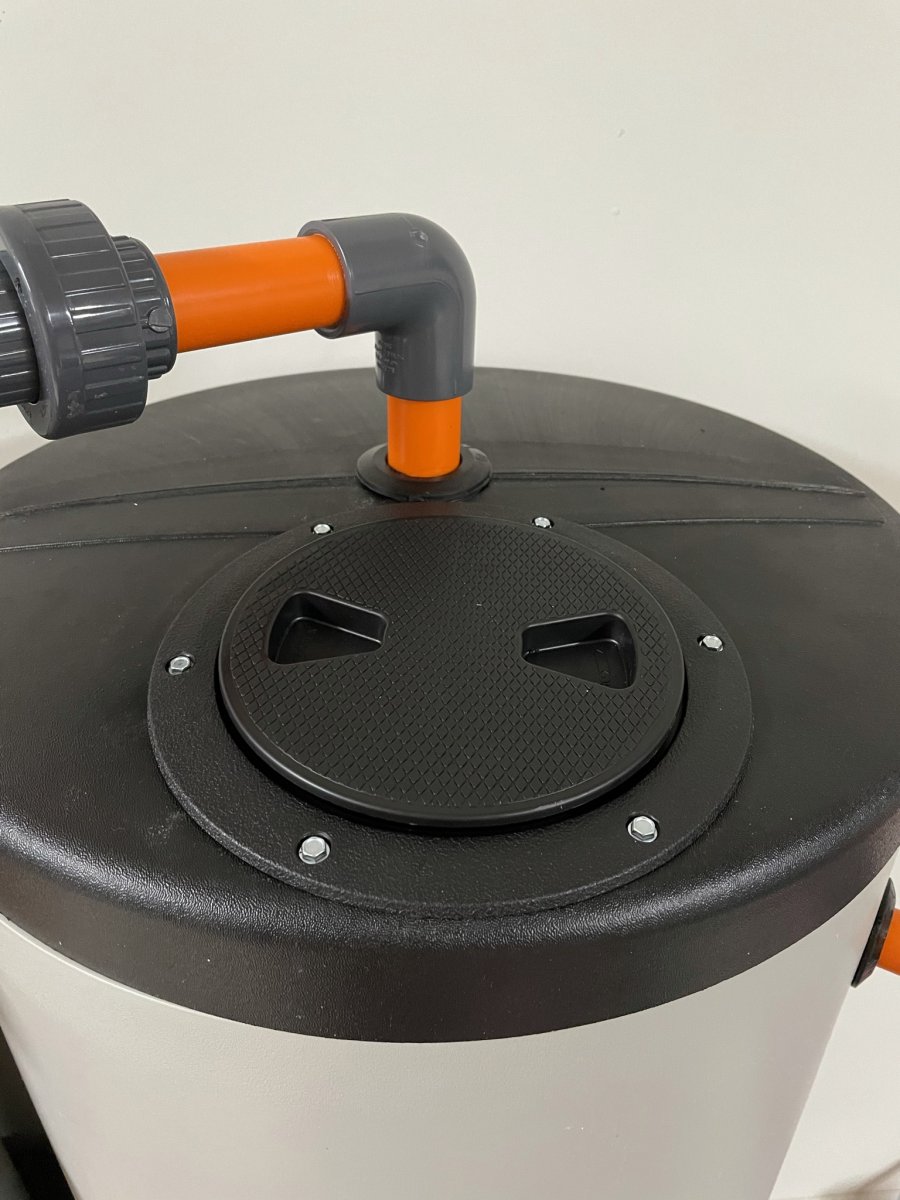

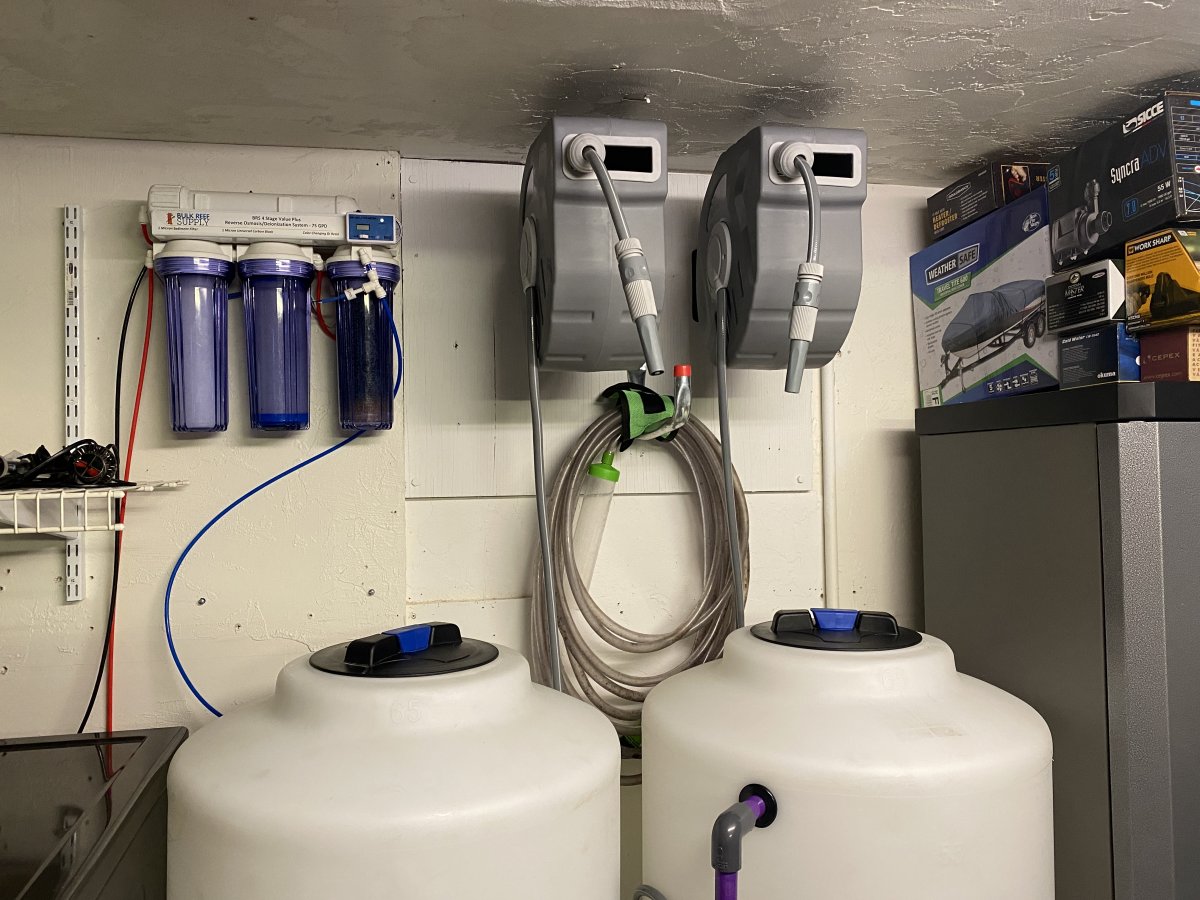

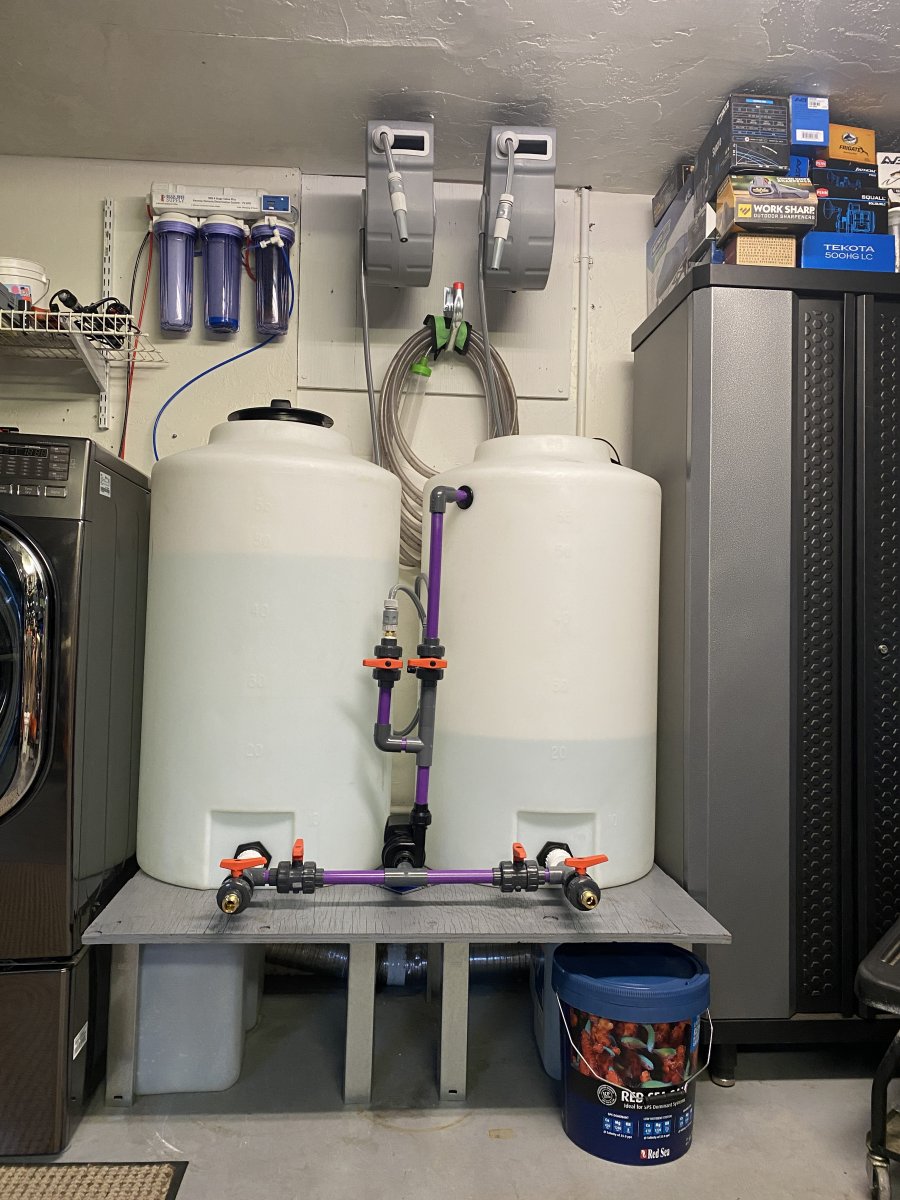

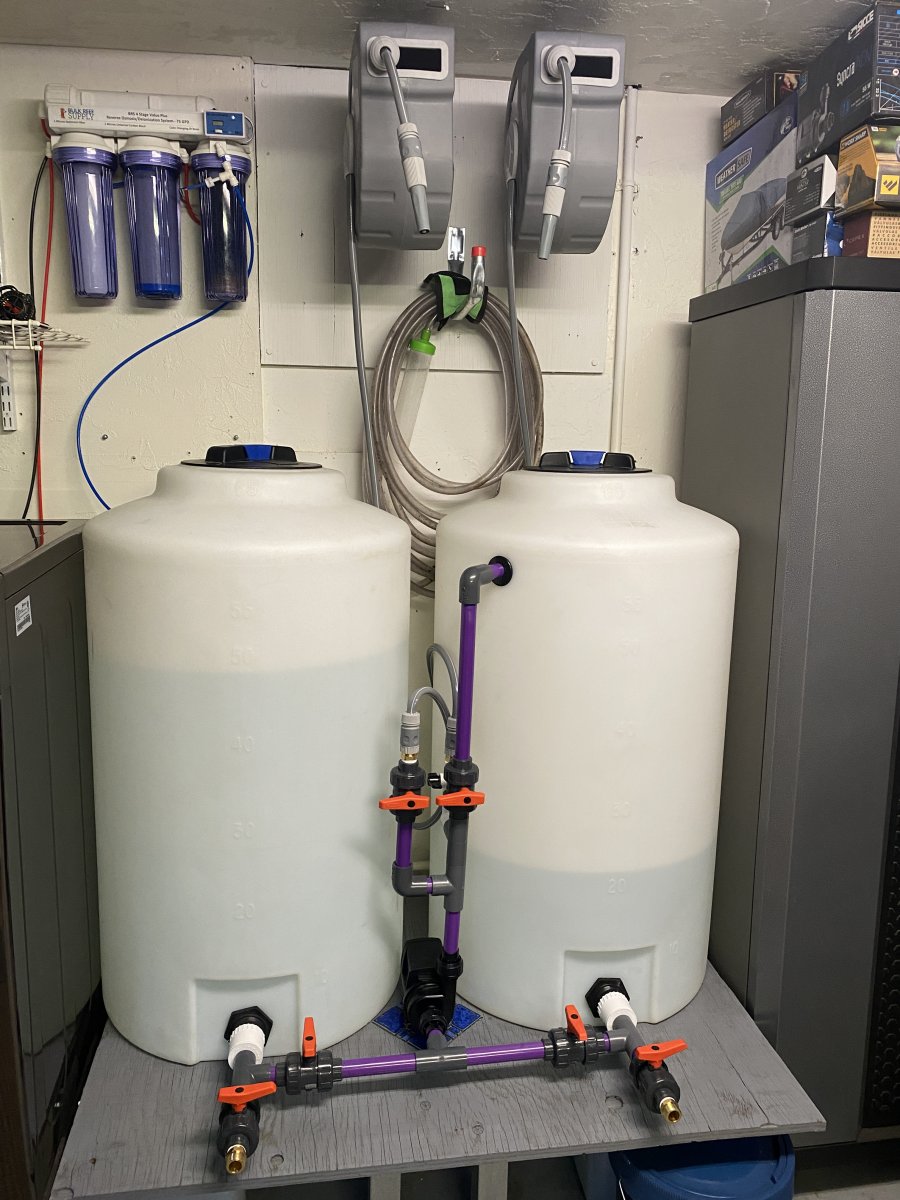

Here’s mine. The stand is a custom pallet rack that I had a local supplier make and tossed a coat of paint on it to match the plumbing. The tanks are 100 gal Ronco tanks that I was lucky enough to be able
To pick up from the manufacturer and avoid those crazy shipping costs.

It’s run by a Reeflo Hammerhead pump and the RO side has a Tunze RO water controller so it doesn’t keep topping off the tank whenever I pull water for my smaller tanks ATO reservoir. Had to extend the cords for the float switches but it worked out pretty well.

The power strip is a WiFi controlled strip so I can turn on the pump to mix salt and have it automatically turn off after a set time. The pics are from my leak testing hence the buckets under everything. It’s scary filling up 200 gallons in something you built yourself. All in all, it’s working out very well.



PeterC99

Solarbenchmark.com
View Badges
Joined
Aug 28, 2020
Messages
6,384
Reaction score
30,054
Location
White Plains, NY
Rating - 0%
0   0   0
Here‘s mine with ATO and AWC

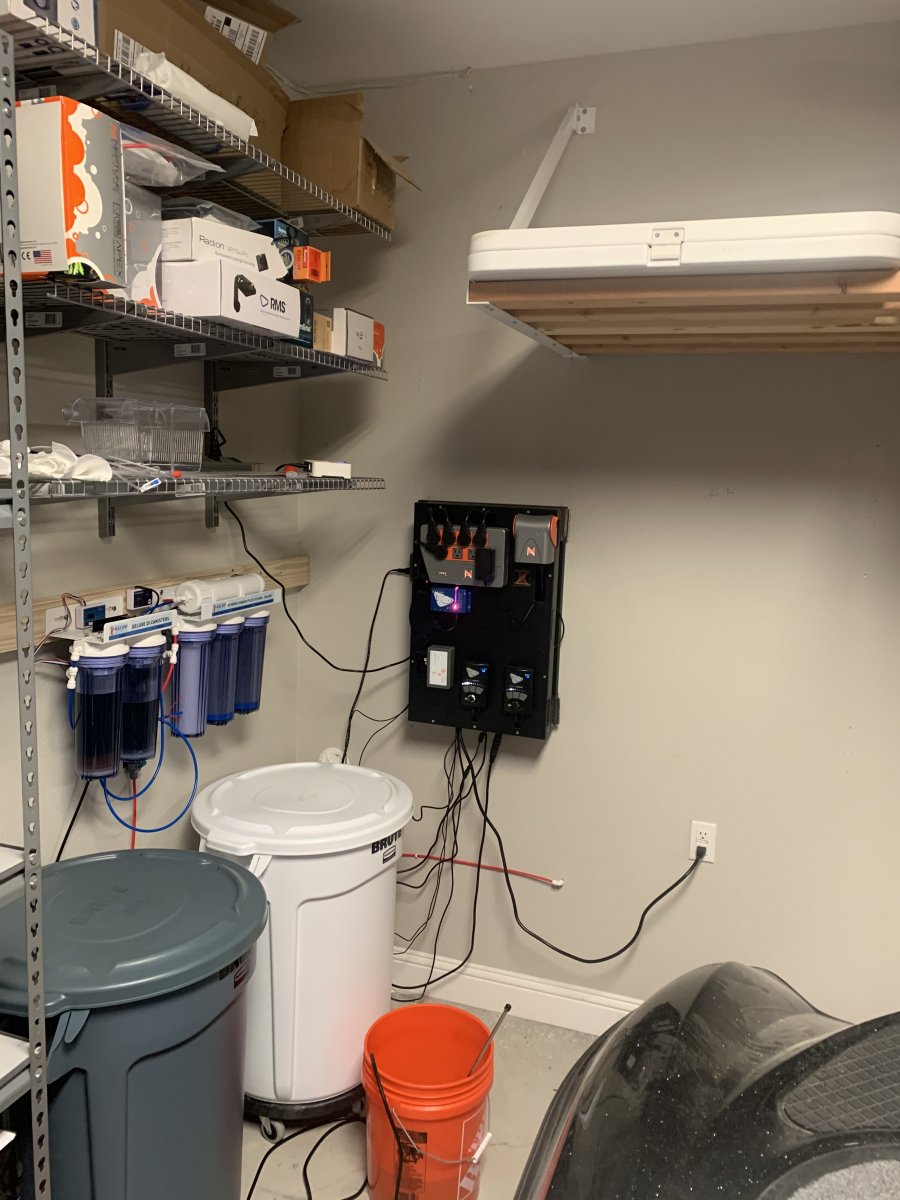

I have my water change station in the basement. Automaticity keeps RODI full, automaticity tops off tank with the RODi, and I hit a switch and change 10% of the saltwater weekly. Pumps take old saltwater out and push saltwater up one floor to my living room.




Starts with 3 float switches in my sump that go downstairs to my basement controllers. First float switch (low) tells RODI or Saltwater to replenish depending on settings. 2nd float switch off. 3rd float switch is emergency off.




Have 2 controllers downstairs connected to float switches upstairs. When low float switch hits bottom, RODI starts pumping from first controller. Second controller manages RODI auto fill.

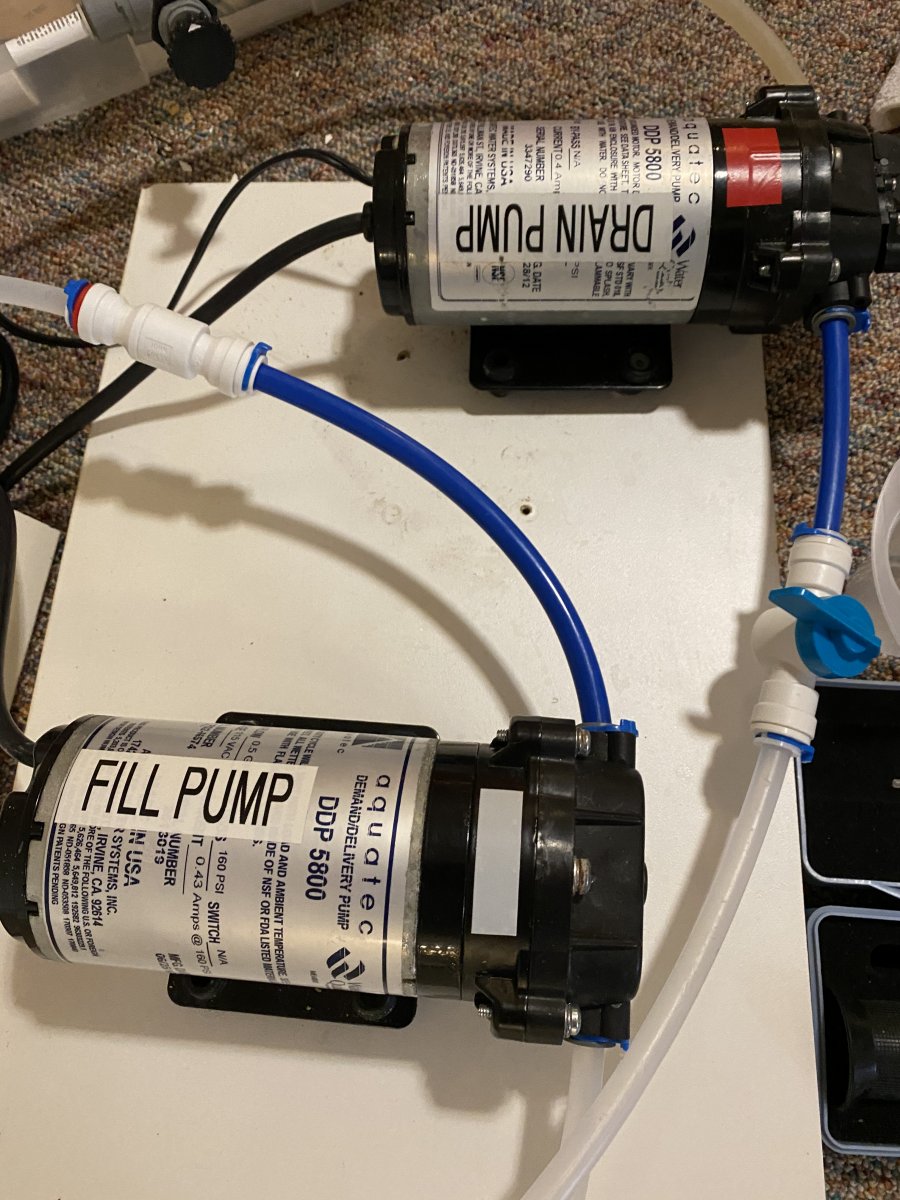

2 pumps downstairs manage pumping water to/from upstairs. Leave RODI connected to fill pump for auto top off. When changing water, switch to saltwater containers and turn on switch for drain pump. When 1st float value gets low, pumps up saltwater through auto top off. Pumps take out and replace saltwater at same pace. When done with saltwater change, turn off drain pump and wait till auto top off fills with rest of saltwater. Then switch auto top off back to RODI. Takes 10 minutes to change 10 gallons in my 90 gallon aquarium every week.



Jason Scalise

Active Member
View Badges
Joined
Apr 13, 2019
Messages
256
Reaction score
218
Location
Phoenix
Rating - 0%
0   0   0
Here‘s mine with ATO and AWC

I have my water change station in the basement. Automaticity keeps RODI full, automaticity tops off tank with the RODi, and I hit a switch and change 10% of the saltwater weekly. Pumps take old saltwater out and push saltwater up one floor to my living room.




Starts with 3 float switches in my sump that go downstairs to my basement controllers. First float switch (low) tells RODI or Saltwater to replenish depending on settings. 2nd float switch off. 3rd float switch is emergency off.




Have 2 controllers downstairs connected to float switches upstairs. When low float switch hits bottom, RODI starts pumping from first controller. Second controller manages RODI auto fill.



2 pumps downstairs manage pumping water to/from upstairs. Leave RODI connected to fill pump for auto top off. When changing water, switch to saltwater containers and turn on switch for drain pump. When 1st float value gets low, pumps up saltwater through auto top off. Pumps take out and replace saltwater at same pace. When done with saltwater change, turn off drain pump and wait till auto top off fills with rest of saltwater. Then switch auto top off back to RODI. Takes 10 minutes to change 10 gallons in my 90 gallon aquarium every week.

really like the set up.
can you provide more specifics on the switch boxes, please?

did you build them? buy them? buy and modify? etc.
I would like to do something similar and looking where to start.
any guidance in the right direction would be appreciated.
thanks.


PeterC99

Solarbenchmark.com
View Badges
Joined
Aug 28, 2020
Messages
6,384
Reaction score
30,054
Location
White Plains, NY
Rating - 0%
0   0   0
really like the set up.
can you provide more specifics on the switch boxes, please?

did you build them? buy them? buy and modify? etc.
I would like to do something similar and looking where to start.
any guidance in the right direction would be appreciated.
thanks.

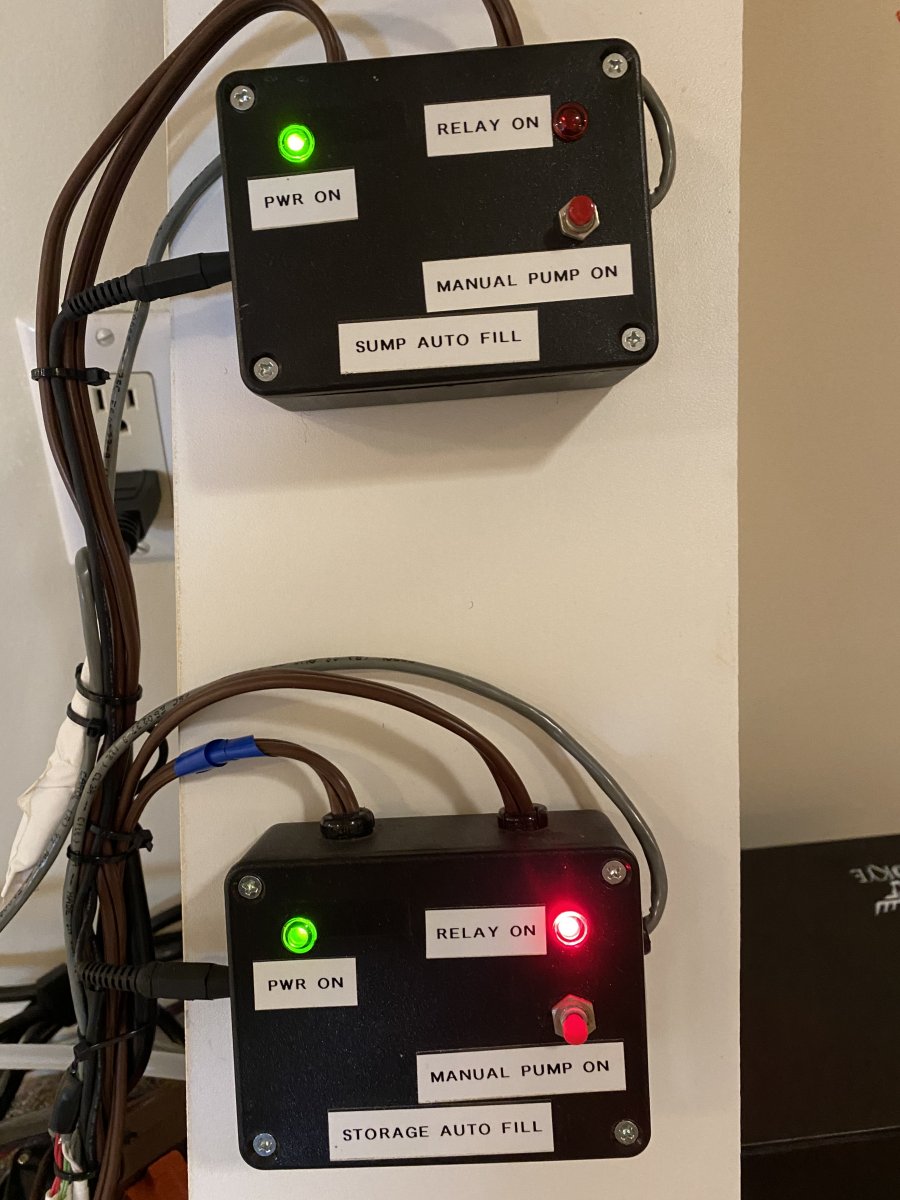

Bought this used. Here are the basics. I’ll see if I can find the schematic for the on/off relay controllers.


Starts with 3 float switches in my sump that go downstairs to my basement controllers. First float switch (low) tells RODI or Saltwater to replenish depending on settings. 2nd float switch off. 3rd float switch is emergency off.


Have 1 controllers downstairs connected to float switches upstairs. When low float switch hits bottom, RODI starts pumping from first controller. Second controller manages RODI auto fill.




2 pumps downstairs manage pumping water to/from upstairs. Leave RODI connected to fill pump for auto top off. When changing water, switch to saltwater container and turn on switch for drain pump. When 1st float value gets low, pumps up saltwater through auto top off. Pumps take out and replace saltwater at same pace. When done with saltwater change, turn off drain pump and wait till auto top off fills with rest of saltwater. Then switch auto top off back to RODI. Takes 10 minutes to change 10 gallons in my 90 gallon aquarium every week.



RuuToo

Active Member
View Badges
Joined
Mar 13, 2021
Messages
146
Reaction score
168
Location
south jersey
Rating - 0%
0   0   0

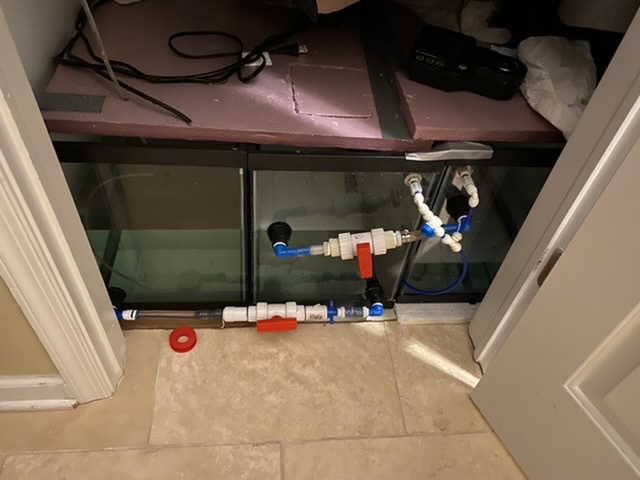

I'm actually quite please with mine. The *only* possible space left in the entire house was the bottom of the coat closet. I ran 40 feet of water line and drain line down the length of the house in the crawl space and up into the closet. The three 20 gallon talls (petco sale) fit in so tight I had to remove the quarter round :)

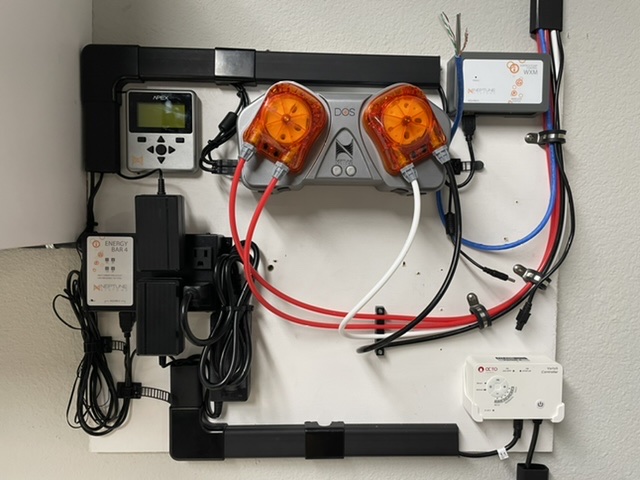

The left tank is saltwater where the DOS pulls from, the middle tank is the mixer and the right tank is top off. There’s pumps in two of the tanks to move water “left” as necessary and I can have 40 gallons of salt water or 40 gallons of fresh or 20/20 with one mixing. It lets me do uninterrupted awc as long as I remember to add salt a couple of times a month, and it can go almost 3 weeks if I have to go on vacation.

No more buckets, and my water changes have been perfectly consistent for many months, which lets face it they probably weren’t before.


Peace River

Thrive Master
View Badges
Joined
Apr 29, 2014
Messages
21,465
Reaction score
164,292
Location
USA
Rating - 100%
1   0   0
Two 65g Norwesco tanks powered by a Varios 6 and controlled by a Hydros controller.



3sgterror

Active Member
View Badges
Joined
Nov 24, 2019
Messages
239
Reaction score
179
Rating - 0%
0   0   0

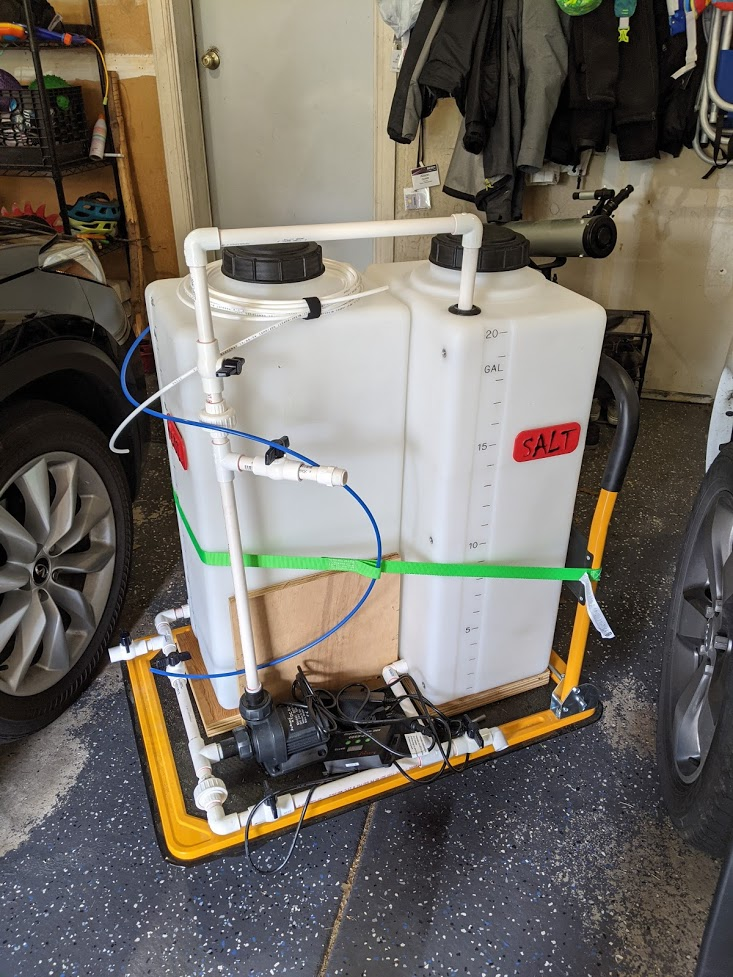

my approach was a mobile mixing station. My wife didn't want something that was built in place so we could re-arrange the garage if needed.

And I needed to be able to cart it between two tanks. Instead of having a really long hose, I opted for this mobile method.

So a day before I need to do water changes, I bring the cart inside, make water and add my salt. Use what I need, then put it back in the garage.



ReelLifeFisherman

New Member
View Badges
Joined
May 13, 2021
Messages
1
Reaction score
4
Location
sacramento Ca
Rating - 0%
0   0   0
Here is my newly built set up..


Attachments

  • 93E80AFF-A574-44EE-A58F-6A55334FB0F6.jpeg
    168 KB · Views: 105
  • D4FDA229-9AFC-4D11-BFB3-D169ED91F4A1.jpeg
    187.6 KB · Views: 99
  • 0E8CF318-2E05-4B16-B106-16305BF36850.jpeg
    150.7 KB · Views: 101
  • FAC07AE4-D5FA-46DB-8866-BBC96A011281.jpeg
    161.4 KB · Views: 102
  • C1648CFA-A67F-448E-984F-5BFB6805DBE5.jpeg
    180 KB · Views: 97
  • CBA09C7D-C29E-48DB-AD7C-5609F373ED22.jpeg
    185.9 KB · Views: 110
