Ext 112 ushio 400 wat MH System.

[X-37B]

I always thought the "E" is for electronic, meaning the bulb is suitable on m59 and/ or electronic ballasts...(?)

That's right off Ushios site.
I thought the same, lol.



[X-37B]

This is what the 2 edge and RB will look like.
I will get a pic with all on in a few days.



[Troylee]

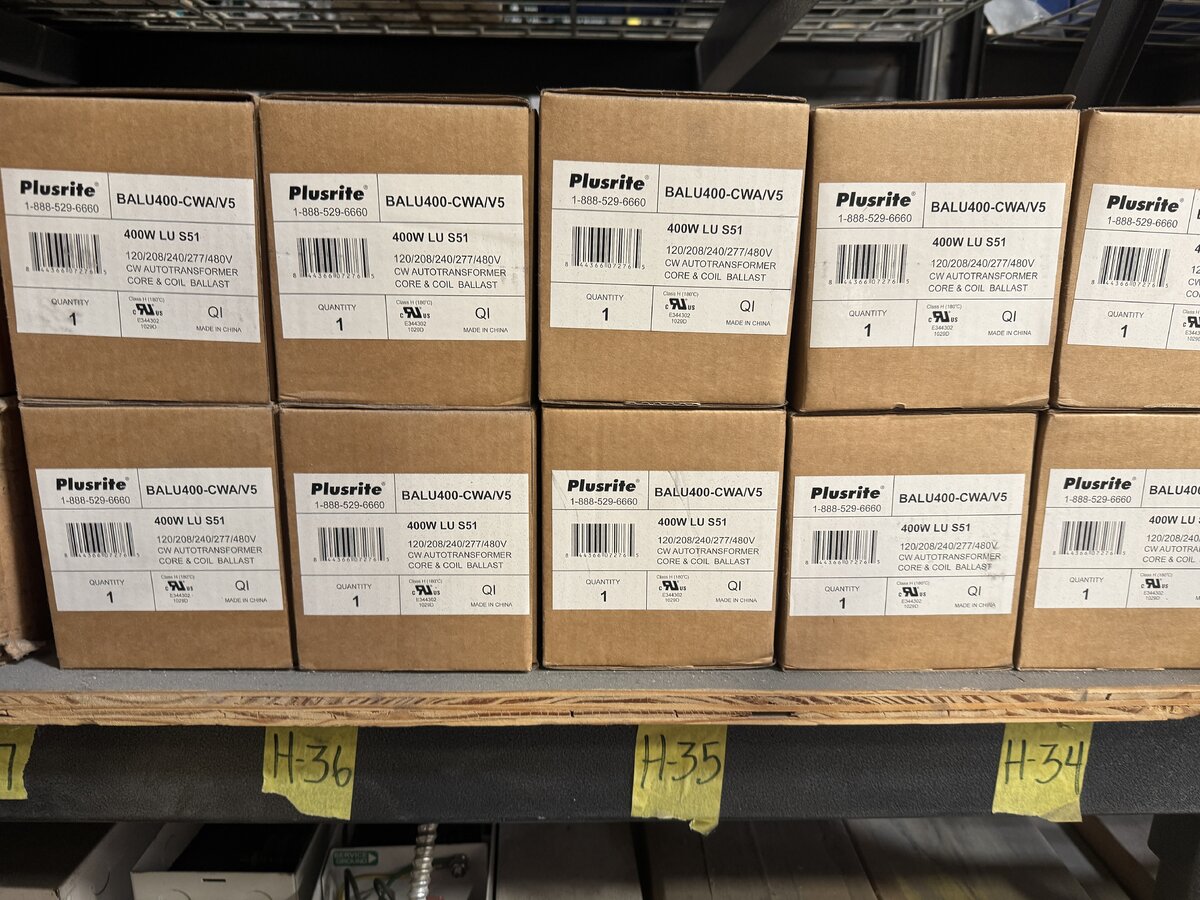

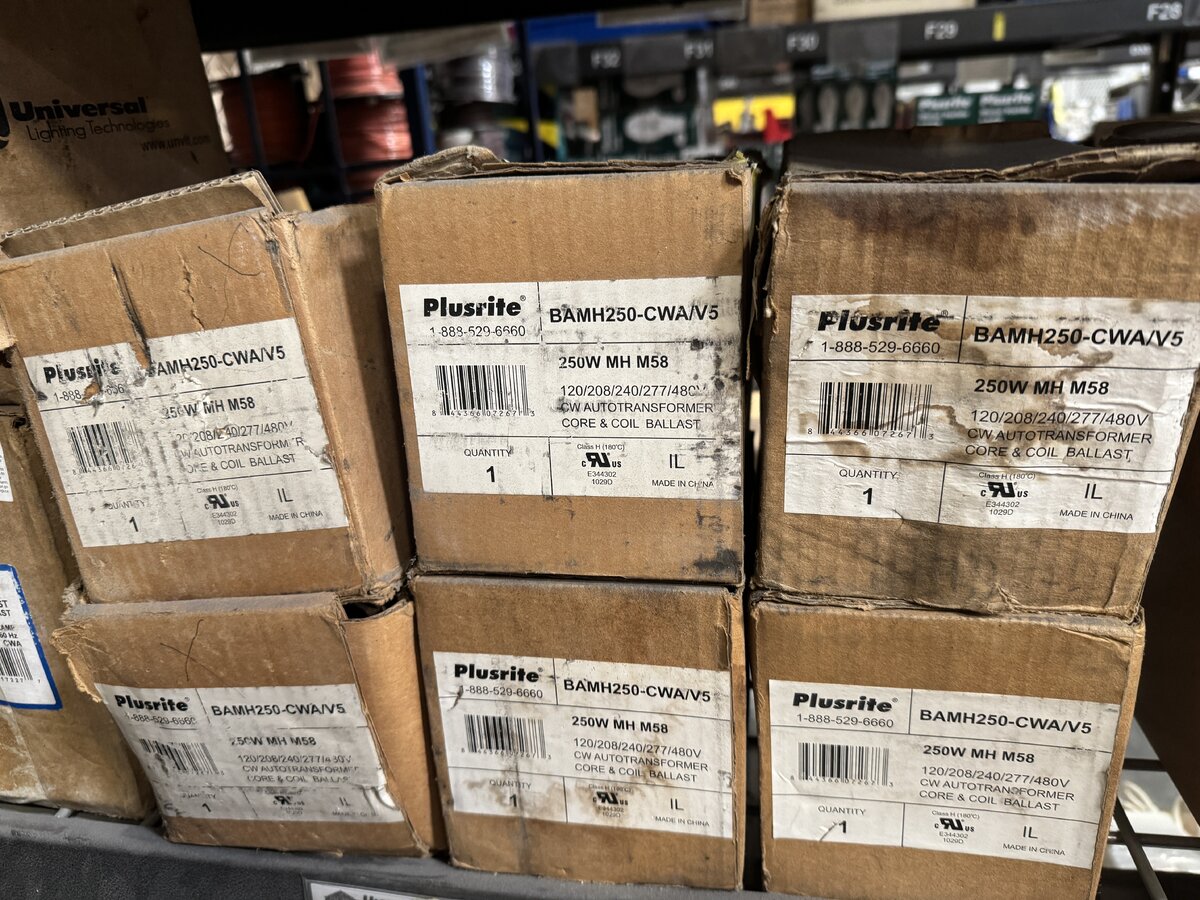

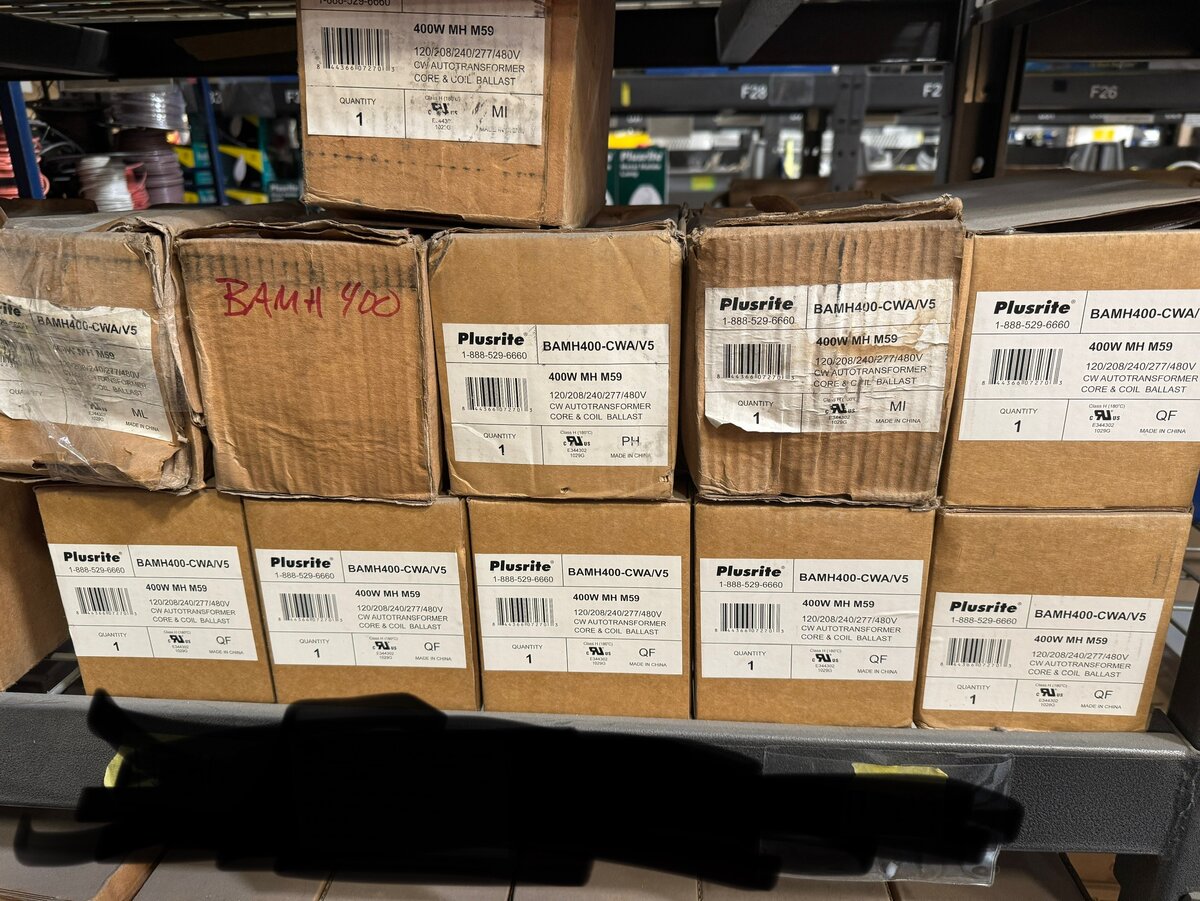

Mmm mag ballast I have a few collecting dust haha…



[X-37B]

My M135 ballast came. I had an old hps ballast that It will fit in.
Just need to figure out how to wire it now.
Bottom pic is M135 ready for wiring.



[Reefering1]

My M135 ballast came. I had an old hps ballast that It will fit in.
Just need to figure out how to wire it now.
Bottom pic is M135 ready for wiring.

If you look at the wires very closely, I think it says what they are. Alternatively, spread them all out and send picture. And one of schematic on ballast.



[X-37B]

If you look at the wires very closely, I think it says what they are. Alternatively, spread them all out and send picture. And one of schematic on ballast.

Thanks. I will look at it when I get home later today.
They are marked.



[PaulErik]

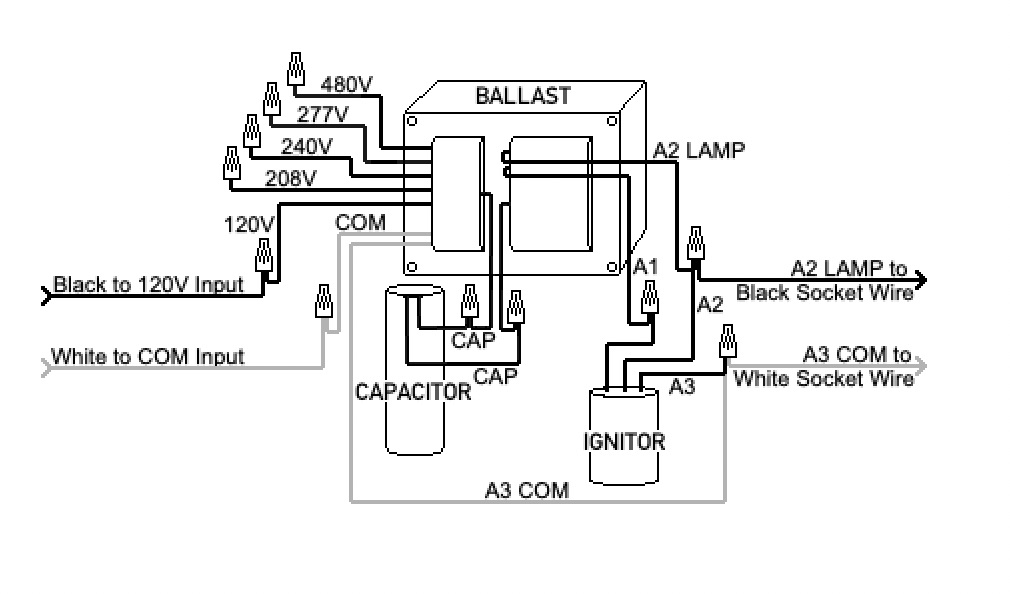

Below is a wiring diagram for that Sylvania ballast. The wires are all marked/labeled. The ballast label can be a little confusing, some of the Sylvania ballasts made by ISB in Mexico shows an extra A2 wire coming off the secondary coil.



[X-37B]

Below is a wiring diagram for that Sylvania ballast. The wires are all marked/labeled. The ballast label can be a little confusing, some of the Sylvania ballasts made by ISB in Mexico shows an extra A2 wire coming off the secondary coil.

Thanks thats helpful.
Going to look at it now.



[X-37B]

Got it wired but had to order a adapter plug.
Box is 10×9×6



[X-37B]

Yesterday I ran the Radium on the M135 ballast to compare.
I was quite surprised at the par readings.
Direct center under the bulb I got 136 par with the electronic ballast.
With the M135 I got 100?
Seems quite low.
I got 188 center with the 10k Ushio.

The 24" Meridian edge bars are quite strong for what they are and should complement the 10k well.



[That Crusso Kid]

Following along. MH fan dating from way back from the far away hills.



[That Crusso Kid]

Mmm mag ballast I have a few collecting dust haha…

Show off! (However, I don't see any M80's.)



[Troylee]

Show off! (However, I don't see any M80's.)

Nah we don’t use those in lighting for parking lots or casinos lol..



[X-37B]

I forgot to mention.
With the 10k par was 188 and when I turned on both edge bars at 75% par was 320.

I am looking at the new Tunze ORCA. If it will fit my euro brace I will get the 6105 version when it arrives stateside.
With the 6105 and the ORCA the cost is about the same as my Sea Sweeps with no pump.

Sea Sweep only goes 90°. The ORCA does 180°.



[xabo]

Show off! (However, I don't see any M80's.)

Only have 3



[That Crusso Kid]

Only have 3

Oh my! Where did you come by those?



[xabo]

Ebay



[xabo]

Just left LFS and saw this....asked owner "how much?." He said "Make an offer" I said "$25.00?" he said "$

30.00"



[X-37B]

Just left LFS and saw this....asked owner "how much?." He said "Make an offer" I said "$25.00?" he said "$

30.00"

Is that for a 400 watt de?



[xabo]

400W HQI...can be used for both DE and SE (Radium). I just want the enclosure.
