Glasshole over flow question

Ecotech Marine

riche

Well-Known Member
View Badges
Joined
Feb 7, 2014
Messages
954
Reaction score
354
Review score
+0 /0 /-0
Location
Metro Detroit
As I get ready to plumb this tank I have, it has a glass-holes overflow dual 1-1/2" drains.

Is there a way to make it silent? Where the tank is sitting, the back is somewhat exposed to the kitchen and I don't want the gurgling noise to be heard.

If I cant get it silent I will have to get a different tank and I really don't have the time for that.

Would adding gate valves to the drain and tuning it solve that?

Corals.com

TheDuude

Active Member
View Badges
Joined
Feb 26, 2020
Messages
189
Reaction score
228
Review score
+0 /0 /-0
Location
Detroit
I had a 60 gallon cube years ago with a glass holes overflow and could never get it very quiet. Ended up selling the tank bc of the noise.

Mine only had a single drain though. How are the dual drains setup? If you can setup one as the main and have a standpipe in the other as an emergency drain then putting a valve on the main drain should allow you to tune the overflow to get fairly quiet.

OP
riche

riche

Well-Known Member
View Badges
Joined
Feb 7, 2014
Messages
954
Reaction score
354
Review score
+0 /0 /-0
Location
Metro Detroit
I had a 60 gallon cube years ago with a glass holes overflow and could never get it very quiet. Ended up selling the tank bc of the noise.

Mine only had a single drain though. How are the dual drains setup? If you can setup one as the main and have a standpipe in the other as an emergency drain then putting a valve on the main drain should allow you to tune the overflow to get fairly quiet.
There is 2 elbows coming out , like the single style. They are on the back of the tank so I dont think that would work and there isnt enough room inside the box to do a stand pipe


HD_Reefer

Active Member
View Badges
Joined
Jan 3, 2021
Messages
424
Reaction score
684
Review score
+0 /0 /-0
Location
Frisco
Yes, gate valve is a must if you want silence! Go with the Herbie drain, here's a reference from MarineDepot... I have the same setup and it's dead silent.


Top Shelf Aquatics
OP
riche

riche

Well-Known Member
View Badges
Joined
Feb 7, 2014
Messages
954
Reaction score
354
Review score
+0 /0 /-0
Location
Metro Detroit

redfishbluefish

Stay Positive, Stay Productive
View Badges
Joined
Mar 22, 2012
Messages
10,756
Reaction score
21,423
Review score
+0 /0 /-0
Location
Sayreville, NJ
I too have the 1500 glassholes overflow. The first thing you want to play with are the two tubes in the elbows behind the overflow. The very first thing I'd do is make sure salt deposits haven't block the ends of the tubes. I actually have a thin metal rod that I use to plunge the tubes, which I might do once or twice a year. You could actually straighten a metal hanger and use that to plunge. If the ends are open, and you still have noise, try moving the tubes up or down. And finally, if the noise is coming from the flow into your sump, you can play with the pipe length into the sump or add something like a reverse durso, simply made with pipe parts. I'll also add a link in a couple minutes what I did with my sump....


redfishbluefish

Stay Positive, Stay Productive
View Badges
Joined
Mar 22, 2012
Messages
10,756
Reaction score
21,423
Review score
+0 /0 /-0
Location
Sayreville, NJ

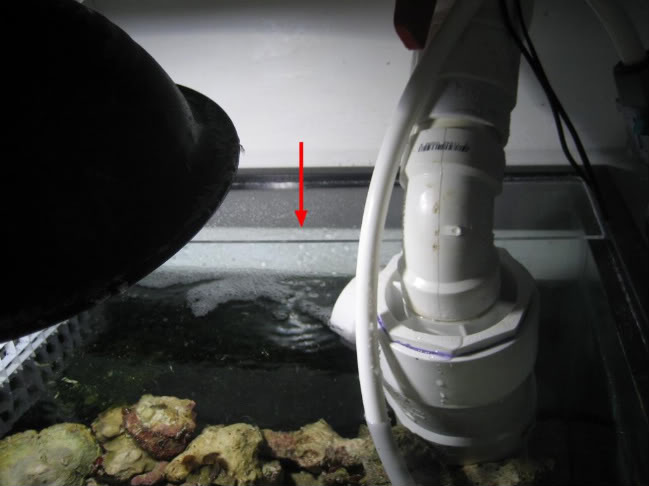

I'm back! Ok, the modifications I did to my drains was more for eliminating bubbles, but would also reduce gurgling noise, if that is where you noise is coming from. The right drain has, what I call, a Rube Goldberg. Here's what it looks like:





This wouldn't fit on the left side because the drain goes into a 7 inch sock, so it's just a straight pipe. Here it is without the sock so you can see it:




If you go to THIS POST, you can see all the things I tried but couldn't use because they wouldn't fit in the sock.

First Choice
OP
riche

riche

Well-Known Member
View Badges
Joined
Feb 7, 2014
Messages
954
Reaction score
354
Review score
+0 /0 /-0
Location
Metro Detroit
I havent even filled the tank yet, and I am leary that this glass holes overflow is going to be a headache. Between the Noise of the overflow and the 1-1/2" plumbing I am wondering if I should just look into a different tank


redfishbluefish

Stay Positive, Stay Productive
View Badges
Joined
Mar 22, 2012
Messages
10,756
Reaction score
21,423
Review score
+0 /0 /-0
Location
Sayreville, NJ
I know some have issues with noise, but I've only had slight noise issues when those tubes get clogged. I love my Glass-holes. I'm not sure if you're aware, they are now out of business.....more or less a garage operation with two engineers.
