Yup, @LionHeart2017 I have just pushed a fix to this. https://github.com/reef-pi/reef-pi/pull/639
This fix will address the bug thats crashing the dashboard. But I think this is not the root cause, and theres another bug thats causing a bad dashboard configuration to be saved in the first place. You can check your current dashboard configuration like this:
- Right click on the dashboard and click on the "inspect"

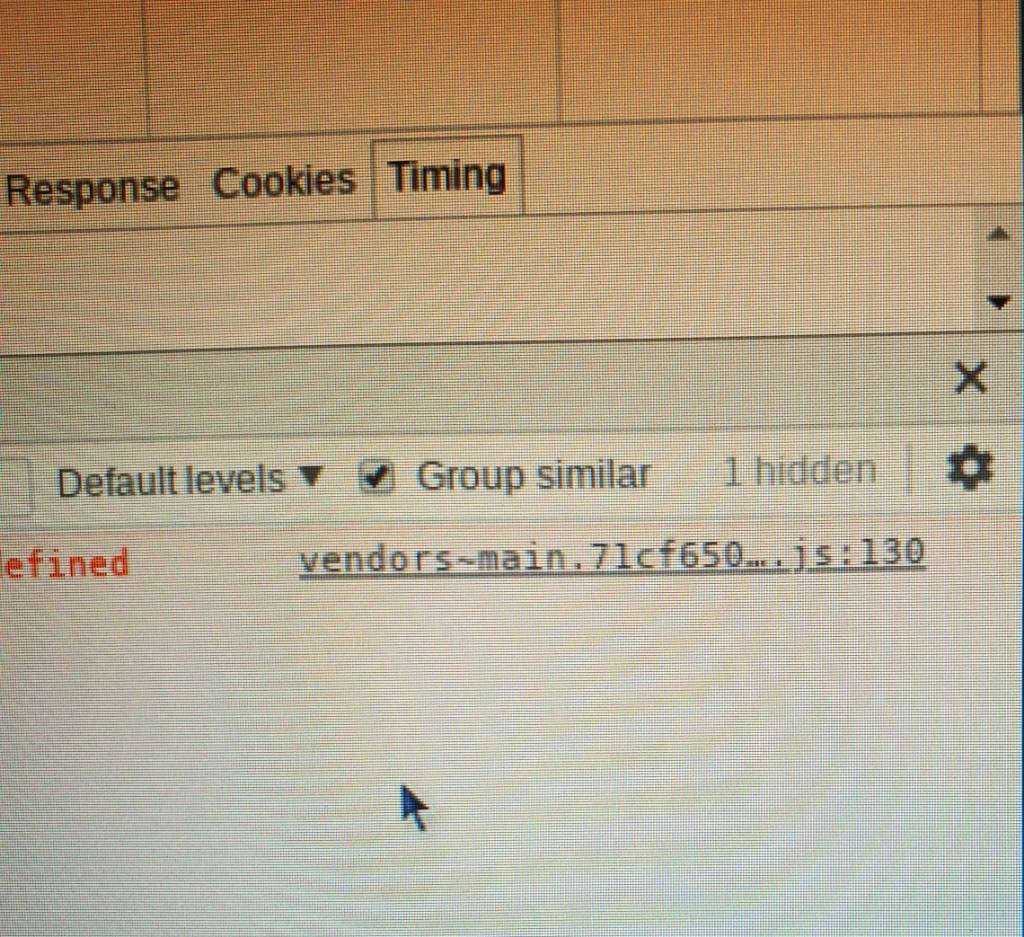

- Once the developer console appears on the lowe part of the browser, navigate to the network tab in it, and hit refresh, you'll see all the network calls that the browser (chromium in this case) is making to reef-pi , one of them is dashboard (you'll see the calls on the left side of the developer console). If you click on it, you'll see the details of response, we need that exact data, I suspect its malformed,

thank you for helping us through this,



[LionHeart2017]

this is what I get ranjib

{"column":1,"row":2,"width":500,"height":100,"grid_details":[[{"type":"equipment","id":"current"}]]}



[Ranjib]

this is what I get ranjib

{"column":1,"row":2,"width":500,"height":100,"grid_details":[[{"type":"equipment","id":"current"}]]}

Thank you. We are able to reproduce it, I think. One last check, your issue is persistent? i.e. your dashboard does not fix even if you refresh your browser?



[LionHeart2017]

Thank you. We are able to reproduce it, I think. One last check, your issue is persistent? i.e. your dashboard does not fix even if you refresh your browser?

No, not fixed yet, I've unchecked dashboard and reloaded reef-pi but still the same

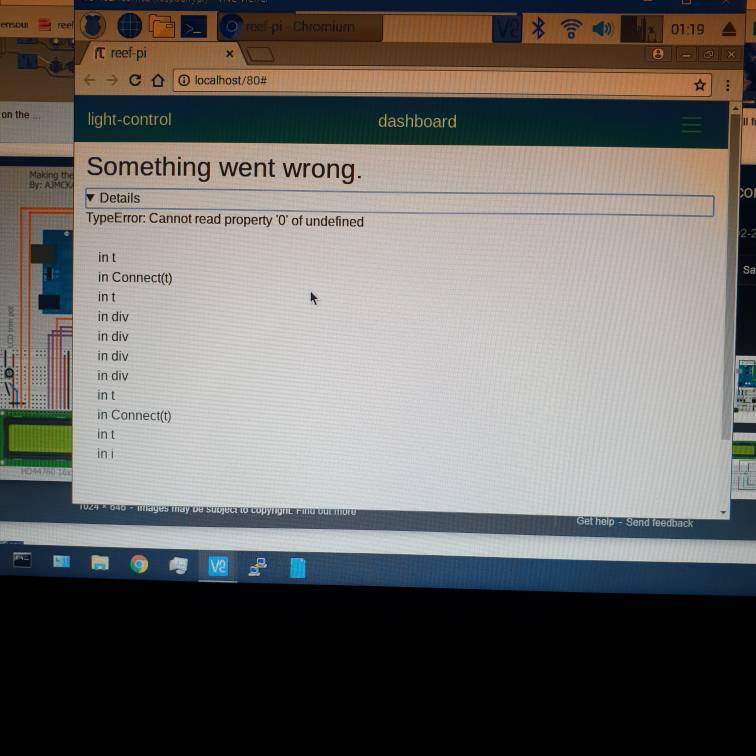

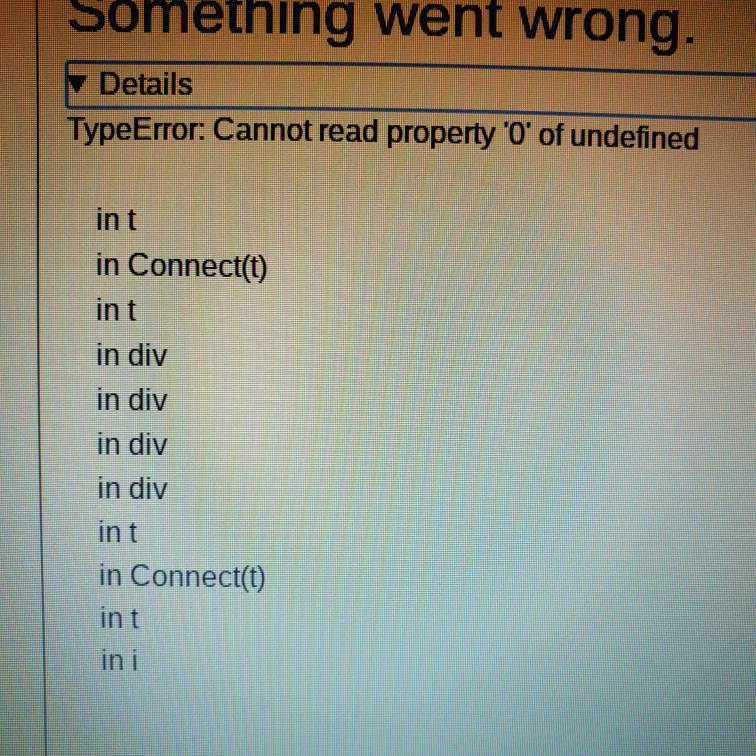

Also there is an error which looks related, here's a pic



[Brad Cox]

I used reef-pi during last Christmas as well. Now I have one installed in each room for temperature sensing and controlling all the equipment. The one in hallroom also uses timer to turn on/off TV/Xfinity that my son uses to watch cartoon , I find it easier to let reef-pi switch off the TV instead of us, that way he is not so angry on us LOL

Ha very good idea!

The software is so stable.



[LionHeart2017]

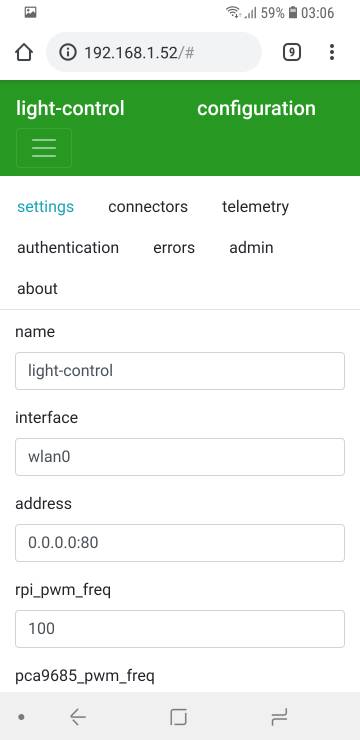

A few little things I notice on mobile, the burger bar menu changes position upon choosing configuration as the first 2 pics, also the text isn't centred on the switch in off position, and turning it on and off triggers Google at bottom of screen on last pic, minor things and maybe me and some ocd[emoji13]



[Michael Lane]

A few little things I notice on mobile, the burger bar menu changes position upon choosing configuration as the first 2 pics, also the text isn't centred on the switch in off position, and turning it on and off triggers Google at bottom of screen on last pic, minor things and maybe me and some ocd[emoji13]

@LionHeart2017 I have a fix for on/off toggle not centering the status.
I haven't been able to reproduce the hamburger issue - which phone/browser are you using? [Edit - I can see the wrapping is due to the length of the name.]
What is that Google bar on the bottom of the screen?



[Ranjib]

No, not fixed yet, I've unchecked dashboard and reloaded reef-pi but still the same

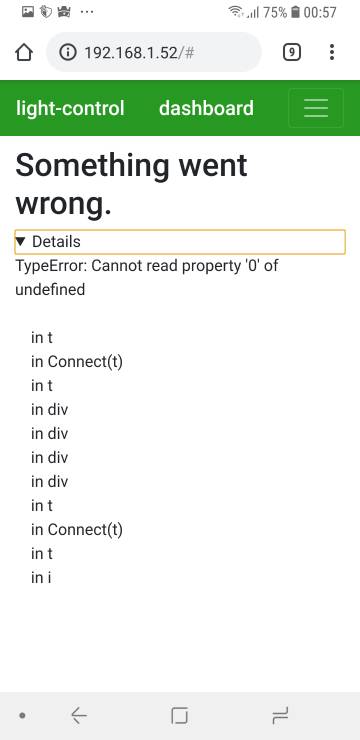

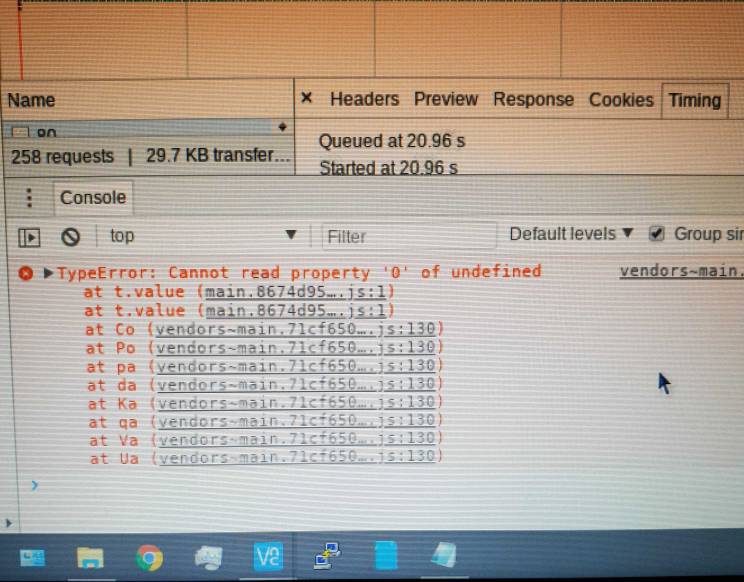

Also there is an error which looks related, here's a pic

I have fixed the bug and updated the release, if you can reinstall reef-pi it should be fixed now: https://github.com/reef-pi/reef-pi/releases/tag/2.0.0-rc3



[LionHeart2017]

@LionHeart2017 I have a fix for on/off toggle not centering the status.
I haven't been able to reproduce the hamburger issue - which phone/browser are you using? [Edit - I can see the wrapping is due to the length of the name.]
What is that Google bar on the bottom of the screen?

I'm Samsung s9, chrome, it's a search from Google, if I hold my finger on text on screen it will let me pull up a half page of related things to the word, it seems to trigger it when you go from on to off.

@Ranjb I've updated reef-pi but still no dashboard working, same error, reloaded reef-pi, rebooted pi, still persist



[LionHeart2017]

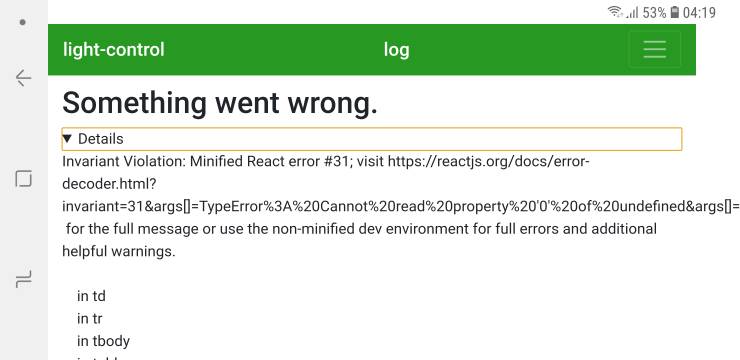

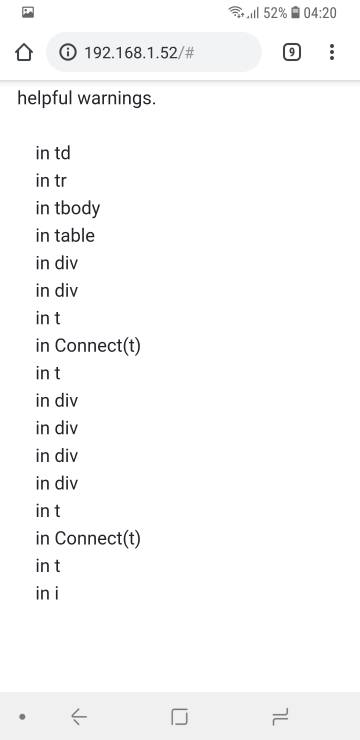

Now found this in log
