Cant find bulkhead small enough

Ecotech Marine

Jinjer

New Member
View Badges
Joined
May 18, 2021
Messages
3
Reaction score
0
Location
Ft Leonard wood

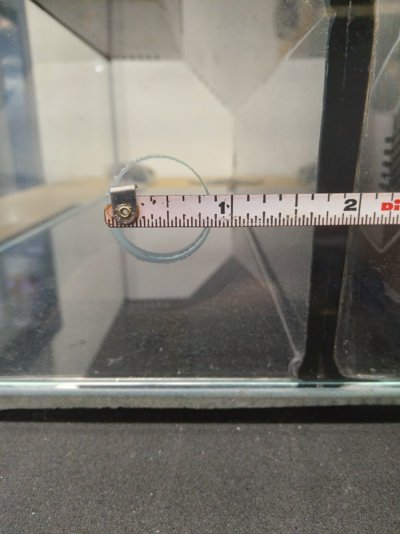

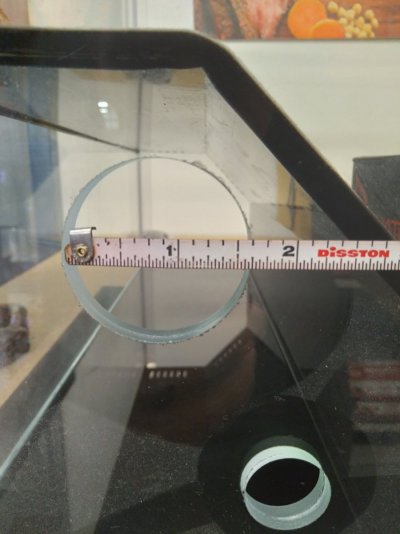

so I recently acquired an aqua top reef3 cube. It was supposed to be a full setup plumbing included but long story short I only got the tank. It came drilled and I'm having trouble figuring out what size bulk heads to order because the hole drilled for the return is less than an inch in diameter. All of the bulkhead size charts I can find require at least a 1 inch hole. Am I missing something?

16213692268796172619148346401661.jpg 16213692930194752377681188719206.jpg

Corals.com

SamiTANKS

Community Member
View Badges
Joined
Dec 29, 2019
Messages
54
Reaction score
22
Checkout jehmco.com for small bulkheads. They have the cheapest price on bulkheads that I've found and were the only place I could find bulkheads smaller then 1/2". Their website only shows the catalog tho so I had to call to put my last order in

Top Shelf Aquatics

Matt L.

Community Member
View Badges
Joined
May 14, 2021
Messages
29
Reaction score
101
Location
Scarsdale, NY
They do make smaller bulkheads than 1/2", they're just not common, and you should be able to find one that fits.

Matt:cool:


ca1ore

10K Club member
View Badges
Joined
Oct 28, 2014
Messages
13,327
Reaction score
18,722
Location
Stamford, CT
1/4" bulkhead is going to be pretty close to useless in terms of how much water it can flow. Why don't you inquire with the manufacturer? Perhaps they have a customized bulkhead. Your other options would be to either over drill the hole (need to confirm the glass is not tempered), or perhaps cobble together a bulkhead from PVC fittings. OD of a 3/4" nipple might fit. Sandwich two of these on either side.

3/4" male to 1" slip pvc - Bing images

OP
Jinjer

Jinjer

New Member
View Badges
Joined
May 18, 2021
Messages
3
Reaction score
0
Location
Ft Leonard wood
So as it turns out it was a proprietary bulkhead specially manufactured by aquatop for this tank. So instead of trying to diy it I bit the bullet and ordered a plumping kit from them over the phone. Thanks for the advice it is greatly appreciated!
