DIY CO2 Degassing Chamber for RO/DI

Discussion in 'Do It Yourself (DIY)' started by TheEngineer, Sep 3, 2015.

  1. TheEngineer

    TheEngineer Formerly icecool2 R2R Supporter Showcase Editor Build Thread Contributor

    Joined:
    Nov 26, 2011
    Messages:
    4,260
    Likes Received:
    2,547
    Location:
    PA
    Well, I learned the hard way that the water coming out of my well has a high CO2 content. I burned through a pound of DI resin and only got 40 gallons out of it.... To keep this from happening again, I could either buy lots of RO/DI water or remove the CO2 from the RO water before I pass it through the DI resin. (This design is based off of the Spectrapure design.)

    Parts List:
    3" PVC (36")
    3" PVC Cap
    3" Knock-out Cap
    3" to 1.5" PVC Tee
    1.5" PVC Street 90 Elbow
    1.5" to 3/4" Reducing Bushing
    3/4" PVC (12")
    3/4" PVC Threaded Coupling (Female)
    3/4" Male Thread to 1/4" Quick Connect Adaptor
    Air Pump
    Air Stone
    PVC primer and cement
    Teflon tape


    Assembly:

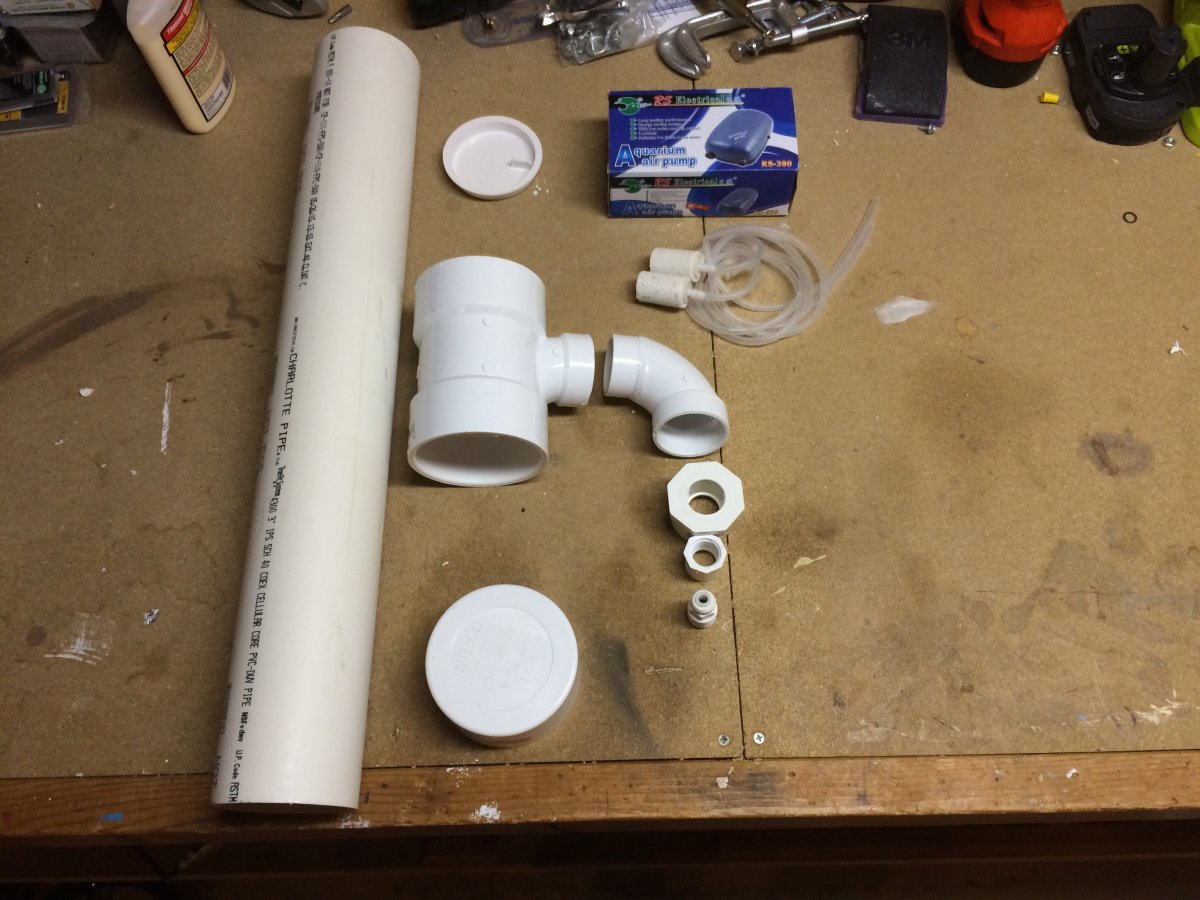

    The parts are shown in the image above in the order you would connect them.
    1. Cut the 3" PVC pipe about 6" down
    2. Attach the 3" PVC cap to the bottom of the longer section from step 1
    3. Attach the tee between the two pieces.
    4. Attach the street elbow to the tee and the reducing bushing to the street elbow
    5. Attach the piece of 3/4" PVC pipe to the reducing bushing (you can shorten the pipe if you'd prefer)
    6. Attach the threaded coupling to the 3/4" PVC pipe
    7. Apply teflon tape to the thread-to-quick connect adaptor and thread it onto the coupling from step 6
    8. Drill 3 3/8" holes into the knock out cap
    9. Thread the airline tubing through the bottom of the knock out cap, be sure the air stones are on the bottom!
    10. Insert the knockout cap into the top of the short section of 3" PVC
    11. Attach the air line(s) to your air pump
    12. (OPTIONAL) Secure your air pump to the 3" PVC
    13. Insert the output of your RO filter into the remaining hole of the knock out cap (only insert it a few inches)
    14. Attach your DI chamber to the 1/4" quick connect fitting
    15. That's it!
    IMG_1255.jpg IMG_1256.jpg

    Use:
    To use the degassing chamber, simply run your RO water into the chamber with the air pump running. As the water enters the chamber, it will be oxygenated and the CO2 level will be reduced. When the water level is high enough, it will trickle out of the tee and through your DI resin. Put the output of your DI resin into a bucket or holding tank and it is ready for use.

    sundog101, McMullen and Sabellafella like this.
    Tags:

  2. kschweer

    kschweer Zoas!!! Staff Member Team R2R R2R Supporter R2R Excellence Award NJRC Member Partner Member 2018

    Joined:
    Mar 25, 2011
    Messages:
    9,617
    Likes Received:
    13,669
    Location:
    New Jersey
    Nice job! Let us know how it works out for you.

  3. TheEngineer

    TheEngineer Formerly icecool2 R2R Supporter Showcase Editor Build Thread Contributor

    Joined:
    Nov 26, 2011
    Messages:
    4,260
    Likes Received:
    2,547
    Location:
    PA

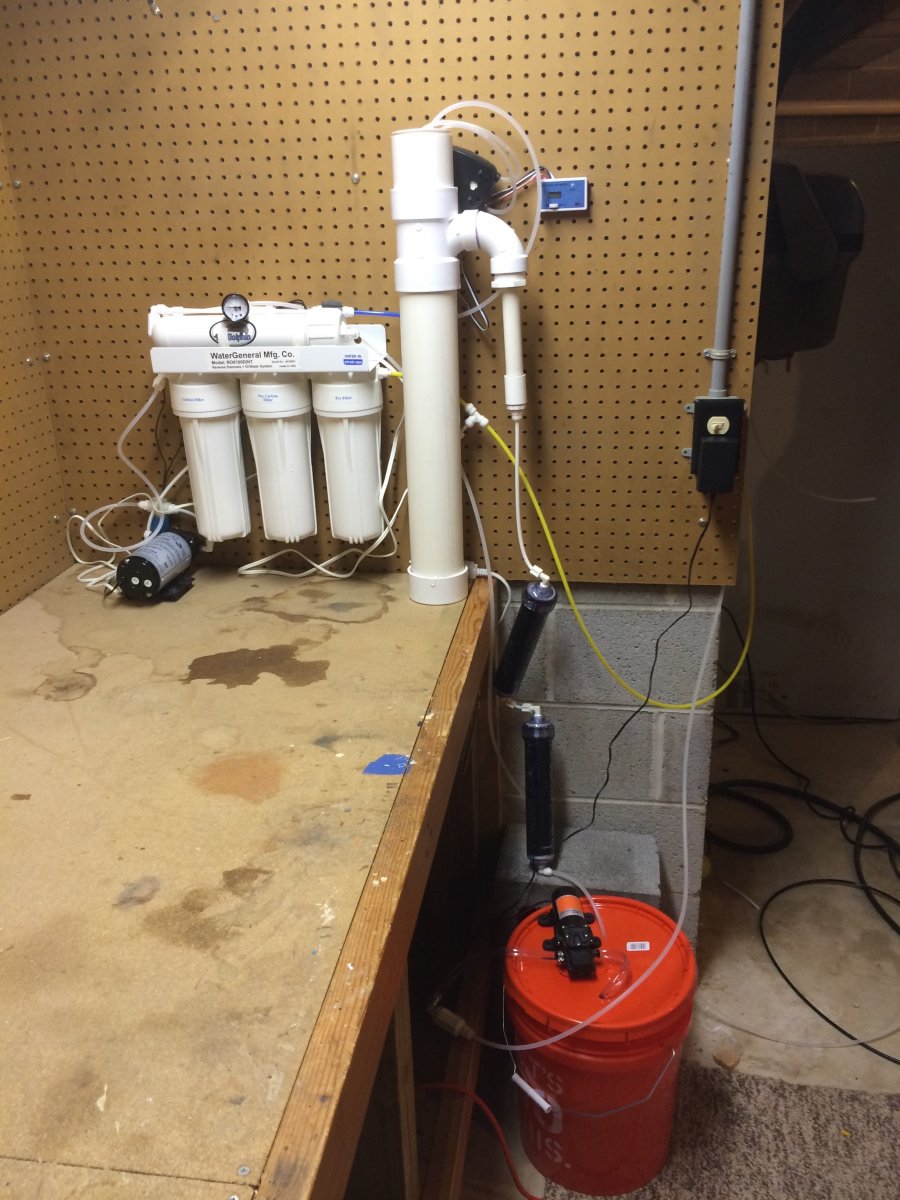

    I got around to setting everything up and giving it a good test run. I can report success on the primary objective of saving my DI resin from the CO2. I did discover a problem, and I'm working on a long-term solution to it. Gravity feeding the DI resin is not sufficient to keep up with the RO output rate. I dropped the height of the DI chambers down quite a bit and it helps, but still doesn't quite keep up. I'll post back when I figure out something that works (aside from slowing the RO down, that defeats the purpose!)
