First Attempt at Hard Plumbing

Michael Rossi

Active Member
View Badges
Joined
Jun 16, 2020
Messages
148
Reaction score
89
Location
New Jersey
Please excuse the horrible drawing, but I'm planning to hard plumb my tank. The main reason being, the dorso drain is gurgling/flushing and I don't have room in my overflow to switch to a herbie. I also don't have a controllable return pump to lower the return rate (which I think it the heart of the issue) so I want to use a gate valve to dial it back.

I'd appreciate any obvious issues with my plan and/or any tips or tricks. I won't be able to get to Home Depot for a day or two still.

I want to keep that return PVC as high as possible to allow for working room in the sump. I'll need to play around with the clearance and exact placement of the gate valve when I get all the equipment. There is also a wood support beam in the middle of the stand that I can install a hanger to keep it in place and prevent it from sagging.


Top Shelf Aquatics

Super Fly

Valuable Member
View Badges
Joined
Apr 19, 2018
Messages
1,117
Reaction score
787
Looks fine. I did the same thing on my old tank. Only difference was i had a ball valve union instead of a gate valve
This. Try to use ball valve union even in drain to help dial in flow. I wouldn't use gate valves from Home Cheapo, those r very difficult/stiff to adjust vs. the more expensive ones from BRS are very easy to use.

OP
Michael Rossi

Michael Rossi

Active Member
View Badges
Joined
Jun 16, 2020
Messages
148
Reaction score
89
Location
New Jersey
This. Try to use ball valve union even in drain to help dial in flow. I wouldn't use gate valves from Home Cheapo, those r very difficult/stiff to adjust vs. the more expensive ones from BRS are very easy to use.
I was reading that the ball valves were harder to dial in (I think there was even a note on this thread to try to stay away from them). However, it sounds like multiple people have had success with this.

And yes, Home Depot doesn't even sell the gate valves. I would need to get them from BRS.

First Choice

Mike9976

Community Member
View Badges
Joined
Aug 26, 2019
Messages
49
Reaction score
58
Please excuse the horrible drawing, but I'm planning to hard plumb my tank. The main reason being, the dorso drain is gurgling/flushing and I don't have room in my overflow to switch to a herbie. I also don't have a controllable return pump to lower the return rate (which I think it the heart of the issue) so I want to use a gate valve to dial it back.

I'd appreciate any obvious issues with my plan and/or any tips or tricks. I won't be able to get to Home Depot for a day or two still.

I want to keep that return PVC as high as possible to allow for working room in the sump. I'll need to play around with the clearance and exact placement of the gate valve when I get all the equipment. There is also a wood support beam in the middle of the stand that I can install a hanger to keep it in place and prevent it from sagging.



You're using unions from the tank as opposed to bulkheads?


Billldg

Going broke for the dream tank
View Badges
Joined
May 14, 2018
Messages
12,347
Reaction score
86,919
Location
Georgia
On my 1st tank I used hand valves with no issues. I bought them from Lowes at a fraction of the price of a gate valve. I would recommend also installing unions on the sump as well.



Mike9976

Community Member
View Badges
Joined
Aug 26, 2019
Messages
49
Reaction score
58
Please excuse the horrible drawing, but I'm planning to hard plumb my tank. The main reason being, the dorso drain is gurgling/flushing and I don't have room in my overflow to switch to a herbie. I also don't have a controllable return pump to lower the return rate (which I think it the heart of the issue) so I want to use a gate valve to dial it back.

I'd appreciate any obvious issues with my plan and/or any tips or tricks. I won't be able to get to Home Depot for a day or two still.

I want to keep that return PVC as high as possible to allow for working room in the sump. I'll need to play around with the clearance and exact placement of the gate valve when I get all the equipment. There is also a wood support beam in the middle of the stand that I can install a hanger to keep it in place and prevent it from sagging.



Avoid using 90° elbows, it'll restrict your flow.

Aquarium Specialty - dry goods & marine livestock
OP
Michael Rossi

Michael Rossi

Active Member
View Badges
Joined
Jun 16, 2020
Messages
148
Reaction score
89
Location
New Jersey
You're using unions from the tank as opposed to bulkheads?

No. Probably just my crude drawing :) I would have a short pipe connected to the bulkheads and the union up close to the bulkhead, but connected by a short pipe. I have another bulkhead going into the sump, so I think I would do the same there (short pipe and union). That should allow me to easily install the pipe between the two unions. At least I think it would....


Ippyroy

Master Farmer of GHA
View Badges
Joined
Nov 19, 2019
Messages
4,120
Reaction score
23,823
Location
West Yellowstone
Please excuse the horrible drawing, but I'm planning to hard plumb my tank. The main reason being, the dorso drain is gurgling/flushing and I don't have room in my overflow to switch to a herbie. I also don't have a controllable return pump to lower the return rate (which I think it the heart of the issue) so I want to use a gate valve to dial it back.

I'd appreciate any obvious issues with my plan and/or any tips or tricks. I won't be able to get to Home Depot for a day or two still.

I want to keep that return PVC as high as possible to allow for working room in the sump. I'll need to play around with the clearance and exact placement of the gate valve when I get all the equipment. There is also a wood support beam in the middle of the stand that I can install a hanger to keep it in place and prevent it from sagging.

What are you using as a return pump? I use sicce pumps and I can change the flow rate on all of them with a dial on the front. It works great. A ball valve on the return pump is not a big deal. I would use a gate valve on the drain though. you need very precise control on that one.


Conovan

Active Member
View Badges
Joined
Feb 18, 2020
Messages
197
Reaction score
195
Please excuse the horrible drawing, but I'm planning to hard plumb my tank. The main reason being, the dorso drain is gurgling/flushing and I don't have room in my overflow to switch to a herbie. I also don't have a controllable return pump to lower the return rate (which I think it the heart of the issue) so I want to use a gate valve to dial it back.

I'd appreciate any obvious issues with my plan and/or any tips or tricks. I won't be able to get to Home Depot for a day or two still.

I want to keep that return PVC as high as possible to allow for working room in the sump. I'll need to play around with the clearance and exact placement of the gate valve when I get all the equipment. There is also a wood support beam in the middle of the stand that I can install a hanger to keep it in place and prevent it from sagging.

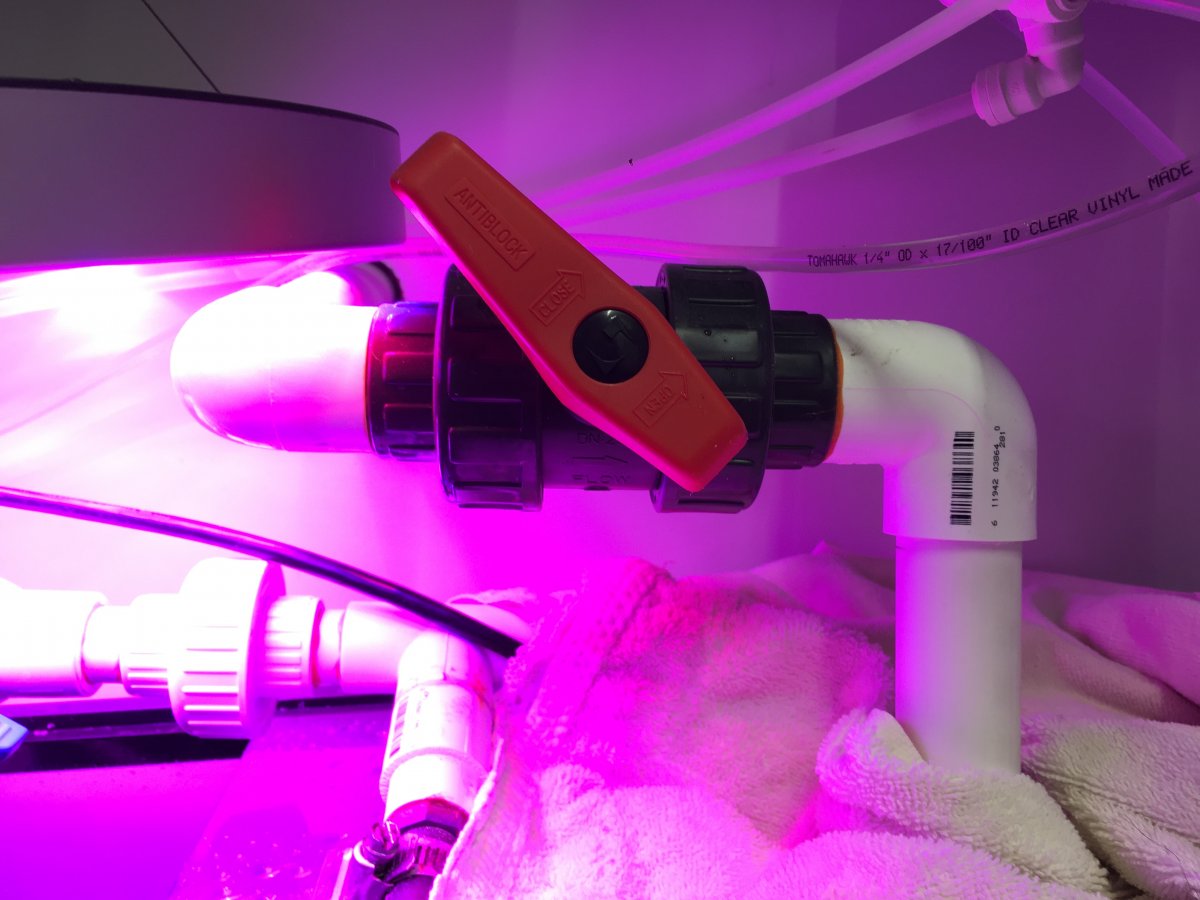

I think mine is pretty close to what you have have in your diagram with the exception of the check valve and return valve placement. I also have a durso ( bbought the tank second hand so no real options). Works well for me with close to no sound at all.

OP
Michael Rossi

Michael Rossi

Active Member
View Badges
Joined
Jun 16, 2020
Messages
148
Reaction score
89
Location
New Jersey
What are you using as a return pump? I use sicce pumps and I can change the flow rate on all of them with a dial on the front. It works great. A ball valve on the return pump is not a big deal. I would use a gate valve on the drain though. you need very precise control on that one.
Supreme Aqua-Mag 700 GPH Return Pump

There is no control on it to reduce the flow. I'm torn between getting a new DC/Controllable return pump vs hard plumbing it with a ball valve. Hard plumbing seems like the cheaper option... And a good learning experience

Budmans
OP
Michael Rossi

Michael Rossi

Active Member
View Badges
Joined
Jun 16, 2020
Messages
148
Reaction score
89
Location
New Jersey

I think mine is pretty close to what you have have in your diagram with the exception of the check valve and return valve placement. I also have a durso ( bbought the tank second hand so no real options). Works well for me with close to no sound at all.

Lol. It looks exactly like what I will have! I like how you and @billdg have the valves up high. I wonder if I could even replace the upper union with the valve (the same as you guys have with the union as a part of it).


Ippyroy

Master Farmer of GHA
View Badges
Joined
Nov 19, 2019
Messages
4,120
Reaction score
23,823
Location
West Yellowstone
Supreme Aqua-Mag 700 GPH Return Pump

There is no control on it to reduce the flow. I'm torn between getting a new DC/Controllable return pump vs hard plumbing it with a ball valve. Hard plumbing seems like the cheaper option... And a good learning experience
Just be sure to use soft tubing between pump and valve. It will make it much easier to maintain and replace.


Mike9976

Community Member
View Badges
Joined
Aug 26, 2019
Messages
49
Reaction score
58
No. Probably just my crude drawing :) I would have a short pipe connected to the bulkheads and the union up close to the bulkhead, but connected by a short pipe. I have another bulkhead going into the sump, so I think I would do the same there (short pipe and union). That should allow me to easily install the pipe between the two unions. At least I think it would....


Ok what I did was with the bulkheads is run a flexible hose to sump that slipped directly into the sump. Then on the return I used clear PVC which you can find just in case there's a clog or anything I can see it (hopefully) then from there I ran pvc out over the sump then used a reducing bushing, pipe, 45° elbow, then flexi hose back into tank. Theres a lot more involved. Ill see if I can take better pics when I get home. I have limited space underneath so I do what I can.


Conovan

Active Member
View Badges
Joined
Feb 18, 2020
Messages
197
Reaction score
195
Lol. It looks exactly like what I will have! I like how you and @billdg have the valves up high. I wonder if I could even replace the upper union with the valve (the same as you guys have with the union as a part of it).
I could have but it would have made it that much harder to make adjustments. In retrospect I pretty much haven't touched them since initial setup
