Some updates

It has been a couple of weeks here in south western Sweden with high temperatures (for Sweden). The temperature in the aquarium was up to more than 28 C (82 F). I normally prefer temperatures around 25 – 26 C (77 -79 F). I use cover glass in this construction so I took away a part of it and install a simple computer fan at one of the goosenecks (to my lights). I install a GHL propellerControl (a box that allow you to use a 1-10 V signal from the temperature controller in order to adjust the speed of a 12 V device – like a computer fan) This is one way to create a stable figure but there is also possible to use a more advanced (compared with on-off) control management with the Profilux like pulse variable (in this mode the computer vary the time of on mode according to the desired value and after that wait an adjustable time lap before get in on mode again) I decided to have 25.5 C as wanted temperature. After an initial dip – the temperature has stabilized around 25.5 C. From today I have 26 C as desired value.

Screen Shot 07-31-16 at 09.03 AM.JPG

In the start I use CO2 scrubber, limewater and from last week – refugium with a reversed light regime. Because I did not want the pH to rise much higher than 8.40 I put a block at pH 8.35 for the limewater. You can see in the graph below when the limewater (in the top off water) kicked in for 25 – 27 of July. 27 of July I skip the limewater. The dip in the morning of 28 of July has also an explanation. We was more people in the flat and I open up the cover glass and ad a cooling fan (see the temperature graph. After this – the pH has been stabilized but – still on a high value.

Screen Shot 07-31-16 at 09.20 AM.JPG

I have also start to pump some of my skimate down below the DSB and as the graph show – the redox is going down below zero. The profilux handle negative redox measurement - not all aquarium computers do that. The redox at the return water to the sump is rising.

Screen Shot 07-31-16 at 09.20 AM 001.JPG


Screen Shot 07-31-16 at 09.21 AM.JPG

Sincerely Lasse

Last edited:
OP
OP
Lasse

Lasse

10K Club member
View Badges
Joined
Mar 20, 2016
Messages
10,895
Reaction score
29,906
Location
Källarliden 14 D Bohus, Sweden
Rating - 0%
0   0   0
Today I took home some of my old corals that I still not picked up and probably there will not be so many more. I still have some at a public aquarium - but they are a part of the exhibition so I can wait or let them be.

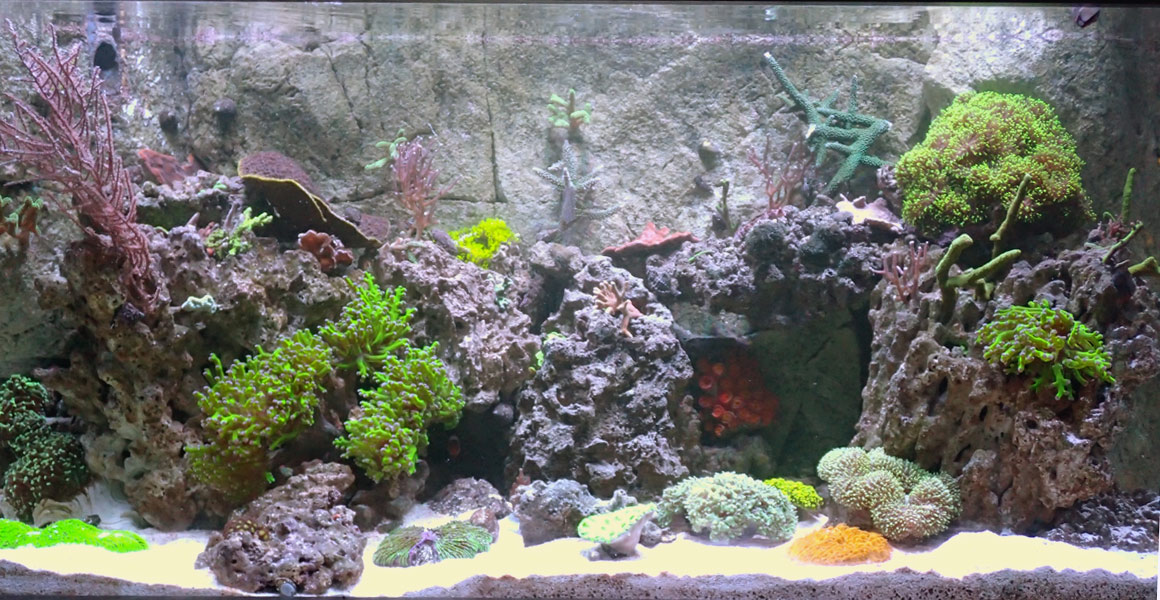

A FTS and a photo of my favorite coral




Sincerely Lasse


jsker

Reefing is all about the adventure
View Badges
Joined
Apr 11, 2015
Messages
24,974
Reaction score
79,738
Location
Saint Louis
Rating - 0%
0   0   0

jsker

Reefing is all about the adventure
View Badges
Joined
Apr 11, 2015
Messages
24,974
Reaction score
79,738
Location
Saint Louis
Rating - 0%
0   0   0
The DT is really coming along nicely.

OP
OP
Lasse

Lasse

10K Club member
View Badges
Joined
Mar 20, 2016
Messages
10,895
Reaction score
29,906
Location
Källarliden 14 D Bohus, Sweden
Rating - 0%
0   0   0
Thank you

I still have some problems with some organisms at the sand. Its not diatoms - more to the dino/cyano type. I try to ad some "living sand" today in order to see if some new bacteria could make a change of the bacterial/algae population. I have also get a sand shifter (the fish in post 167) - but he/she is more interested of cave construction for the moment

Sincerely Lasse

OP
OP
Lasse

Lasse

10K Club member
View Badges
Joined
Mar 20, 2016
Messages
10,895
Reaction score
29,906
Location
Källarliden 14 D Bohus, Sweden
Rating - 0%
0   0   0
Sometimes you got surprised when things works out too well. Yesterday I did two changes. I put some more macro algae to the refugium and new media in my CO2 scrubber. The result was that I did not have the pH dip during the DT dark regime. The growing algae and the carbon dioxide free air into the skimmer took care of the CO2 production totally. The pH was steady around 8.38.

Screen Shot 08-02-16 at 08.15 AM.JPG

When I notice this – I disable the CO2 scrubber and the pH started to dip. I also shout down the refugium light. (normally it runs between 23:30 – 10:00. The pH change directly so there is no fault readings. The graph show the situation with the dip after stopping the CO2 scrubber and the light. I will turn up the refugium light again and see what’s happen.

Sincerely Lasse


revhtree

Owner Administrator
View Badges
Joined
May 8, 2006
Messages
47,868
Reaction score
88,103
Rating - 100%
1   0   0
Looking great Lasse!


Turbo's Aquatics

Super Duper Member
View Badges
Joined
Jun 7, 2011
Messages
2,807
Reaction score
4,033
Location
West Des Moines, IA
Rating - 0%
0   0   0
Great pics. What are your lights? Looks like a lot of white and less so of blue. Sorry if this has been asked already...the question popped into my head just now!

OP
OP
Lasse

Lasse

10K Club member
View Badges
Joined
Mar 20, 2016
Messages
10,895
Reaction score
29,906
Location
Källarliden 14 D Bohus, Sweden
Rating - 0%
0   0   0
Thank You

For the moment I use 3 pcs of Coral Box Moon Light.

Each pcs has
15 LED Chips with 6 separate channels
Total 53W/pcs

5W Cree White x 4 8300K
3W Royal Blue x 5 450- 465nm
3W Cree Blue x 2 465-485nm
3W Red x 1 620-630nm
3W Green x 1 520-535nm
3W Violet x 1 420-430nm
3W UV x 1 405-410nm

Just at the moment I took the pictures I run them at 40 % white, 100 % UV/violet 100 % royal Blue, 100 % blue, 10 % green and 10 % red. For me (66 years old) it is crispy white – I like that but there is a lot of blue in it and younger persons see it bluer.

With the camera I use (Olympus Though) I am able to use a mode there the camera adjust the white balance with a test shoot – therefore I´m able to take pictures that looks like the reality there normal cameras just show a blue hint. Below there is two pictures taken 10 seconds apart – the first with a normal auto WB – the other the WB the test shoot gave. Both pictures is adjusted with Photo Shops auto level and auto colour.

Normal auto WB


Camera adjusted WB



When I look at my aquarium - picture 2 is more like the reality I see

Sincerely Lasse


jsker

Reefing is all about the adventure
View Badges
Joined
Apr 11, 2015
Messages
24,974
Reaction score
79,738
Location
Saint Louis
Rating - 0%
0   0   0
Harlequin Shrimp?

OP
OP
Lasse

Lasse

10K Club member
View Badges
Joined
Mar 20, 2016
Messages
10,895
Reaction score
29,906
Location
Källarliden 14 D Bohus, Sweden
Rating - 0%
0   0   0

jsker

Reefing is all about the adventure
View Badges
Joined
Apr 11, 2015
Messages
24,974
Reaction score
79,738
Location
Saint Louis
Rating - 0%
0   0   0
Thank you for the reply:)

OP
OP
Lasse

Lasse

10K Club member
View Badges
Joined
Mar 20, 2016
Messages
10,895
Reaction score
29,906
Location
Källarliden 14 D Bohus, Sweden
Rating - 0%
0   0   0

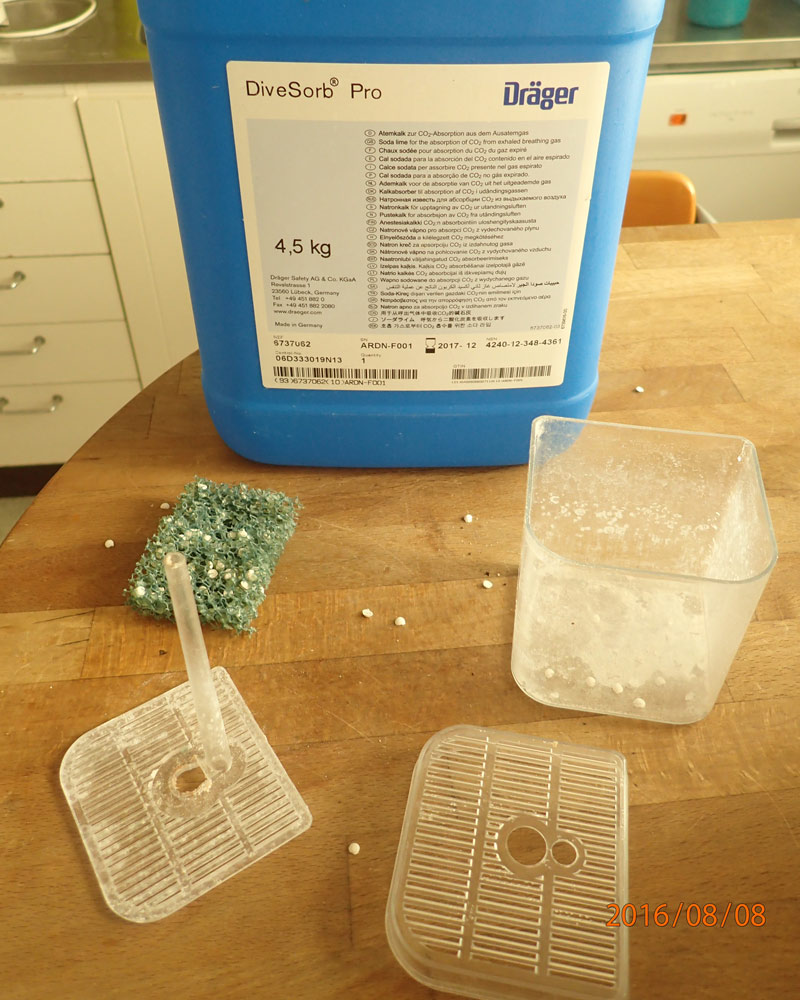

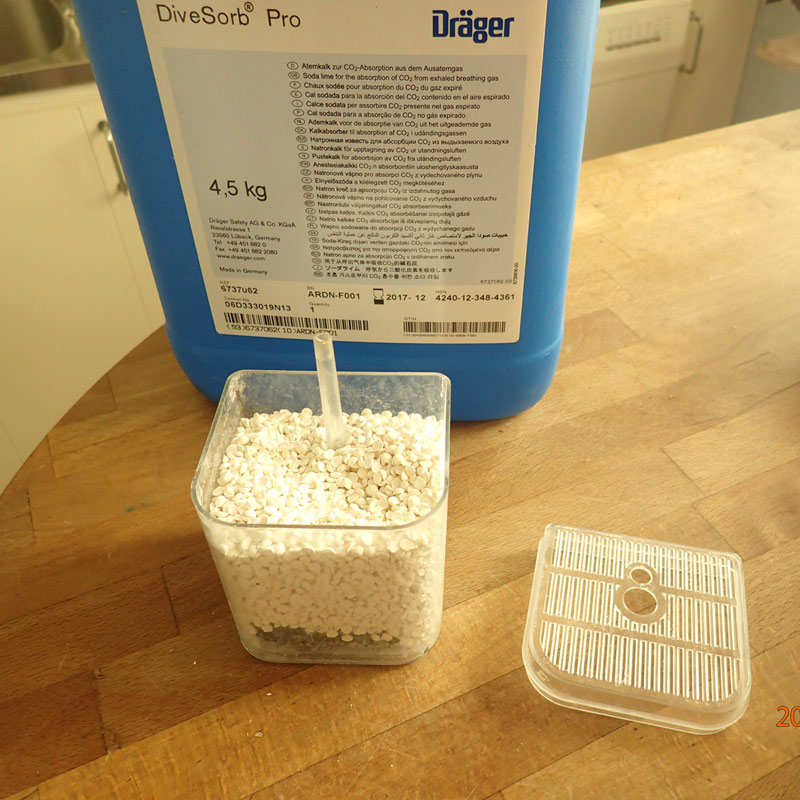

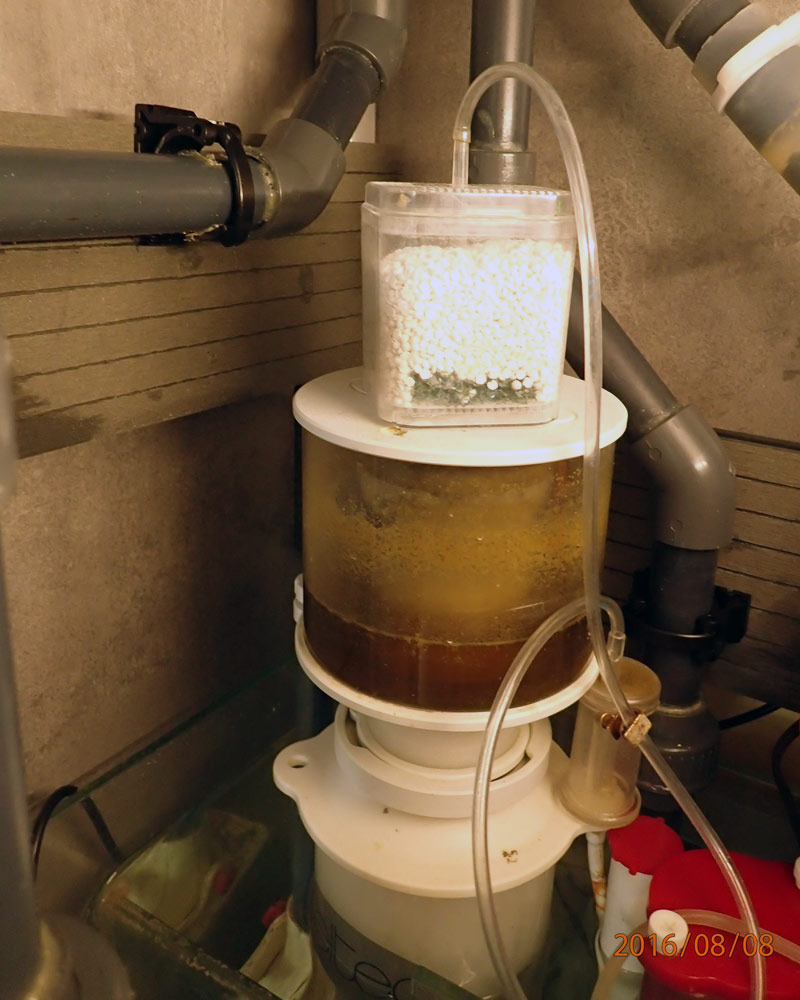

My DIY Scrubber

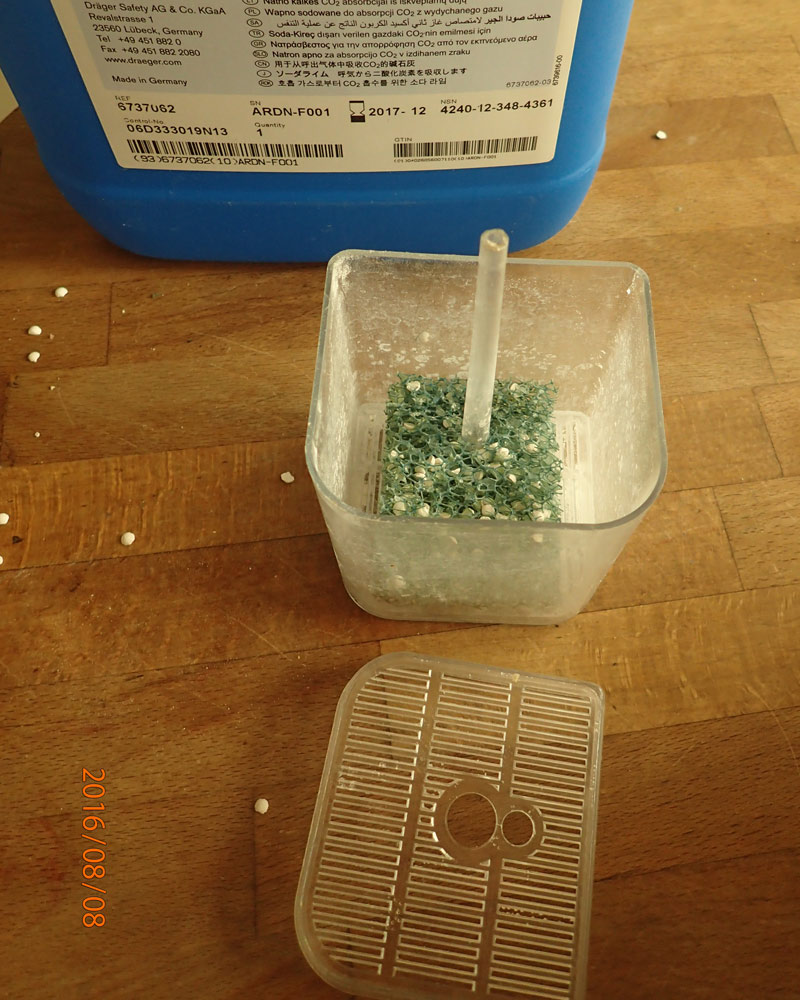

You take an old air driven filter from the 70s, a small filter mat and media for rebreathing









Is it effective? Yes I think so.

Look at my graph below - it is from the last three days - starting 12:00 5/8 and ending 16:15 today. The first day I run the system without my CO2 scrubber - only with reversed light (22:00 - 10:00) in my refugium (only red and some blue wavelengths) Around 10:00 the 6/8 I connected my CO2 scrubber - the pH was driven up to over 8:45. I let the scrubber be connected to around 7:00 the 7/8, It was disconnected till around 22:00 the 7/8. Reconnected at that time - and see what’s happen -> the pH stabilized at 8.35. This indicate that it is lesser than 200 ppm CO2 in the air connected to the skimmer and the scrubber. There is probably some interference from my refugium but not so much (yet)

Seven o´clock I disconnected the scrubber and have not connected it again.

To work well – there must be some water in the media. From start – there is 20 % water in the media but after 2 – 3 weeks I have to put some water over the media every day to have it effective for a prolonged time. I will do some test for how long you can run the media without change it out to new media

Screen Shot 08-08-16 at 04.35 PM.JPG

Sincerely Lasse
