My Custom 16g Nano dropoff

Discussion in 'Do It Yourself (DIY)' started by mrwizard421, Mar 5, 2018.

?
  1. Yes

    100.0%
  2. No

    0 vote(s)
    0.0%
  1. mrwizard421

    mrwizard421 Member

    Joined:
    May 21, 2015
    Messages:
    49
    Likes Received:
    14

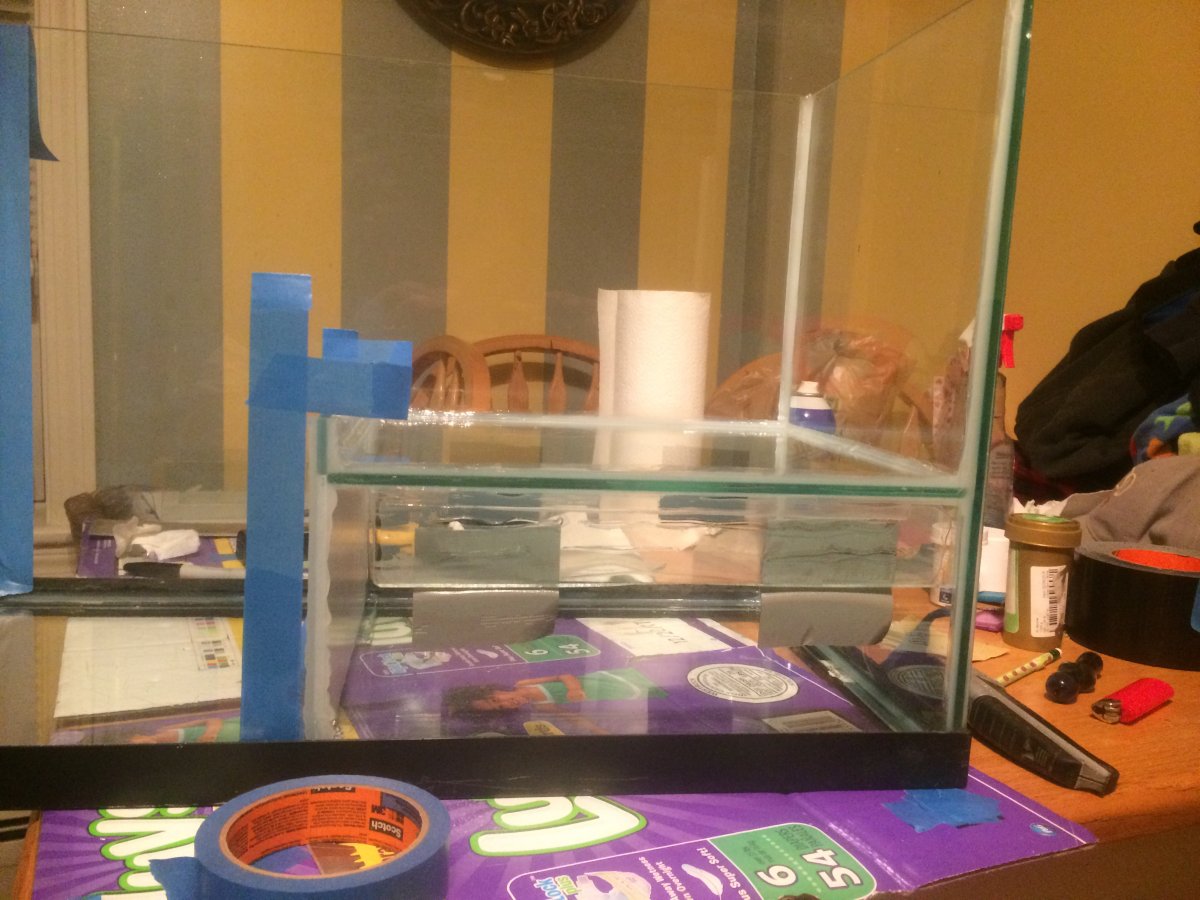

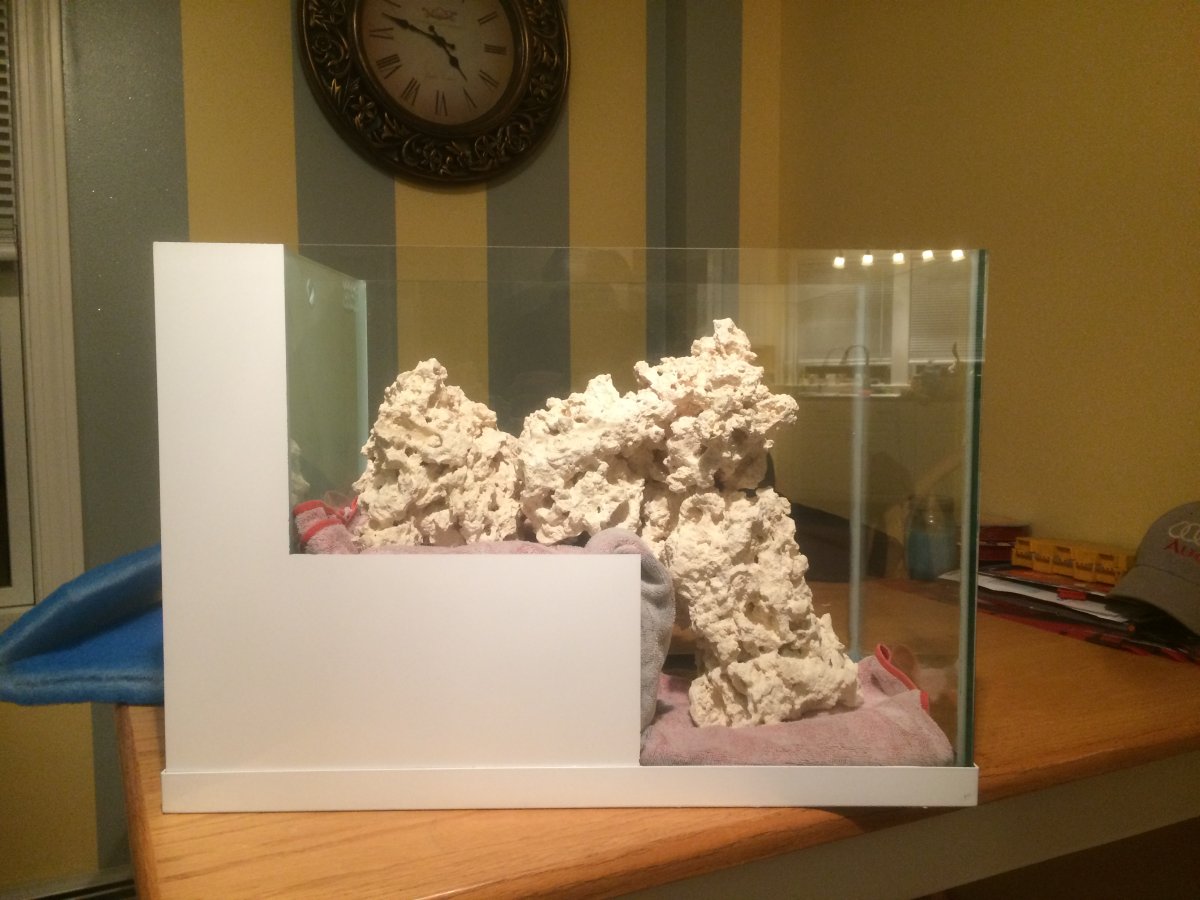

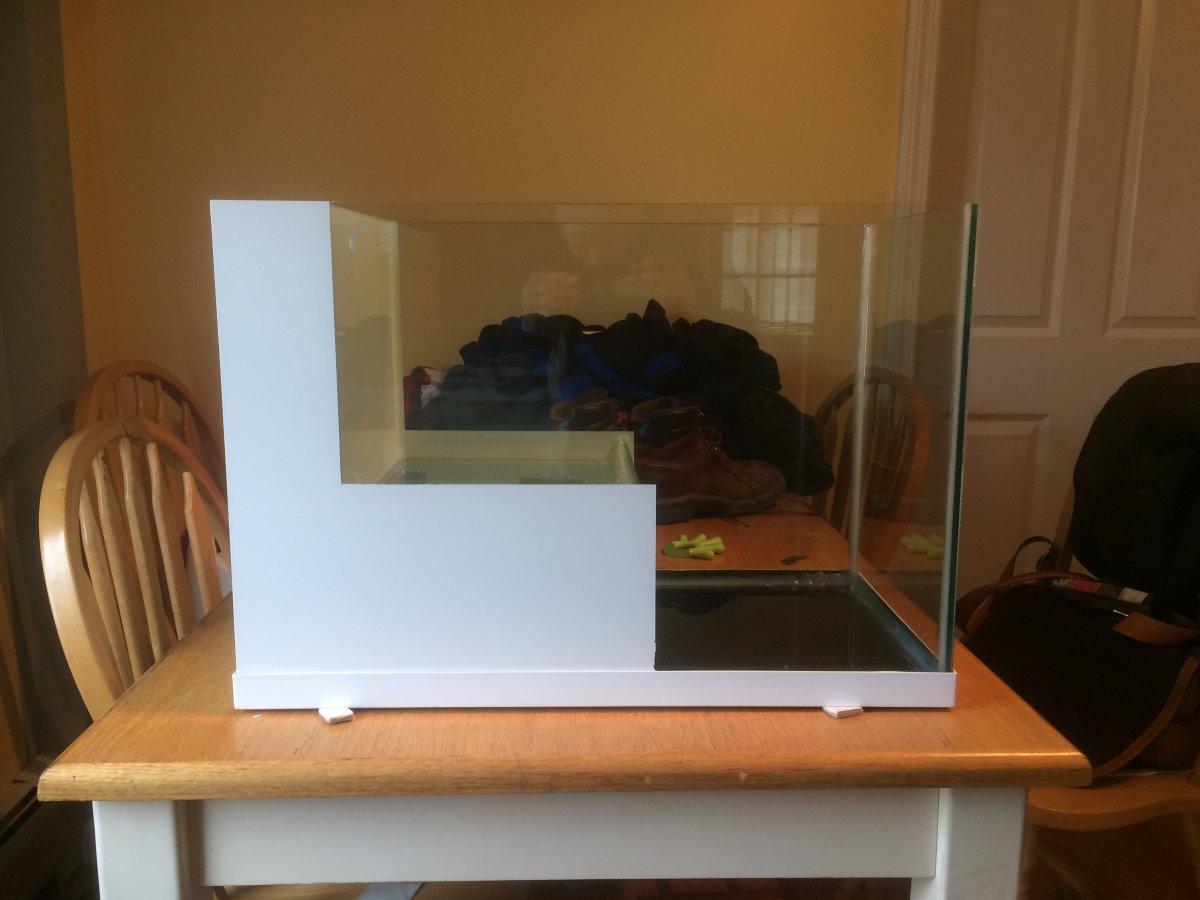

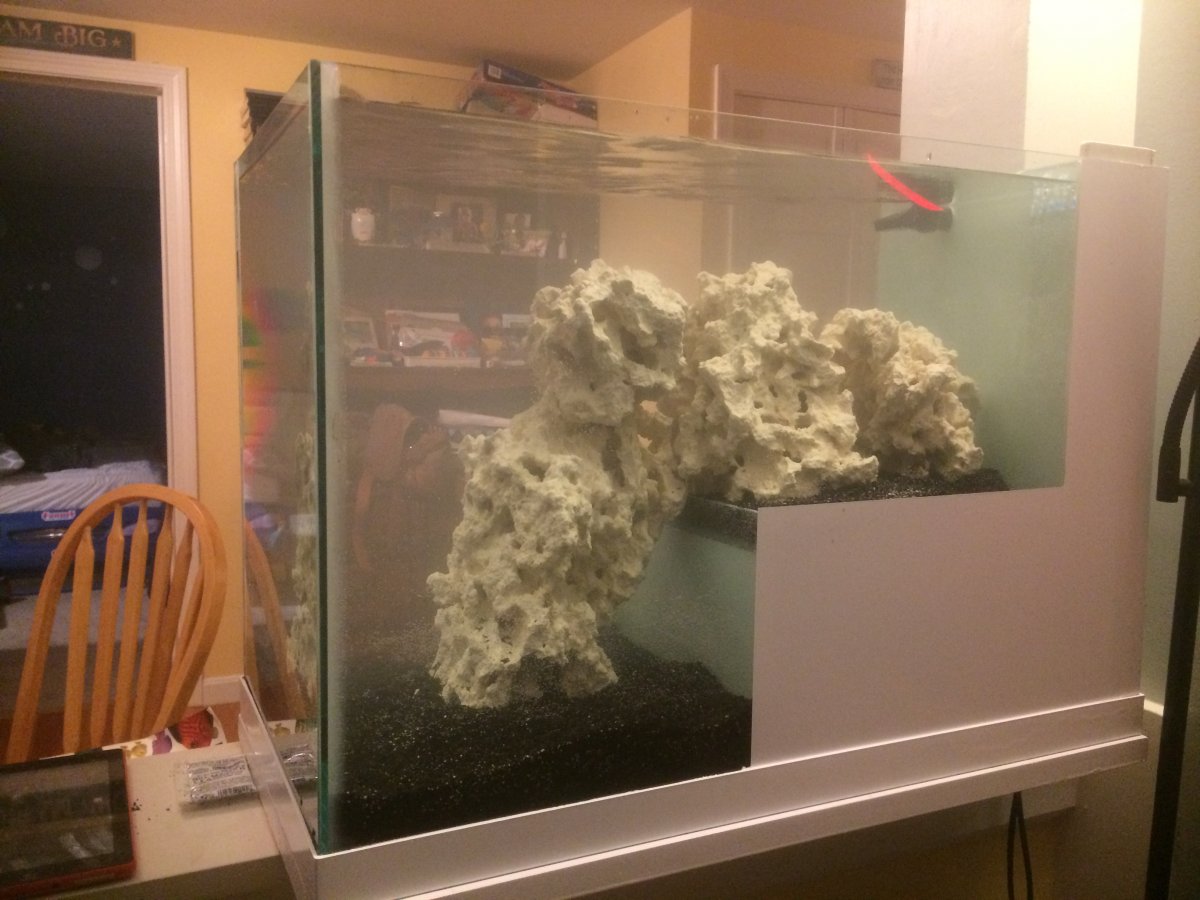

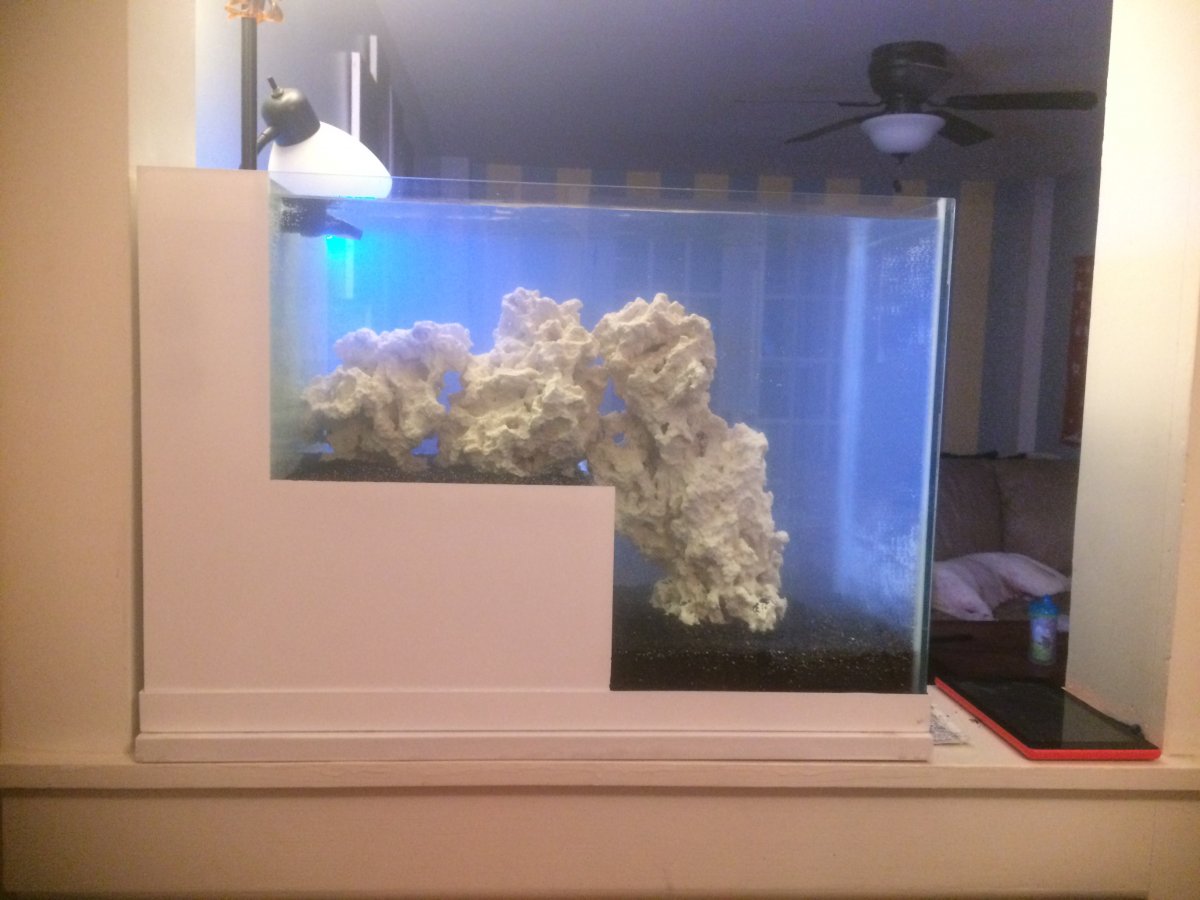

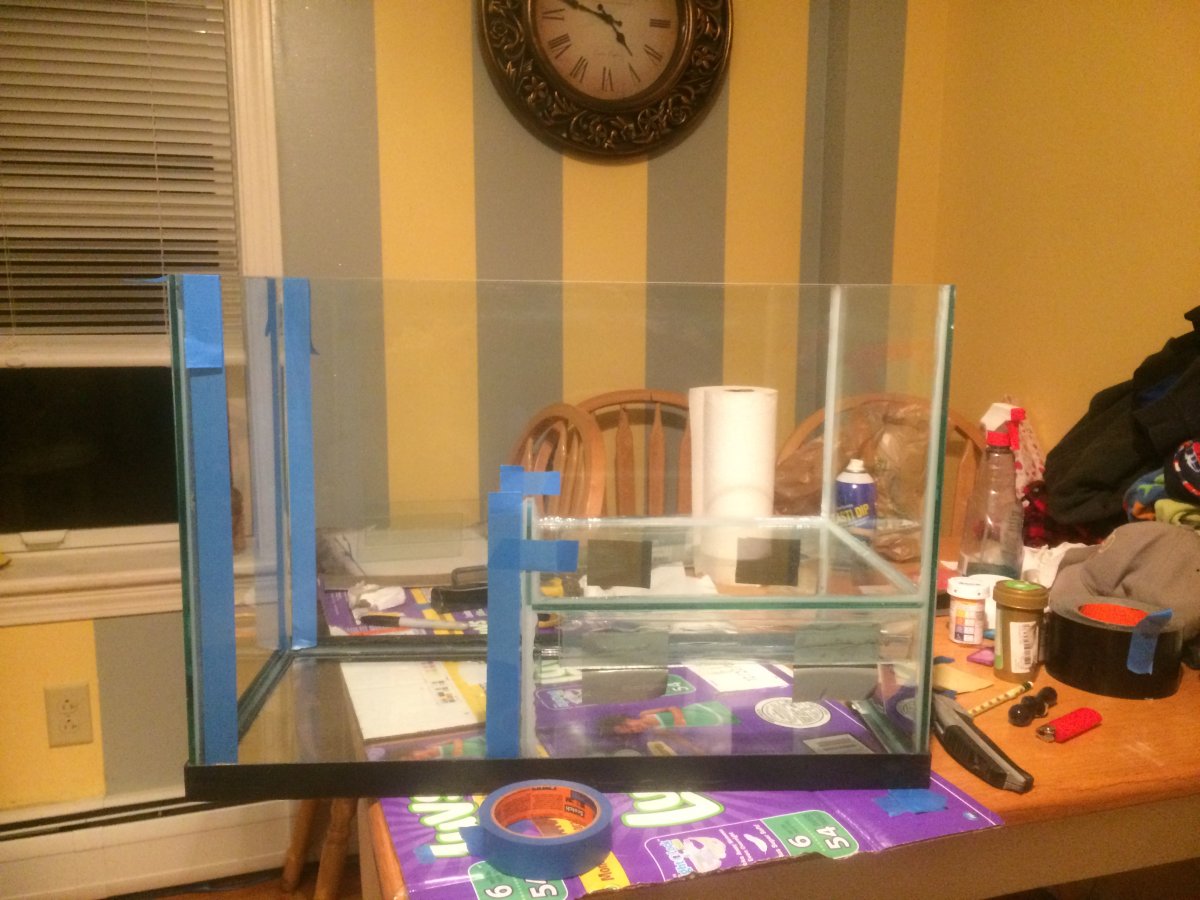

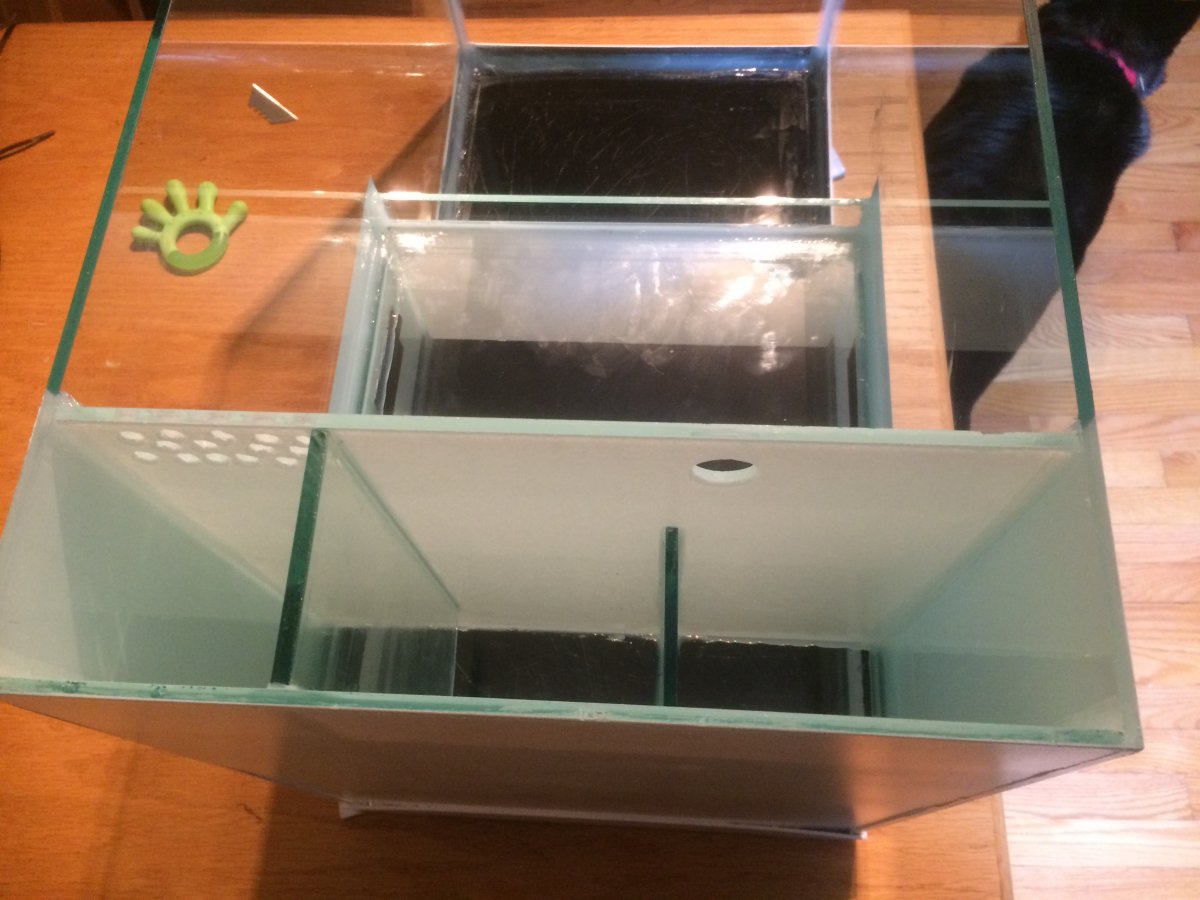

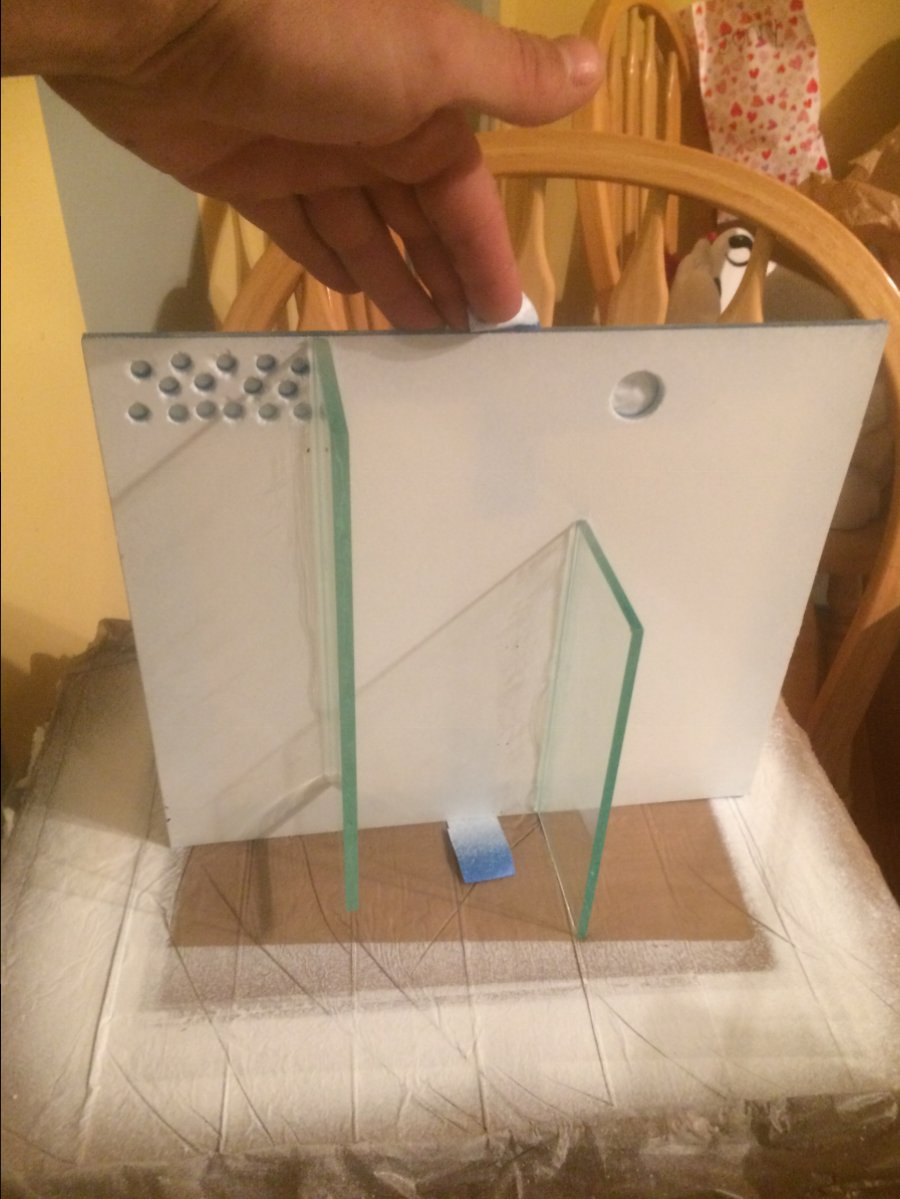

    Hi everyone I saw the Innovative Marine 20g dropoff peninsular and fell in love but after making a cart with tank and all goodies with the cart at about a grand. I looked at my fiancé and said I need to rethink this .. So after collecting tanks for the past 3 years or so. I decided to take a nicer 20g I had and build the dropoff within it. I then took an old sump I had built, cut out the baffles and disassembled the tank saving 3 of 5 pieces of glas from the sump (the other 2 I got a little crazy with lol) the best tool I used was a butter knife I had bent to a hook so I could get under the old silicone and pull up and cleaning the excess with a razor after full disassembly.. I then cut pieces making the shelf and riser then drilled a 3/4 hole on one side for a return and drilled many 1/4” holes for drainage into the media basket I then built a 2 baffle 3 chambered All In One tank /sump setup. Painted the backside of the chambered wall with plasti dip it is non toxic when dry and quite durable. The Exterior of the tank was taped prepared and cleaned then I sprayed with Enamel prime and paint. It’s sprayed with about 15 coats. After a full day of drying and some I cleaned the tank maybe 30 times with a heavy distilled vinegar and water solution.. put my pump and return nozzle together filled again with a 3/1 water /vinegar ratio plugged in the pump checked for any flow issues then flew to my LFS got a bag of Hawaiian Black and 16# of dry rock.. came back rinsed a few more times then put the tank in final location started diluting my salt and water and rinsed the rock well!! Did some scaping filled the tank and hopefully everything goes well.. let the cycling begin.. also I had some 1/8 pvc board laying around decided to make my own media box drilling holes in 3 small pieces to make a 3 stage Media basket. Well Thanks for reading please comment and Sorry I didn’t take pics of the cut glass my fiancé was the one who suggested I show everyone but after I had disassembled it and cut the glass then she saw my vision lol so please tell us what you think thank you everyone..

















    Jomama, Corey Shelk, anomeda and 3 others like this.

  2. MaddyP

    MaddyP 'Til Reefdom Come... R2R Supporter R2R Excellence Award Partner Member 2019 Build Thread Contributor

    Joined:
    Jul 21, 2016
    Messages:
    1,424
    Likes Received:
    3,721
    Location:
    San Pedro, CA
    Wow! This looks fantastic!! Great job!

    mrwizard421 likes this.
  3. Orbela

    Orbela Active Member

    Joined:
    Mar 21, 2014
    Messages:
    194
    Likes Received:
    36
    Wow inspired!! This looks good. Did you de-rimmed the top and what size is the 20g is it a regular, long, or high. Awesome job!! You did a really good job looks like a store bought tank.

    mrwizard421 likes this.
  4. andrewkw

    andrewkw Well-Known Member R2R Supporter R2R Excellence Award Reef Tank 365 Build Thread Contributor

    Joined:
    Jun 1, 2014
    Messages:
    950
    Likes Received:
    1,890
    Location:
    Ontario, Canada
    Looks great! and you've given me an idea for a future project.

    mrwizard421 likes this.
  5. mrwizard421

    mrwizard421 Member

    Joined:
    May 21, 2015
    Messages:
    49
    Likes Received:
    14
    Thank you very much!!! I did take the rim off (that wasn’t too easy). It was a regular 20g. 12x24x16 and the sump I broke up was the same

    Orbela likes this.
  6. mrwizard421

    mrwizard421 Member

    Joined:
    May 21, 2015
    Messages:
    49
    Likes Received:
    14
    Thank you!

    MaddyP likes this.
  7. mrwizard421

    mrwizard421 Member

    Joined:
    May 21, 2015
    Messages:
    49
    Likes Received:
    14
    Thanks.. go for it!!

  8. peterj66

    peterj66 Member

    Joined:
    Mar 18, 2016
    Messages:
    68
    Likes Received:
    35
    Location:
    Malmoe, Sweden
    Great work, very creative!

    mrwizard421 likes this.
  9. mrwizard421

    mrwizard421 Member

    Joined:
    May 21, 2015
    Messages:
    49
    Likes Received:
    14
    Thank you

  10. Kev311

    Kev311 Active Member

    Joined:
    Sep 8, 2012
    Messages:
    119
    Likes Received:
    14
    Location:
    Salem Oregon
    Neat idea! Props!

    mrwizard421 likes this.
  11. Sorcha2

    Sorcha2 Active Member

    Joined:
    Dec 22, 2017
    Messages:
    165
    Likes Received:
    226
    Wow. Any plans for stocking?

    mrwizard421 likes this.
  12. mrwizard421

    mrwizard421 Member

    Joined:
    May 21, 2015
    Messages:
    49
    Likes Received:
    14
    Hi.. I will be installing the Kessil 160we blue tuna and spectral controller!!! Yayyy lol .. but with that light my reef options are quite varied but wanted to do maybe a flower bed of zooanthids coming up to some mushrooms then a nice hammerhead in the front I also wanted to keep Some candy canes on the shelf and get some birds nest up on top ( but that may need constant pruning) not sure!! As for fish a paired Percula couple maybe a small goby .. and a peppermint shrimp or 2..

  13. mrwizard421

    mrwizard421 Member

    Joined:
    May 21, 2015
    Messages:
    49
    Likes Received:
    14
    Update.. I have used Ammonia Hydroxide ( common pure cleaning ammonia with no additional additives). For 16g I used 22ml of ammonia to get the tank to an ammonia level of 4.0..

  14. George Lopez

    George Lopez Active Member Build Thread Contributor

    Joined:
    May 6, 2017
    Messages:
    420
    Likes Received:
    202
    Very nice I wouldn't have though of doing this

    mrwizard421 likes this.
  15. mrwizard421

    mrwizard421 Member

    Joined:
    May 21, 2015
    Messages:
    49
    Likes Received:
    14
    Update.. going for a fishless cycle so I have used Ammonia Hydroxide ( common pure cleaning ammonia with no additional additives). For 16g I used 22ml of ammonia to get the tank to an ammonia level of 4.0 @ 9pm EST last night I have just checked 12 hrs later ammonia levels are at 4.0.. does anyone know any other tips for this cycling process.. I have the temp set for 85*f ph 8.0 dkh 10 Nitrite 0.25ppm Nitrate somewhere between 0-5.0 ppm.. yesterday morning about same time levels of Ammonia nitrite and nitrate were 0. So in 12 hrs the cycle has begun.. that’s pretty dang good with new dry rock and only caribsea sand to facilitate biological

  16. Fishyj

    Fishyj Active Member

    Joined:
    Jan 23, 2014
    Messages:
    444
    Likes Received:
    245
    Location:
    Niagara Falls NY

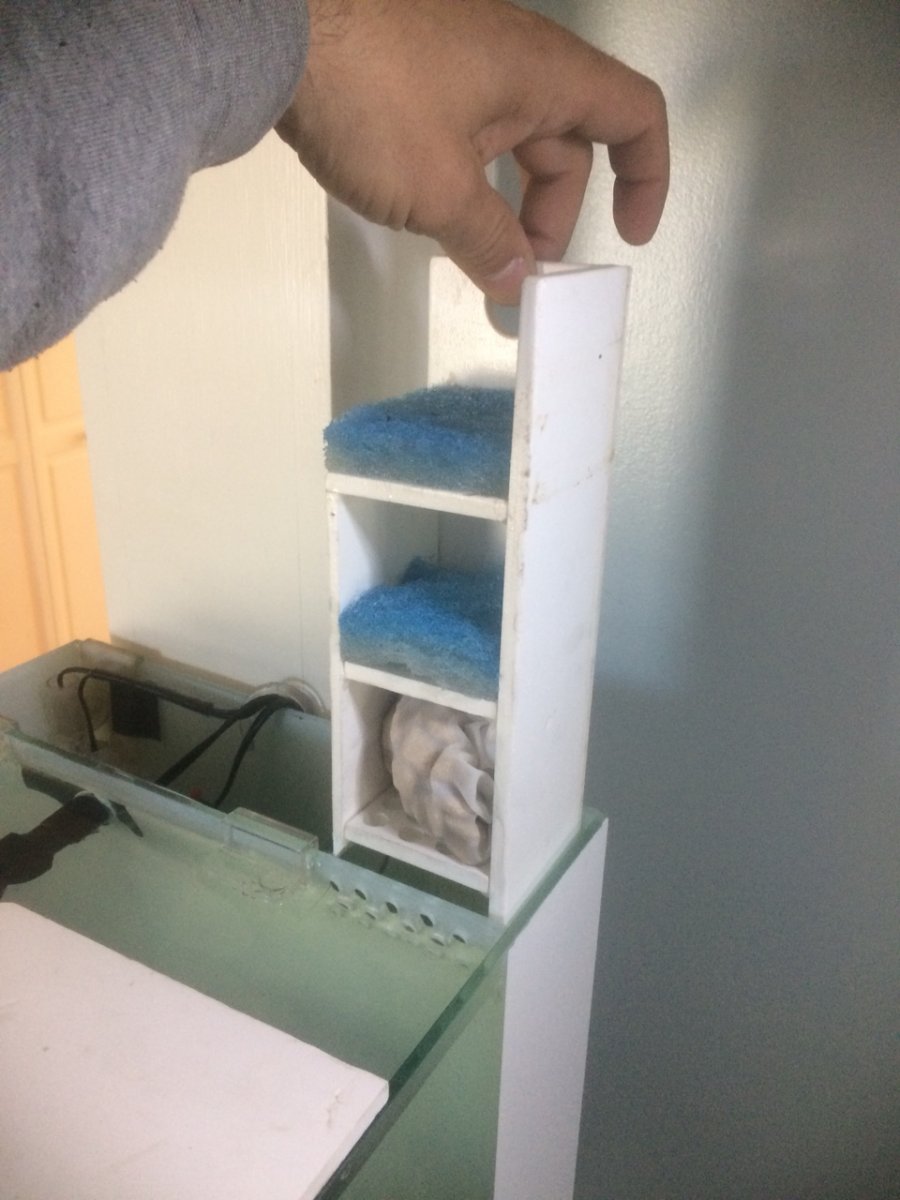

    Awesome job. Did you make up a filter tray?

    mrwizard421 likes this.
  17. mrwizard421

    mrwizard421 Member

    Joined:
    May 21, 2015
    Messages:
    49
    Likes Received:
    14
    Yes I did. IMG_3169.JPG

  18. mrwizard421

    mrwizard421 Member

    Joined:
    May 21, 2015
    Messages:
    49
    Likes Received:
    14

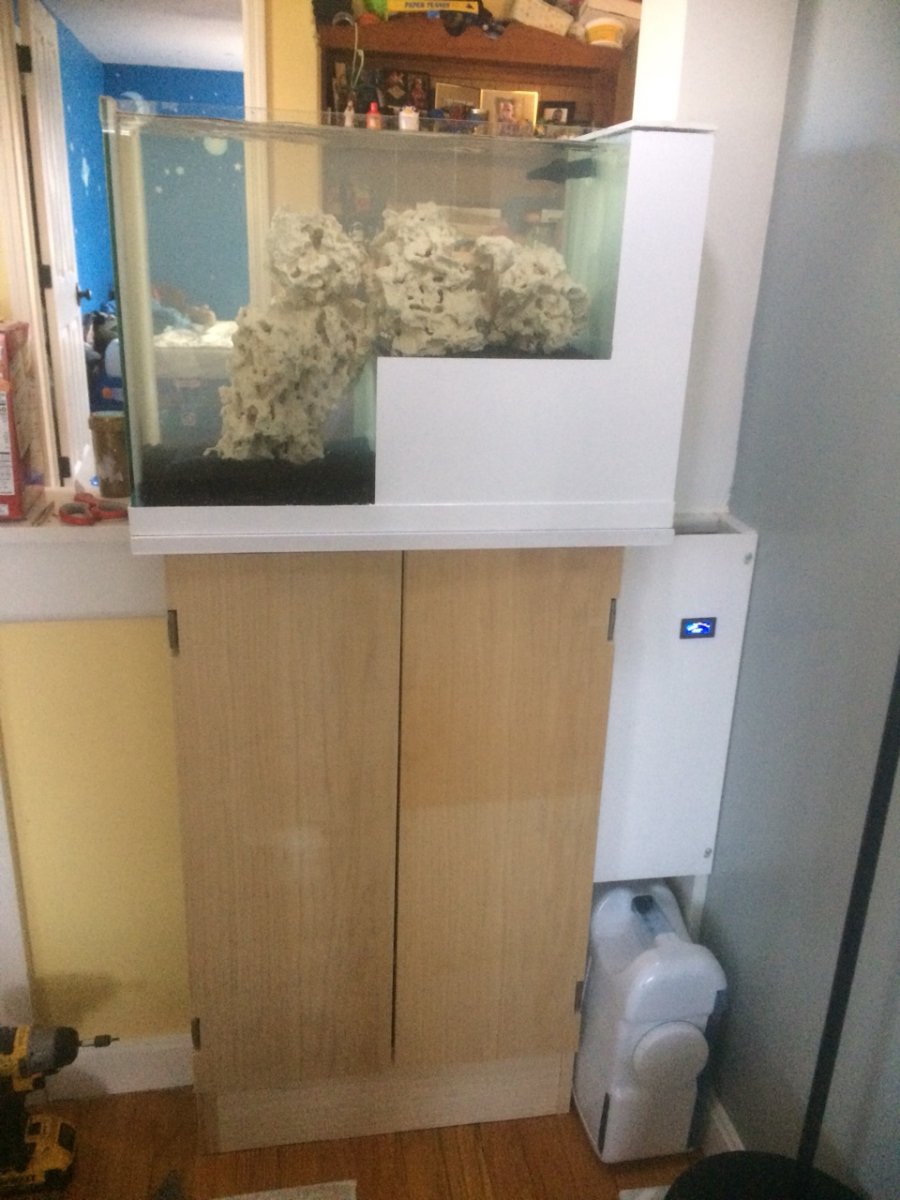

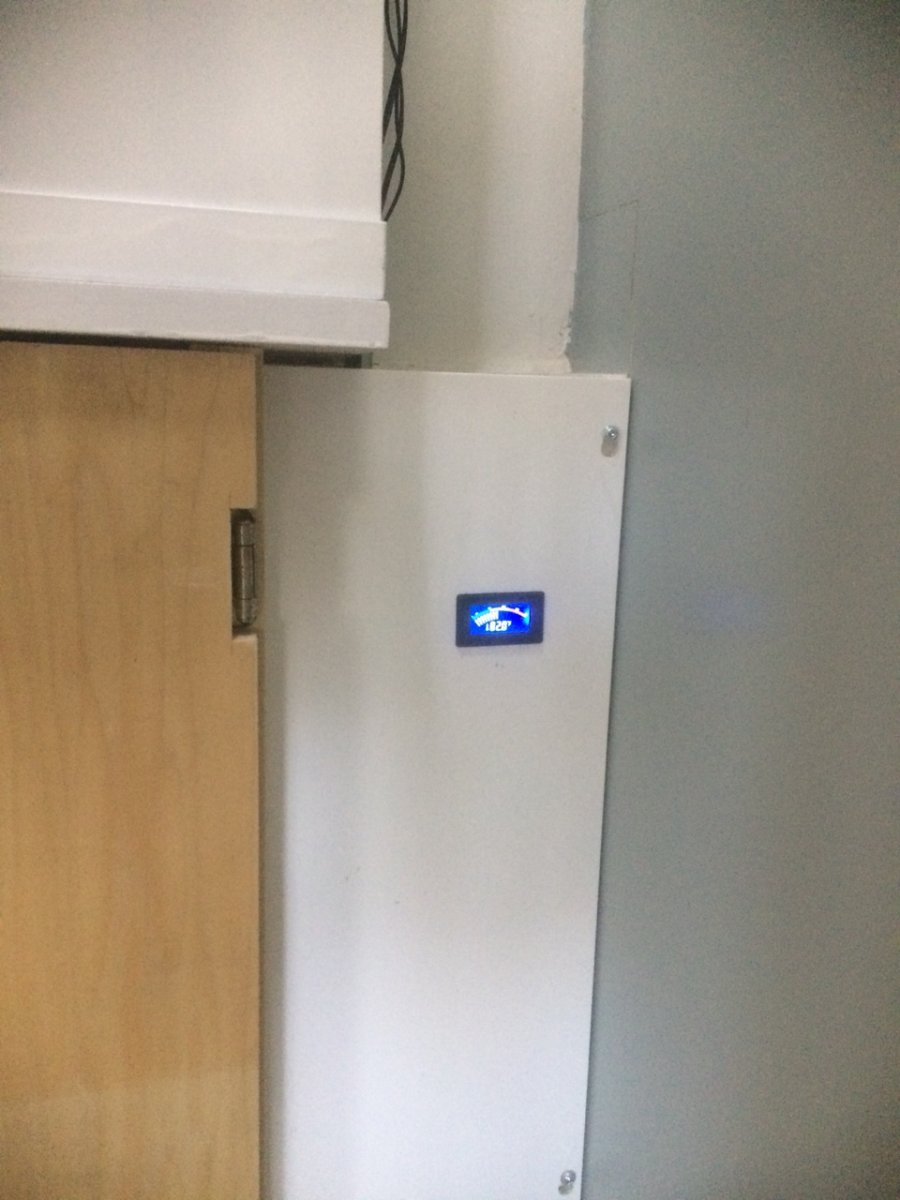

    IMG_3170.JPGalso added my ATO.. IMG_3171.JPG and keyline digital thermometer.. I have the temp up some to promote bacterial growth
