Ok, I'm about to jump in the deep end. Is Robo Tank still the best way to just purchase a premade Reef Pi setup?

Yes, absolutely. RoboTank makes setting up Reef-Pi hardware so much easier. It is basically plug and play. I am not sure I would have continued with Reef-Pi if it wasn't for RoboTank.

Plus, I like supporting a "startup" business---great for the Reef-Pi ecosystem!

BRS

robsworld78

Well-Known Member
Review score
+0 /0 /-0
View Badges
Joined
Feb 14, 2020
Messages
798
Reaction score
1,070
Review score
+0 /0 /-0
Location
Edmonton, Canada
Yes, absolutely. RoboTank makes setting up Reef-Pi hardware so much easier. It is basically plug and play. I am not sure I would have continued with Reef-Pi if it wasn't for RoboTank.

Plus, I like supporting a "startup" business---great for the Reef-Pi ecosystem!
Right on, glad you're enjoying it and thanks for the kind words and support. :)


DWKDiver

Community Member
Review score
+0 /0 /-0
View Badges
Joined
May 18, 2021
Messages
35
Reaction score
34
Review score
+0 /0 /-0
Location
Georgia
That is a good option there are others like @Schreiber Leviathon offers, and I am sure there are some other stuff out there. Hit me up via PM and I can give you some other things to think about etc...:)
I have Rob's board and it is great. Get the latest full blown version, better than the earlier version I have. I was 99% complete with my 2nd diy controller and saw what he offered and haven't regretted a second. Reef pi updates seem to be far in-between these days and 5.2 is last version I can use due to later version not working with 12v dc dosers and a few other issues for awhile now. Autism on fixes myself.....

www.dinkinsaquaticgardens.com

elysics

Valuable Member
Review score
+0 /0 /-0
View Badges
Joined
Jan 15, 2020
Messages
1,211
Reaction score
1,127
Review score
+0 /0 /-0
after having my last azdelivery ds18b20 fail on me, what's next? If i get a genuine maxim chip, or the wired ones from sparkfun, for a several times higher price than the other ones, can i expect it to run for years and years and years (properly sealed of course) or will they fail too after a while?


elysics

Valuable Member
Review score
+0 /0 /-0
View Badges
Joined
Jan 15, 2020
Messages
1,211
Reaction score
1,127
Review score
+0 /0 /-0
after having my last azdelivery ds18b20 fail on me, what's next? If i get a genuine maxim chip, or the wired ones from sparkfun, for a several times higher price than the other ones, can i expect it to run for years and years and years (properly sealed of course) or will they fail too after a while?
disregard that post, chip is still fine, the wire rusted inside the ****** white glue they put in there... I thought leaving it in and sealing it with silicone was enough, apparently not, this time i'll clean it up and pot it properly


Sral

Active Member
Review score
+0 /0 /-0
View Badges
Joined
May 2, 2022
Messages
107
Reaction score
126
Review score
+0 /0 /-0
Location
Germany
disregard that post, chip is still fine, the wire rusted inside the ****** white glue they put in there... I thought leaving it in and sealing it with silicone was enough, apparently not, this time i'll clean it up and pot it properly
Interesting info, can you send pictures of the damage and how you fixed it ?

I heard that the DS18B20 are prone to fail but never knew why. Thanks a lot in advance !

Tidal Gardens 4th Sale 3

elysics

Valuable Member
Review score
+0 /0 /-0
View Badges
Joined
Jan 15, 2020
Messages
1,211
Reaction score
1,127
Review score
+0 /0 /-0
Interesting info, can you send pictures of the damage and how you fixed it ?

I heard that the DS18B20 are prone to fail but never knew why. Thanks a lot in advance !
Didn't take pictures at the time sadly but the VCC line was completely rusted through. The others were spotless. The initial failure mode was that i was getting temperature spikes that started at 39-40°C and then shot up to 85°C, sometimes they stayed there until i wiggled the cable, i thought my connector was bad, sometimes it went away on it's own. Eventually, it was constantly reporting 85°C and no amount of wiggling changed that.



Here are some of the remains of the white glue, you can still see traces of rusted copper.

What i did to fix it was completely remove that white stuff, shorten the cable and to-92 legs until i was left with shiny metal, and soldered them back together. Heatshrinked the individual lines and another heatshrink around the outer cable isolation the exposed lines and half of the to-92 package. Then i potted the whole thing in a plasticstraw shroud with some hot melt, temporarily until i get my hands on some silicone.

If you are going to buy new ones, buy the to92 chips and do the cabling and potting yourself from the start, much cheaper and less ******.


DWKDiver

Community Member
Review score
+0 /0 /-0
View Badges
Joined
May 18, 2021
Messages
35
Reaction score
34
Review score
+0 /0 /-0
Location
Georgia
Didn't take pictures at the time sadly but the VCC line was completely rusted through. The others were spotless. The initial failure mode was that i was getting temperature spikes that started at 39-40°C and then shot up to 85°C, sometimes they stayed there until i wiggled the cable, i thought my connector was bad, sometimes it went away on it's own. Eventually, it was constantly reporting 85°C and no amount of wiggling changed that.



Here are some of the remains of the white glue, you can still see traces of rusted copper.

What i did to fix it was completely remove that white stuff, shorten the cable and to-92 legs until i was left with shiny metal, and soldered them back together. Heatshrinked the individual lines and another heatshrink around the outer cable isolation the exposed lines and half of the to-92 package. Then i potted the whole thing in a plasticstraw shroud with some hot melt, temporarily until i get my hands on some silicone.

If you are going to buy new ones, buy the to92 chips and do the cabling and potting yourself from the start, much cheaper and less ******.
I sealed mine years ago before using. Used heat shrink tubing on top of rubberized under coating paint at the top of metal piece. It seals and STIFFENS the wire so it doesn't bend easily, which I believe helps even more. ALWAYS use an alarm for water temperate just in case. I also have a backup heater in the tank NOT on controller, just set the ON temp a little below set temp of controller heater. All this from experience!


DWKDiver

Community Member
Review score
+0 /0 /-0
View Badges
Joined
May 18, 2021
Messages
35
Reaction score
34
Review score
+0 /0 /-0
Location
Georgia
I have Rob's board and it is great. Get the latest full blown version, better than the earlier version I have. I was 99% complete with my 2nd diy controller and saw what he offered and haven't regretted a second. Reef pi updates seem to be far in-between these days and 5.2 is last version I can use due to later version not working with 12v dc dosers and a few other issues for awhile now. Autism on fixes myself.....
Correction I use 5.1. 5.2 won't run dc dosers at all for me.

AquaCave Logo Banner

elysics

Valuable Member
Review score
+0 /0 /-0
View Badges
Joined
Jan 15, 2020
Messages
1,211
Reaction score
1,127
Review score
+0 /0 /-0
I sealed mine years ago before using. Used heat shrink tubing on top of rubberized under coating paint at the top of metal piece. It seals and STIFFENS the wire so it doesn't bend easily, which I believe helps even more. ALWAYS use an alarm for water temperate just in case. I also have a backup heater in the tank NOT on controller, just set the ON temp a little below set temp of controller heater. All this from experience!
Yeah, i never had real problems, i just got annoying email spam and it messed up my graphs because the chart minimum and chart maximum settings don't work properly. But i also never let the room cool out completely in the winter, i have unheated ambient temperature tanks and stuff standing around.


Tom Bishop

Well-Known Member
Review score
+0 /0 /-0
View Badges
Joined
Jan 1, 2019
Messages
866
Reaction score
1,322
Review score
+0 /0 /-0
Location
Missouri
Didn't take pictures at the time sadly but the VCC line was completely rusted through. The others were spotless. The initial failure mode was that i was getting temperature spikes that started at 39-40°C and then shot up to 85°C, sometimes they stayed there until i wiggled the cable, i thought my connector was bad, sometimes it went away on it's own. Eventually, it was constantly reporting 85°C and no amount of wiggling changed that.



Here are some of the remains of the white glue, you can still see traces of rusted copper.

What i did to fix it was completely remove that white stuff, shorten the cable and to-92 legs until i was left with shiny metal, and soldered them back together. Heatshrinked the individual lines and another heatshrink around the outer cable isolation the exposed lines and half of the to-92 package. Then i potted the whole thing in a plasticstraw shroud with some hot melt, temporarily until i get my hands on some silicone.

If you are going to buy new ones, buy the to92 chips and do the cabling and potting yourself from the start, much cheaper and less ******.
These are the shizzle in regards to temp probes if you want the best @theatrus has the best ones you can purchase and they are real DS18B20 - https://blueacro.com/collections/se...or-reefvolt-and-reefpi?variant=32680136835153

:)

Top Shelf Aquatics

robsworld78

Well-Known Member
Review score
+0 /0 /-0
View Badges
Joined
Feb 14, 2020
Messages
798
Reaction score
1,070
Review score
+0 /0 /-0
Location
Edmonton, Canada
@Ranjib @robsworld78 - trying to get the lighting setup with reef pi and robo tank but running into an issue. Tested with my multimeter and looks like reef pi is only changing the voltage on pin 8 (ch1) all other pins/ch only output 10v no matter what I change in reef pi. Any thoughts?
What controller do you have and which reef-pi version are you running? I wonder if the connectors aren't setup correctly. Here's the link for the manuals, find the one for your controller, then in the manual go to the PWM ports page and at the bottom will be the pin numbers. For what it's worth also go to the admin tab in reef-pi and press the reload button, maybe that will sort it out.


AquaKey

New Member
Review score
+0 /0 /-0
View Badges
Joined
Jan 3, 2022
Messages
19
Reaction score
12
Review score
+0 /0 /-0
Location
Portland
What controller do you have and which reef-pi version are you running? I wonder if the connectors aren't setup correctly. Here's the link for the manuals, find the one for your controller, then in the manual go to the PWM ports page and at the bottom will be the pin numbers. For what it's worth also go to the admin tab in reef-pi and press the reload button, maybe that will sort it out.

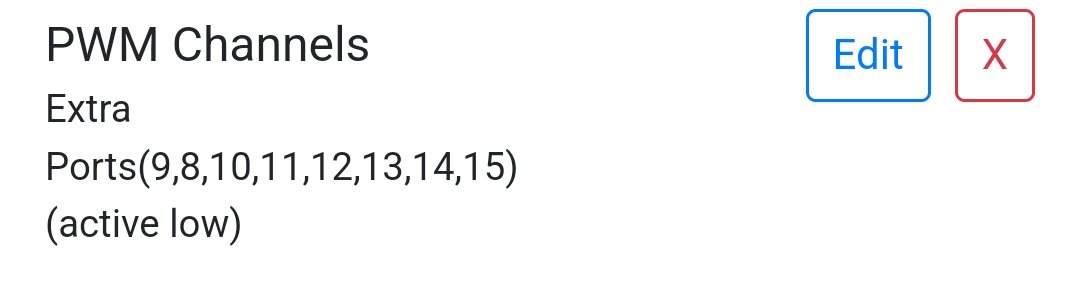

It's the latest robo tank, pi zero w 2 (as the deluxe package). Reef pi 5.2. Attached is the setting on the pins, matches the manual. Have reloaded/rebooted multiple times. It's weird that channel 1 is fine but the rest are constant 10v no matter what I do. I've tried the 3.5mm plugs and the screw terminal pins too, same behavior.


Printed Reef - Custom Reef Accessories

AquaKey

New Member
Review score
+0 /0 /-0
View Badges
Joined
Jan 3, 2022
Messages
19
Reaction score
12
Review score
+0 /0 /-0
Location
Portland
It's the latest robo tank, pi zero w 2 (as the deluxe package). Reef pi 5.2. Attached is the setting on the pins, matches the manual. Have reloaded/rebooted multiple times. It's weird that channel 1 is fine but the rest are constant 10v no matter what I do. I've tried the 3.5mm plugs and the screw terminal pins too, same behavior.

One other thing I just noticed, channel 1 outputs 10v at max. Ch 2-8 outputs 12v with no change based on changing inputs in reef pi. The dip switches also have no effect on ch 2-8.


robsworld78

Well-Known Member
Review score
+0 /0 /-0
View Badges
Joined
Feb 14, 2020
Messages
798
Reaction score
1,070
Review score
+0 /0 /-0
Location
Edmonton, Canada
One other thing I just noticed, channel 1 outputs 10v at max. Ch 2-8 outputs 12v with no change based on changing inputs in reef pi. The dip switches also have no effect on ch 2-8.
Hmm, seems a little strange as 2 channels share a circuit. Could you start a new thread for this, maybe copy and paste these posts, I'll make up a diagram for with some points to check voltage and will post it there.
