Hey R2R!

We've got a new Spotlight for you today and in this one, we dive a bit deeper into the Neptune Auto Top Off Kit or ATK than we have done on previous videos! Check out as we explore what it can do, how to set it up and ways to keep it running for the long haul. :)



Newb73

Valuable Member
View Badges
Joined
Aug 19, 2012
Messages
1,281
Reaction score
1,004
Location
Southeast
Rating - 0%
0   0   0
I wanted an extra FMM anyway so with the black friday sale i snagged an ATK.

I installed it as an ATO control and ended up with an extra PMUP and 24v power supply (not bad for just and extra $50 over an FMM).

If/when my Tunze ever fails, i could grab this and put it to work as am ATO in a pinch.....but realistically what i would do is grab that extra pmup and run it straight off of some extra optical sensors and float switches i already have installed as hi/lo sensors in my sump (would only require throwing the pmup in the resovoir and spending 5 minutes writing commands in fusion).

The fact is, i run a 10 Gal Resovoir on a 265g system.

The risk of an ATO flood from my RO/DI is way more than the risk of something bad happening from an extra 10g of water into my main system.

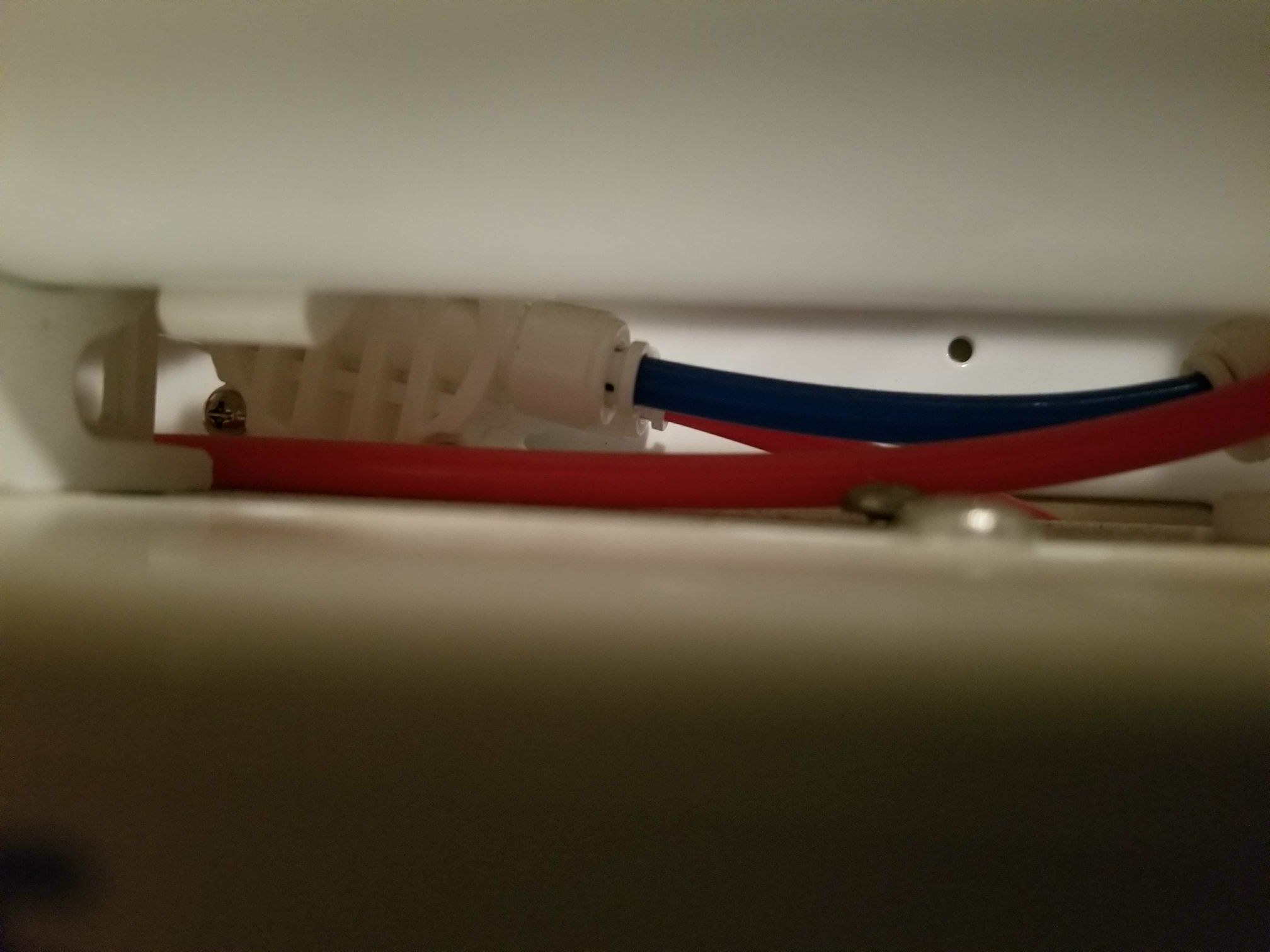

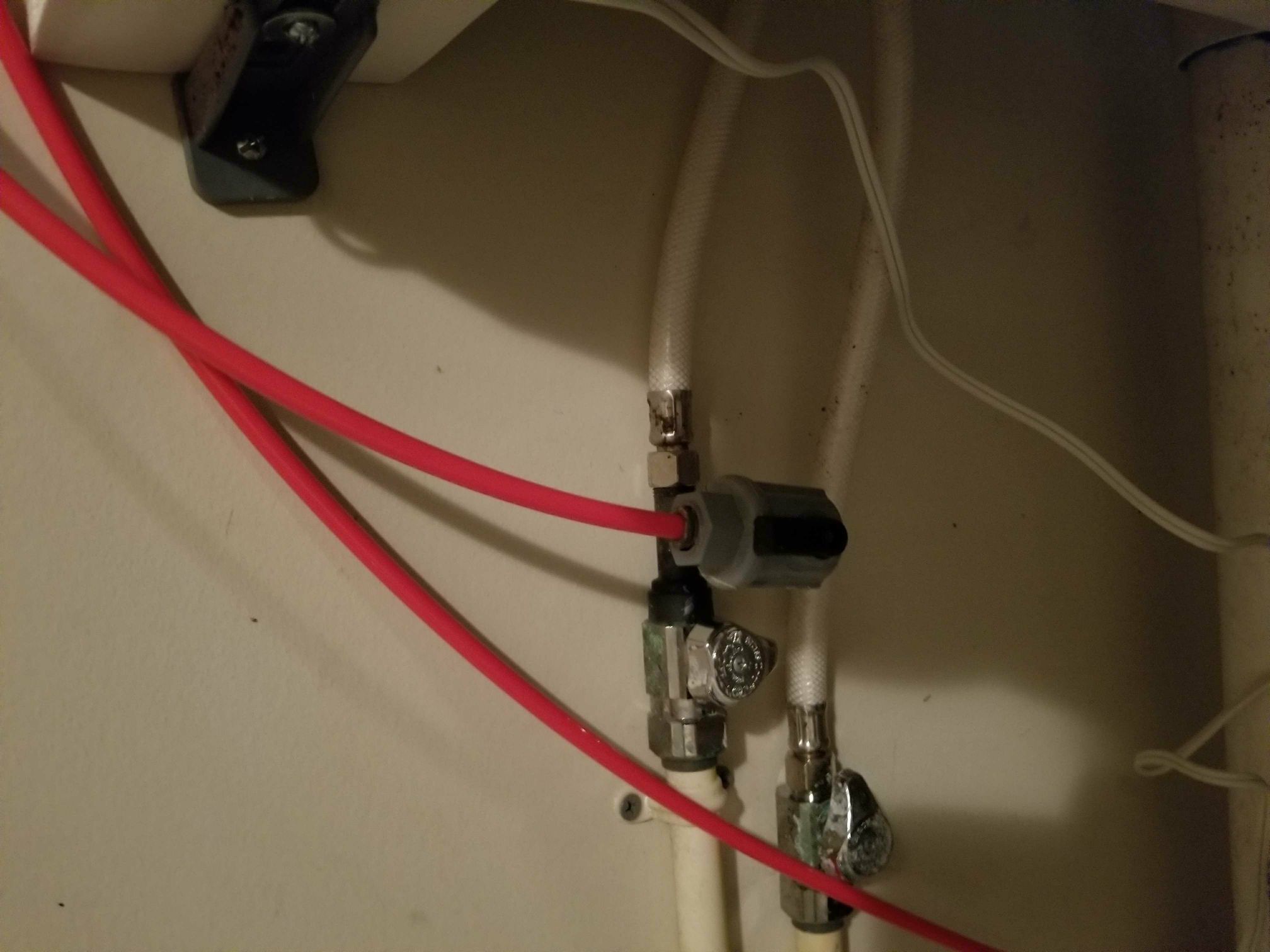

Here are pics of what i did. You can figure it out.

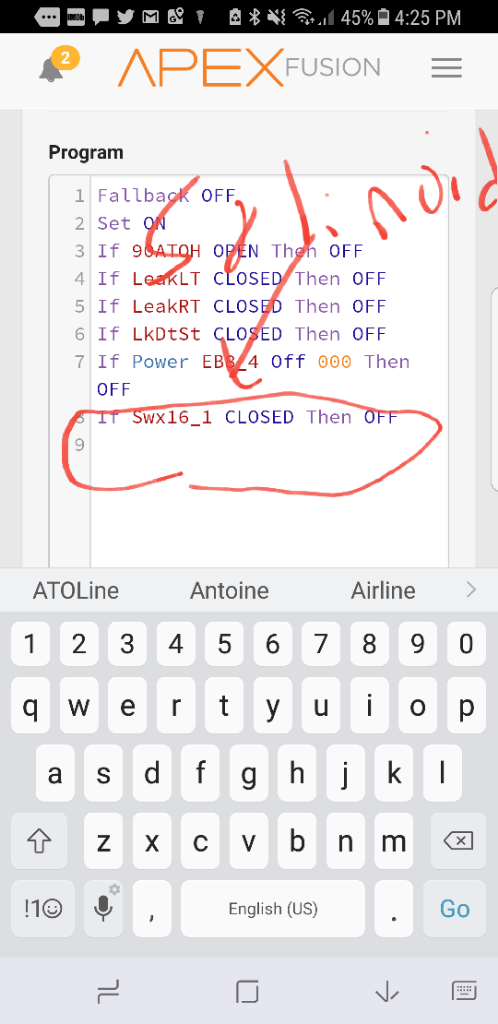

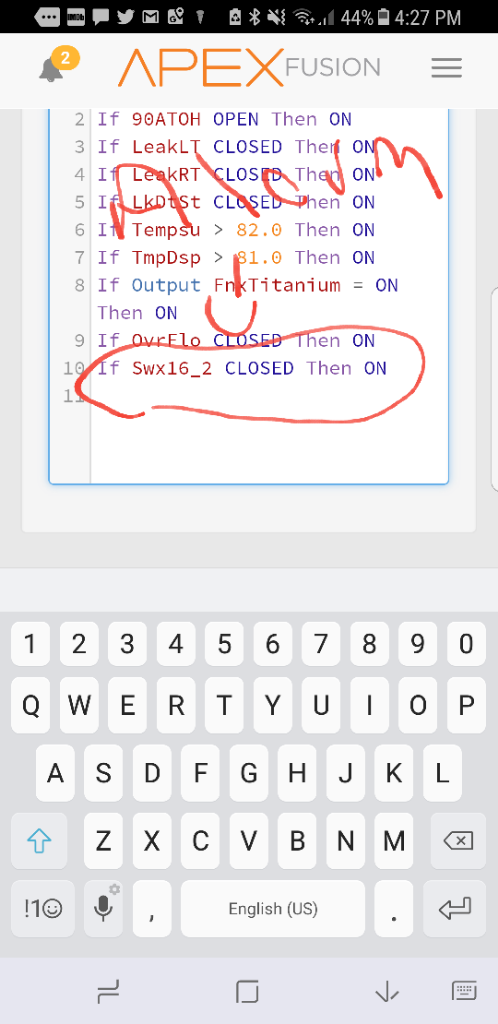

Fist optical sensor shuts solenoid, second one triggers audible alarm and sends me a text. Float is a back up.

Leak detectors on floor will also shut solenoids.

Also installed a low sensor to shut off tunze and trigger the audible "chirp"

Edit...i went ahead and added code to also have the second sensor try again at shutting the solenoid if it triggers....you know..in case the first on fails. (Did that after i posted so you don't see the code).

Amyway, here it is.


TheHarold

5000 Club Member
View Badges
Joined
Oct 3, 2015
Messages
5,143
Reaction score
8,752
Rating - 0%
0   0   0
I use a float switch and breakout- under $10 for ATO ;)


Newb73

Valuable Member
View Badges
Joined
Aug 19, 2012
Messages
1,281
Reaction score
1,004
Location
Southeast
Rating - 0%
0   0   0
I use a float switch and breakout- under $10 for ATO ;)
I have one set up that way in a smaller tank that only has a 5g resovoir [emoji6] .

What kind of pump though? My home made one runs a pmup....because i didn't want to take a spot on any of my EB8s and had an available 24v port i wasn't using on a WAV 1link. So....not under $10.

Word to the wise....install a secondary high level float switch to kill the pump in case the first one fails. You'll thank me later.


TheHarold

5000 Club Member
View Badges
Joined
Oct 3, 2015
Messages
5,143
Reaction score
8,752
Rating - 0%
0   0   0
I have one set up that way in a smaller tank that only has a 5g resovoir [emoji6] .

What kind of pump though? My home made one runs a pmup....because i didn't want to take a spot on any of my EB8s and had an available 24v port i wasn't using on a WAV 1link. So....not under $10.

Word to the wise....install a secondary high level float switch to kill the pump in case the first one fails. You'll thank me later.

Yeah I have three float switches in the sump- "SumpLow", "ATO", and "SumpHigh". All with the appropriate corresponding alarm and action.

This 12v pump works great for me, I have the ATO reservoir in a room behind the tank. Drilled a little hole in the wall for the tubing and power to the pump. About 4 feet horizontal run and 2-3 feet vertical.

https://www.ebay.com/itm/Ultra-Quie...045501&hash=item1ec10a451c:g:5EQAAOSwjOdZaenh

ATO
12v power supply- free, old cell phone. Connect to apex outlet.
Pump $6.99
3 float switch: $3

The breakout:
$.99 Terminal Block
8 MiniDin: free from old printer or $2.50 ebay


FLSharkvictim

Shark Advocate
View Badges
Joined
Oct 11, 2016
Messages
1,441
Reaction score
1,329
Location
TAMPA , FL
Rating - 0%
0   0   0
need some help!!! I have the FMM module & I cant find the Icon I had labeled GFO. tHE ONLY TITLES that are available are the Return and this NEW flx9_4 & my UV in my Fusion. It's like it disappeared.. I even tried to configure to make sure the plugs are plugged into the right port. Your thoughts would be greatly appreciated.

Screen Shot 2017-12-13 at 11.47.08 AM.png

Last edited:
OP
OP
randyBRS

randyBRS

BRStv Host :-)
View Badges
Joined
Dec 9, 2014
Messages
2,124
Reaction score
3,970
Location
Minneapolis, MN
Rating - 0%
0   0   0
I have the FMM module to see how much water is going through my GFO which is labeled ATOLSW , return pump and UV LIGHT. Alos, i use the sensors in my ATO container to alert me when I get low on RODI water. ok This is strange, I cant find the Icon I had labeled GFO. tHE ONLY TITLES that are available are the Return and this NEW flx9_4 in my Fusion. It's like it disappeared.. I even tried to configure to make sure the plugs are plugged into the right port. Your thoughts would be greatly appreciated.

Hmmm, I can't say that I've ran into the same type of issue. This looks like a good one for Neptune to jump in on directly. Maybe @Terence or someone from the Neptune team can chime in to help. :)

-Randy
