SUMPS - The Rundown

Cultivated Reef

Nicole Sarnowski

Active Member
View Badges
Joined
Jan 31, 2019
Messages
145
Reaction score
124

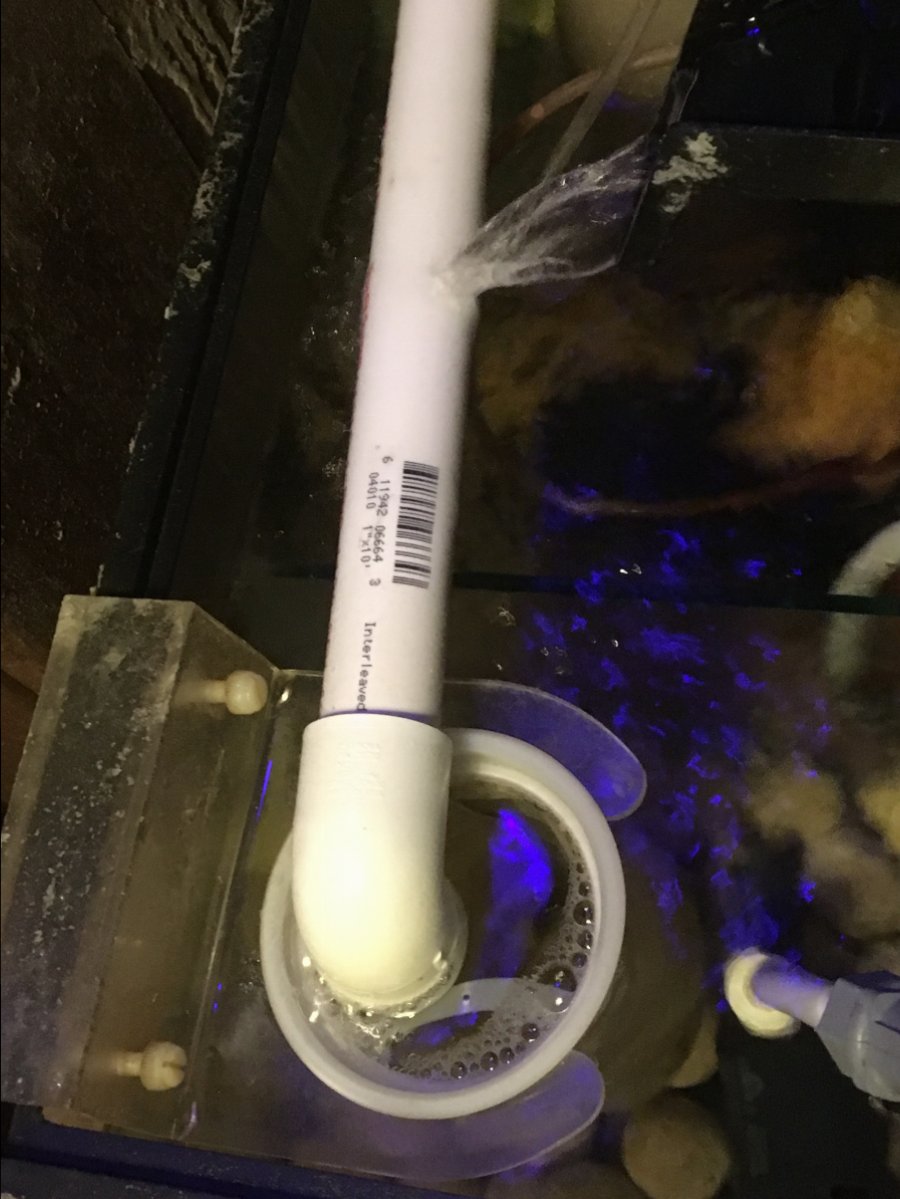

This is my gravity overflow for my 75 gal tank and it works great for me. My tank is not drilled so this is the way I had to go. It’s a diy overflow.









AlbertaBound

Member
View Badges
Joined
Feb 26, 2019
Messages
12
Reaction score
2
What size sump does everyone recommend for my 180 gallon? I was looking at the Trigger system Ruby Sump 36. As I have a vertex alpha 170 protein skimmer and a fluval sp6 3434 gph pump. Thanks.


linkedsilas

Member
View Badges
Joined
Feb 17, 2019
Messages
87
Reaction score
96
Question on plumbing and parts
I got threaded bulkheads and I’m planning on hard plumbing my sump.
I’ve been looking at pics and want to make sure I’m getting all my parts in the right order
Is this correct or show me a simpler way straight to the sump for the drain
Tank>Threaded bulkhead> threaded coupling>threaded adapter slip to pvc>threaded gate valve> pvc straight to sump

Corals.com

Diggem

Member
View Badges
Joined
Mar 23, 2017
Messages
78
Reaction score
22
Need ideas I'm starting a tank 20 gallon tall made sump out of a 10 gallon 3 compartment my question is what would be the best to run in sump make refugium or just skimmer or some kind of reactor or two don't know much on reactors but if it's best option I can learn and if recomendr reactor witch kind


FLSharkvictim

Marine Conservationists
View Badges
Joined
Oct 11, 2016
Messages
1,311
Reaction score
1,012
Location
Redington Beach, FL
@AlbertaBound - All I know is @mixer911 and the #Synergy #ReefSystems team did an unreal job on my new CL-44 custom sump and a Matching ATO reservoir for my new SCA Rimless 150 build. I will be running two return pumps a #Apexco20 for my main returns and for my Alage scrubber and manifold I will be using an #Vectra M1. Just wanted to say that I was not expecting such an amazing built sump. I spent over 6 months talking to all the different sump Manufactures and none of them were very helpful, let me tell you until I hooked up with Synergy Reef Systems. At first, I was going to buy a @geo sump but I don't care for how their reactors are integrated into there sumps which I am not a fan of. (Just my opinion) I did want a trigger system sump since those are a dime a dozen and was not a fan on how they have there drain set up. Also, I went to PM, and they were not much help either and I even tried to contact an Acrylic Manufacture called Primo Acrylics since I saw a few of this guy sumps and they looked very well built but the only problem is, the guy never answered my 5 emails that I sent to him trying to let him know that I am ready to drop $1500.00 on a sump and a matching ATO but this company does not want to even respond, so what in hell are they even in business then. Here are some pictures of some unbelievable craftsmanship on this gorgeous-looking CL-44 sump that they made for my SCA150.. Plus, Synergy's customer service was nothing but Superior compared to the other Sump MFG, no names mentioned.

Here are a few pixs of the new sump and ATO container.





Last edited:

JDnKY

Active Member
View Badges
Joined
Nov 25, 2018
Messages
407
Reaction score
913
Location
Kentucky
What size sump does everyone recommend for my 180 gallon? I was looking at the Trigger system Ruby Sump 36. As I have a vertex alpha 170 protein skimmer and a fluval sp6 3434 gph pump. Thanks.
In my 180 I use the Trigger Systems Saphire 39 with the Reef Octopus Varios 8 and it works great. You may be able to use a pump with less flow as I’m pumping water about 10 feet up from the basement to the DT.


Hemmdog

Valuable Member
View Badges
Joined
Dec 9, 2018
Messages
7,949
Reaction score
30,358
Location
Silicon Valley, CA
@AlbertaBound - All I know is #Synergy #ReefSystems did an unreal job on my new CL-44 Custom sump and a Matching ATO reservoir for my new SCA Rimless 150 build. I will be running two return pumps a Vectra M1 for my main returns and for my Alage scrubber and manifold I will be using an #Apexco20. Just wanted to say that I was not expecting such an amazing built sump. I spent over 6 months talking to all the differnt sump Manufactures and none of them were very helpful, let me tell you until I hooked up with Synergy Reef Systems. At first, I was going to buy a Geo Reef sump but i don't care for how their reactors are integrated into there sumps which I am not a fan of. I did want a trigger system sump since those are a dime a dozen and was not a fan on how they have there drain set up. Also, I went to PM, and they were not much help either and I even tried to contact an Acrylic Manufacture called Primo Acrylics since I saw a few of this guy sumps and they looked very well built but the only problem is the guy never answered my emails or phone calls, so I said the heck with this, I am ready to drop 1500.00 on a sump and this company does not want to even respond, why are they even in business?
Here are some pictures of the unreal craftsmanship on this gorgeous-looking CL-44 sump. Plus, Synergy's Customer service was nothing but Superior compared to the other Sump MFG, no names mentioned.

Here are a few pixs of the new sump and ATO container.




Wait for the M2’s ! They look cool.


OutsideBrian

Active Member
View Badges
Joined
Feb 27, 2014
Messages
455
Reaction score
380
How did this end up working out for you? I bought the same kit off of eBaY and have yet to set it up.

Thanks!

I’m new to this but it seems to be working well. I may try blocking the grates between the skimmer and refuge sections. I am getting some micro bubbles in the refuge, hoping if I can force the water up and over the baffle that it will help.


School Reef

Member
View Badges
Joined
Mar 12, 2019
Messages
10
Reaction score
11
They work but there are issues. Depending n the design, you can lose siphon during power outages leading to overflowing when the pump comes back on. You may also get algae living in the lift tubes resulting in air bubbles in the lift tubes and again, loss of siphon. Overflows take up space and can look awkward. Having said that, I've never cracked an expensive tank installing an overflow box.


SeeFu

Member
View Badges
Joined
Apr 21, 2019
Messages
69
Reaction score
12
So i ordered my tank along with a sump from a local tank builder. They just told me that they do not have the sump in stock so they will need to be building more. They asked me if I had any specific request I would like to make. This is my first fish tank so I was thinking all i need is the following

3 chambers
1st chamber / big enough to hold a filter roller and protein skimmer
3rd chamber / just big enough to hold the return pump
2nd chamber / remainder of space available

Is that about right or is there something I"m missing?


yachtman

Member
View Badges
Joined
Mar 13, 2017
Messages
11
Reaction score
12

I’m new to this but it seems to be working well. I may try blocking the grates between the skimmer and refuge sections. I am getting some micro bubbles in the refuge, hoping if I can force the water up and over the baffle that it will help.

Has your tank had a power failure yet? That sump looks over filled and would be run over by the water coming from the main tank.


yachtman

Member
View Badges
Joined
Mar 13, 2017
Messages
11
Reaction score
12

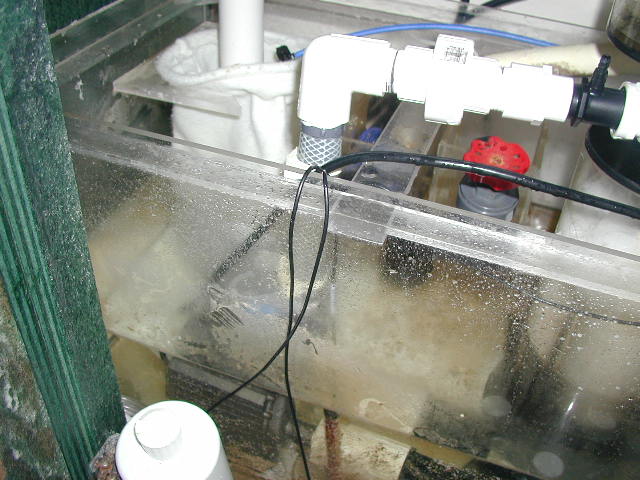

This is how much extra space we had for our 220 gal reef.


Paul Greenwood

New Member
View Badges
Joined
May 22, 2019
Messages
2
Reaction score
3
Hi, hope I’m in the right place to post this.
I had a setup quite a few years ago that I’m resurrecting in the next couple of months, but wanted to modify my old sump to include a refugium by adding three new pieces of glass, creating a bubble trap before the return pump.
I want to put the skimmer in the 2nd chamber of the sump along with a media reactor.
Can anyone advise the best reactor, if it’s needed at all and the advantages.
If the new layout looks ok & the glass spacing would work? Any advise on filtration in the first chamber too please. I’m thinking a combination of MarinePure spheres, plates and or Siporax.
I’ve added images of the old setup and the new proposal. Thanks.

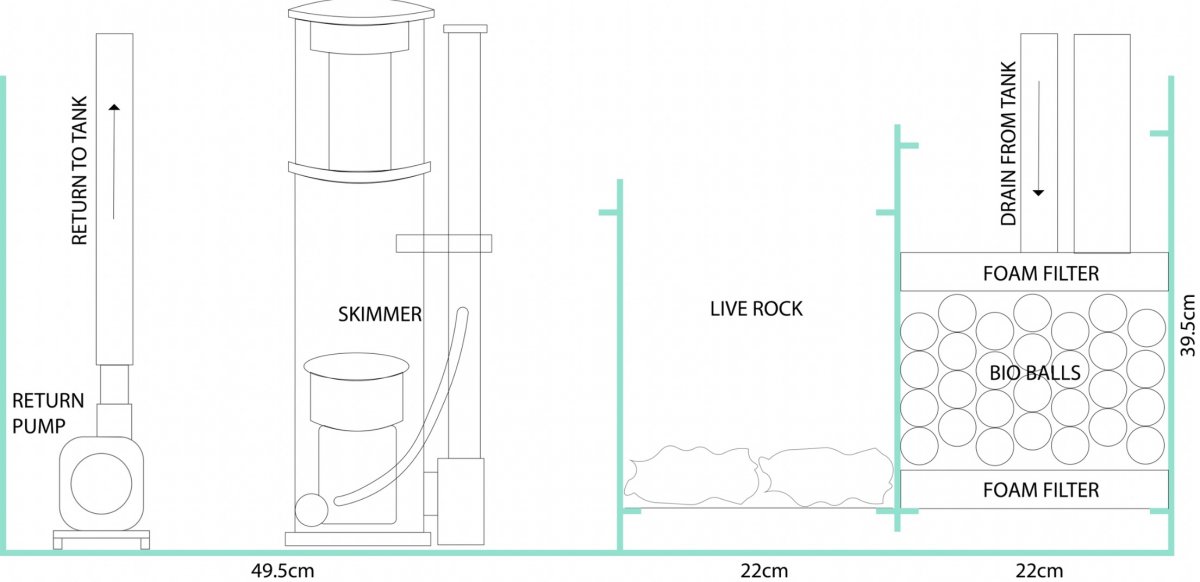

Old layout



New layout



gotmesalty77

Member
View Badges
Joined
Jul 2, 2019
Messages
22
Reaction score
47
Hi, hope I’m in the right place to post this.
I had a setup quite a few years ago that I’m resurrecting in the next couple of months, but wanted to modify my old sump to include a refugium by adding three new pieces of glass, creating a bubble trap before the return pump.
I want to put the skimmer in the 2nd chamber of the sump along with a media reactor.
Can anyone advise the best reactor, if it’s needed at all and the advantages.
If the new layout looks ok & the glass spacing would work? Any advise on filtration in the first chamber too please. I’m thinking a combination of MarinePure spheres, plates and or Siporax.
I’ve added images of the old setup and the new proposal. Thanks.

Old layout



New layout

I've been debating where I should place my reactor, Before or after my refugium. I guess I'm leaning towards after so the algae can get a shot at eating first. After my chaeto and dragons breath get pumping I don't know if I'll even need a reactor.


specwar

Active Member
View Badges
Joined
Apr 27, 2019
Messages
102
Reaction score
83
Location
OC
I just found out Petco is having the $1 a gallon sale. I can get my sump tank and start building it plus a cheap little QT.


specwar

Active Member
View Badges
Joined
Apr 27, 2019
Messages
102
Reaction score
83
Location
OC
They work but there are issues. Depending n the design, you can lose siphon during power outages leading to overflowing when the pump comes back on. You may also get algae living in the lift tubes resulting in air bubbles in the lift tubes and again, loss of siphon. Overflows take up space and can look awkward. Having said that, I've never cracked an expensive tank installing an overflow box.
This is the part the unnerves me. I live on the second floor of a three story condo and the overflow risk! I too have been looking at the JaxRax sump kits. Any advice would be appreciated. Currently on an oversized canister that is working great. This is for my 37.5 tall.


narkotix

New Member
View Badges
Joined
Sep 3, 2018
Messages
1
Reaction score
0
Hi All,

After some advice on my sump. I was given this one to use on my tank but ive run into a problem whereby the pump that came with it (Nyos 5.0) doesn't fit in the last chamber. I've been told by a LFS that I can remove that far right panel and have both the skimmer and pump in the same chamber. In the first chamber i plan to put a sock and some marine pure as well. The other option (move the baffle a bit over to the left doesn't leave room for my protein skimmer. Any thoughts on what i could do? THe skimmer is a reef octopus 110 Int
