Plumbing a UV into my sump only

[adittam]

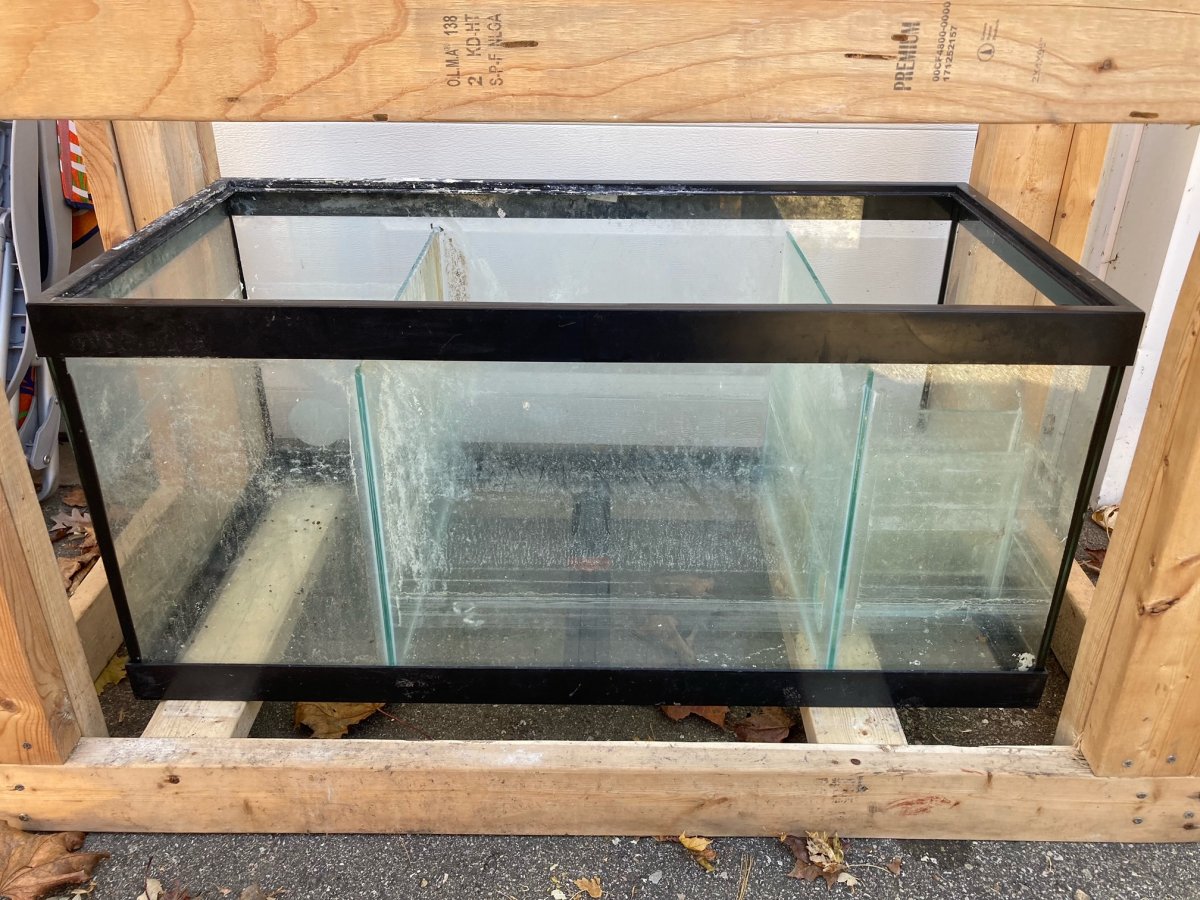

Given the layout of my sump, is there a way that I can plumb a UV as a closed loop by putting the pump in one compartment and the output in a different, downstream compartment, that WON’T be a flood risk?



[MnFish1]

I would consider putting an 'in line' UV after your return pump? That way 100% of the water is going through. But that can be a size issue depending on how big the tank is iet. But lets say you wanted to do it in the sump - where do you think the 'flooding risk' would come from? PS - I think I know how your water flow is planned - but its not entirely clear



[adittam]

I would consider putting an 'in line' UV after your return pump? That way 100% of the water is going through. But that can be a size issue depending on how big the tank is iet. But lets say you wanted to do it in the sump - where do you think the 'flooding risk' would come from? PS - I think I know how your water flow is planned - but its not entirely clear

That was my original plan, but I want to be able to use it for parasite control as needed, and that would require a flow meter and bypass, to ensure it’s at the correct flow for parasites. The flow meters that I found are crazy expensive. Take a look at my first plumbing thread here to see the reasons I’m looking at doing it this way instead.

Plumbing my first sump - 80g display, 45g sump, single corner Herbie overflow - help wanted!

ok, quick pencil diagram (key is at the bottom). What am I forgetting or doing wrong?

www.reef2reef.com



[adittam]

I would consider putting an 'in line' UV after your return pump? That way 100% of the water is going through. But that can be a size issue depending on how big the tank is iet. But lets say you wanted to do it in the sump - where do you think the 'flooding risk' would come from? PS - I think I know how your water flow is planned - but its not entirely clear

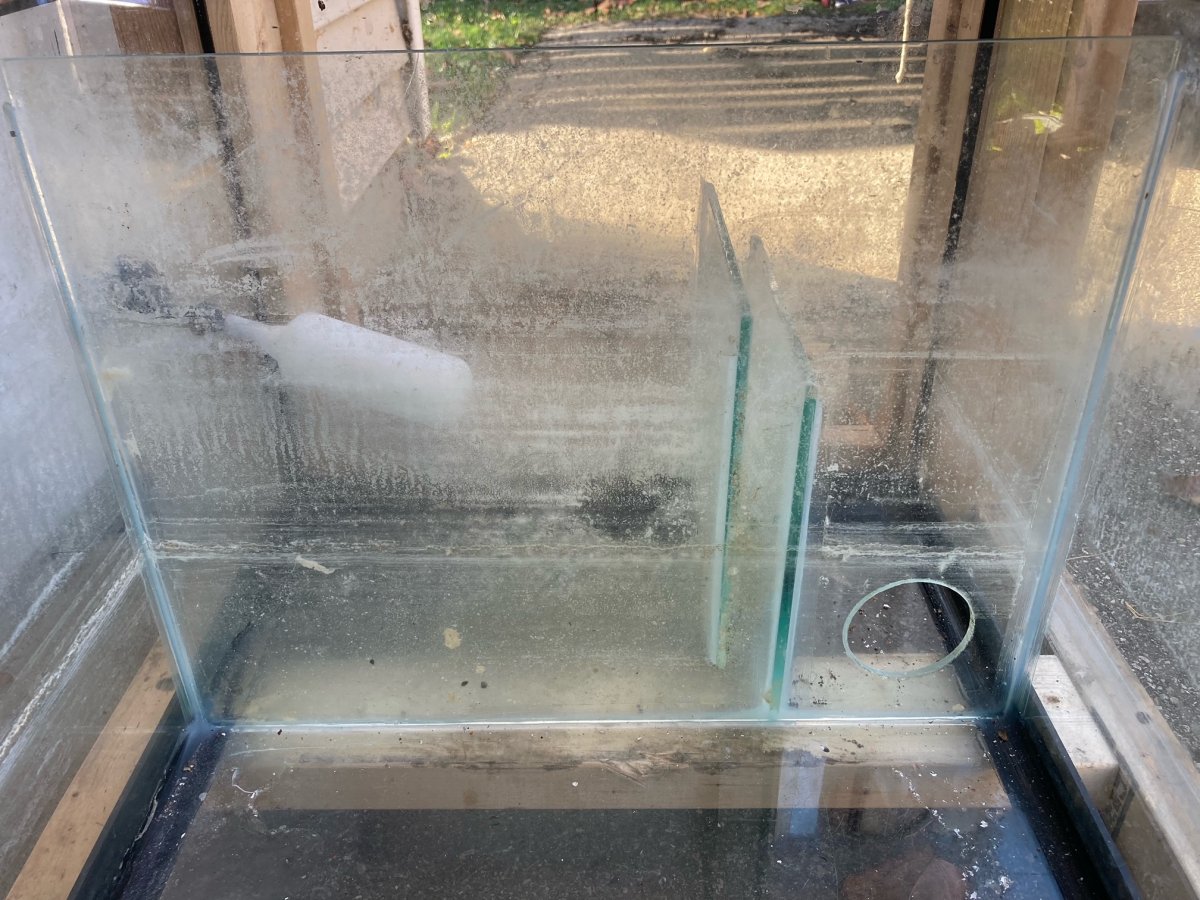

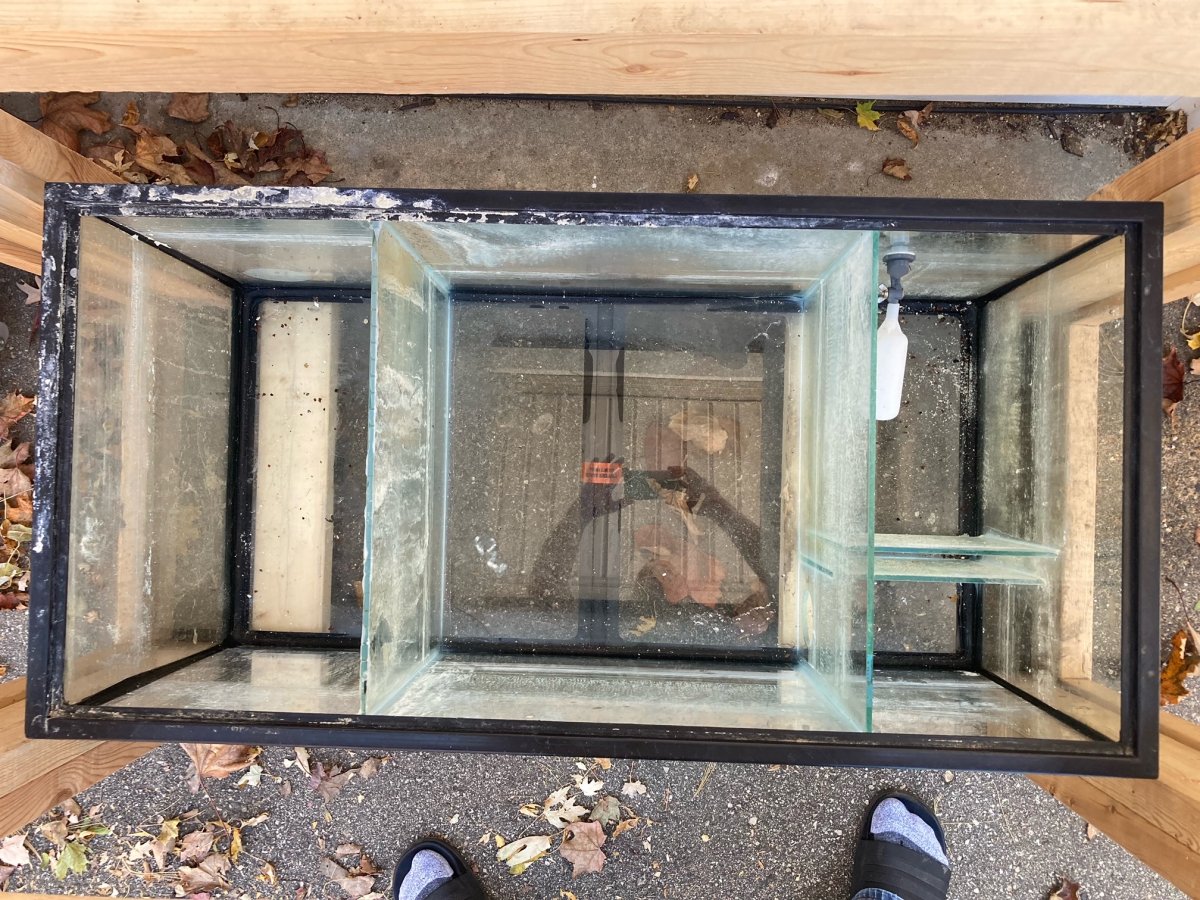

As far as the sump flow goes, in the top-down view, the Overflow flows into in the far left compartment, then flows over the weir into the middle compartment, then through the bottom hole drilled in the divider into the front-right compartment, then over and under the next two dividers into the back-right compartment, where the return pump will be.
