Screen Mesh/Curved Return Box Issue

Discussion in 'Do It Yourself (DIY)' started by Manny'sReef, Aug 24, 2018.

  1. Manny'sReef

    Manny'sReef Member R2R Supporter

    Joined:
    Apr 26, 2018
    Messages:
    85
    Likes Received:
    20
    Location:
    Orlando, Florida
    I need help with my screen mesh build. I built one a few years ago with metal framing and it has done great, but it just sits on top of my rimless tank. When I added a new Radion with the arm it doesn't fit. I decided to start a new build.

    The problem is my return box is in the corner and it's round. I'm thinking about cutting the top of it so it fits when the screen is placed with plastic clips (https://smile.amazon.com/gp/product/B06XBL6893/ref=oh_aui_detailpage_o06_s00?ie=UTF8&psc=1) since it will be recessed into the inside of the glass.

    I'm also looking to add an Apex AFS feeder, so I need to have a cutout for that as well.

    Any ideas on how to make it work? If you have any pics, please post them. 20180824_130454.jpg 20180824_130537.jpg


  2. mta_morrow

    mta_morrow It costs HOW much?!!! R2R Supporter R2R Excellence Award Reef Squad SCAA Member Hospitality Award Build Thread Contributor

    Joined:
    Sep 15, 2015
    Messages:
    4,869
    Likes Received:
    18,817
    Location:
    Hilton Head
    Check out the Red Sea DIY screen tops.

    Your lights can be accommodated as well as your feeder.

    Love mine! Especially for the price.

    Pics in my build thread

  3. Ratherbeflyen

    Ratherbeflyen Member

    Joined:
    Mar 9, 2018
    Messages:
    90
    Likes Received:
    82
    Location:
    Houston

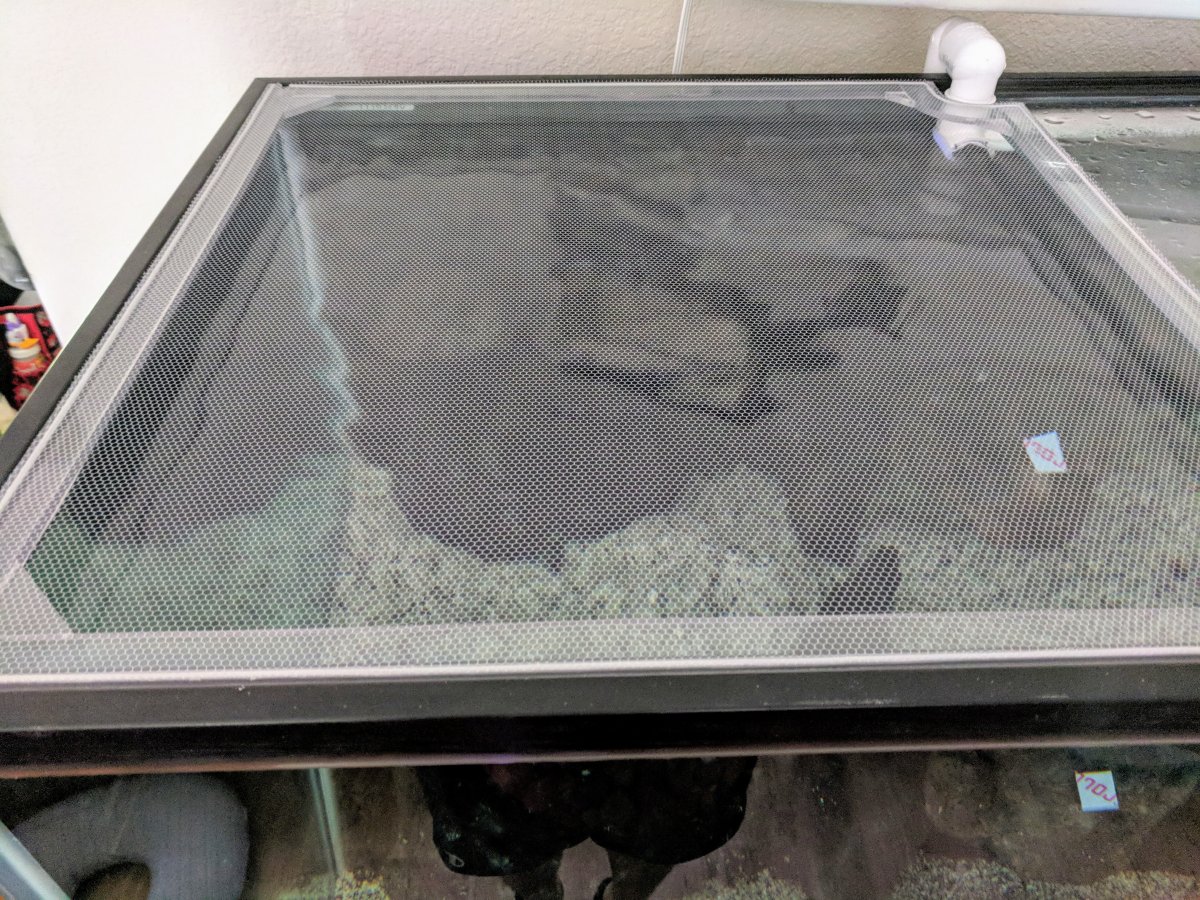

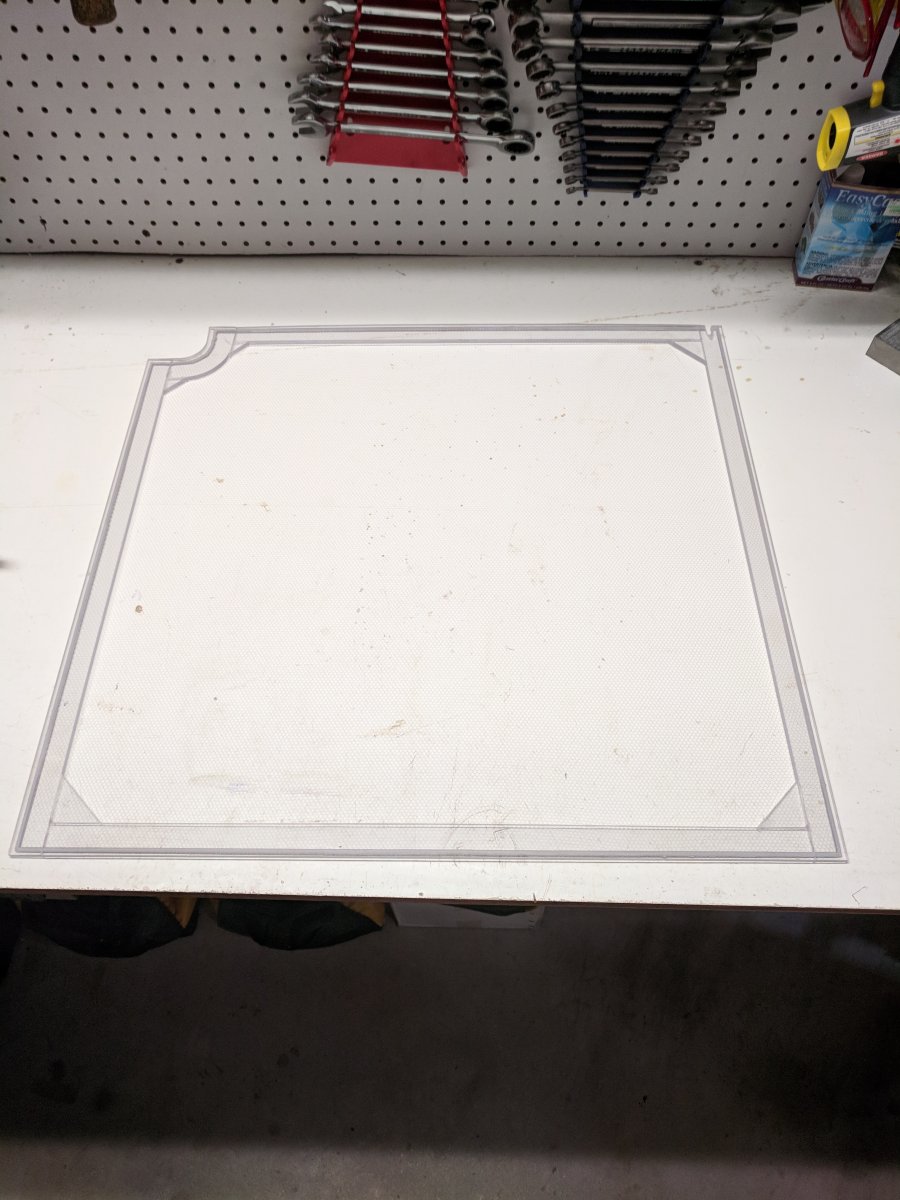

    Build your own out of acrylic and cut out where ever you need. I cut mine out around the return line and cut a slot to put the cord for the wavemaker.

    5.jpg 3.jpg 4.jpg

    Manny'sReef likes this.
  4. skynite

    skynite Member

    Joined:
    Mar 10, 2017
    Messages:
    33
    Likes Received:
    36

    What kind of screen is this? and what size holes are they. I like this idea of gluing the acrylic pieces together. How did you glue the screen to the acrylic border? Did you use the same acrylic bonding glue/liquid

  5. Ratherbeflyen

    Ratherbeflyen Member

    Joined:
    Mar 9, 2018
    Messages:
    90
    Likes Received:
    82
    Location:
    Houston
    The screen is just mosquito netting. It was $1 a square yard at a fabric store. It's around 1/8" holes.

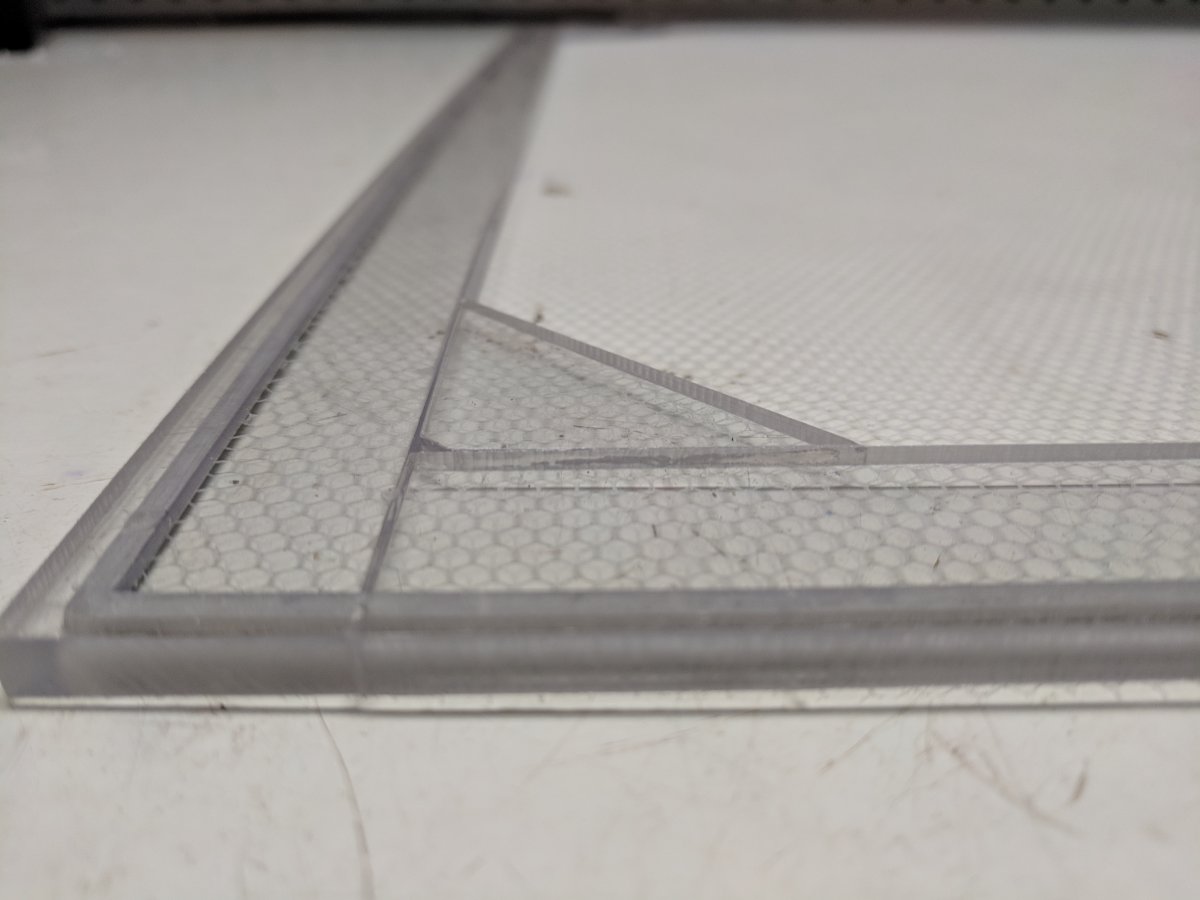

    I used a router to cut a 1/8" slot, but a table saw etc could also be used. I then used window screen spline to hold the netting in the slot.
