Starting a new project for Simple DIY Automatic Alkalinity Tester for a common man with can be created and printed easily with minimum cost.
Currently starting with:
-Api KH bottle
-Speed Sensor Module - https://www.aliexpress.com/item/32986575618.html?spm=a2g0s.9042311.0.0.26c94c4dlCiga1
-Arduino Nano
-small water pump
-some tube
-3d printed model

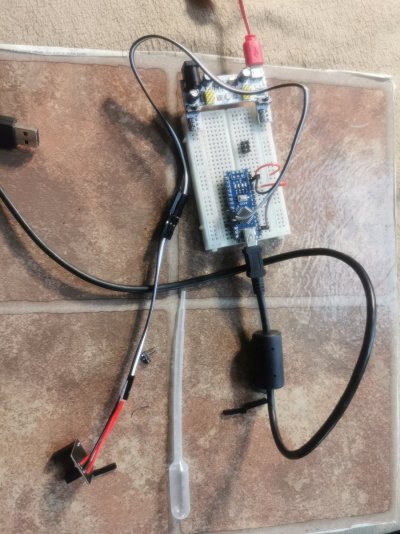

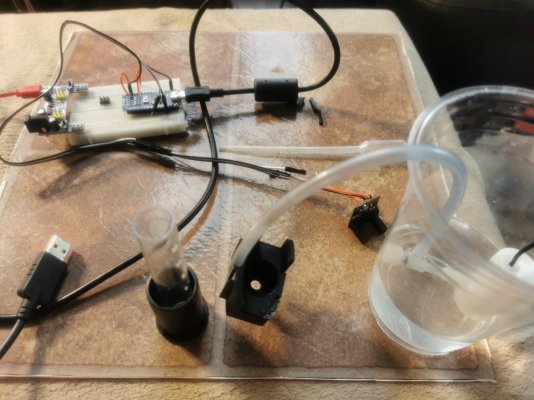

IMG_20210425_111531.jpg IMG_20210425_111558.jpg

Aquarium Specialty - dry goods & marine livestock

Gtinnel

2500 Club Member
View Badges
Joined
Mar 20, 2020
Messages
2,769
Reaction score
3,527
Review score
+0 /0 /-0
Very interested in following your progress on this.
It also makes me question how a company can justify charging as much as they do for an automatic tester when a hobbiest (I'm possibly incorrectly assuming you're just a hobbiest) can make their own for what will probably cost very little.

OP
W

wacky123

Community Member
View Badges
Joined
Feb 24, 2021
Messages
25
Reaction score
23
Review score
+0 /0 /-0
Location
ottawa
Very interested in following your progress on this.
It also makes me question how a company can justify charging as much as they do for an automatic tester when a hobbiest (I'm possibly incorrectly assuming you're just a hobbiest) can make their own for what will probably cost very little.
i agree , feels like any thing that has reef symbol on it is marked up substantially higher

OP
W

wacky123

Community Member
View Badges
Joined
Feb 24, 2021
Messages
25
Reaction score
23
Review score
+0 /0 /-0
Location
ottawa
some minor upgrades, counter sensor is very week so right top down approach.
any suggestion for better counter sensor will be appreciated.

video coming soon .....


Attachments

  • IMG_20210426_222718.jpg
    91.9 KB · Views: 31
  • IMG_20210426_222723.jpg
    115.2 KB · Views: 36
BRS

elysics

Well-Known Member
View Badges
Joined
Jan 15, 2020
Messages
930
Reaction score
826
Review score
+0 /0 /-0
Very interested in following your progress on this.
It also makes me question how a company can justify charging as much as they do for an automatic tester when a hobbiest (I'm possibly incorrectly assuming you're just a hobbiest) can make their own for what will probably cost very little.
Its not all that bad, if you use the same concept as the commercial ones, material cost is around 100-200 if you get everything from china, slightly more for high quality and good looking components. And then you have assembly, profit, engineering and software development for a nice app with a cloud or interaction with a controller, which is easily the most important part for a commercial one.

Slightly optimistic about this one though, I have read about the optical approach before, might work out great.

To really be automatic it would need at least 3 more pumps though (taking water from tank, pumping water back out of the test chamber, one for pumping in rodi to rinse out the color, at least the first one needs to be an accurate one) as well as a stirrer, which can be made from a broken pc fan and some magnet fragments


Gtinnel

2500 Club Member
View Badges
Joined
Mar 20, 2020
Messages
2,769
Reaction score
3,527
Review score
+0 /0 /-0
Its not all that bad, if you use the same concept as the commercial ones, material cost is around 100-200 if you get everything from china, slightly more for high quality and good looking components. And then you have assembly, profit, engineering and software development for a nice app with a cloud or interaction with a controller, which is easily the most important part for a commercial one.

Slightly optimistic about this one though, I have read about the optical approach before, might work out great.

To really be automatic it would need at least 3 more pumps though (taking water from tank, pumping water back out of the test chamber, one for pumping in rodi to rinse out the color, at least the first one needs to be an accurate one) as well as a stirrer, which can be made from a broken pc fan and some magnet fragments
I doubt the cost of parts would even be $100 if sourced from off brand Chinese parts. If you used all higher quality parts I do agree it could easily be over $200. You could have close to that in pumps alone. With that in mind something like the Trident may not be too overpriced at $600, but I still think something like the KH Guardian Pro at nearly $1300 is way overpriced.


elysics

Well-Known Member
View Badges
Joined
Jan 15, 2020
Messages
930
Reaction score
826
Review score
+0 /0 /-0
I doubt the cost of parts would even be $100 if sourced from off brand Chinese parts. If you used all higher quality parts I do agree it could easily be over $200. You could have close to that in pumps alone. With that in mind something like the Trident may not be too overpriced at $600, but I still think something like the KH Guardian Pro at nearly $1300 is way overpriced.
Eh, reagent pump alone is somewhere around 40+shipping straight from the factory in china, I know, I ordered one, and that's the one used in the cheapest commercial tester. Normal pumps+drivers are 10 each, and most devices use stepper motors for the other less critical pumps as well. the cheap chinese fake electronic stepper drivers for the stepper motors are another couple dollars each, water proof housing, galvanically isolated ph circuit is expensive, even with fake parts, ph probes are 20 or so even from china if you don't use bottom of the barrel quality, magnetic stirrer another 10 if you don't scavenge for parts for that, then the arduino/mainboard, tubing, a reactor vessel, fittings, it all adds up

Agree on the guardian, but maybe that can be excused by being the first of its kind afaik


blazerino

Community Member
View Badges
Joined
Dec 1, 2019
Messages
83
Reaction score
39
Review score
+0 /0 /-0
I doubt the cost of parts would even be $100 if sourced from off brand Chinese parts. If you used all higher quality parts I do agree it could easily be over $200. You could have close to that in pumps alone. With that in mind something like the Trident may not be too overpriced at $600, but I still think something like the KH Guardian Pro at nearly $1300 is way overpriced.
The KH Guardian Pro is only $479 with 1 packet of reagent. For an extra $20 they sell the module that allows you to hook it up to your apex via the PH or ORP port.

OP
W

wacky123

Community Member
View Badges
Joined
Feb 24, 2021
Messages
25
Reaction score
23
Review score
+0 /0 /-0
Location
ottawa
Still struggling with precision with one drop, for some reason water piles on and drops in 2-3drops ... going back to drawing board, adding a pin at the outlet helps a little, maybe cone shape outlet on the out hole might limit the amount that comes out.
still trying to keep it simple for a common man .. suggestions are welcome .. posting a video.


All the parts order were around $20-30 not including the parts i already had .. no ph probe, using the color sensor checkout my other project. i have 3 idea for mixing, centripetal force by spinning vial tube(other project), magnetic stirrer - 3d printed and poc done but will require solenoid pump for drain- will post soon, last my favorite shaking the vile side to side with a servo and than flip for drain -- simplicity. .... Phase #3

Phase#2 Api KH bottle sitting on the top and squeezing mechanize to squeeze the juice out.

Click to watch best scape method in 5 easy steps!

elysics

Well-Known Member
View Badges
Joined
Jan 15, 2020
Messages
930
Reaction score
826
Review score
+0 /0 /-0
For low drop to drop variation, consider using some kind of dispensing tip, maybe just repurpose the pink ones coming from a titration test kit and cut off a bit of the tip to make the hole wider, or just the syringe itself without a tip for that matter, depending on how big you want them to be

And it's probably going to be more accurate if you can make it so the drop comes out perfectly vertical

Last edited:
OP
W

wacky123

Community Member
View Badges
Joined
Feb 24, 2021
Messages
25
Reaction score
23
Review score
+0 /0 /-0
Location
ottawa
Phase #3 for mixing reagent from API KH test kit, very simple approach on mixing and dumping, still need to perfect the code but the theory and concept seems to work.

phase #2 delayed, parts on in yet..

please feel to leave constructive comments.


OP
W

wacky123

Community Member
View Badges
Joined
Feb 24, 2021
Messages
25
Reaction score
23
Review score
+0 /0 /-0
Location
ottawa
I haven't forgotten about the common man still waiting of parts but the prototype is ready, drop counter is still being different with precision but will work out the kinks later with better method of counting drops.
Will be posting video soon with tests

IMG_20210530_122731.jpg IMG_20210530_122724.jpg IMG_20210530_122716.jpg
