Crystal Dynamics 100G

Discussion in 'Member Tanks' started by Whipples, Sep 7, 2017.

  1. Whipples

    Whipples Well-Known Member R2R Supporter Build Thread Contributor

    Joined:
    Sep 23, 2016
    Messages:
    440
    Likes Received:
    385
    Hi folks! Hopefully I am not too late for that build contributor flair but my new tank finally arrived! It's a 48x24x20 1/2" starfire tank with a synergy ghost overflow, dual returns, and a Trigger sump. Stand and tank were made by Crystal Dynamic.

    Planned equipment list:
    Apex Classic from previous tank
    2xMP10s from previous tank, likely on the back wall
    1xMP40 (new) to go on the side
    BLDC8 2100gph DC return
    Ice Cap K2-120 (existing skimmer, want to go Life Reef next)
    2x GHL Mitras LX7206
    GHL Doser 2.1
    Advanced Acrylics 15g ATO hooked up to an Osmolator 3155
    Went with ReefCleaners base rock and will start playing with reef scapes in the next few days. What are your thoughts, two island or single structure? I'll post some ideas as I go, would appreciate the community's input!

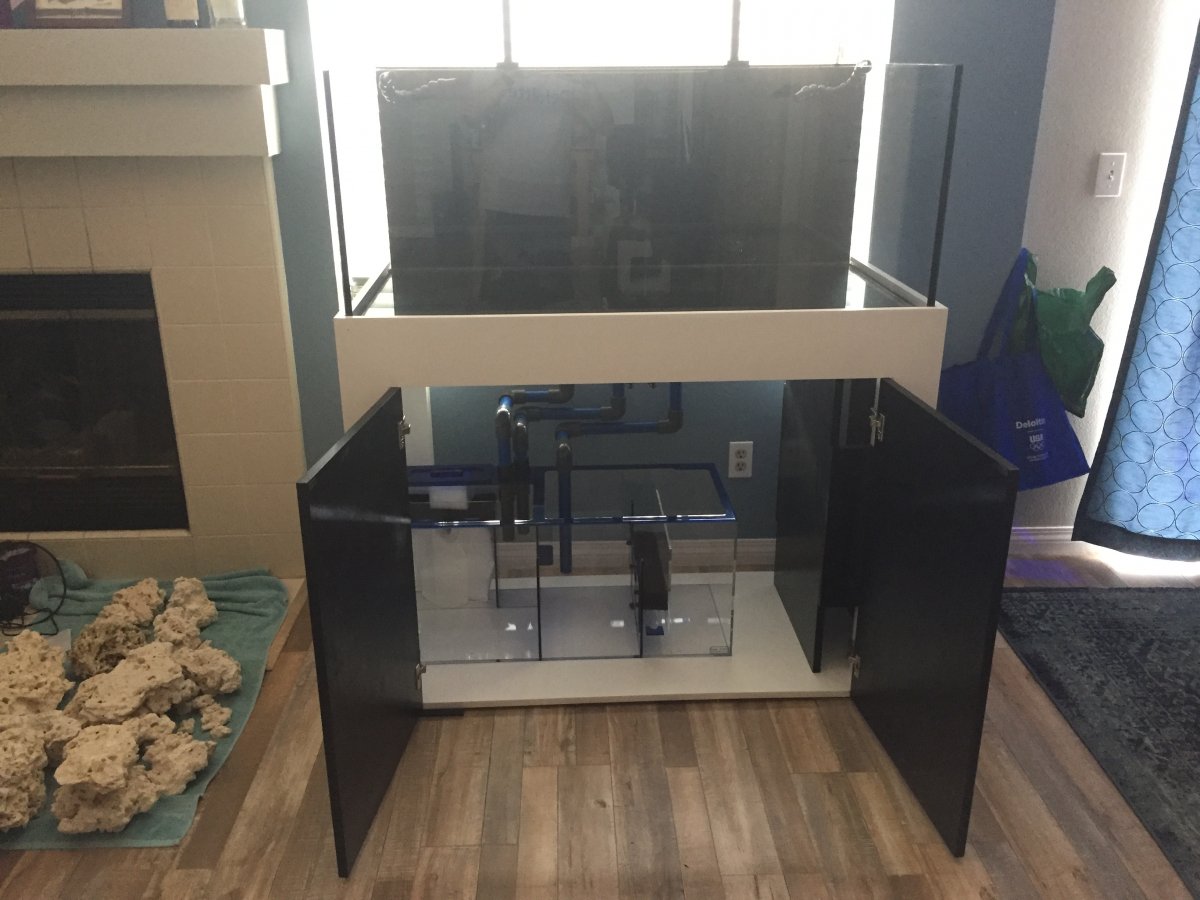

    First things first: the tank as it arrived!

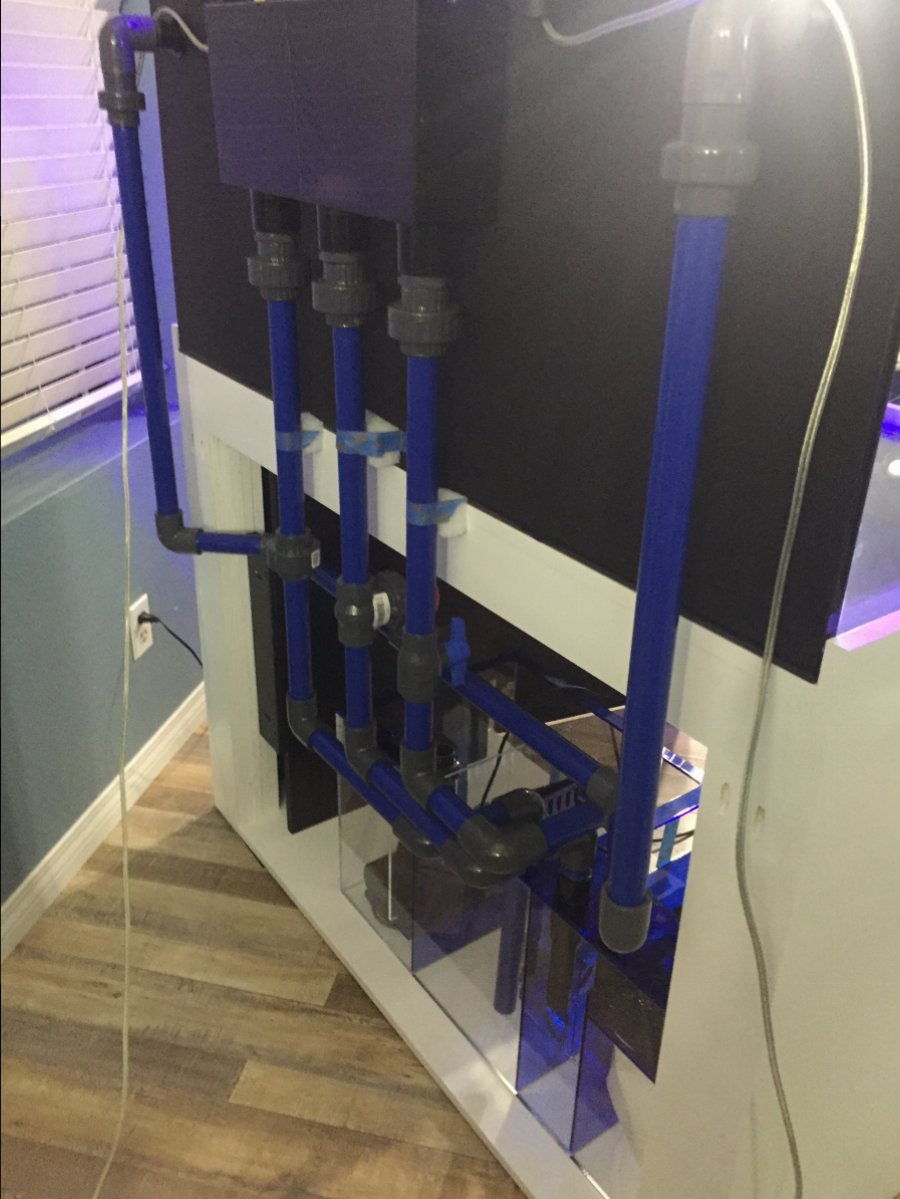

    Back shot of the return plumbing and the overflow. Don't mind the foam and tape pipe supports, working on getting proper pipe supports back there to make it all sturdy.


    Return lines nearly complete, I accidentally glued the union without the collar on it but fortunately the rest of that piece was not glued in yet so I avoided a more costly mistake! The gate valve on the secondary drain is there only for testing purposes so I can simulate both the main and backup drain failures and ensure the emergency is set right.


    Starfire glass truly is THAT clear!:)

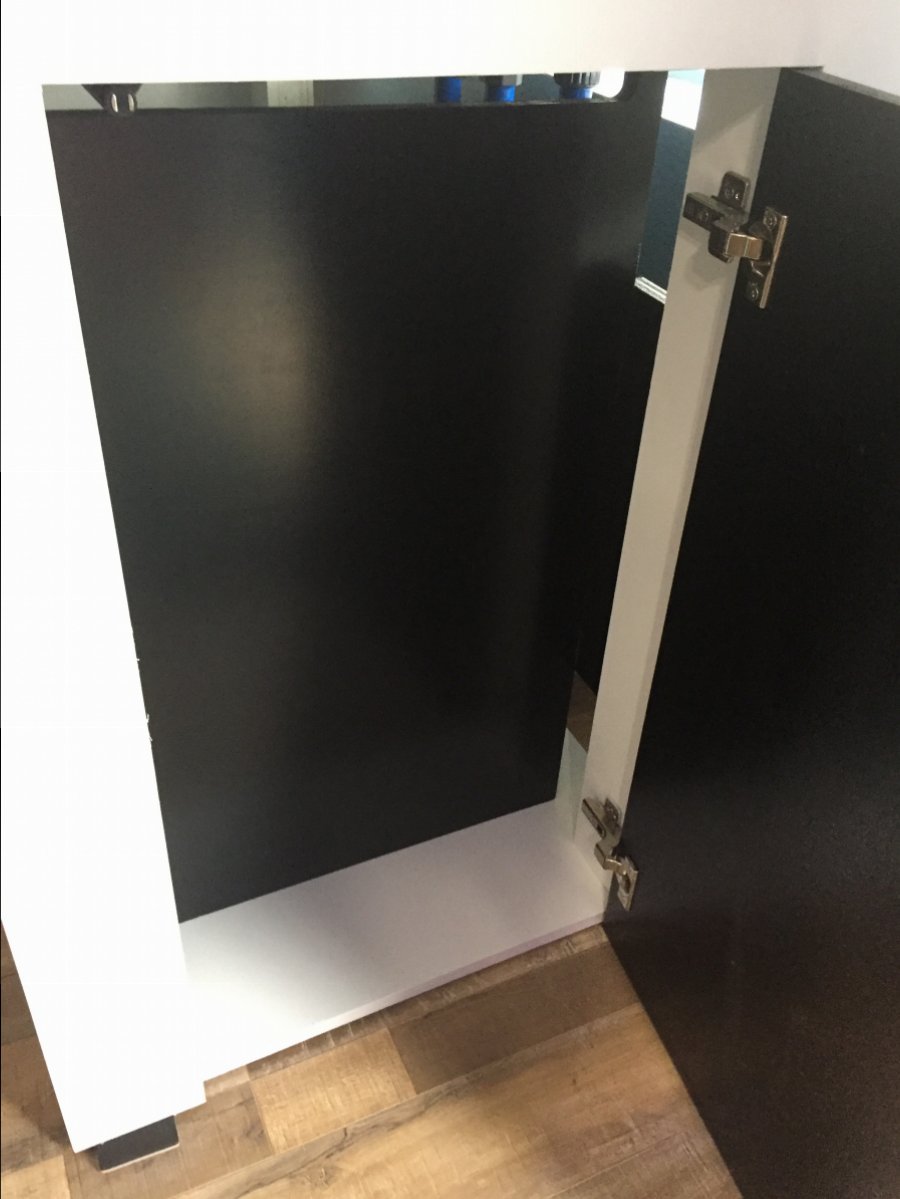

    Here is the side electrical panel that gives me a clean space to organize the Apex and the spaghetti mess of modules to go with it;Hilarious.

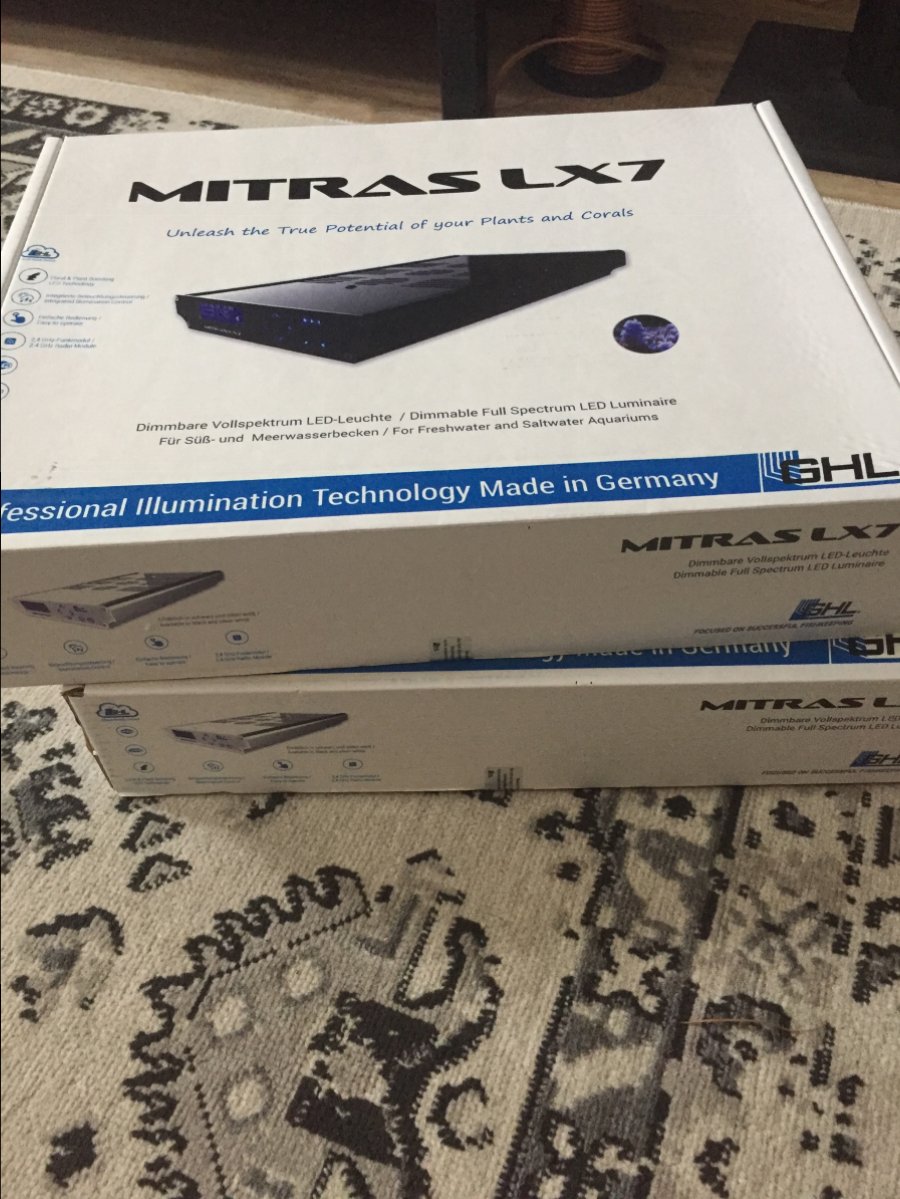

    Two Mitras LX7206 fixtures, really excited to try these lights out!

    Currently mounted way too high and are lower than this now, but I was just trying to get them up there for the photo. Gotta play with the cords on them to get them to lay a bit more flat.


    More to come!

    Last edited: Sep 7, 2017
    jazzmik, cFloor and MasterAlgaeGrower like this.

  2. MasterAlgaeGrower

    MasterAlgaeGrower Well-Known Member R2R Supporter Build Thread Contributor Partner Member 2018

    Joined:
    Sep 26, 2016
    Messages:
    91
    Likes Received:
    71
    Looks clean! Definitely following along. And my vote is for island style rock layout.

    Whipples likes this.
  3. cFloor

    cFloor Well-Known Member R2R Supporter

    Joined:
    Sep 19, 2013
    Messages:
    163
    Likes Received:
    267
    Location:
    California
    Definitely a clean looking build

    Whipples likes this.
  4. ngoodermuth

    ngoodermuth Well-Known Member R2R Supporter R2R Excellence Award Reef Squad Build Thread Contributor

    Joined:
    Mar 4, 2011
    Messages:
    1,877
    Likes Received:
    2,664
    Location:
    York, PA
    Very nice! One day I'm going to have a spiffy, clean build like this ;) I keep telling myself that the beauty is on the INSIDE.

    Great work so far- following!

  5. Whipples

    Whipples Well-Known Member R2R Supporter Build Thread Contributor

    Joined:
    Sep 23, 2016
    Messages:
    440
    Likes Received:
    385

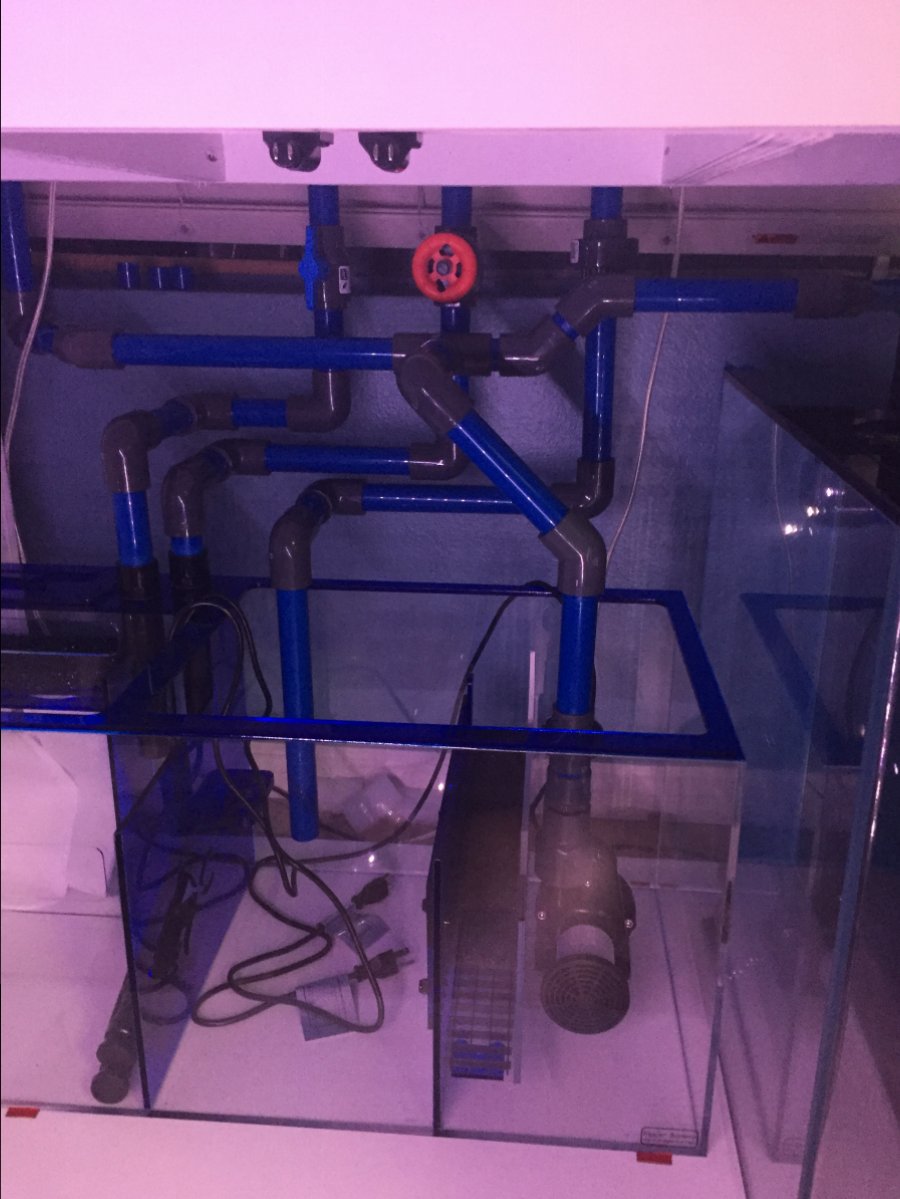

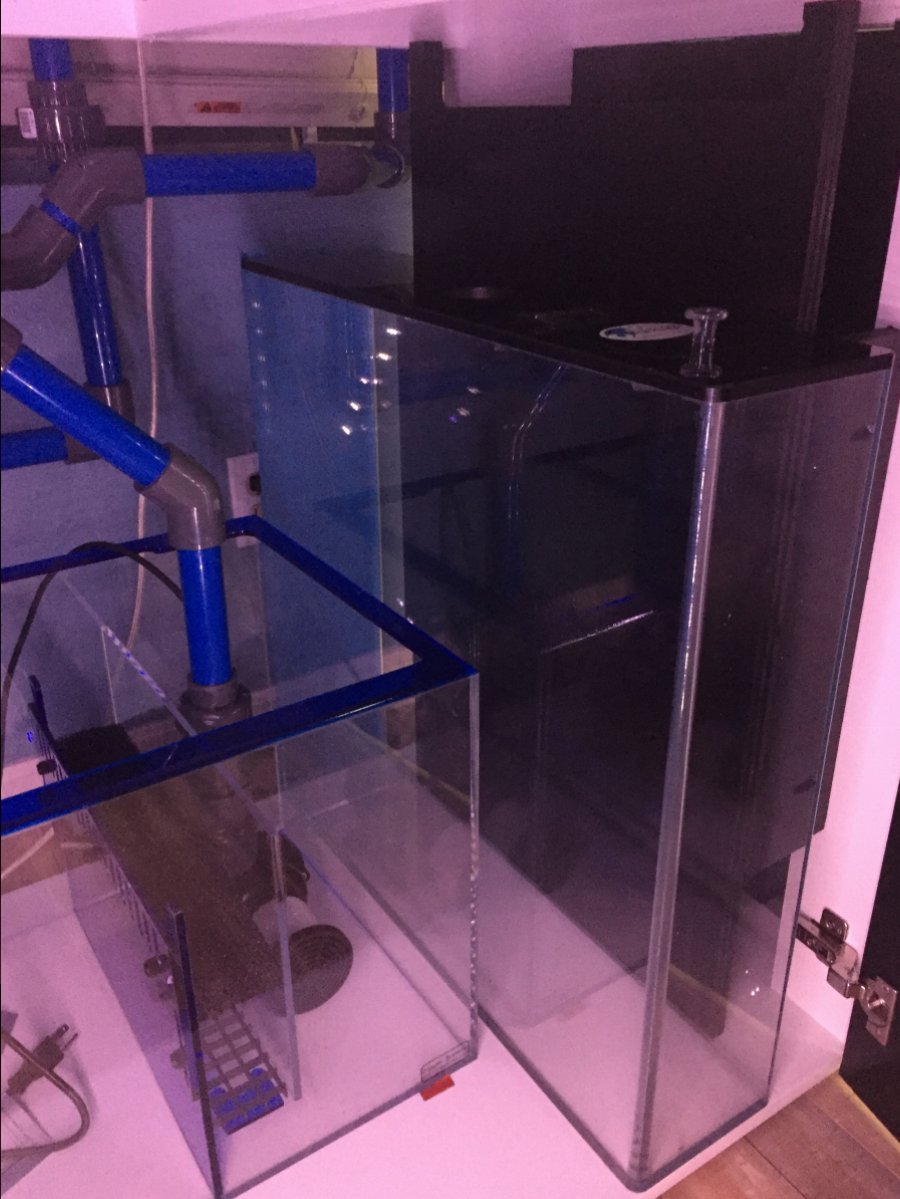

    @ngoodermuth I already had to change the plumbing! My returns were about 2mm too low causing it to bind on the ATO I bought. A few hours later, some choice words, and a bit of luck in buying extra 45s and elbows (highly recommend this, it saved me and can save others) and some advice from @MasterAlgaeGrower I ended up with revised plumbing and I did not have to tear the whole thing apart to do it! Also pictured is the Advanced Acrylics ATO which is 6"x24"x24" and can hold about 15 gallons. Going to have to figure out what to do with the clear sides facing the sump as I don't want the refugium light causing any growth in the ATO.

    IMG_6151.JPG IMG_6152.JPG

    MasterAlgaeGrower likes this.
  6. Whipples

    Whipples Well-Known Member R2R Supporter Build Thread Contributor

    Joined:
    Sep 23, 2016
    Messages:
    440
    Likes Received:
    385

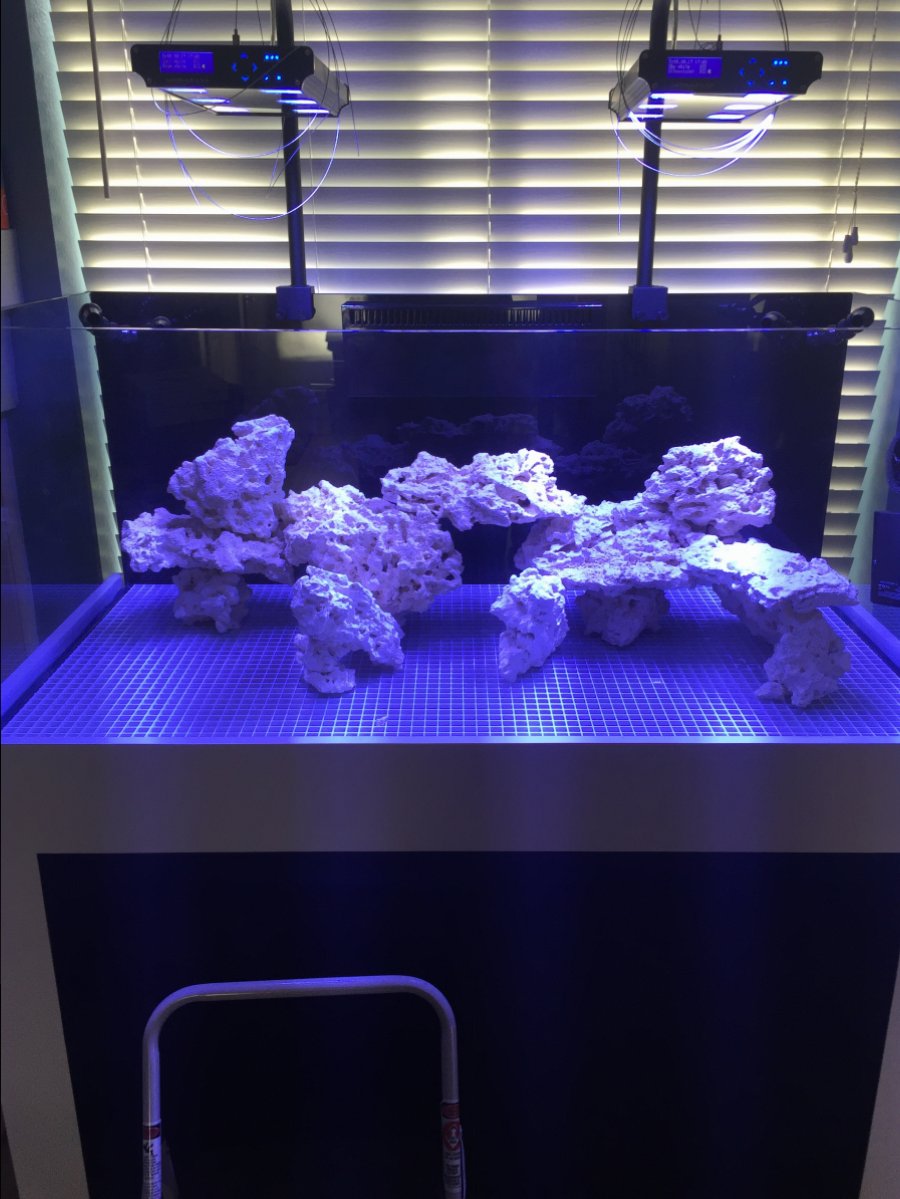

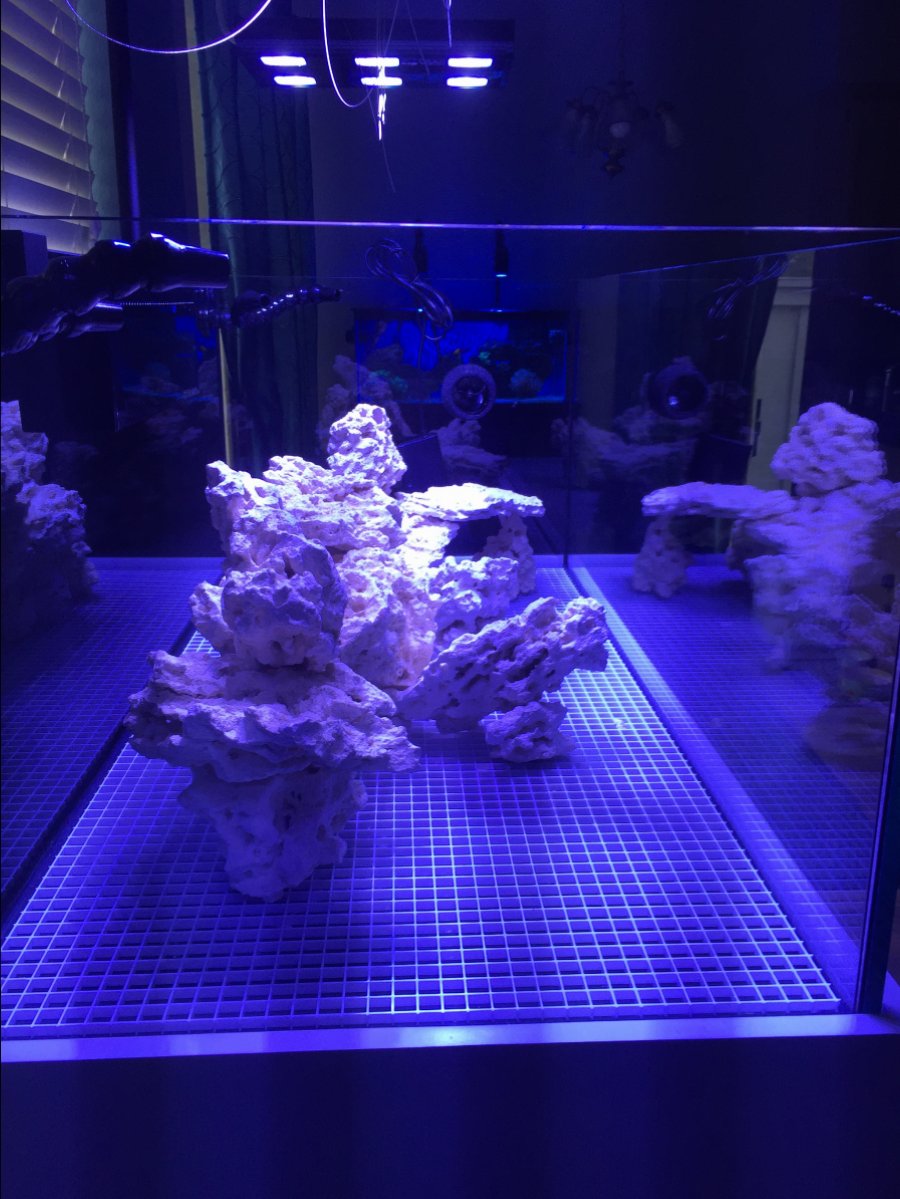

    Another update: got the plumbing strapped and supported and the tank is in its final resting place. Wanted to run the current scape by y'all for any feedback. The lights cause a weird effect with the iPhone camera and I haven't figured out how to reduce it. Thanks!

    IMG_6155.JPG IMG_6156.JPG IMG_6157.JPG

    Last edited: Sep 21, 2017
  7. MasterAlgaeGrower

    MasterAlgaeGrower Well-Known Member R2R Supporter Build Thread Contributor Partner Member 2018

    Joined:
    Sep 26, 2016
    Messages:
    91
    Likes Received:
    71
    I got to see this beauty in person today! Pictures do not do it justice. Such a clean setup.

    Whipples likes this.
  8. Whipples

    Whipples Well-Known Member R2R Supporter Build Thread Contributor

    Joined:
    Sep 23, 2016
    Messages:
    440
    Likes Received:
    385
    Update: got it filled up, salted, and working on tuning the beananimal drain. Photo is a shot of the reef under the moonlight mode of the Mitras lights. Don't mind the cables, I'll cut them when I'm happy with the height. @MasterAlgaeGrower thanks for stopping by and helping get it filled up!


    MasterAlgaeGrower likes this.
  9. William Norman

    William Norman Well-Known Member

    Joined:
    May 23, 2017
    Messages:
    79
    Likes Received:
    27
    Location:
    South East Fl
    Hey Wipples - Love the build! I also like your choice of adult beverage. I hope you have another bottle to sip on while watching your new tank.

    I noticed you have light diffuser on the bottom of your tank. Are you using that to secure your rock ? I am waiting on my rock so I can start building my new 100g.

    Whipples likes this.
  10. Whipples

    Whipples Well-Known Member R2R Supporter Build Thread Contributor

    Joined:
    Sep 23, 2016
    Messages:
    440
    Likes Received:
    385
    @William Norman thanks for stopping by! I use that light diffuser to both protect the base of the tank and give the rock something a bit more secure to rest on. It also helps prevent any sand-dwelling creatures from causing havoc to the rockwork! I glued the rocks and ensured it would not move prior to pouring the sand in. It also helps protect the tank if heaven forbid you drop a rock while doing maintenance or having to extract a troublesome fish.

    Current sip-list is an Ardbeg Kelpie, highly recommend if you are in to the Islays :)

    William Norman likes this.
  11. revhtree

    revhtree Owner Administrator Staff Member Team R2R R2R Supporter R2R Excellence Award Photo of the Month Award Build Thread Contributor Article Contributor Partner Member 2018

    Joined:
    May 8, 2006
    Messages:
    1,891
    Likes Received:
    20,998
    Very nice! Nice floor too!

    Whipples likes this.
  12. eastnjman

    eastnjman Member

    Joined:
    Jan 21, 2015
    Messages:
    13
    Likes Received:
    5
    That looks awesome

    Whipples likes this.
  13. Whipples

    Whipples Well-Known Member R2R Supporter Build Thread Contributor

    Joined:
    Sep 23, 2016
    Messages:
    440
    Likes Received:
    385
    Thanks @eastnjman, hopefully the cycle completes soon!

  14. RyanCSGO

    RyanCSGO Well-Known Member R2R Supporter R2R Excellence Award Reef Squad SCMAS Member Build Thread Contributor Partner Member 2018

    Joined:
    Feb 17, 2016
    Messages:
    1,208
    Likes Received:
    1,493
    Location:
    Orange, California
    awesome setup! following along :)

    Whipples likes this.
  15. coweyes298

    coweyes298 Well-Known Member

    Joined:
    Jun 5, 2017
    Messages:
    137
    Likes Received:
    41
    Location:
    Los Angeles, Diamond Bar, CA
    Nice one! I also have a CD tank and almost similar size as yours. 48" x 24" x 20". It was built last year and at that time they don't have much stand choice so I go to local carpenter route for stand. Your build is really clean! Are you using Kessil mounting arm for the Mitras? And any update on the Mitras for coral? I am using Kessil but am thinking of switching to Mitras one day...

    Whipples likes this.
  16. Whipples

    Whipples Well-Known Member R2R Supporter Build Thread Contributor

    Joined:
    Sep 23, 2016
    Messages:
    440
    Likes Received:
    385
    I think our tanks are the same! 100g? They really did up their stand game, and they added an electrical panel on the side to help keep the stealth look going. I am nearly done cycling it so I haven't had a chance to put corals under it BUT when I look at the two tanks side-by-side the Mitras fixtures bring a completely new level to it, and given the design with multiple pucks and reflectors it still has good shimmer but more mild to the Kessils (which I am now starting to prefer the more mild shimmer). Shadowing hasn't been an issue so far with my rock structure and I tested it a bit with some fluorescent acrylic I had laying around from some previous computer mods, and programming them was pretty easy with their light composer. Nothing wrong with the kessil lights, just wanted to try something different and two AP700s was going to be more expensive and still have some of the coverage issues.

    Good catch on the Kessil arms. I used the Mitras hanging kit to suspend them from the arms and the plug fits through the arm perfectly to get that stealth look. The only challenge I've had is getting the fixtures to lay flat and straight since the power cord is slightly off of center, but a few well placed coins helped balance it out :).

    MasterAlgaeGrower likes this.
  17. coweyes298

    coweyes298 Well-Known Member

    Joined:
    Jun 5, 2017
    Messages:
    137
    Likes Received:
    41
    Location:
    Los Angeles, Diamond Bar, CA
    Yea. Actually mine is 48*23*21 or 20 starphire but with clear silicon. 99 gallon but with only one return on the right. Same synergy ghost overflow but with Trigger system tideline 36 sump and a 10 gallon ATO from AA. Be careful while you use the mag glass cleaner to clean the glass. I use flipper and had several scratches on the front side QQ

  18. Whipples

    Whipples Well-Known Member R2R Supporter Build Thread Contributor

    Joined:
    Sep 23, 2016
    Messages:
    440
    Likes Received:
    385
    Oh man I'm sorry to hear that! I planned on just using a simple mag-float, the flipper is just too big in my opinion and is too strong. The mag-floats, while not as sleek as the black flippers, don't have the same magnet strength either so I find them more forgiving.

    Do you have a log for your tank? Would love to see what you've done with it.

  19. coweyes298

    coweyes298 Well-Known Member

    Joined:
    Jun 5, 2017
    Messages:
    137
    Likes Received:
    41
    Location:
    Los Angeles, Diamond Bar, CA
    Don't really have a log in here.

    Below was the first day filling it up which was June somewhere last year.
    DSC_0744 (1).JPG

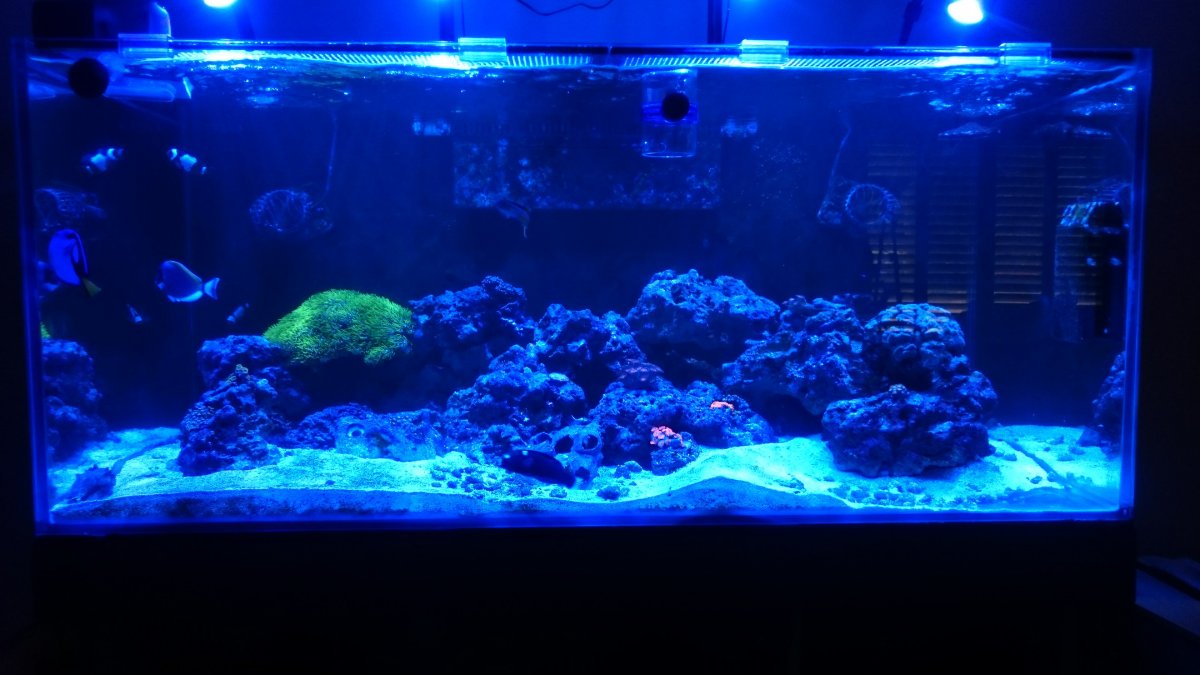

    Here is the current shot. I added 2 more Kessil A160 on the very right and left side.

    All other corals are still in separate coral QT so the current tank has few corals in it now...

  20. Whipples

    Whipples Well-Known Member R2R Supporter Build Thread Contributor

    Joined:
    Sep 23, 2016
    Messages:
    440
    Likes Received:
    385
    Nice man! I spy a powder blue?
