Guide to the Triton Method

Discussion in 'Triton Applied Reef Bioscience' started by Tim@Triton, Apr 5, 2017.

  1. Tim@Triton

    Tim@Triton Well-Known Member R2R Supporter Gold Sponsor

    Joined:
    Oct 31, 2014
    Messages:
    520
    Likes Received:
    319
    Location:
    Liverpool UK
    Hi Jason

    You have two options. Go full Triton and modify your system, or continue with your system as is and use Reef Supplements to replace your current dosing method.

    If you want to go full Triton then that would involve modifying your sump to reflect the Triton specifications, removing the RollerMat, increasing the size of algae refugium, moving the skimmer into the second chamber...

    However, if you are happy with the way your system is running then you can leave it as it is and simply change your dosing from the balling method over to Core7 Reef Supplements (Other Methods)....

    Any system will benefit from the addition of an algae section in my opinion.

    Whichever route your chose to take the dosing changeover is the same, the most accurate way to work out the equivalent dose of Core7 is to work out your daily Alk drop. Measure Alk on day 1, do not dose anything, measure the following day (same time of day) and see how much your Alk has dropped, put that info into this calculator here (official one coming soon) and that will tell you your approx equivalent dose of Core7.


  2. Tim@Triton

    Tim@Triton Well-Known Member R2R Supporter Gold Sponsor

    Joined:
    Oct 31, 2014
    Messages:
    520
    Likes Received:
    319
    Location:
    Liverpool UK
    Easiest way is to drain direct into the algae chamber.

  3. Albert Angulo

    Albert Angulo New Member

    Joined:
    Dec 21, 2017
    Messages:
    2
    Likes Received:
    0
    Hi I am new to modern reefs but I have done allot of research and have decided to do a 57 gallon reef Triton method. I am building a custom sump and can't find one last detail anywhere for your system in my sump the main supply line from the tank going into the refugium how should the inlet go ?

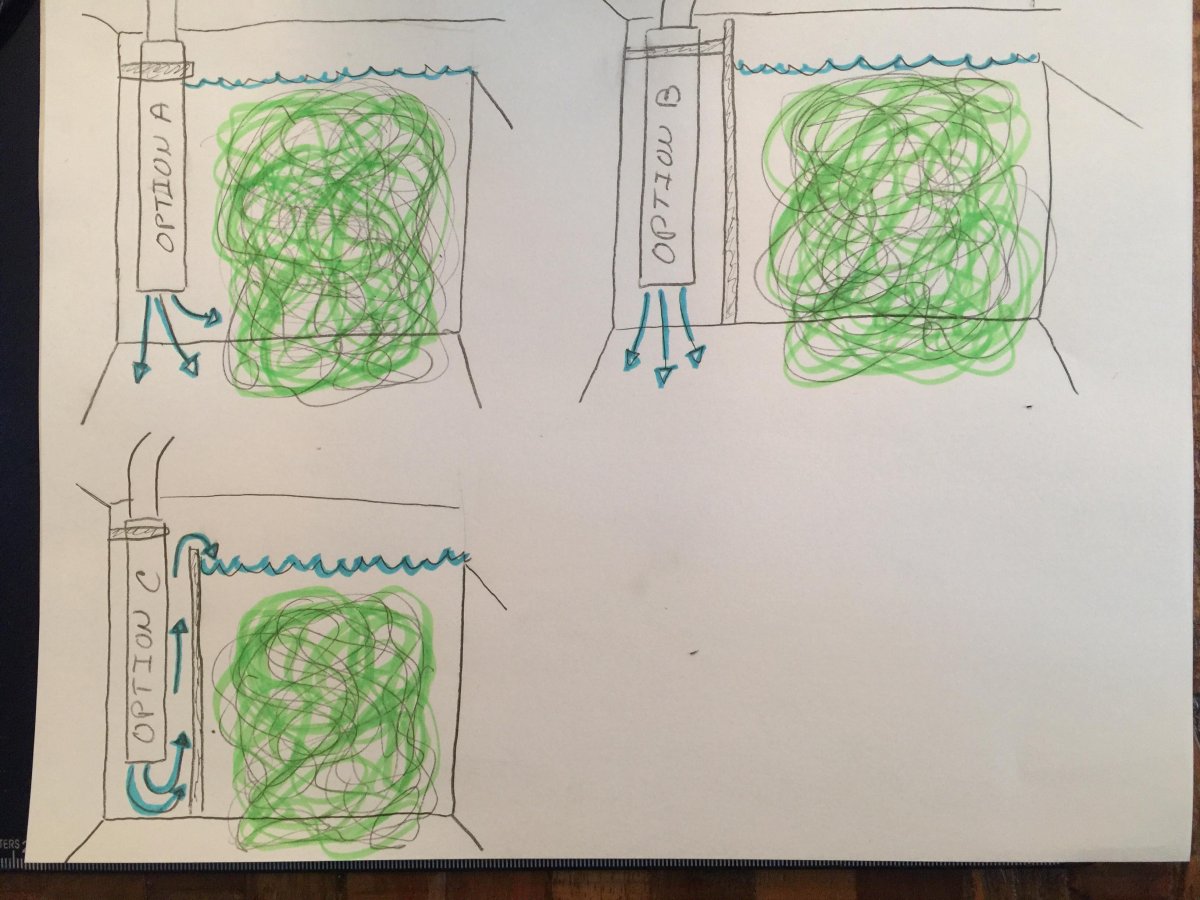

    With a simple bulkhead and the pipe directly into the refugium as in option A? This would give me a bit for volume in the refugium section and I feel would force the water through the vegetation and force water flow through the the space.
    Option B would only have one baffle just enough for the pipe and flow would only go in one direction.
    Or option C that would be a complete enclosed section forcing the water to go over the baffle and this method would seam to me that once the vegetation gets growing would only flow the water across the top of the refugium section and then run off the baffle into skimmer section but I don't think the water would flow sufficiently through the plants in this manor.
    I have seen sumps made all three ways, so I was unsure which direction to go in.
    I am looking for optimal results and performance out of the refugium.
    In my setup the refugium will be 9 gallons with the Kessel purple led light that is around $300.


  4. nycjwi

    nycjwi New Member

    Joined:
    Aug 22, 2017
    Messages:
    4
    Likes Received:
    0
    Hi Tim,
    Is there someone in Los Angeles who works with Triton that I can contact to help me setup a Triton System?
    thx

  5. nycjwi

    nycjwi New Member

    Joined:
    Aug 22, 2017
    Messages:
    4
    Likes Received:
    0
    Hi Tim,
    Is there someone in Los Angeles, CA that I can contact to help me setup a Triton System?
    Thx

  6. jjn42b

    jjn42b Member

    Joined:
    Dec 5, 2011
    Messages:
    39
    Likes Received:
    0
    Location:
    UK
    Thanks for the response Tim,
    My plan from the above is to keep the rollermat in section 1 along with the skimmer. Then in section 2 i am going to have a cheato refugium with a suitable light which will be about 150l (15% of system size, 22% tank size) then into section 3 for the return pump. i have 2 reactors for phospate remover and carbon and a UV off the return pump.

    would this still require the other method? and if it does will it mean i have to continue my water change program as well? Also would i still require coral foods, i beleive you do not need these with the full method as the cheato die off covers this.

    thanks

    jason

  7. Chef Tommy

    Chef Tommy Member

    Joined:
    Oct 15, 2016
    Messages:
    65
    Likes Received:
    42
    Location:
    New Orleans
    Great informative article Tim! I actually got the info from my LFS in New Orleans. I'm looking at a 30 L to build into a new sump for Triton and he had the info on hand!

    Tim@Triton likes this.
  8. Tim@Triton

    Tim@Triton Well-Known Member R2R Supporter Gold Sponsor

    Joined:
    Oct 31, 2014
    Messages:
    520
    Likes Received:
    319
    Location:
    Liverpool UK
    Sure,

    Tim Kelley
    (818) 570-0848;8103

  9. Clayton Jessup

    Clayton Jessup Valuable Member R2R Supporter R2R Excellence Award

    Joined:
    Apr 30, 2016
    Messages:
    1,136
    Likes Received:
    752
    Location:
    El Paso Tx
    Can on mix supplements 3a and 3b , like if they had a 3 headed Doser ? Or does each supplement need its own dosing head ?

  10. minus9

    minus9 Active Member

    Joined:
    Feb 13, 2017
    Messages:
    231
    Likes Received:
    220
    Location:
    Los Angeles (SFV)
    3a and 3b can be combined, but you have to double the dosing amount.

    Clayton Jessup likes this.
  11. Clayton Jessup

    Clayton Jessup Valuable Member R2R Supporter R2R Excellence Award

    Joined:
    Apr 30, 2016
    Messages:
    1,136
    Likes Received:
    752
    Location:
    El Paso Tx
    So from like say 2ml to 4ml ? Or is it something else ?

  12. minus9

    minus9 Active Member

    Joined:
    Feb 13, 2017
    Messages:
    231
    Likes Received:
    220
    Location:
    Los Angeles (SFV)
    Correct. If you were dosing 2mL for all 4 components, then you would double that amount for the combined 3a / 3b solution. Every part gets dosed equally.

    Clayton Jessup likes this.
  13. curtsmith343

    curtsmith343 New Member

    Joined:
    Dec 14, 2015
    Messages:
    4
    Likes Received:
    2
    Question with this is what impact it will have on copepods. With direct and high flow will this allow copepods and amphipods a chance to thrive

  14. Clayton Jessup

    Clayton Jessup Valuable Member R2R Supporter R2R Excellence Award

    Joined:
    Apr 30, 2016
    Messages:
    1,136
    Likes Received:
    752
    Location:
    El Paso Tx
    Ok thank you very much minus9! I am debating between Triton Method or AquaForest so I am still trying to decide and researching both options . Thank you again .

  15. Tim@Triton

    Tim@Triton Well-Known Member R2R Supporter Gold Sponsor

    Joined:
    Oct 31, 2014
    Messages:
    520
    Likes Received:
    319
    Location:
    Liverpool UK
    There will still be plenty of areas with lower flow for the pod communities to thrive, one or two pieces of Live Rock can also be added if required..

  16. reefpulp

    reefpulp Member

    Joined:
    Aug 30, 2016
    Messages:
    6
    Likes Received:
    1
    I've been lurking on this forum for a while and now I am in need of some advice. I have a RSR 350 (71 gallon display, 93 gallon total) and am wanting to convert to the Triton method. I have a few questions. I have the ability to do a remote refugium in the room behind my tank. I'm planning on using a 20 gallon tank. Should I do an easier setup and run the fuge off a tee from the return line or should I route the overflow drain from the DT directly into the remote fuge? If I do that, do I just re route just the primary drain or the primary and the emergency drain? (I am a noob to plumbing but have learned a lot reading on R2R and BRS) How important is it that the refugium is before the skimmer and return when running Triton? Will dosing into the return chamber be a problem if I run the fuge off the return line?
    Also, I will need to upgrade my return pump. I currently have the Sicce 5.0 and have been happy with it but I will need more flow to run a manifold and the remote refugium. Would adding a second Sicce 5.0 be too much flow and create too much back pressure? I am considering the more expensive option of using a larger DC pump such as Varios 6 or 8; Sicce 7 or 9; Eco Tech m1. Any advice is appreciated, I'm fairly new to the hobby but I'm not broke yet.

  17. e34stx

    e34stx Member

    Joined:
    Sep 5, 2017
    Messages:
    13
    Likes Received:
    2
    your best running from the return! i have a ALR2 setup next to the sump in the other door area. i pump from the return section through algae reactor and then the outlet goes back into the skimmer section. its great as the sump still stays nice and clean. once every couple of weeks i remove the reactor, clean/rinse the algae in fresh saltwater. if it requires trimming its the perfect time.

  18. ShawnSaucier

    ShawnSaucier Well-Known Member

    Joined:
    Jul 25, 2011
    Messages:
    549
    Likes Received:
    106
    Location:
    Lake Mary, Fl
    Tim,
    I’ve been in the process of converting my system (187g)over to Triton. I just plumbed in a new sump that is in accordance to what is required. I have two main issues at this point. Flow/turn over- I don’t think I can achieve the 10x turnover rate as the tank is drilled with 1” bulkheads. Unless I drain the tank and run exterior plumbing up the back , I think and hope the best I can achieve with the 1” is maybe 5-7 times turn over. How badly could this effect the system/method effectiveness?
    Dosing- can this be done with a three head doser or must it be done with 4?

  19. madcanary

    madcanary Active Member R2R Supporter Build Thread Contributor

    Joined:
    Mar 24, 2015
    Messages:
    220
    Likes Received:
    110
    Location:
    Anniston Alabama
    My Triton tank is 1 year old!! My only problem is keeping all the detritus out of my refugium cheato without filter socks I’m also running the synergy triton TS44 it’s a perfect match.
    Tank seems happy around 7 Dkh


    Jaculus likes this.
  20. Jaculus

    Jaculus Member R2R Supporter

    Joined:
    Jul 17, 2014
    Messages:
    57
    Likes Received:
    12
    Location:
    Alliance OH
    The Detritus in the first chamber with the chaeto is my only big issue also so far for me also. I may just use my old canister filter filled with filter floss to clean it out.

    madcanary likes this.
