Is My UV plumbing ok

m.kristoff

Well-Known Member
View Badges
Joined
Sep 17, 2021
Messages
609
Reaction score
237
Location
cleveland
Rating - 100%
6   0   0

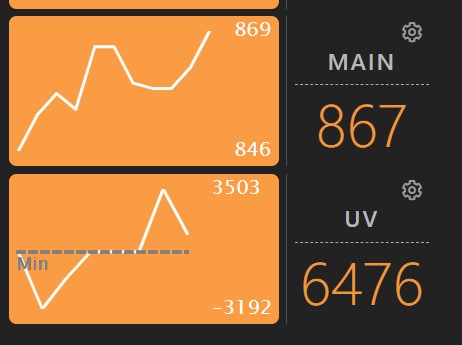

I am seeing some crazy numbers from my Apex flow meter. Some times it is reading negative and then as high as 3200 gph. I do get 0 when the valves are off. Is there an issue with the way I plumbed it? I believe the negative readings are that it is running backwards on the loop

should I only use the main valve to adjust the flow or the return valve? or is this just a bad idea all together?

One pump feeds the manifold, and return. I also have it looping to the UV after the manifold to the tank.

the Flow meter on the return is fairly consistent

UV plumbing.jpg flow errors.jpg


Shirak

Valuable Member
View Badges
Joined
Nov 3, 2019
Messages
2,271
Reaction score
1,250
Location
Thousand Islands, NY
Rating - 0%
0   0   0
Yes it could go backwards with your plumbing setup. You need a gate valve on this part of the line to control how much water goes left at the T and up the T to the UV. Without it the water will preferentially go left and not to the UV. A gate valve here will allow you to dial in exactly how much flow you want through the UV by reducing flow through the Left branch of the T.

OP
OP
m.kristoff

m.kristoff

Well-Known Member
View Badges
Joined
Sep 17, 2021
Messages
609
Reaction score
237
Location
cleveland
Rating - 100%
6   0   0
Yes it could go backwards with your plumbing setup. You need a gate valve on this part of the line to control how much water goes left at the T and up the T to the UV. Without it the water will preferentially go left and not to the UV. A gate valve here will allow you to dial in exactly how much flow you want through the UV by reducing flow through the Left branch of the T.
I Was just looking at that. I figured that the water would have less resistance going up and that part is 1" 1/4

Last edited:

NowGlazeIT

Happy to help, Ask away.
View Badges
Joined
Oct 28, 2017
Messages
6,119
Reaction score
11,438
Location
Coachella Valley
Rating - 0%
0   0   0
I’m seeing a lot of looped UVs into manifolds lately?? Did brs make a bad video on this or something? The UV should dump straight into the tank or back into the sump not back into your manifold or return.

OP
OP
m.kristoff

m.kristoff

Well-Known Member
View Badges
Joined
Sep 17, 2021
Messages
609
Reaction score
237
Location
cleveland
Rating - 100%
6   0   0
I’m seeing a lot of looped UVs into manifolds lately?? Did brs make a bad video on this or something? The UV should dump straight into the tank or back into the sump not back into your manifold or return.
I'm considering just dumping in the sump. Less complicated.


Shirak

Valuable Member
View Badges
Joined
Nov 3, 2019
Messages
2,271
Reaction score
1,250
Location
Thousand Islands, NY
Rating - 0%
0   0   0
My pump is a red Dragon running @ 35%. have plenty of horse power left. not sure increasing flow would fix it
No it will not fix it. Without a valve on the left part of the T the water will flip flop back and forth through the UV. You need to restrict flow a little through the left branch of the T to force water up and in one direction through the UV. For parasite prevention you only need a gate valve closed a small amount to overcome the higher resistance in the UV portion of the plumbing and force a slow flow through the UV.


Shirak

Valuable Member
View Badges
Joined
Nov 3, 2019
Messages
2,271
Reaction score
1,250
Location
Thousand Islands, NY
Rating - 0%
0   0   0
You could run it back to the sump but if you pull from the sump and return to the sump you should pull from the end where the drain from the tank is and return to the return pump to the tank so you don't just cycle sump water over and over. This plan is really only good for parasite control too as you would not get enough tank turnover for algae/dinos

OP
OP
m.kristoff

m.kristoff

Well-Known Member
View Badges
Joined
Sep 17, 2021
Messages
609
Reaction score
237
Location
cleveland
Rating - 100%
6   0   0
No it will not fix it. Without a valve on the left part of the T the water will flip flop back and forth through the UV. You need to restrict flow a little through the left branch of the T to force water up and in one direction through the UV. For parasite prevention you only need a gate valve closed a small amount to overcome the higher resistance in the UV portion of the plumbing and force a slow flow through the UV.
makes sense.. more than likely ill just dump the UV return directly to the sump. That way is i want to increase the flow i can


Shirak

Valuable Member
View Badges
Joined
Nov 3, 2019
Messages
2,271
Reaction score
1,250
Location
Thousand Islands, NY
Rating - 0%
0   0   0
makes sense.. more than likely ill just dump the UV return directly to the sump. That way is i want to increase the flow i can
I assume you mean to use the same return pump to send water through the uv and back to the sump? You will be recirculating sump water over and over and have a sparkly clean sump. ;)


Sean Clark

7500 Club Member
View Badges
Joined
May 16, 2019
Messages
8,055
Reaction score
31,574
Location
Michigan
Rating - 0%
0   0   0
It looks like the flow sensor is not set to the correct diameter in Fusion. I would start there.


Shirak

Valuable Member
View Badges
Joined
Nov 3, 2019
Messages
2,271
Reaction score
1,250
Location
Thousand Islands, NY
Rating - 0%
0   0   0

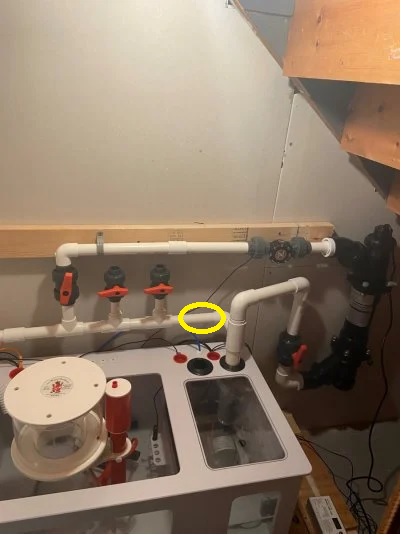

One gate valve where I circled in yellow and you can control exactly how much of your return goes through the manifold and how much gets sent to the UV before going back to the manifold and returned to the tank. Flow problems solved.


Sean Clark

7500 Club Member
View Badges
Joined
May 16, 2019
Messages
8,055
Reaction score
31,574
Location
Michigan
Rating - 0%
0   0   0
it is set at 1"
Well then something is wrong because your pump is definitely not pushing that kind of volume through that snake of 1" pipe. Wish that I could help more looking on.

Am I correct to presume that your 867 main is measured down stream to the left of the frame off of the same pump and line and is also a 1" flow sensor?


Yodeling

Active Member
View Badges
Joined
Jan 15, 2021
Messages
205
Reaction score
162
Location
Atlanta
Rating - 0%
0   0   0
This plumbing doesn’t make sense to me at all. You’ve essentially plumbed it to push water into the UV from both sides (inlet and outlet). You should not be hooking your outlet to the manifold because it’s under pressure from the return pump. The outlet needs to be its own line going back to the tank. Alternatively, you could plump it to go back to the sump but it will not be nearly as efficient.

OP
OP
m.kristoff

m.kristoff

Well-Known Member
View Badges
Joined
Sep 17, 2021
Messages
609
Reaction score
237
Location
cleveland
Rating - 100%
6   0   0
This plumbing doesn’t make sense to me at all
The trend lately has been to do this. I figured I would give it a try. My tank is empty, so I decided to experiment. it's a "little" more efficient than dumping back to the sump which a lot of people do.

a gate valve will solve the problem to balance the flow between the 2 lines.

More than likely i'll either put a valve on it or just run the UV side as the full return
