40 Gallon Breeder Sump DIY - Feedback?

Discussion in 'Do It Yourself (DIY)' started by KCSUMPS, Oct 21, 2018.

  1. KCSUMPS

    KCSUMPS Active Member R2R Supporter R2R Secret Santa Build Thread Contributor

    Joined:
    Sep 6, 2018
    Messages:
    283
    Likes Received:
    219
    Location:
    Overland Park
    Arielo1980, cracker, buddy. and 2 others like this.

  2. George Lopez

    George Lopez Active Member Build Thread Contributor

    Joined:
    May 6, 2017
    Messages:
    432
    Likes Received:
    208
    Nice job but how big is your return pump? The section looks a bit small.

  3. cromag27

    cromag27 octoaquatics.com - acrylic & anemone god R2R Supporter Gold Sponsor Partner Member 2019 R2R Secret Santa Toys For Kids Sponsor 2018 Build Thread Contributor Article Contributor

    Joined:
    Sep 7, 2013
    Messages:
    7,343
    Likes Received:
    9,815
    Location:
    arizona
    hopefully you left room for expansion of the panels.

    mikes686 likes this.
  4. KCSUMPS

    KCSUMPS Active Member R2R Supporter R2R Secret Santa Build Thread Contributor

    Joined:
    Sep 6, 2018
    Messages:
    283
    Likes Received:
    219
    Location:
    Overland Park
    Since I already had the jebao pumps for powerheada and a coral box skimmer I went with the Jecod 9000 pump so I can do up to you around 1700 gallons an hour with head pressure. The bottom under that last Baffle is not very low so there shouldn’t be any real suction problems I don’t think. What have you experienced in the past? What should I be leery of with that space?

  5. KCSUMPS

    KCSUMPS Active Member R2R Supporter R2R Secret Santa Build Thread Contributor

    Joined:
    Sep 6, 2018
    Messages:
    283
    Likes Received:
    219
    Location:
    Overland Park
    When you say expansion of the panels do you mean where I can raise and lower them or do you mean some other expansion?

  6. cromag27

    cromag27 octoaquatics.com - acrylic & anemone god R2R Supporter Gold Sponsor Partner Member 2019 R2R Secret Santa Toys For Kids Sponsor 2018 Build Thread Contributor Article Contributor

    Joined:
    Sep 7, 2013
    Messages:
    7,343
    Likes Received:
    9,815
    Location:
    arizona
    plastic expands when saturated with water. you never want the panels to touch glass. you should have about 1/8” space in between all plastic/glass.

    cracker and KCSUMPS like this.
  7. KCSUMPS

    KCSUMPS Active Member R2R Supporter R2R Secret Santa Build Thread Contributor

    Joined:
    Sep 6, 2018
    Messages:
    283
    Likes Received:
    219
    Location:
    Overland Park
    Good to know! I should have made the spaces bigger... i have about 1/8 total between the two sides combined... Not sure if this matters this is poly carbonate not acrylic. That said I likely will have some bowling going on if it expands then. I’ll update this thread with what happens once I get some water in here for a bit thank you for the feedback again

  8. mikes686

    mikes686 Member

    Joined:
    May 7, 2018
    Messages:
    79
    Likes Received:
    99

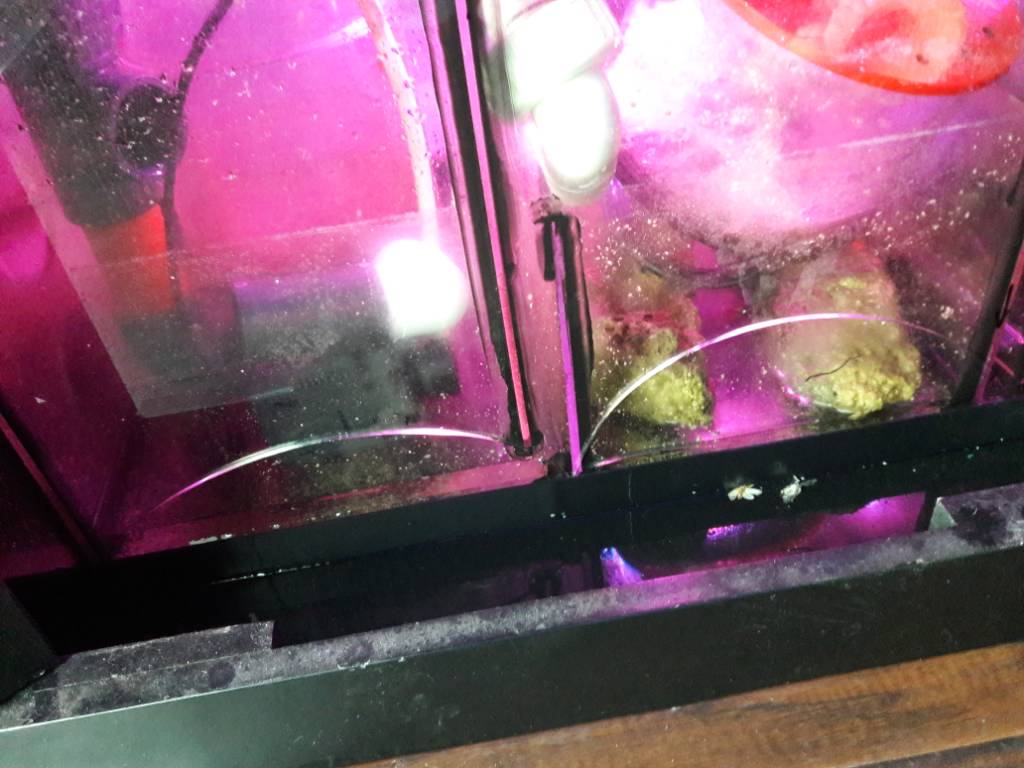

    I agree, from personal experience, mine was fairly snug, and after a few months it cracked. I had 30 gallons of saltwater on my hardwood floor. 20180828_190413.jpeg

    Reef-junky likes this.
  9. cromag27

    cromag27 octoaquatics.com - acrylic & anemone god R2R Supporter Gold Sponsor Partner Member 2019 R2R Secret Santa Toys For Kids Sponsor 2018 Build Thread Contributor Article Contributor

    Joined:
    Sep 7, 2013
    Messages:
    7,343
    Likes Received:
    9,815
    Location:
    arizona
    yikes!

  10. KCSUMPS

    KCSUMPS Active Member R2R Supporter R2R Secret Santa Build Thread Contributor

    Joined:
    Sep 6, 2018
    Messages:
    283
    Likes Received:
    219
    Location:
    Overland Park
    Yikes is right I actually went out and looked at poly carbonate versus things like nylon and acrylic and poly carbonate doesn’t absorb very much so my hope is that I have the ability to use the space in between the glass and the poly carbonate for expansion. That said I can say I never knew about this until you brought it up so thank you. If I do end up having problems I will let the group know

  11. KCSUMPS

    KCSUMPS Active Member R2R Supporter R2R Secret Santa Build Thread Contributor

    Joined:
    Sep 6, 2018
    Messages:
    283
    Likes Received:
    219
    Location:
    Overland Park
    Ended up checking this one out...
    https://www.ipolymer.com/pdf/Polycarbonate.pdf


    Looks like .12% water absorption on polycarbonate meaning on a 17.25" piece I would expand about .02" or about 1/40 of an inch'. I am SURE I have more than that between the panel and the glass. Was yours right up against the glass?

  12. lmm1967

    lmm1967 Member

    Joined:
    Sep 12, 2017
    Messages:
    91
    Likes Received:
    114
    Location:
    North Georgia
    I've not been able to get any dividers other than glass to stay put long term. They always held for a while (more than 3 months but less than a year). I wound up re-doing my sumps with glass dividers I had cut and polished at a local glass shop.

    Reef-junky likes this.
  13. KCSUMPS

    KCSUMPS Active Member R2R Supporter R2R Secret Santa Build Thread Contributor

    Joined:
    Sep 6, 2018
    Messages:
    283
    Likes Received:
    219
    Location:
    Overland Park
    I was wondering about that as I don’t see a lot of hybrid system is on there. Thank you for the feedback will see how this goes. At least I have the measurements for the glass for the next round...

  14. lmm1967

    lmm1967 Member

    Joined:
    Sep 12, 2017
    Messages:
    91
    Likes Received:
    114
    Location:
    North Georgia
    If you go the glass route - ask them to round the corners to prevent potentially damaging the silicone inside the tank.

  15. KCSUMPS

    KCSUMPS Active Member R2R Supporter R2R Secret Santa Build Thread Contributor

    Joined:
    Sep 6, 2018
    Messages:
    283
    Likes Received:
    219
    Location:
    Overland Park
    Thanks so much. I am debating pulling out the baffles and cutting them down a bit. Did you say yours were acrylic or polycarbonate...? With the .35% top equilibrium expansion noted on wikipedia my sump would need about 1/16" but I was hoping that the bowing in the middle of the sheets could handle it... That said, if yours was polycarbonate I am thinking I will take mine out and fix it...

    Thanks again, Andy

  16. KCSUMPS

    KCSUMPS Active Member R2R Supporter R2R Secret Santa Build Thread Contributor

    Joined:
    Sep 6, 2018
    Messages:
    283
    Likes Received:
    219
    Location:
    Overland Park
    Ok so I went ahead and did it. I pulled all the baffles and have scraped everything clean and cut them down another 1/8th" . My wife wants to tell everyone "thanks for preventing disaster on our living room floor"... :) . More pictures when It is done CORRECTLY...

  17. Reef-junky

    Reef-junky Well-Known Member Build Thread Contributor

    Joined:
    Dec 5, 2017
    Messages:
    931
    Likes Received:
    812
    This is just one of the reasons I would have went with glass.

  18. Reef-junky

    Reef-junky Well-Known Member Build Thread Contributor

    Joined:
    Dec 5, 2017
    Messages:
    931
    Likes Received:
    812
    What’s the plane for the egg crate? Your not going to put a sponge on it are you?

  19. Reef-junky

    Reef-junky Well-Known Member Build Thread Contributor

    Joined:
    Dec 5, 2017
    Messages:
    931
    Likes Received:
    812
    I wouldn’t buy a sump those things are a rip off. It cost me $60 to make mine where if I would have bought it it would have been a few hundred.

  20. mikes686

    mikes686 Member

    Joined:
    May 7, 2018
    Messages:
    79
    Likes Received:
    99
    Not at the price point. I'd be better off buy a pre-made sump. Id need at least 1/4 or 5/16 thick glass.
