HUGE Random Flow Generator - We're going REALLY big this time!

OP
Vivid Creative Aquatics

Vivid Creative Aquatics

Upgrade Your Flow!
View Badges
Joined
Oct 12, 2017
Messages
798
Reaction score
971
Location
Phoenix, AZ
You guys need to treat this prototype like they do the Stanley cup. Random pictures of it random places around town...etc.
that a really good idea - maybe we''ll run a contest for someone to win one he on R2R, along with some nozzles of an appropriate size as well. :rolleyes:

OP
Vivid Creative Aquatics

Vivid Creative Aquatics

Upgrade Your Flow!
View Badges
Joined
Oct 12, 2017
Messages
798
Reaction score
971
Location
Phoenix, AZ
They look great and I’m sure work brilliantly, I personally would be concerned about my Koi injuring themselves on the edges, but maybe some way to construct a guard around them
Not real familiar with Koi - would you be worried about them scratching themselves on the end of the valuate or some other part of the nozzle? Since they are 3D prints, we could certainly modify the design to make them "Koi safe", so to speak.


Mortie31

Valuable Member
View Badges
Joined
Apr 5, 2016
Messages
1,739
Reaction score
2,871
Location
Uttoxeter. England
Not real familiar with Koi - would you be worried about them scratching themselves on the end of the valuate or some other part of the nozzle? Since they are 3D prints, we could certainly modify the design to make them "Koi safe", so to speak.
It’s on 2 fronts really, one you can potentially reduce, the outer front edge looks sharp, and could be radiused etc, the 2nd unfortunately you couldn’t really do anything about, anything rigid sticking out in the pond my Koi will swin into / against and a 25lb koi can easily cut itself bad. I’ve had this in the past with return pipes only sticking out of the wall 1”. I don’t think these could be built into the pond wall as i think it would stop the Venturi working, but I could be wrong on that.

OP
Vivid Creative Aquatics

Vivid Creative Aquatics

Upgrade Your Flow!
View Badges
Joined
Oct 12, 2017
Messages
798
Reaction score
971
Location
Phoenix, AZ
I don’t think these could be built into the pond wall as i think it would stop the Venturi working, but I could be wrong on that.
We have seen instances were users have flush mounted the Random Flow Generator Nozzles into reef decorations (fake coral displayed) , so that the nozzle sticks out behind the false wall and the outlet is flush with the front. As long as there is enough water supply around the back of the nozzle it work as intended.

We are actually working on a solution for that and have a few things in the works. ;-)

OP
Vivid Creative Aquatics

Vivid Creative Aquatics

Upgrade Your Flow!
View Badges
Joined
Oct 12, 2017
Messages
798
Reaction score
971
Location
Phoenix, AZ
Wow ... that 4 inch nozzle is enough to propel my tank to a Galaxy far, far away .... :D
Maybe even further than that - LOL

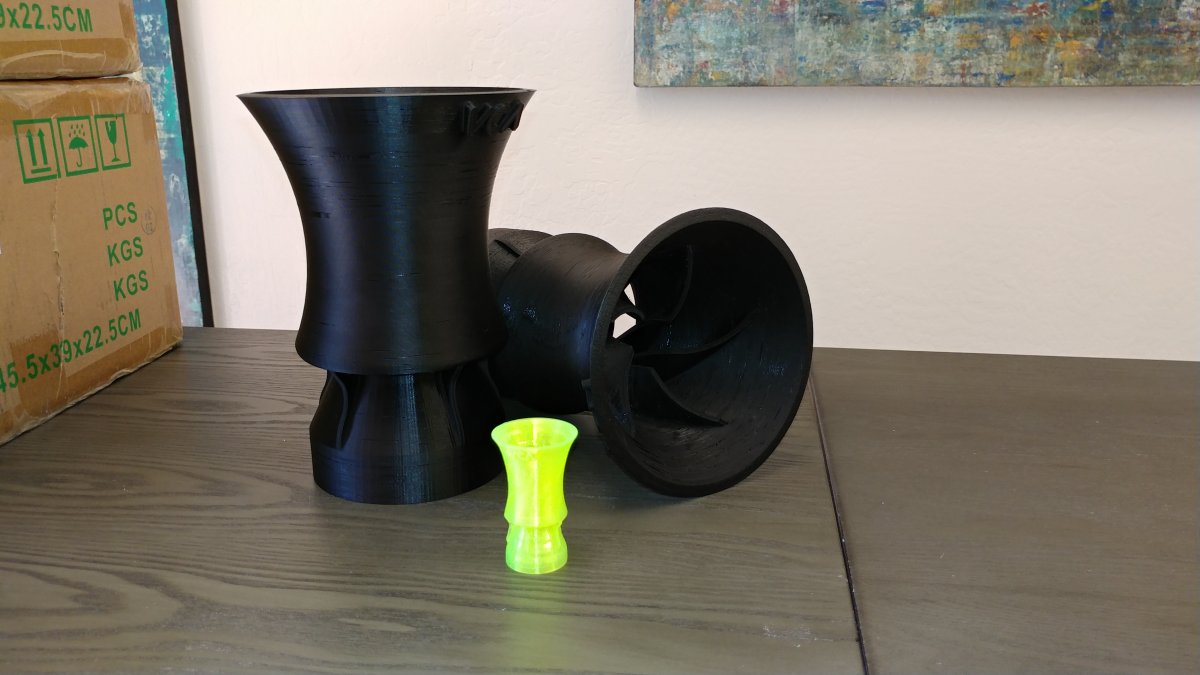

Here's a pic of the first and second prototypes next to a standard sized 3/4in RFG nozzle - we are ready to start testing :)


OP
Vivid Creative Aquatics

Vivid Creative Aquatics

Upgrade Your Flow!
View Badges
Joined
Oct 12, 2017
Messages
798
Reaction score
971
Location
Phoenix, AZ
Hmmmm ... just a wild/silly thought. This would make a nice catch basin for algae scrubber system eh ;)?
maybe - it especially if you have a round alge scrubber to fit the top valuate - but its pretty tall - nearly 10in


Amoo

Professional Thread Derailer
View Badges
Joined
Jul 18, 2015
Messages
2,895
Reaction score
7,220
Location
Alapaha, GA
that a really good idea - maybe we''ll run a contest for someone to win one he on R2R, along with some nozzles of an appropriate size as well. :rolleyes:
I'd totally mount that to my 4 wheeler and put a horn inside of it.


KrisReef

Valuable Member
View Badges
Joined
May 15, 2018
Messages
3,498
Reaction score
12,134
Location
ADX Florence
That tiny 3/4" fitting seems to be struggling with inadequacy issues in the shadows of the two monster nozzles.
It's even turning green with envy.

(Love the printer production photos! )

OP
Vivid Creative Aquatics

Vivid Creative Aquatics

Upgrade Your Flow!
View Badges
Joined
Oct 12, 2017
Messages
798
Reaction score
971
Location
Phoenix, AZ
That tiny 3/4" fitting seems to be struggling with inadequacy issues in the shadows of the two monster nozzles.
It's even turning green with envy.

(Love the printer production photos! )
I agree - it;s so small it can actually fit through the jet in the middle of the 4in nozzles without even touching the sides :-D

The green one was printed for your display tanks for a recent show - it glows in Black light. Printed in PLA. Sadly they don't have that color in PETG.

OP
Vivid Creative Aquatics

Vivid Creative Aquatics

Upgrade Your Flow!
View Badges
Joined
Oct 12, 2017
Messages
798
Reaction score
971
Location
Phoenix, AZ
Sorry for the slow update on this thread - but we did have an opportunity to test this RFG400 nozzle a few times and are working on the next prototype. The first test had a few issues, but revealed that this could work. the second test on the other hand went almost exactly as planned and really showed what this giant Nozzle was capable of.

We ran 2 of these at an estimated 150 GPM each, with the main pump throttled back a little more then 50%. The results were very interesting. Here are a few pics. i have a few videos hat will follow shortly

the RFG400!

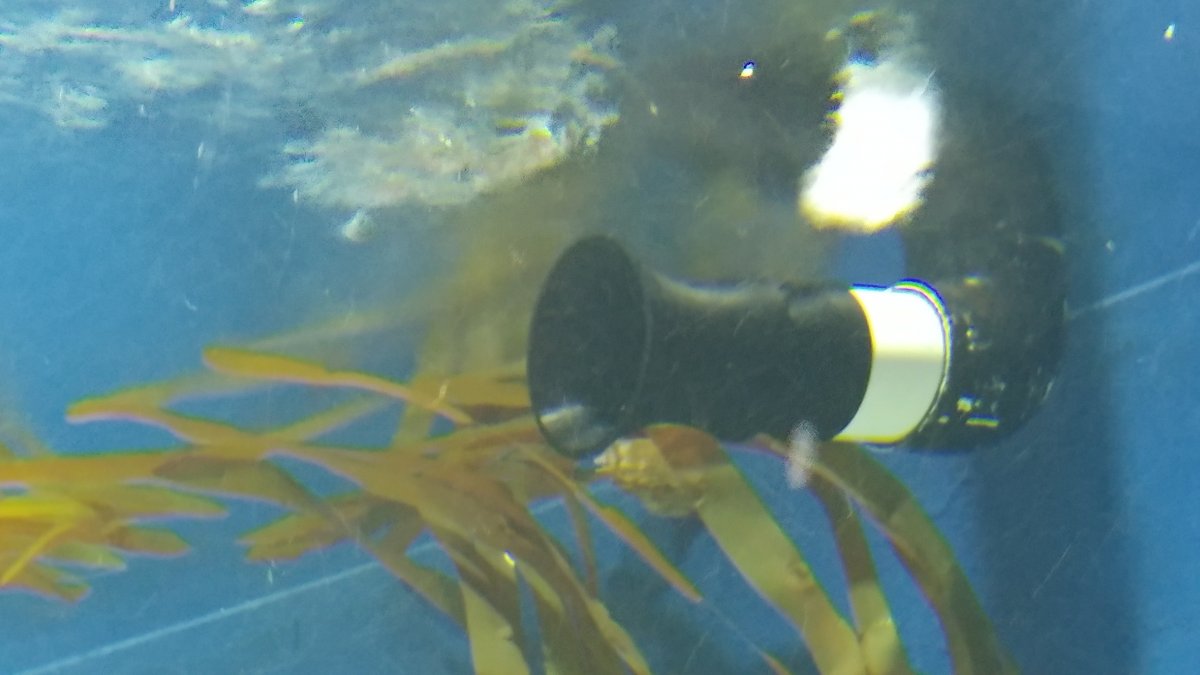

Installed in the first of two tanks

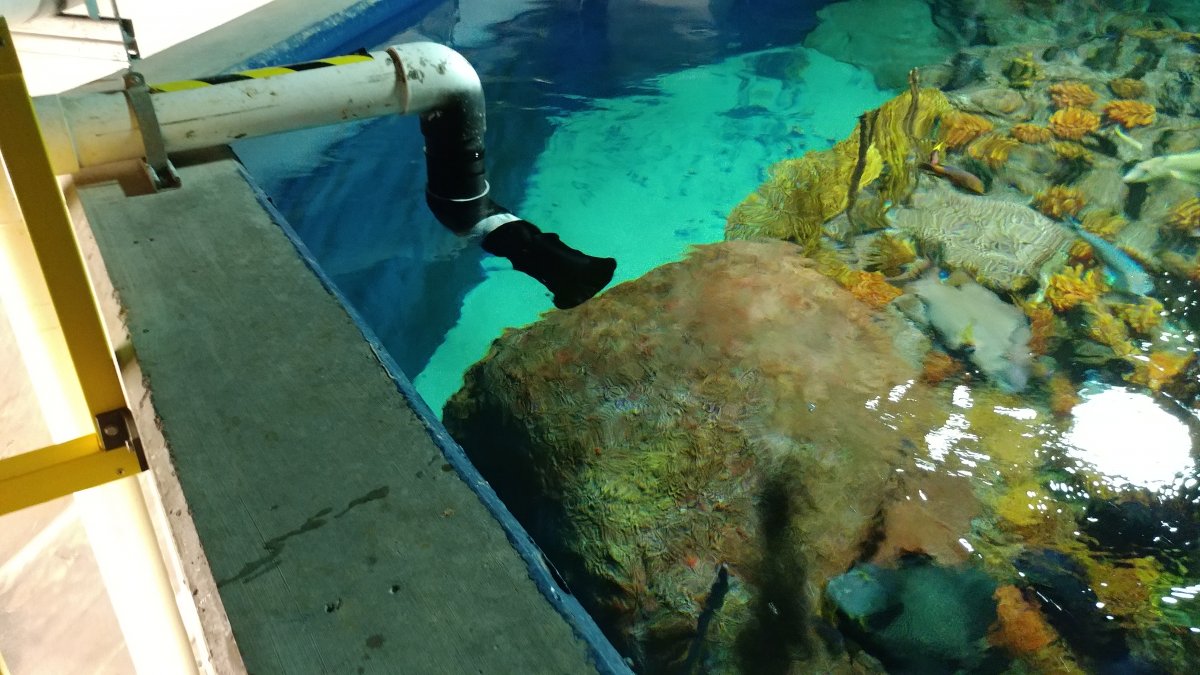

Installed in the second tank - we ran two of this nozzles in this +/- 16K gallon aquarium

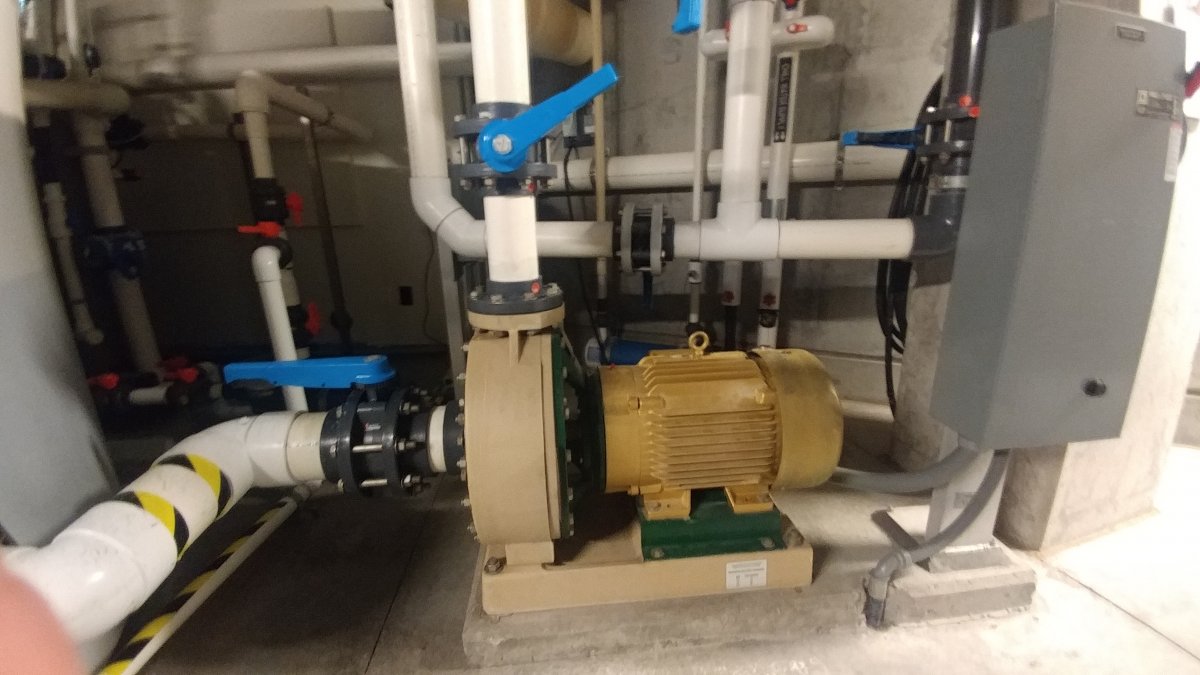

The pump driving the nozzles int he second tank.
