Plumbing Question

For a Herbie overflow, the gate valve is placed .......

  • right after the bulkhead from the tank.

    Votes: 2 66.7%
  • close to the sump.

    Votes: 1 33.3%
  • Other

    Votes: 0 0.0%

  • Total voters
    3

BrandonP

Member
View Badges
Joined
Oct 24, 2016
Messages
89
Reaction score
42
I have been running a 120 gallon reef-ready reef tank for the past 6 years. For all of this time I have been running with the drain kit that can be bought in addition to the tank. I have switched up the plumbing underneath the tank multiple times but it has always been one durso in each overflow tower along with returns.

I am now building a new sump for my tank and since I will be re-plumbing I am going to be switching over to a Herbie style drain in each overflow tower. I doing this so it will hopefully be much quieter than the dursos and safer as well. My main questions is do I install the gate valve right after the bulkhead from the tank or do I install it as close as possible to the sump? I really appreciate the help! Also if you have any other advice, I appreciate it as well!


ShaunRobinson

Active Member
View Badges
Joined
Sep 7, 2017
Messages
355
Reaction score
351
Location
English Lake District, UK.
I have been running a 120 gallon reef-ready reef tank for the past 6 years. For all of this time I have been running with the drain kit that can be bought in addition to the tank. I have switched up the plumbing underneath the tank multiple times but it has always been one durso in each overflow tower along with returns.

I am now building a new sump for my tank and since I will be re-plumbing I am going to be switching over to a Herbie style drain in each overflow tower. I doing this so it will hopefully be much quieter than the dursos and safer as well. My main questions is do I install the gate valve right after the bulkhead from the tank or do I install it as close as possible to the sump? I really appreciate the help! Also if you have any other advice, I appreciate it as well!

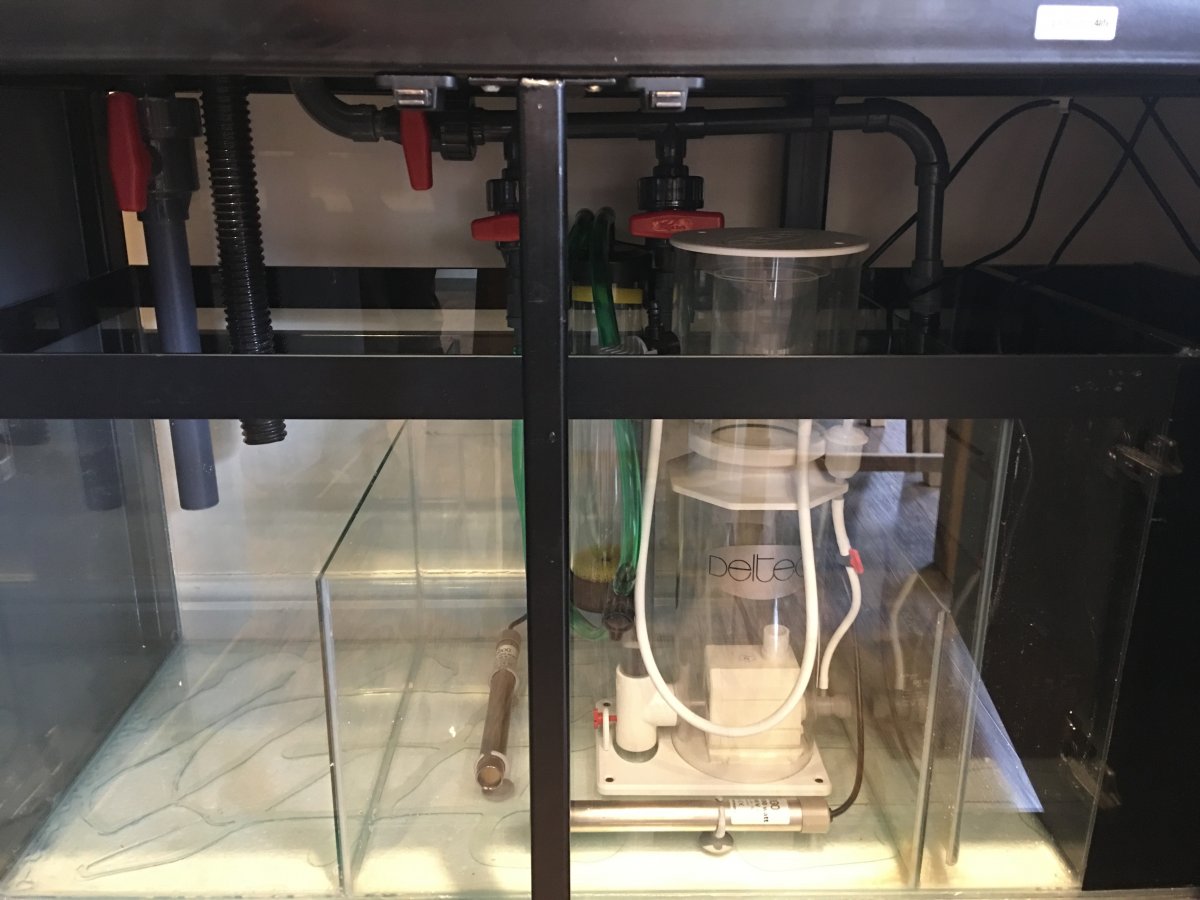

I don't think it really makes much difference to the operation to be honest but on mine it is immediately after the bulkhead so I have Bulkhead>Valve>Pipe into sump.


Smo

Well-Known Member
View Badges
Joined
Dec 16, 2016
Messages
642
Reaction score
601
Location
Dallas area
Are you attempting to install a full syphon drain with separate gate valve in each overflow? This could be challenging to "dial in."


Barrett

Well-Known Member
View Badges
Joined
Feb 9, 2017
Messages
957
Reaction score
1,043
Location
Urbandale, Iowa
If you have room to get your hand behind your tank I would install the gate valve there so you can see the drains to fine tune the overflow, it is a lot easier then good no under the tank to adjust the gate valve, then getting back out from under the stand to check the water level in the overflow.


Mele__Reef

Active Member
View Badges
Joined
Jun 21, 2016
Messages
327
Reaction score
199
It doesn't really matter where you have the gate valve just make sure you add unions to both side. Very easy to remove and maintenance. Also, make sure it's has easy access to dial in. Good luck!
