Basement set-ups! Show and tell time!!!!

Discussion in 'General Equipment, Hardware, Filtration' started by Justin84, Sep 6, 2017.

  1. Justin84

    Justin84 Member

    Joined:
    Jun 16, 2017
    Messages:
    73
    Likes Received:
    42
    Location:
    Delaware
    For those that have the luxury of setting up their filtration (refugiums, sumps, and equipment) in their basement, what does it look like? How do you accomplish your water changes? What type of equipment or methods do you use to make your reefing experience more enjoyable? Ive scoured youtube a 100 times over to get ideas, or adapt my own to successful ones but I'd like to see what you guys have! Friday I'm about to install a new utility sink with a laundry pump to make my water changes and equipment cleaning so much easier! No more vinegar baths and stinky protein skimmer cups in my kitchen!!! :D


  2. JimFuller

    JimFuller Active Member Build Thread Contributor

    Joined:
    Mar 31, 2017
    Messages:
    117
    Likes Received:
    149
    Location:
    Billings, MT USA
    Well, This is just the start. An RO/DI water Station with two 70 Gallon tanks and the space for the Sump Stand under the RO/DI unit. Planning to plumb the current 75 Gallon tank in the living room down here and the new Office tank to here. It should improve water changes and maintenance.

    jsker, Flippers4pups, doc_b and 2 others like this.
  3. Justin84

    Justin84 Member

    Joined:
    Jun 16, 2017
    Messages:
    73
    Likes Received:
    42
    Location:
    Delaware
    I like it! I have 2 55 gal containers next to my refugium and sump area along with 2 brute containers for ATO and fresh water storage! I'll have to post some pics a little later tonite!

    jsker and Flippers4pups like this.
  4. Dan McNertney

    Dan McNertney Valuable Member Build Thread Contributor Reef Tank 365

    Joined:
    Apr 21, 2016
    Messages:
    1,319
    Likes Received:
    1,652
    Location:
    Akron Ohio
    Dont have a show now but I can tell.
    In my basement, I have two 55 gallon trashcans. I use a 5 stage RO/DI by Spectrapure to make my water. One can is for salt and another is for fresh. Each can has a heater and power head which are always on. My tank sits on the first floor. I have a drain and return that goes to nd from my fish room to the basement. I use float valves on each can to automate the water making so I dont have to monitor it. Fairly standard setup I'd say.

    jsker, doc_b and Justin84 like this.
  5. FugeTown

    FugeTown Well-Known Member

    Joined:
    Nov 23, 2016
    Messages:
    597
    Likes Received:
    530

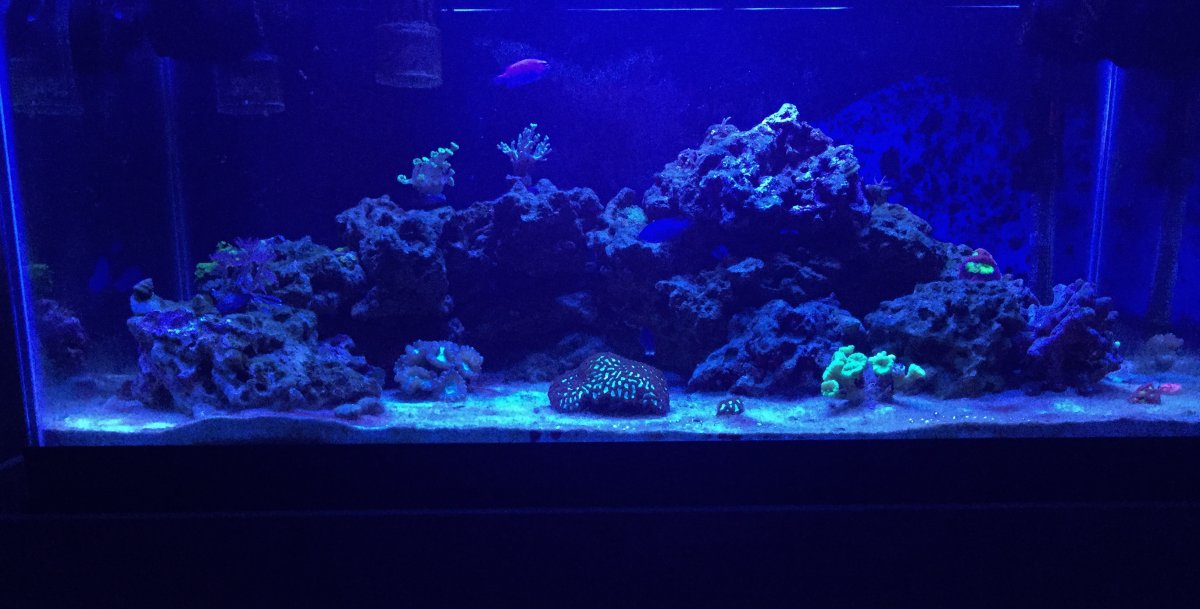

    It's nothing fancy but here's my 40 gal breeder of course in the basement which is filtered by a hob skimmer with the air inlet tube ran outside and a 4bulb t5 fixture. I used to have a fuge tank below with chaeto but got sick and tired of my overflow screwing up so now I keep it simple. IMG_2045.JPG

    jsker, doc_b and Justin84 like this.
  6. Fudsey

    Fudsey Jack of all trades R2R Supporter R2R Excellence Award Build Thread Contributor Reef Tank 365 Partner Member 2018

    Joined:
    May 7, 2016
    Messages:
    4,287
    Likes Received:
    14,792
    Location:
    So. New Hampshire
    Just got this running a couple days ago. It's a 40B sump and my RODI and mixing station is right there as well. Only problem is I have no sink in my basement :(


    jsker, doc_b, Kent12456 and 1 other person like this.
  7. ithk21620

    ithk21620 Active Member R2R Supporter Build Thread Contributor

    Joined:
    Mar 15, 2012
    Messages:
    407
    Likes Received:
    203
    Location:
    Kellner
  8. Christopher Davis

    Christopher Davis Valuable Member Build Thread Contributor

    Joined:
    May 19, 2016
    Messages:
    1,113
    Likes Received:
    1,187
    Location:
    Colorado
    Not to shabby


  9. Justin84

    Justin84 Member

    Joined:
    Jun 16, 2017
    Messages:
    73
    Likes Received:
    42
    Location:
    Delaware
    Well today I am going to try and redo some plumbing to allow a greater turnover rate in my tank. I had a 40g breeder laying around that I had my LFS drill for some drains and I'm going to turn it into my frag tank (for when I actually decide to put coral in it) I may start a build thread considering this has been a 2+ year project of constant tinkering and I have several pics and videos I've taken over the past 2 years... I'll try and post some pics later today! Thanks everyone so far for the cool pics and sharing of your set-ups! Keep em coming! ;)

    Flippers4pups and doc_b like this.
  10. joporeefpro

    joporeefpro Active Member

    Joined:
    Apr 17, 2017
    Messages:
    116
    Likes Received:
    140
    My fuge and sump right after it was put together while it was clean neat and organized. I could use to do some cleaning down there now...


    lake985, jsker, Shad Quill and 3 others like this.
  11. Flippers4pups

    Flippers4pups Fins up since 1993 R2R Supporter R2R Excellence Award Reef Squad Leader Build Thread Contributor Reef Tank 365

    Joined:
    Jun 21, 2016
    Messages:
    6,319
    Likes Received:
    16,824
    Location:
    Lake Saint Louis, Mo
  12. SteadyC

    SteadyC Active Member

    Joined:
    Jun 9, 2015
    Messages:
    287
    Likes Received:
    199

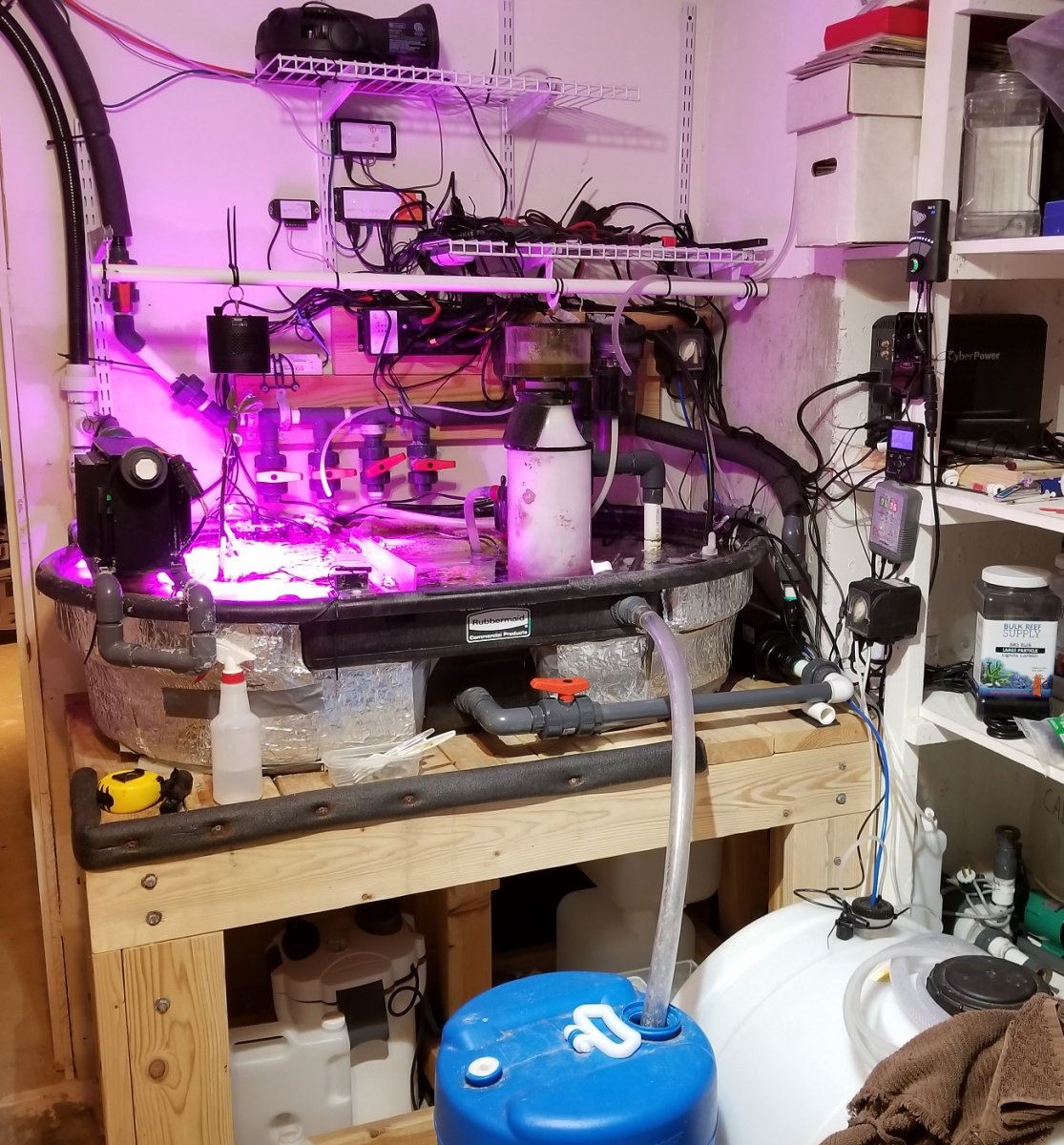

    Basement sump, filtration, dosing, etc. setup. Let me know if you have any questions. Drain line comes in from left, through ATS, then chaeto and sand area with couple of new mangroves, ceramic biomedia and live rock, protein skimmer, two heaters, then two DC return pumps plumbed inline with one pump in the sump and then one external Sicce 9.0 on the right, through the manifold with one line going to GAC. Additionally, the Apex and modules on the wall, cable management on the right shelf with fan (cheap chiller) up higher, and small first line UPS on the right. Big white container is ATO, blue container is overflow protection to catch water when/if pumps turn off.


  13. Shad Quill

    Shad Quill Active Member

    Joined:
    Nov 8, 2017
    Messages:
    229
    Likes Received:
    152

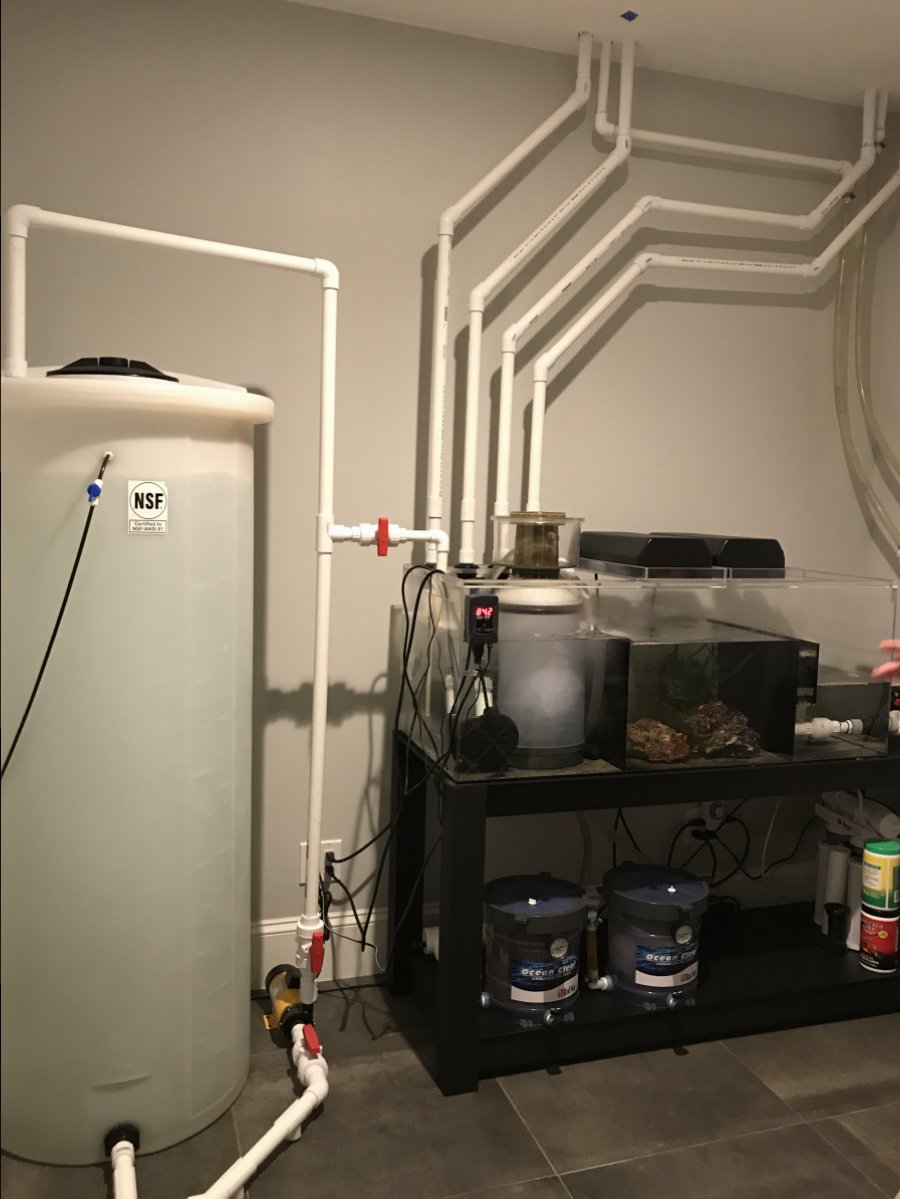

    Here's mine. Just finished up. I have a few odds and ends to tie up but its 99.9 percent there.


    SteadyC, Fudsey and jsker like this.
  14. jsker

    jsker Reefing is all about the adventure Staff Member Team R2R R2R Supporter R2R Excellence Award Build Thread Contributor Article Contributor Partner Member 2018 Partner Member 2019

    Joined:
    Apr 11, 2015
    Messages:
    17,603
    Likes Received:
    29,393
    Location:
    Central Florida
    Great setups everyone

  15. ca1ore

    ca1ore Valuable Member R2R Supporter R2R Excellence Award CTARS Member Build Thread Contributor R2R TV Featured Article Contributor

    Joined:
    Oct 28, 2014
    Messages:
    3,984
    Likes Received:
    4,297
    Location:
    Stamford, CT

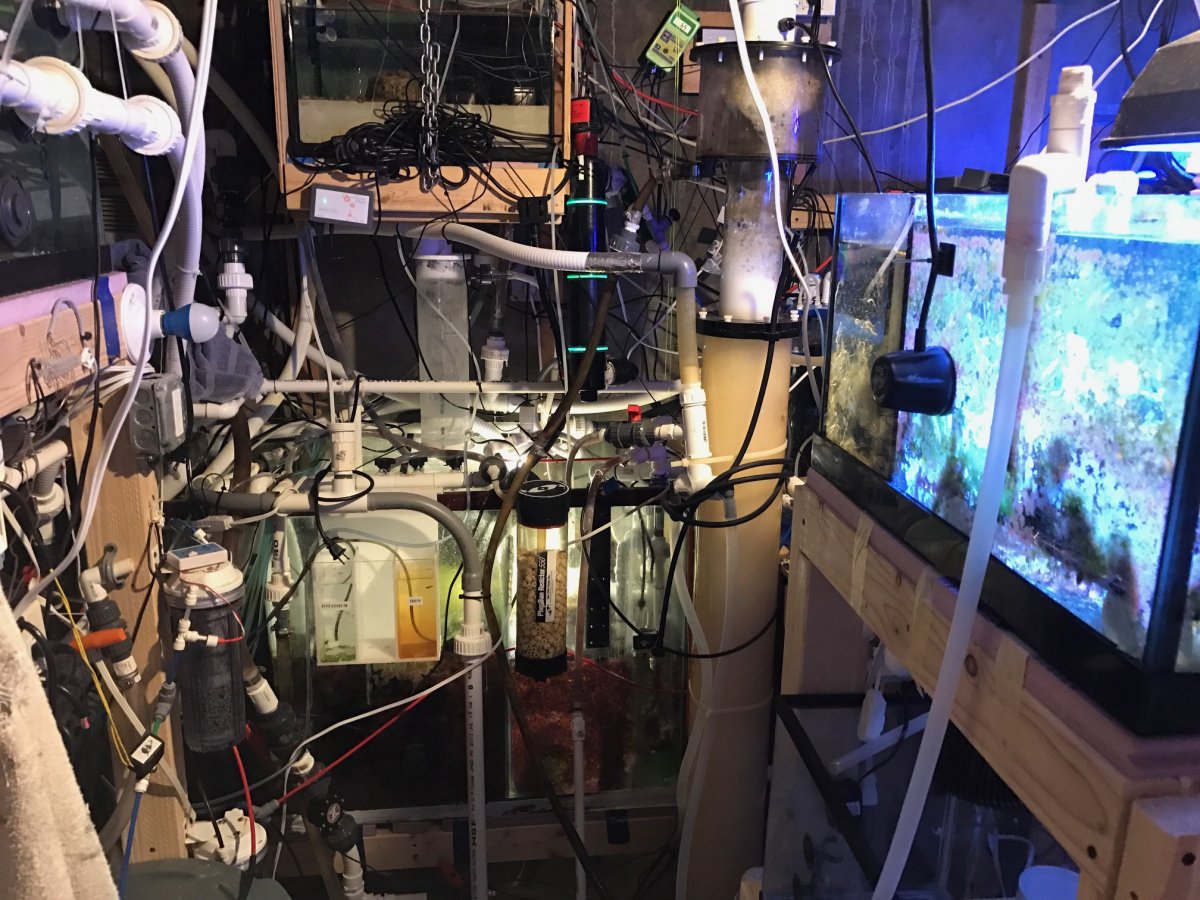

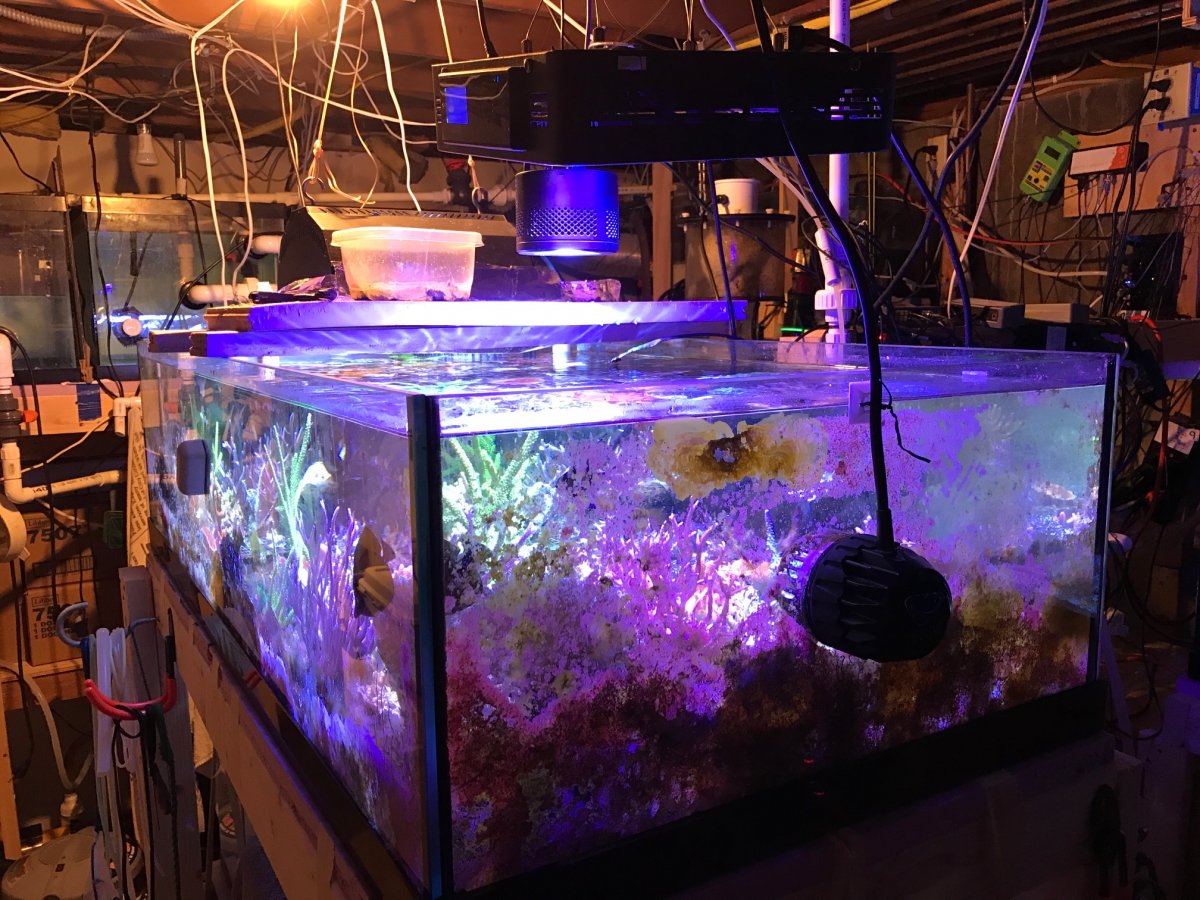

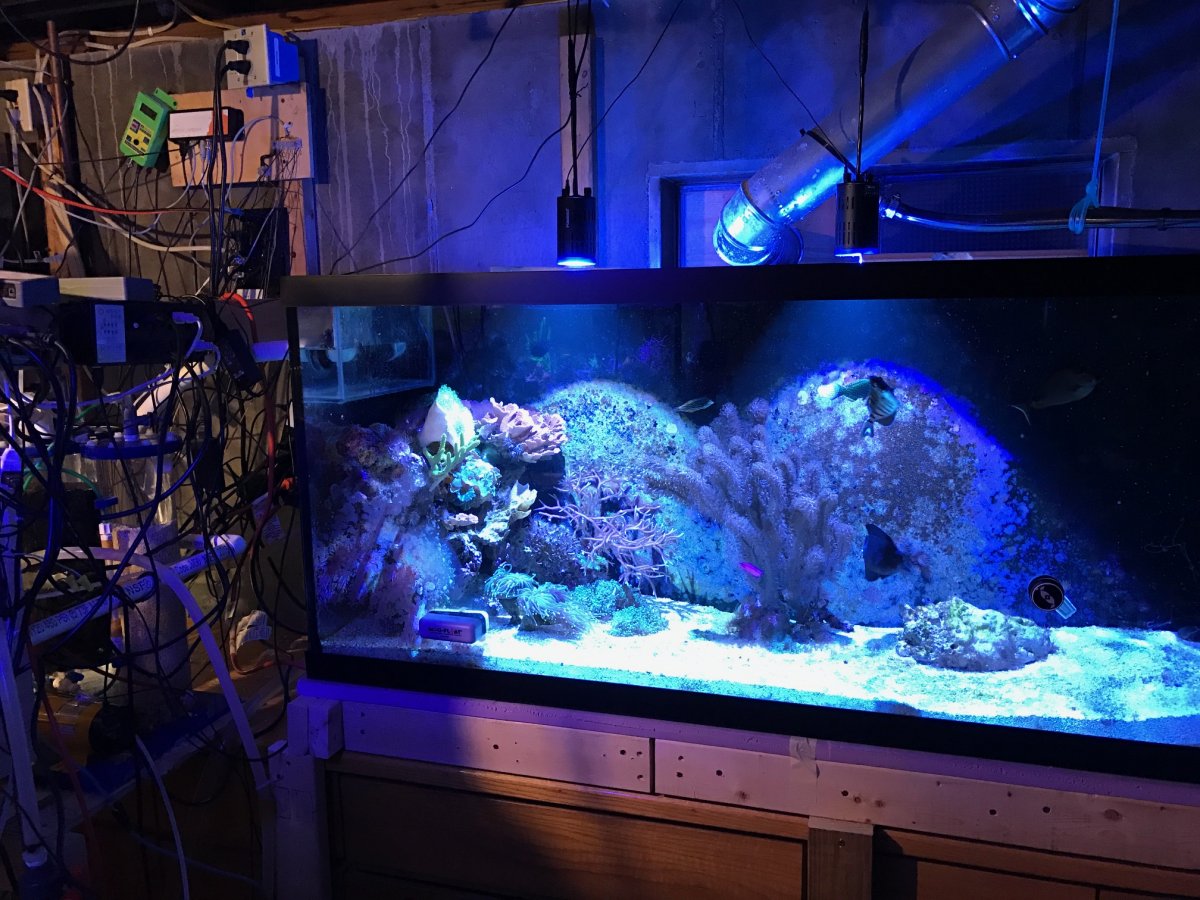

    Mine is just a big 'ol mess ....




    Fudsey, Flippers4pups and andrewkw like this.
  16. ca1ore

    ca1ore Valuable Member R2R Supporter R2R Excellence Award CTARS Member Build Thread Contributor R2R TV Featured Article Contributor

    Joined:
    Oct 28, 2014
    Messages:
    3,984
    Likes Received:
    4,297
    Location:
    Stamford, CT

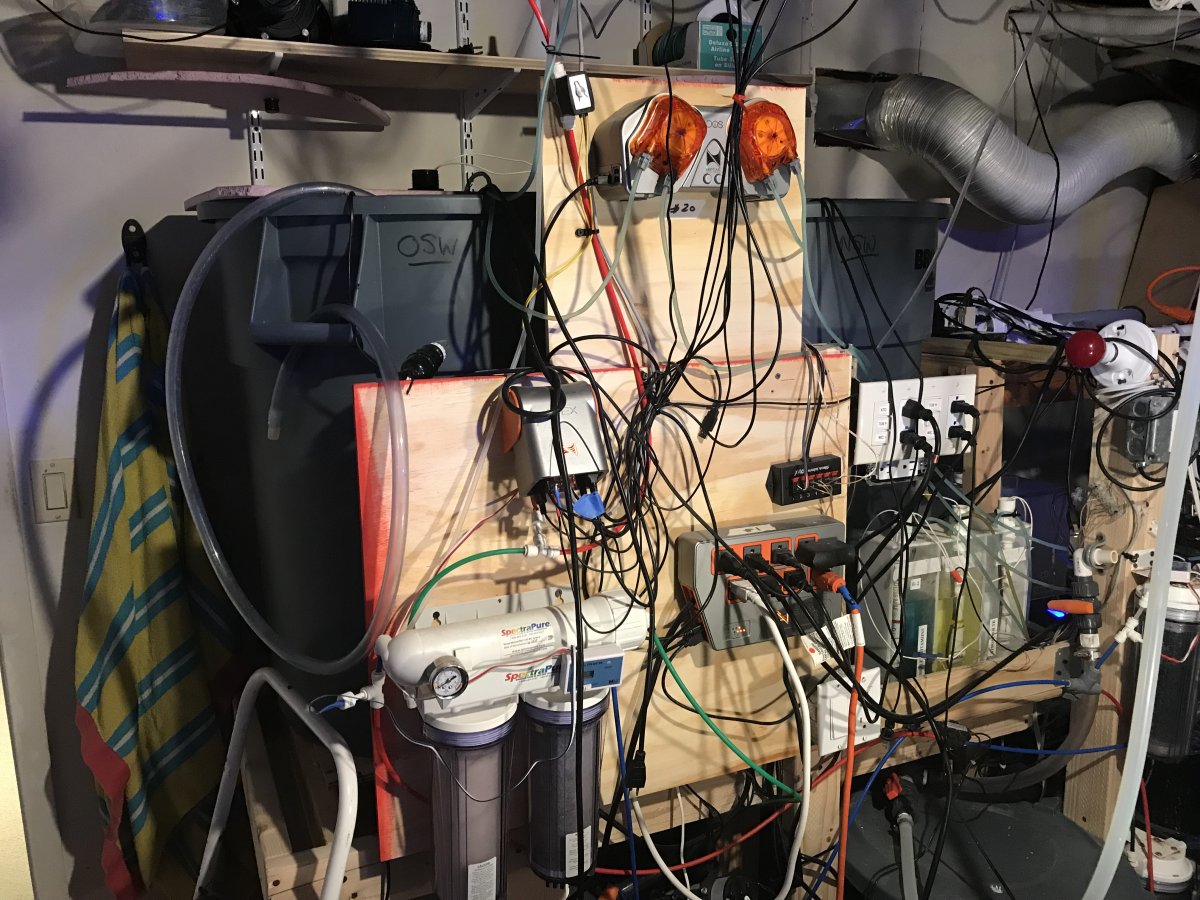

    Water change is via dual 50 gallon brute tubs with a DoS in AWC mode. changes 90 gallons per month.


  17. SteadyC

    SteadyC Active Member

    Joined:
    Jun 9, 2015
    Messages:
    287
    Likes Received:
    199
    Very clean man, excellent work.

  18. Shad Quill

    Shad Quill Active Member

    Joined:
    Nov 8, 2017
    Messages:
    229
    Likes Received:
    152
    Thanks!

    Flippers4pups likes this.
