    The story of Flippers reef started long ago..........

    In a time before a thing called "The Internet"existed. Land locked Missouri, mid western U.S.A. back in 1993. I had just got out of the army in 1992 and got busy starting a family.

    See, I had fresh water tanks off and on since I was very young and one summer night back in 93, while out to dinner with my wife and daughter, we had to wait for a table at a restaurant. We decided to take a walk down the strip mall near by to burn some time and unknown to me, there before me was a "saltwater fish store"! Looking in windows with eyes wide and mouth open, like a kid on Christmas Day! I had to go in! The rest is history and a "True Aquatic Addiction" permanently took hold.

    Since then, a couple houses and numerous saltwater tanks later, our journey brings us to March 2015.......

    This is Flippers current build thread.....

    Tank: Marineland standard 6', 125 gallon RR

    Stand: DIY

    Canopy: DIY, 2, 120mm computer case fans

    Sump tank: 6', 125 gallon, basement. DIY sump stand

    Water changing station: 2, 33 gallon grey Brute trash cans connected via recirculation manifold. Danner mag 5

    Skimmer: Reef Octopus classic nwb150

    Heaters: 3, 150w, controlled by Inkbird Itc 308.

    Return pump: Panworld 150ps

    DT Wave pumps: 2, Jebao RW 15's on JB wave controller

    ATO: autotopoff.com redundant float switch controlled, 16 gallon Ace rotomold conical tank. Jebao pump, internal

    DT lights: 3, modified 165w Mars Aqua units. LED layout mod to SB reef lights diode layout

    RO/DI: BRS 6 stage





    New house = New tank! Planing stage was at least a 6' tank, but not too big due to funds. A new 6' 125 at $350 was to good to pass up. Knowing I was going to to do a basement sump on this one, I found a used 6' 125 that's was scratched up for $100.

    Stand build was based on "Rocket engineers" design. 2x4's and 2x6's design. Wood screws and wood glue. 1/4" plywood skinned. No top. Doors hand built.


    [​IMG]



    Interior and exterior painted semi gloss:

    [​IMG]

    Last edited: Jul 21, 2018
    OffTopic, Jomama, cracker and 11 others like this.
    Tags:

  2. Dsnakes

    Dsnakes Knight Reefer R2R Supporter Reef Squad R2R Excellence Award Partner Member 2019 Build Thread Contributor Partner Member 2018

    Joined:
    Feb 16, 2017
    Messages:
    3,343
    Likes Received:
    11,415
    Location:
    Outer Banks, NC
    That stand and canopy are amazing! :)

    sikorskys and Flippers4pups like this.
  3. Flippers4pups

    Flippers4pups Fins up since 1993 R2R Supporter Reef Squad Leader R2R Excellence Award Reef Tank 365 Build Thread Contributor

    Joined:
    Jun 21, 2016
    Messages:
    6,219
    Likes Received:
    16,406
    Location:
    Lake Saint Louis, Mo
    Canopy was next. 1"X1" strips using wood screws and wood glue.

    [​IMG]

    Skinned with 1/4" plywood.

    [​IMG]

    Trimmed

    [​IMG]


    Doors

    [​IMG]

    Paint

    [​IMG]

    And finished

    [​IMG]

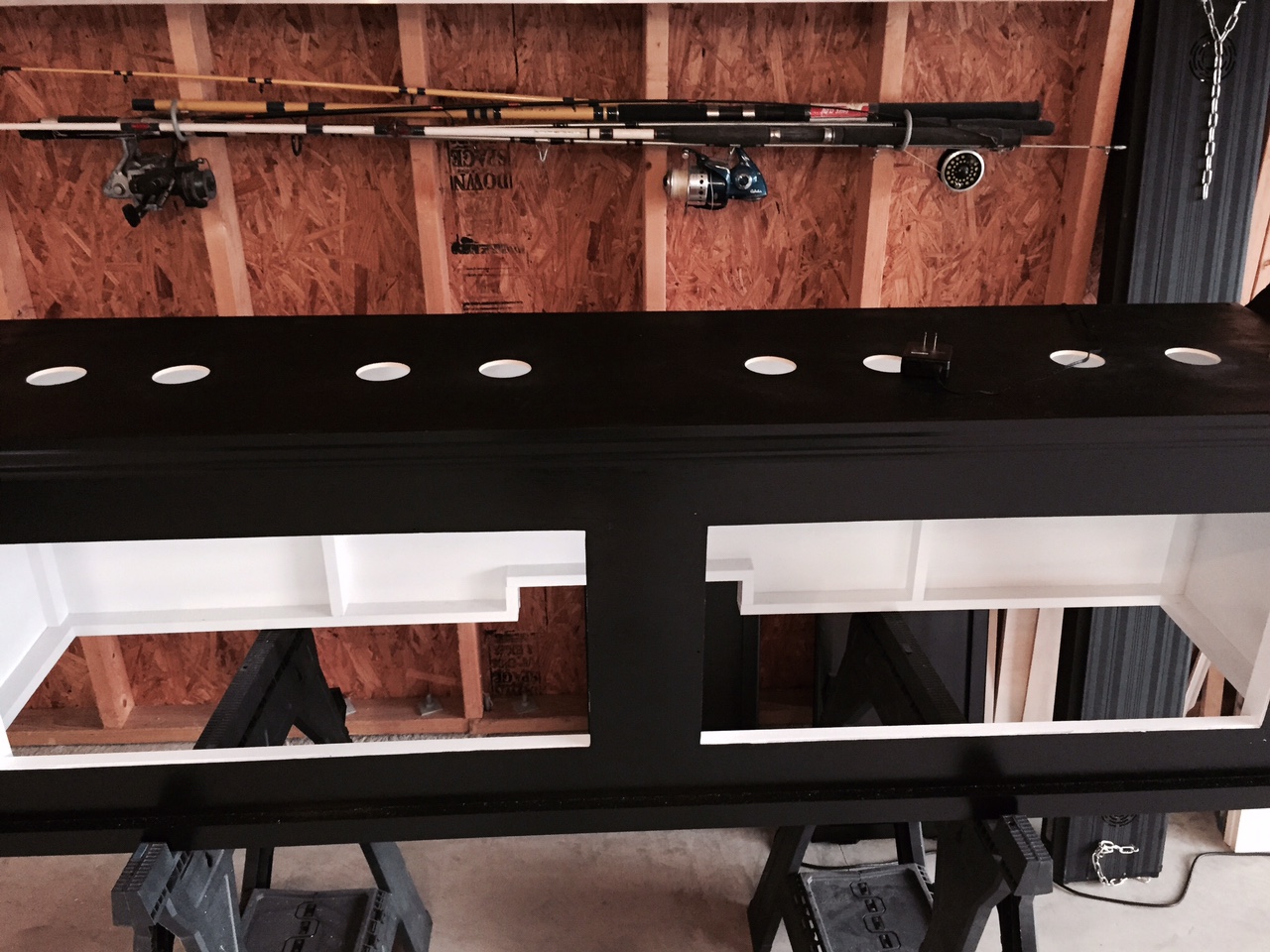

    Vents on top

    [​IMG]

    And computer fans inside

    [​IMG]

    OffTopic, sikorskys, Jomama and 11 others like this.
  4. Flippers4pups

    Flippers4pups Fins up since 1993 R2R Supporter Reef Squad Leader R2R Excellence Award Reef Tank 365 Build Thread Contributor

    Joined:
    Jun 21, 2016
    Messages:
    6,219
    Likes Received:
    16,406
    Location:
    Lake Saint Louis, Mo
    Next the basement!

    This is a unfinished basement in this house and that meant I had unlimited possibilities!

    First off there was no access to electricity and no easy access to water!

    I had to do both!

    Let's cut the main water line!

    [​IMG]

    [​IMG]

    Electric

    [​IMG]

    Need a sink, plumbing and water changing station

    [​IMG]

    [​IMG]

    Jomama, NowGlazeIT, GoVols and 4 others like this.
  5. Flippers4pups

    Flippers4pups Fins up since 1993 R2R Supporter Reef Squad Leader R2R Excellence Award Reef Tank 365 Build Thread Contributor

    Joined:
    Jun 21, 2016
    Messages:
    6,219
    Likes Received:
    16,406
    Location:
    Lake Saint Louis, Mo
    On to building a sump stand

    [​IMG]

    [​IMG]

    At first I used a 20 gallon trash can for the ATO and needed a stand for it

    [​IMG]

    This is the ATO now:

    [​IMG]

    Add RO/DI and sump on the stand

    [​IMG]

    Last edited: Jul 29, 2017
    Jomama, yap, Clownfish2 and 6 others like this.
  6. Flippers4pups

    Flippers4pups Fins up since 1993 R2R Supporter Reef Squad Leader R2R Excellence Award Reef Tank 365 Build Thread Contributor

    Joined:
    Jun 21, 2016
    Messages:
    6,219
    Likes Received:
    16,406
    Location:
    Lake Saint Louis, Mo
    Now my living room area where the DT was to go has a large span and I didn't want the the floor to bounce with the weight of the tank. So I sistered the floor joists under the tank, placed a 4x4 under the length of the tank and added floor jacks for support

    [​IMG]

    With the DT stand and tank set upstairs, it was time for the drains. I choose to do an emergency drain as well

    [​IMG]

    [​IMG]

    [​IMG]

    I wanted not to pack buckets, so a drain from the sump to the house was needed

    [​IMG]

  7. Flippers4pups

    Flippers4pups Fins up since 1993 R2R Supporter Reef Squad Leader R2R Excellence Award Reef Tank 365 Build Thread Contributor

    Joined:
    Jun 21, 2016
    Messages:
    6,219
    Likes Received:
    16,406
    Location:
    Lake Saint Louis, Mo

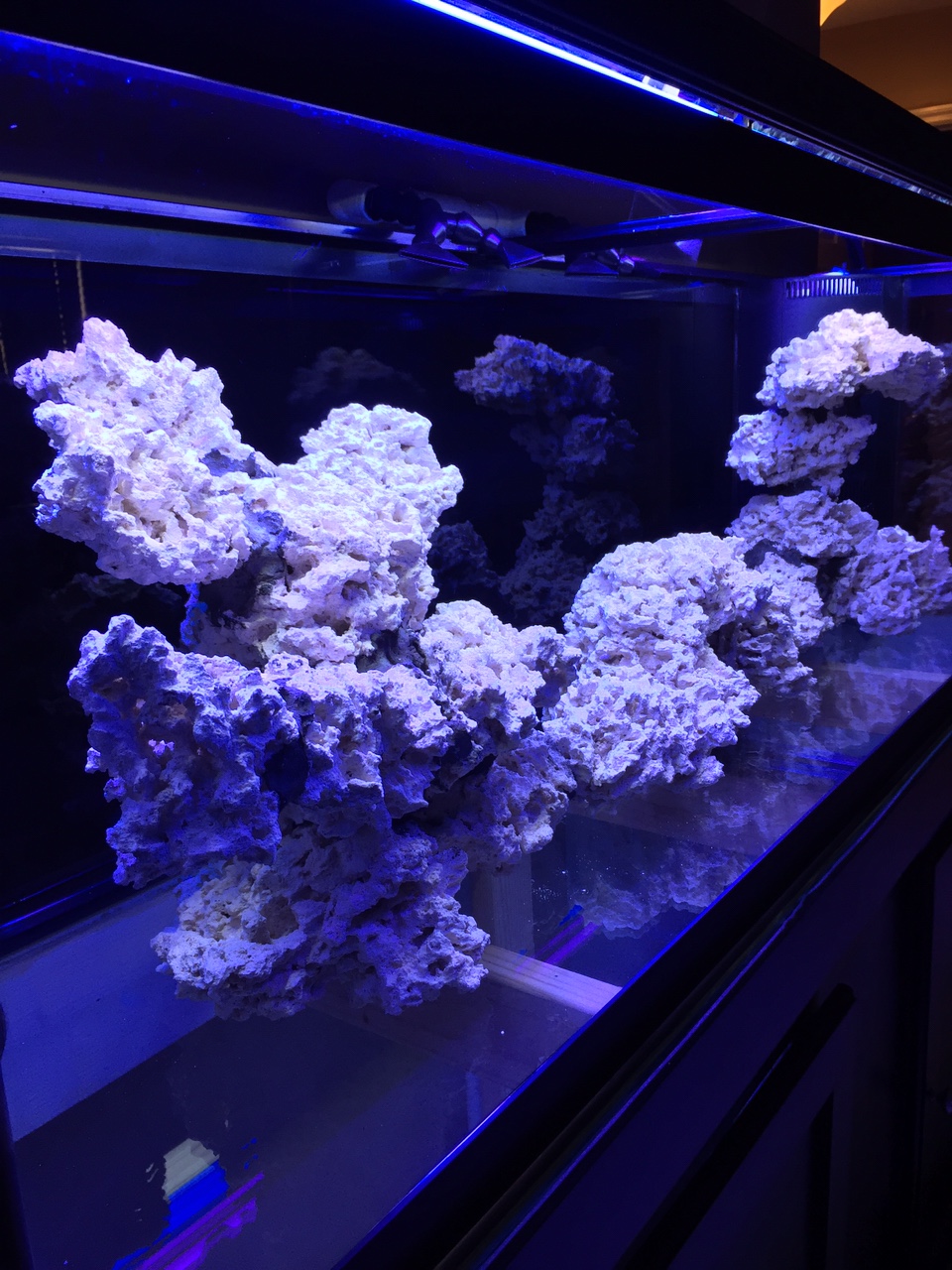

    I went with marco rock using fiberglass rods and quikrete hydraulic cement to glue the rock work together. I change some this later do to height.

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    Jomama, chadly1990, UCF Alum and 15 others like this.
  8. Flippers4pups

    Flippers4pups Fins up since 1993 R2R Supporter Reef Squad Leader R2R Excellence Award Reef Tank 365 Build Thread Contributor

    Joined:
    Jun 21, 2016
    Messages:
    6,219
    Likes Received:
    16,406
    Location:
    Lake Saint Louis, Mo
    Thank you!

    Denisk and Dsnakes like this.
  9. tacosricos

    tacosricos Active Member Build Thread Contributor

    Joined:
    Nov 8, 2014
    Messages:
    199
    Likes Received:
    129
    Wow, that's quite a setup!

    Flippers4pups likes this.
  10. jrwoltman

    jrwoltman Active Member

    Joined:
    Jul 2, 2017
    Messages:
    365
    Likes Received:
    594
    Location:
    Plainfield, IL
    I am "flipping" over this build!!!

    Flippers4pups likes this.
  11. Flippers4pups

    Flippers4pups Fins up since 1993 R2R Supporter Reef Squad Leader R2R Excellence Award Reef Tank 365 Build Thread Contributor

    Joined:
    Jun 21, 2016
    Messages:
    6,219
    Likes Received:
    16,406
    Location:
    Lake Saint Louis, Mo
    Went salty and after the cycle in went some easy corals

    [​IMG]

    I started out with T5's over this tank. Aquticlife 8 bulb fixture

    [​IMG]

    But got tired of changing bulbs (ATI) and the cost involved, so in October of 2016 I switched over to the Mars Aqua units. Corals responded very well with the LED's.

    [​IMG]

    And as of this month I modded them by replacing some of the diodes to mimic the SB reeflights layout

    [​IMG]

    [​IMG]

    So that's about it. I've been slowly adding more and more SPS frags. Some acropora, some montipora caps and digitatas.

    Fish as of right now:

    Tomini tang
    Paired ocellaris clownfish
    mandarin dragonet goby
    yellow coris wrasse
    Vermiculite leopard wrasse

    I love this hobby! Fins up and happy reefing!

    Last edited: Aug 13, 2017
    sikorskys, Jomama, Zos4me and 11 others like this.
  12. Flippers4pups

    Flippers4pups Fins up since 1993 R2R Supporter Reef Squad Leader R2R Excellence Award Reef Tank 365 Build Thread Contributor

    Joined:
    Jun 21, 2016
    Messages:
    6,219
    Likes Received:
    16,406
    Location:
    Lake Saint Louis, Mo
    Thank you

    GoVols and Bob Escher like this.
  13. Flippers4pups

    Flippers4pups Fins up since 1993 R2R Supporter Reef Squad Leader R2R Excellence Award Reef Tank 365 Build Thread Contributor

    Joined:
    Jun 21, 2016
    Messages:
    6,219
    Likes Received:
    16,406
    Location:
    Lake Saint Louis, Mo
    Thank you!

    GoVols, Bob Escher and jrwoltman like this.
  14. Reefer Obsessed

    Reefer Obsessed Active Member

    Joined:
    Mar 11, 2017
    Messages:
    108
    Likes Received:
    92
    Location:
    Colfax, Louisiana
    I dream of a set up like this!

    aurora.k and Flippers4pups like this.
  15. Jose102173

    Jose102173 Member NJRC Member

    Joined:
    Aug 31, 2015
    Messages:
    55
    Likes Received:
    5
    will be starting my 180 upgrade soon

    joporeefpro and Flippers4pups like this.
  16. Flippers4pups

    Flippers4pups Fins up since 1993 R2R Supporter Reef Squad Leader R2R Excellence Award Reef Tank 365 Build Thread Contributor

    Joined:
    Jun 21, 2016
    Messages:
    6,219
    Likes Received:
    16,406
    Location:
    Lake Saint Louis, Mo
    Some things I didn't show in the build......

    I hate suction cups! Fixed that problem!

    [​IMG]

    [​IMG]

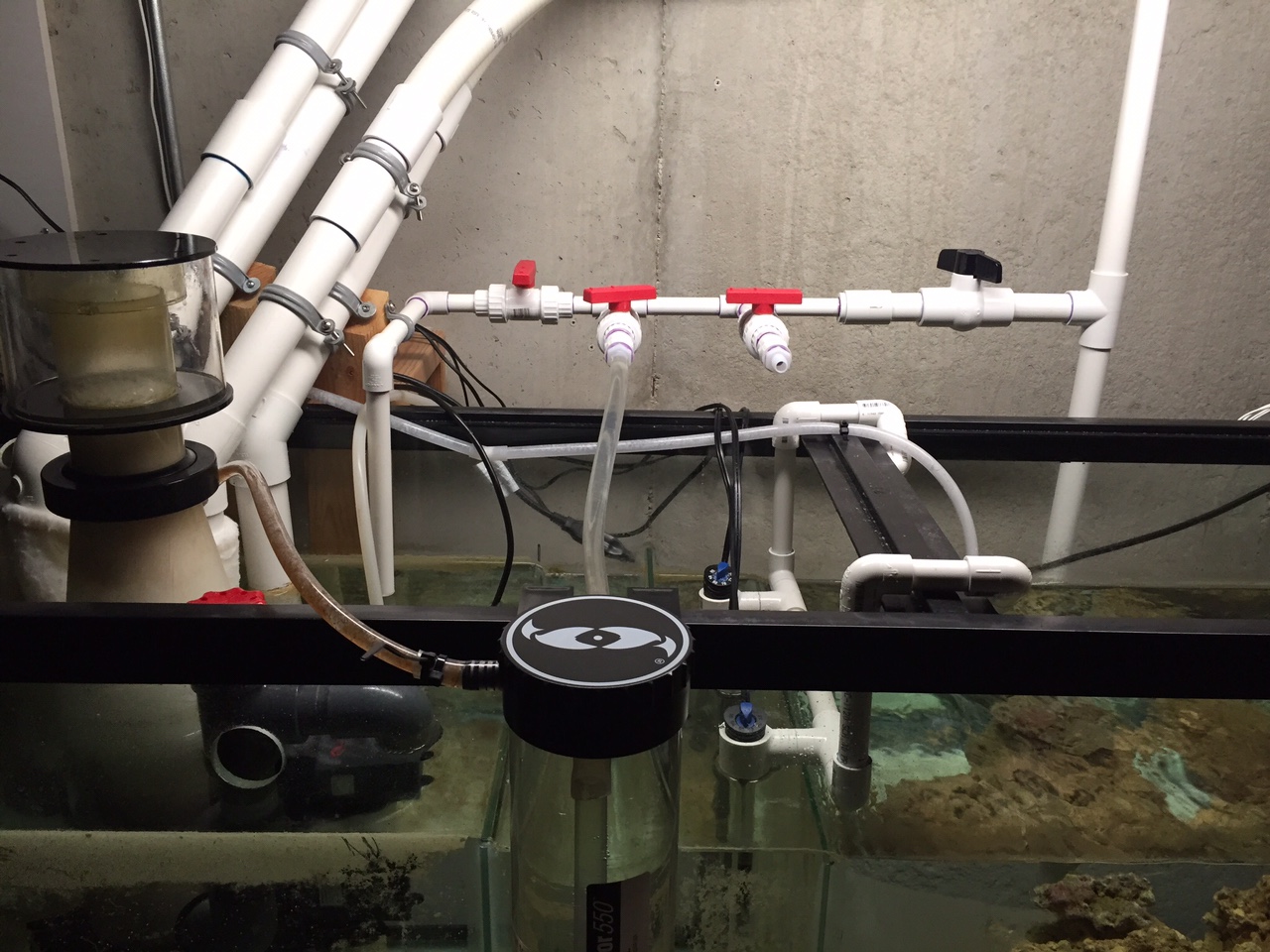

    Simple manifold:


    [​IMG]

    [​IMG]

    sikorskys, Antics, jsker and 5 others like this.
  17. Flippers4pups

    Flippers4pups Fins up since 1993 R2R Supporter Reef Squad Leader R2R Excellence Award Reef Tank 365 Build Thread Contributor

    Joined:
    Jun 21, 2016
    Messages:
    6,219
    Likes Received:
    16,406
    Location:
    Lake Saint Louis, Mo
    Was running filter socks for the longest time and up and decided not to run them anymore.

    Problem ....... salt spray from the drains.

    Solution ........ temporary "bubble box". Going to build one out of acrylic soon. Cut out at the bottom allows water out, but keeps bubbles in. Built one out of acrylic years ago for a smaller system and it worked very well. Looks ghetto, but hey, works.

    [​IMG]

    [​IMG]

  18. needbiggertanks

    needbiggertanks Well-Known Member

    Joined:
    Dec 14, 2016
    Messages:
    594
    Likes Received:
    559
    Location:
    St. Paul MN
    My type of fix!

    Flippers4pups likes this.
  19. Fishnerd7

    Fishnerd7 Member

    Joined:
    Aug 7, 2017
    Messages:
    72
    Likes Received:
    72
    Location:
    California
    Newbie here..incredible build!!!!! This is the second time in only a few weeks I've heard of no filter socks? How do you clean out all the junk? Where does it collect? Love the canopy as well. Is it heavy? I'd like to build something that beefy but worry about the weight on my frame.

    jsker and Flippers4pups like this.
  20. Flippers4pups

    Flippers4pups Fins up since 1993 R2R Supporter Reef Squad Leader R2R Excellence Award Reef Tank 365 Build Thread Contributor

    Joined:
    Jun 21, 2016
    Messages:
    6,219
    Likes Received:
    16,406
    Location:
    Lake Saint Louis, Mo
    Thank you!

    Detritus settles in the first chamber of the sump, the skimmer section. Once a month I just vacuum it out.

    The construction of the canopy was designed to minimize weight buy using the 1" frame and 1/4 plywood skin. Many other canopy builders use 1/2" solid wood in their construction, which adds significantly to the weight.

    The canopy weights around 50lbs. Not much weight at all.

    :)
