I've been in the hobby now for almost 15 years, which sounds crazy when I hear myself say that. I have had a lot of different tanks over the years, but frequently opted for smaller tanks for "less maintenance". Which is all fine and good, but as I began getting fonder and fonder of SPS, a small tank presented its own challenges to have a successful SPS dominant tank. Now I know many of you have done that, and the tanks speak for themselves, I'm just speaking from my own personal experience. I moved into my current house a little over 3 years ago and set up a JBJ45 a little while after moving in. The tank was fairly successful for me, but I knew I wanted something bigger. Below is a picture of that tank during the build of my Cade (my camera skills are horrible so I apologize in advance.....)

Over a decade ago their was a LFS that had one of the most stunning tanks I had ever seen. It was about a 180G rimless mixed reef. I always wanted to set a tank like that up when the time was right. I spent weeks/months deciding on what tank to go with. Waterbox, RedSea Reefer, Cade, custom tank and custom stand, etc. My tank was planning to go in my office on the main level of my house and due to my house layout, plumbing into the basement wasn't a viable option so I needed a tank that could house the sump. After much deliberation I decided on the Cade. The few items that put Cade out front for me where the extruded aluminum stand, large sump, ATO reservoir being housed in the back of the display (freeing up space below), built in electrical, and stand accessibility from all sides. It was a tough pill to swallow when you consider the cost but I didn't want to compromise. So, I ordered the tank and began procuring all of the remaining equipment. I purchased everything through my LFS. They were able to price match what I could get online and I would rather support a small business. Below is a list of equipment I chose for the build:

Cade 1500 tank/stand/sump
Reef Octo Regal 200int
3x Radion XR15's
61" Aquatic life hybrid fixture (2x blue plus, true actinic, fiji purple)
3x MP40QD with battery backup
Bubble magus filter roller
AquaUV Sterilizer (plumbed through return)
Apex system with DOS and flow meters
Varios S4 return pump (going to be upgrading soon, not powerful enough)


I had to laugh when the tank showed up. The top crate was the tank, that crate weighed over 600#. How exactly do they think a home owner is going to get that crate down? Ended up need 6 guys, but we got it on the ground safely.

Right away you could see the quality of the tank when I opened it. Very sleek, clean lines.
crate open.jpeg


Based on the weight of the tank I had to add a post to a floor joist. Unfortunately the tank ran parallel with them and really only spanned 2.
tank layout.jpeg


Got the tank in place without incident. It was a lot, and I mean a lot heavier than I originally had anticipated.
tank in room.jpeg


I ended up using Marco rock and epoxy to create my aquascape. I wanted a more minimalist look to allow for coral to grow in and ease of creating adequate flow throughout the tank. Right out of the gate I modified the sump. It comes with filter socks and I really wanted to use a filter roller in this set up. A little bit of fishing line and elbow grease and I was able to remove the sections of glass. So far I am extremely impressed with the filter roller. Not sure I will ever go back to socks.
dry aquascape.jpeg



I filled the tank in early February and began the cycle. I used a mixture of Dr Tim's, Live Rock Enhance, and pink fusion/purple helix. The cycle went extremely smooth, had to deal with diatoms for about 8 weeks, but other than that, almost textbook. I also seeded the tank with about 25# of live rock from a 7 year old tank in the sump.
tank filled.jpeg



I moved my livestock over from my JBJ in early June. Since the tank has been great. Parameters have been extremely stable. I am struggling a bit to keep nitrates and phosphates above zero, but I'm working through that. The sump set up is about as simple as it gets, filter roller, skimmer, some LR, a powerhead, and pond matrix. I'm not running and Carbon or GFO currently.
sump now.jpeg


This portion of the cabinet is a bit cluttered lol. But figuring out a way to plumb in the sterilizer was a quite difficult. However, everything is accessible and I've had no issues.
equipment bay.jpeg


Again, this feature was a major selling point for me. The built in electrical panel and control housing was huge. It gives a really nice clean look and easy to manage. I put a kindle fire in their that constantly displays my Apex parameters mainly for my wife if she has to do something with the tank when I'm not around.
control cabinet now.jpeg


Here are a few pics of the tank today. So far everything is settling in nicely. I have zero regrets with my decision to go with Cade. It achieved the sleek rimless look I was going for, but most importantly is functional enough to perform the way I want.
fts far.jpeg

fts 2.jpeg

Nutramar Foods
www.dinkinsaquaticgardens.com
OP
B

BattleReefer

New Member
Review score
+0 /0 /-0
View Badges
Joined
Feb 6, 2021
Messages
10
Reaction score
13
Review score
+0 /0 /-0
Location
rochester MI
Looks great, well done!

I will be building a Cade 1200 soon and I can’t wait! Can you tell me how you plumbed in your UV? Does it come off the manifold in the chiller-cabinet? And where does the outlet go? :)

You will be happy with the Cade, congrats. As for the UV plumbing, it was more difficult than I had hoped unfortunately. I ended up redoing all of the plumbing just after the two valves for media reactors coming off of the return pump. The first hurdle is the fact that its not standard piping. All of the literature on the website claims the return plumbing is 1", it's not.... Its metric DN25. So I had to get converter couplings to go from DN25 to 1" on both ends of the plumbing circuit. Since the plumbing ran all over the place I used true unions for ease of installation and later maintenance. I carried with that theme for the valves too. I installed the UV in a way that wouldn't hold air, or empty if the return pump was off for safety of the unit. You also need to take into account ability to replace sleeves or bulbs. With that being said, if I needed to perform maintenance on it, or I had a failure of some sort, I installed a bypass valve that would allow the tank to run normally with the UV out of the circuit. Normal configuration has 100% of the return flowing through the UV.

The piece just before the union is the metric to standard converter. Everything prior to the converter is original.
sump return.jpeg

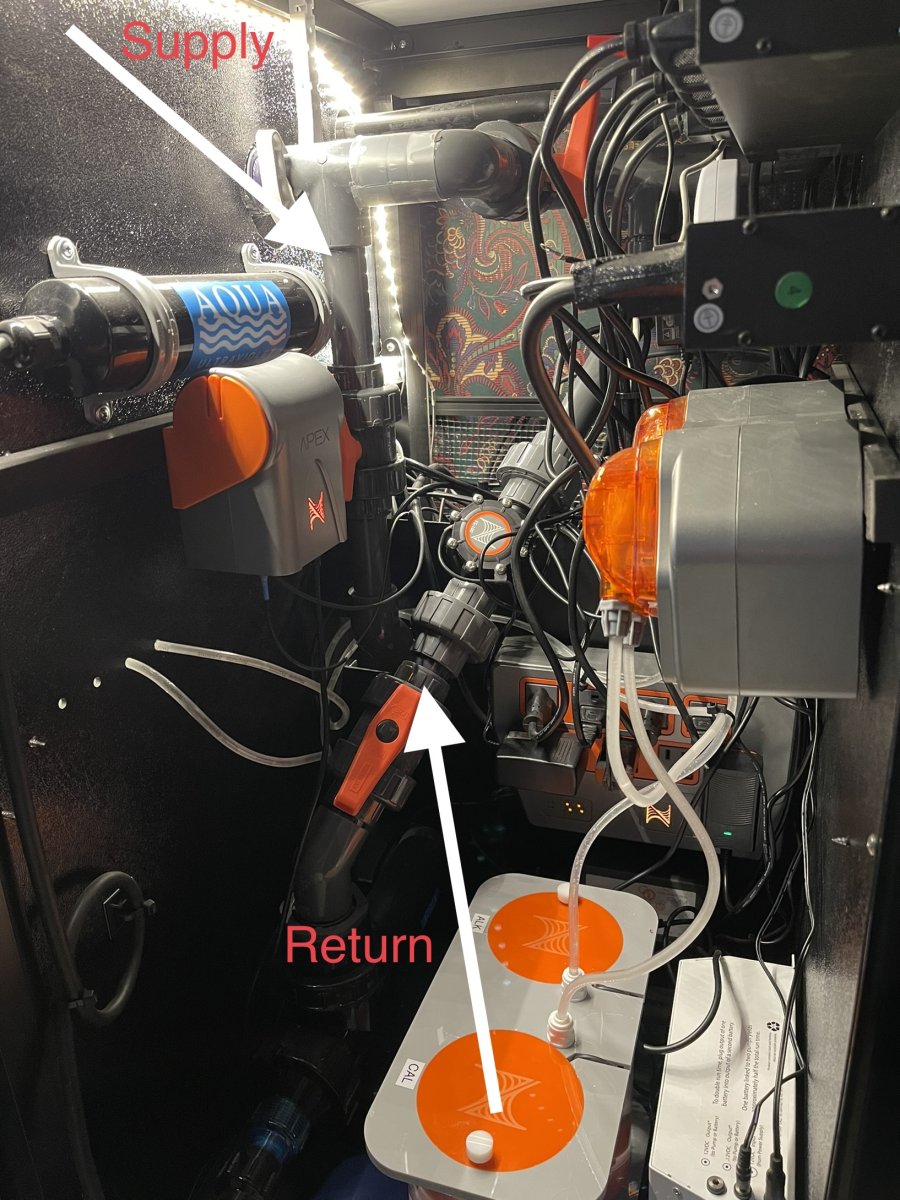

Its hard to tell from this pic because I have so much crap in this section, but I installed a plastic partition wall in the lower half that separates the cabinet. I mainly did this so I didn't have to zip tie and train every single cord. Every time I do that, I end up having to tear it apart when I change something down the road.... You can see the supply side turns down and goes back behind that partition. It connects to the supply end of the UV. The return side (nearest to the bulb connection) then turns up, hits another valve and flow meter before returning to the tank. In the upper right of the picture you can see the valve that is closed, that is my bypass valve.
UV labeled.jpeg


Here is a simplified drawing of the piping. It looks backwards from what is actually installed, but it gets the point across. The hardest part of the entire thing was getting everything to fit within the space. True union valves are great, but they take up considerably more room. Hope this helps and good luck with the build!
Return drawing.jpeg

OP
B

BattleReefer

New Member
Review score
+0 /0 /-0
View Badges
Joined
Feb 6, 2021
Messages
10
Reaction score
13
Review score
+0 /0 /-0
Location
rochester MI
It’s been a while since I last posted an update. Tank is settling in well. I did unfortunately have to fight with some AEFW. Not sure where it came from, guessing something had eggs and made it past my pre dip, clearly a reason QT tanks are so important. I did end up losing a few pieces, but feel like it’s under control at the moment. Lowered tank temperature, ran a full treatment of AEFWX, and started the reef moonshiners program.

I have to say, 3 weeks into the moonshiners program I am very impressed. Everything seemed to stall on me. Growth and color seemed to fade from what I was seeing initially. Within about a week of dosing everything took back off, and color is coming back.

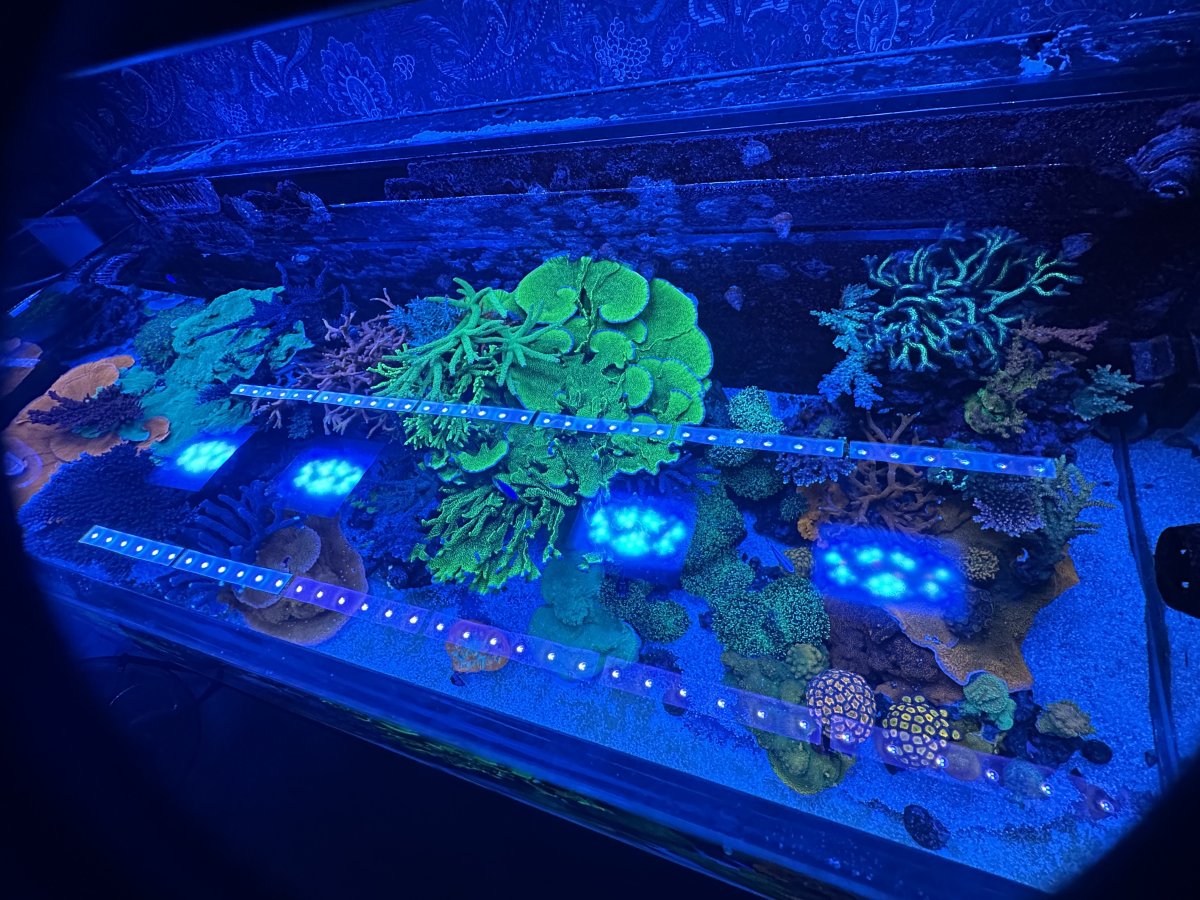

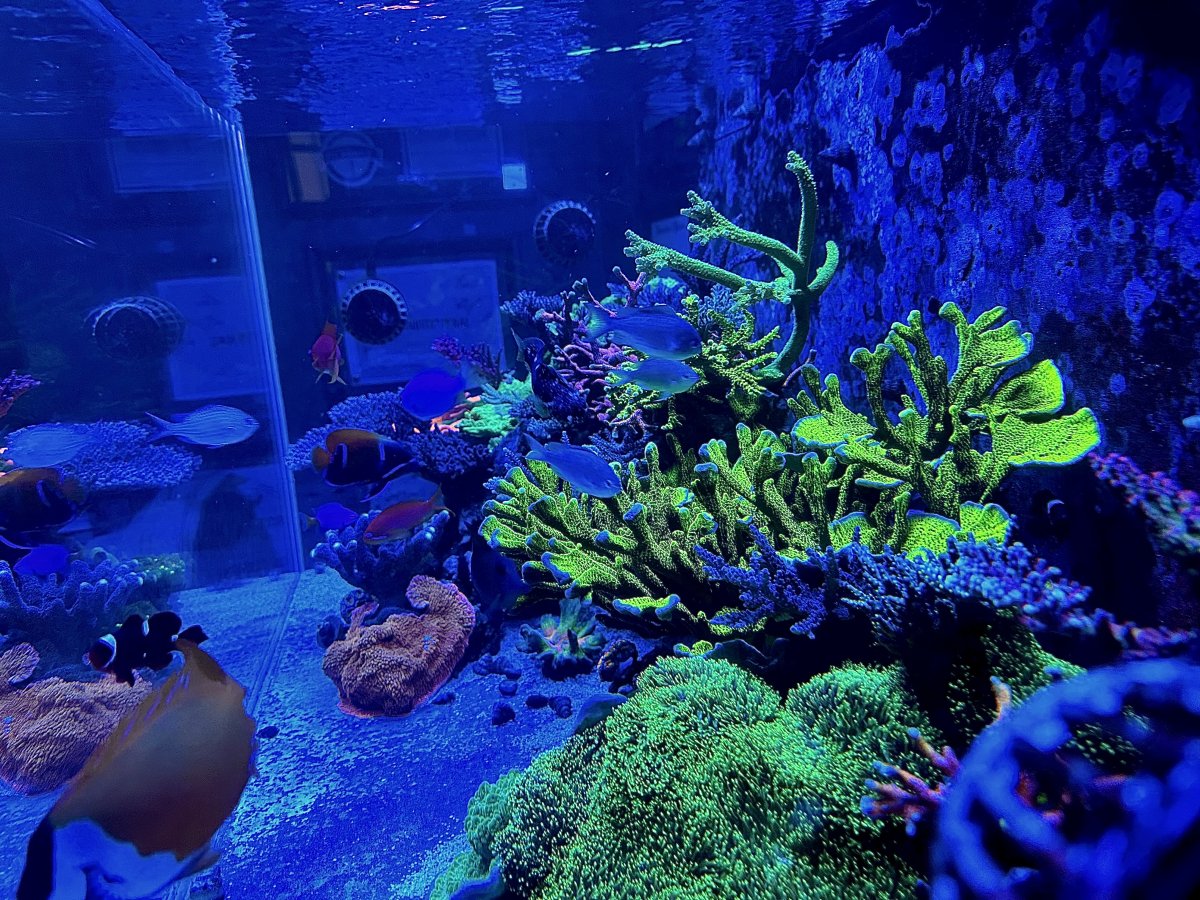

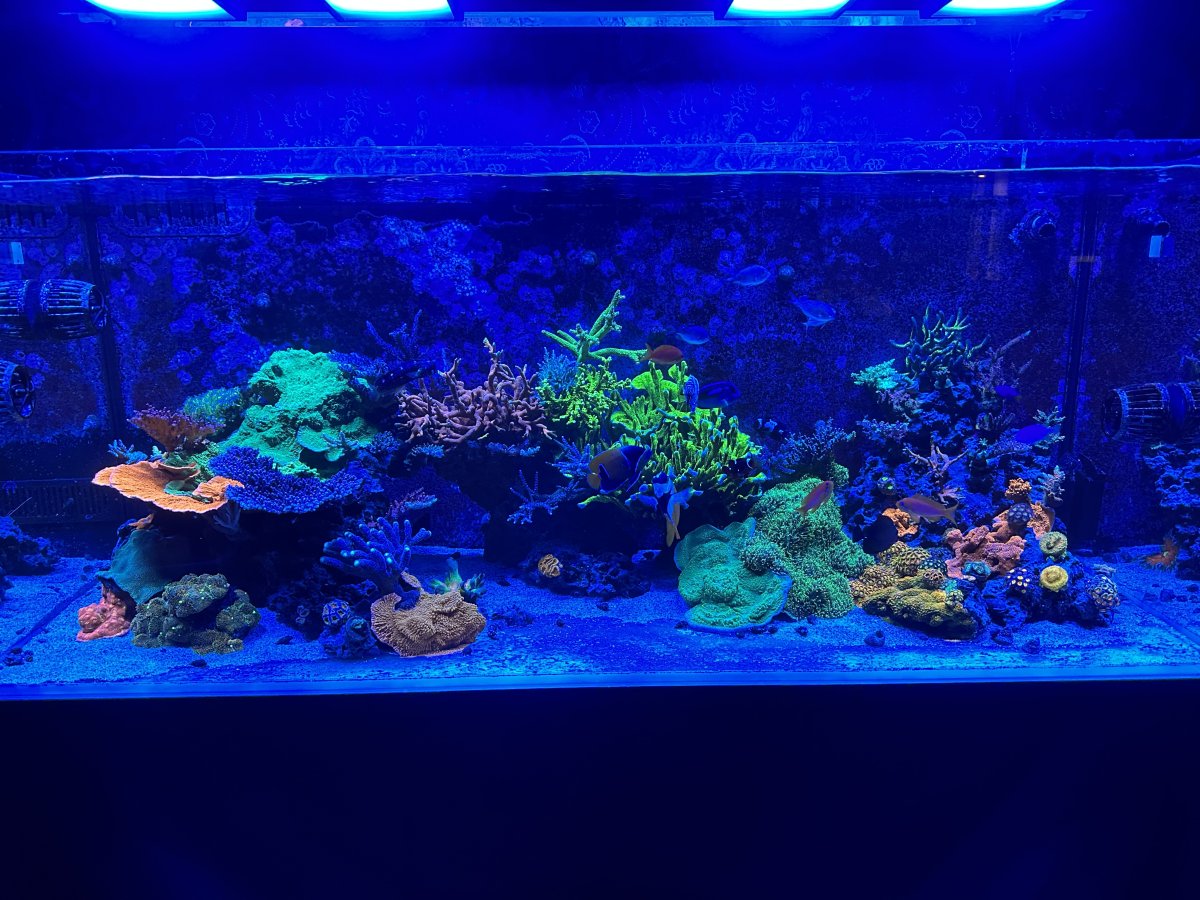

I took a few top down shots today. Will take a FTS tomorrow. Only other changes since my last post is the addition of a refugium and a CO2 scrubber. Tank is finally starting to be somewhat stable.


Attachments

  • 06FA3D95-2610-4EBA-ADDA-61A09222B845.jpeg
    320.9 KB · Views: 7
  • 14DE4DC5-CFD8-446D-9D93-F9E8D175181F.jpeg
    333.4 KB · Views: 6
  • 21A7D855-C76F-4AE0-9AC1-4BA842F20B1A.jpeg
    342.5 KB · Views: 5
  • D67CBBE3-9A35-4C71-806A-9122E608E352.jpeg
    279.7 KB · Views: 5
  • C78778AB-17B2-4296-8A88-AAD52B3337A2.jpeg
    460.6 KB · Views: 5
  • 064DF10D-9DB9-4065-ACF9-C52E291E0E80.jpeg
    329 KB · Views: 6
  • 6614E616-3775-4176-866A-BB4247E21F0A.jpeg
    338.3 KB · Views: 5
  • DC992008-B411-48E4-BAD2-E6EDE0D75CC9.jpeg
    250.5 KB · Views: 6
  • 8D4931AE-7B10-4A4F-9B03-FA41724D7498.jpeg
    191 KB · Views: 9
