No, it was 90 and 120 deg lenses. The white(120) and black(90).

I'm using a lens to protect the UV(390nm) chips. They degrade faster with "secondary" lenses.

Underneath that lens, is a softer layer. [I'm not sure what it's called?]
20180111_184323 (1).jpg
(above is my test chip)

I'm comparing longevity from a normal chip to a decapped chip.
If you remove that? do you lose the function of LED?? Can LED still work even though when you remove the LENS?

OP
reeferfoxx

reeferfoxx

Valuable Member
View Badges
Joined
Sep 8, 2015
Messages
6,452
Reaction score
6,055
If you remove that? do you lose the function of LED?? Can LED still work even though when you remove the LENS?
Removing the lens has no effect on the operation of the light. There will still be a lens on the LED itself. That LED is soldered to the board and cannot be removed without a soldering tool.


Ashley Kekua

Active Member
View Badges
Joined
Dec 7, 2018
Messages
201
Reaction score
80
i fixed it! I removed lens from center only...and left the lens on the edges and BAM! even blanket of par! I'm happy thank you for this thread


Reefs of Space

Active Member
View Badges
Joined
Apr 24, 2018
Messages
258
Reaction score
291
Location
Anna Maria Island, FL

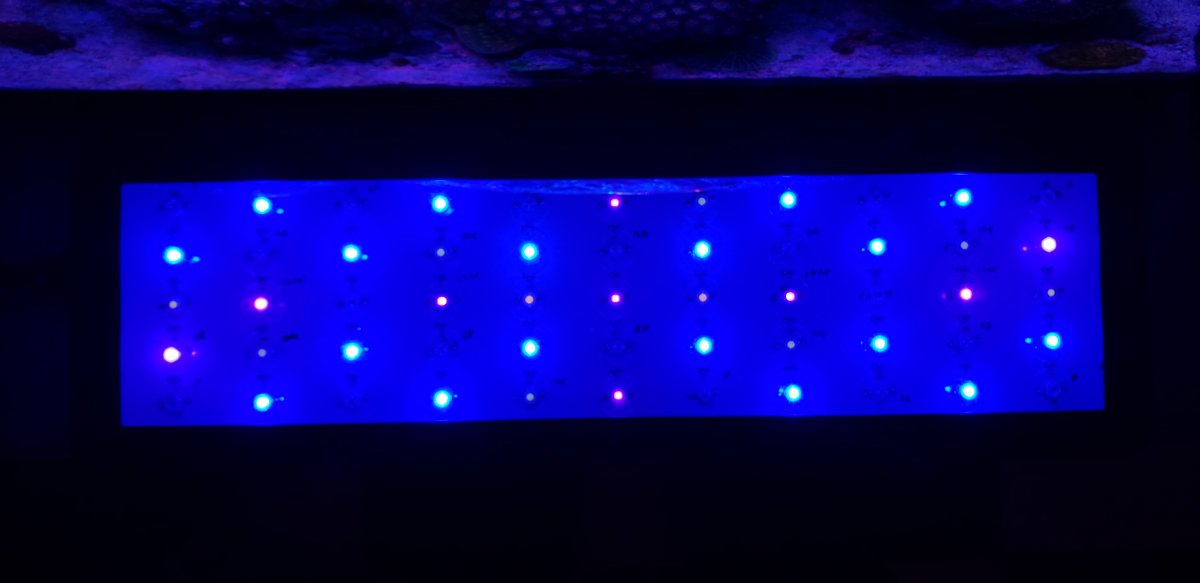

This is my white channel
4- UV 410nm
10- Royal Blue 440nm
2- Green 520nm
2- Red 660nm
2- 3000k
2- 6500k
6- 10000k-15000k


rmiles54

Well-Known Member
View Badges
Joined
Dec 10, 2014
Messages
585
Reaction score
239
Where is everyone purchasing the replacement diodes


Patncori

Member
View Badges
Joined
Jan 8, 2018
Messages
26
Reaction score
5
Best Driver upgrade for a 165w...??

Corals.com

Pyrosteve

Active Member
View Badges
Joined
Apr 14, 2018
Messages
119
Reaction score
80
I wanted to get some opinions on modifying my WIFI BB. I'm trying to mimic the original SB Basic box a little better without changing out every diode.

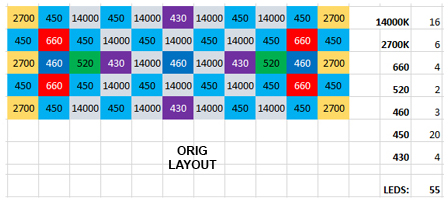

Here's the original LED array I have now...

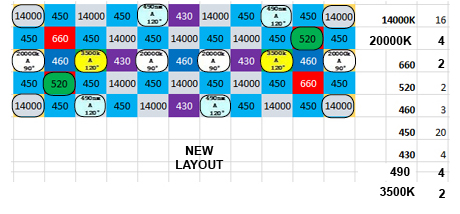

and the new layout...

What do you think of the spectrum/spread? Too much white in the center?
All of the lenses are 120 I have now. Should add some 90s?

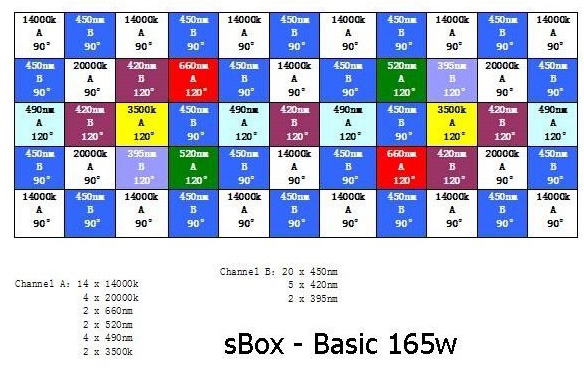

Here's the basic I'm trying to copy....



Any other suggestions?


Dana Riddle

Valuable Member
View Badges
Joined
Sep 10, 2011
Messages
1,861
Reaction score
3,811
Location
Dallas, Georgia
I wanted to get some opinions on modifying my WIFI BB. I'm trying to mimic the original SB Basic box a little better without changing out every diode.

Here's the original LED array I have now...



and the new layout...

What do you think of the spectrum/spread? Too much white in the center?
All of the lenses are 120 I have now. Should add some 90s?

Here's the basic I'm trying to copy....



Any other suggestions?
Personally, I would replace the 3500K with 6500K. I'm unsure of the PPFD this will produce and the mounting height above the waterline - these will determine the lenses used.


Pyrosteve

Active Member
View Badges
Joined
Apr 14, 2018
Messages
119
Reaction score
80
Personally, I would replace the 3500K with 6500K. I'm unsure of the PPFD this will produce and the mounting height above the waterline - these will determine the lenses used.
The light is 8" from the waterline and 24" to the sand bed. I'm also trying to cover 30" width so I'm thinking I may need use 120s.


Flippers4pups

Fins up since 1993
View Badges
Joined
Jun 21, 2016
Messages
12,045
Reaction score
37,888
Location
Lake Saint Louis, Mo
I was helping a member here about led diode layouts for the Mars aqua black boxes, come to find out that the new ones that are being sold have a totally different board on them with different diode chips.



This will make them more difficult to modify. Thoughts?


Flippers4pups

Fins up since 1993
View Badges
Joined
Jun 21, 2016
Messages
12,045
Reaction score
37,888
Location
Lake Saint Louis, Mo
Personally, I would replace the 3500K with 6500K. I'm unsure of the PPFD this will produce and the mounting height above the waterline - these will determine the lenses used.
Good thing I read this, getting ready to order new diodes!
