Does 1.5” loc line exist?

[Tangdora]

Hi all.

Redoing my tank inlets. Before I go and just buy black pvc fitting and hard pipe everything curious any one knows if a generic form for loc line exist in 1.5 inch. Would even setting for 1 inch. The actual loc line site only shows 1/2 , 3/4 or 2.5 in. Given they make a max of 2.5 figure 1.5 must exist somewhere or in a generic brand.



[UncommonSense]

Hi all.

Redoing my tank inlets. Before I go and just buy black pvc fitting and hard pipe everything curious any one knows if a generic form for loc line exist in 1.5 inch. Would even setting for 1 inch. The actual loc line site only shows 1/2 , 3/4 or 2.5 in. Given they make a max of 2.5 figure 1.5 must exist somewhere or in a generic brand.

Ah, I puzzled over this for quite a while!

Loc line fittings were originally intended for industrial machinery; coolant moving/spraying primarily!

For this application, the available sizes suffice, or multiples are used to achieve the desired flow rate!

The 2.5” loc-line is actually for gas suction systems! — think, enormous shop vacuum tubing to be hooked up to machinery for chip/fume evacuation!


— Just to be clear: you’re talking about redoing the DT return plumbing between tank wall(s) and return nozzles?



[Aaron75]

3d printing is a good option in this case



[mfinn]

1" is out there.

Jumbo 1in Modular Hose | Vivid Creative Aquatics

vividcreativeaquatics.com



[Aaron75]

I printed this in 1". You could just scale it for 1.5



[Tangdora]

Ah, I puzzled over this for quite a while!

Loc line fittings were originally intended for industrial machinery; coolant moving/spraying primarily!

For this application, the available sizes suffice, or multiples are used to achieve the desired flow rate!

The 2.5” loc-line is actually for gas suction systems! — think, enormous shop vacuum tubing to be hooked up to machinery for chip/fume evacuation!


— Just to be clear: you’re talking about redoing the DT return plumbing between tank wall(s) and return nozzles?

Only looking for a like a foot worth to come off a ball valve resting on the top edge of my tank. Everything is else is hard piped. But this in in the closed loop side of my tank where I have been repipeing a closed loop uv setup. There is a return right next to it And trying not to to loose some head preset by having to multiple 90s off it to avoid it. . Would be nice to loc line off it.



[Tangdora]

1" is out there.

Jumbo 1in Modular Hose | Vivid Creative Aquatics

vividcreativeaquatics.com

Nice may be able to make this work. Thanks.



[UncommonSense]

Only looking for a like a foot worth to come off a ball valve resting on the top edge of my tank. Everything is else is hard piped. But this in in the closed loop side of my tank where I have been repipeing a closed loop uv setup. There is a return right next to it And trying not to to loose some head preset by having to multiple 90s off it to avoid it. . Would be nice to loc line off it.

Ah! Loc-line actually has pretty awful frictional flow loss characteristics, primarily due to the irregular ID of the line! — Antonio, over at @Vivid Creative Aquatics actually tipped me off to this when we were going through RFG performance numbers!

You’re likely to get less frictional head/flow loss out of smoothPVC 90 elbows! — 45 elbows are a great option too! (And you can always just go up in size with PVC to mitigate frictional loss almost completely!)



[Vivid Creative Aquatics]

Ah! Loc-line actually has pretty awful frictional flow loss characteristics, primarily due to the irregular ID of the line! — Antonio, over at @Vivid Creative Aquatics actually tipped me off to this when we were going through RFG performance numbers!

You’re likely to get less frictional head/flow loss out of smoothPVC 90 elbows! — 45 elbows are a great option too! (And you can always just go up in size with PVC to mitigate frictional loss almost completely!)

Correct - Loc-Line other modular hoses can take as much as 1 to 1.5% of your throughput for each segment.

in most cases this negligible, but really starts to add up quick when you use too much of it.

With that said, for a closed loops and return lines on larger tanks, using two 45deg street fitting is actually a great choice that won't suffer rob you of throughput AND give you just as mush articulation ins about the same space.

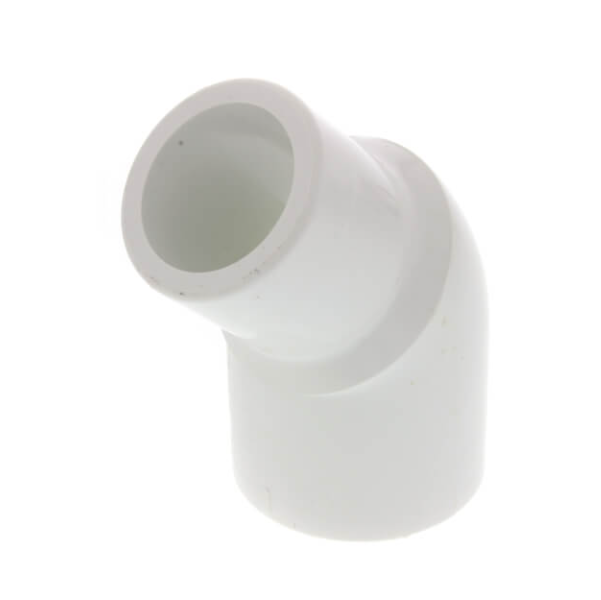

something like this:

https://www.supplyhouse.com/Spears-427-012-1-1-4-PVC-Sch-40-45-Street-Elbow

You use two of them, and then you can rotate each one independent for a full range of adjustability

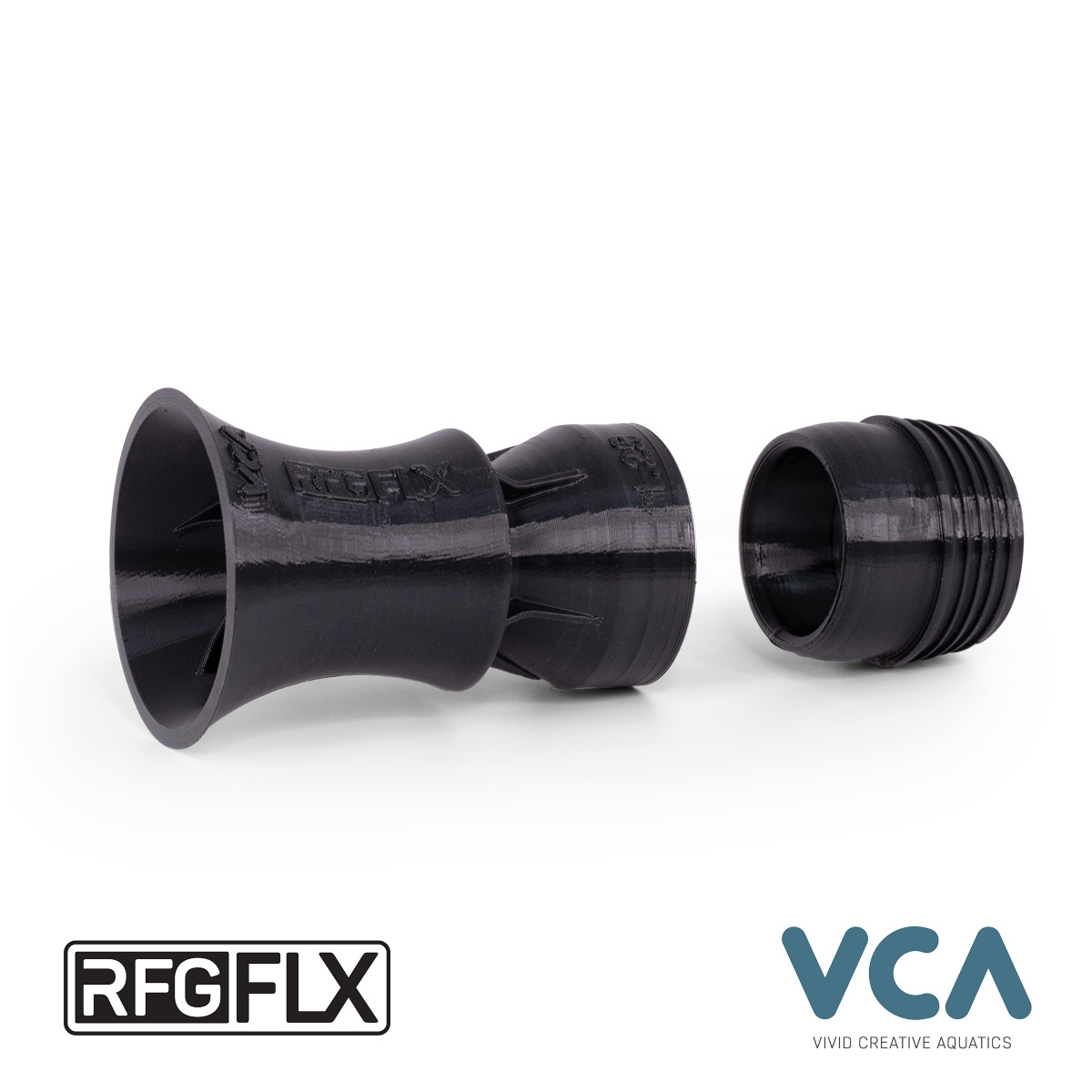

then you can use the included Multidapter fitting that will for right the pipe socket

Flex-Series 1.25in Random Flow Generator® With Multidapter™ – RFGS125-FLX | Vivid Creative Aquatics

vividcreativeaquatics.com



[Tangdora]

Ah! Loc-line actually has pretty awful frictional flow loss characteristics, primarily due to the irregular ID of the line! — Antonio, over at @Vivid Creative Aquatics actually tipped me off to this when we were going through RFG performance numbers!

You’re likely to get less frictional head/flow loss out of smoothPVC 90 elbows! — 45 elbows are a great option too! (And you can always just go up in size with PVC to mitigate frictional loss almost completely!)

Interest hard piping it is then lol
