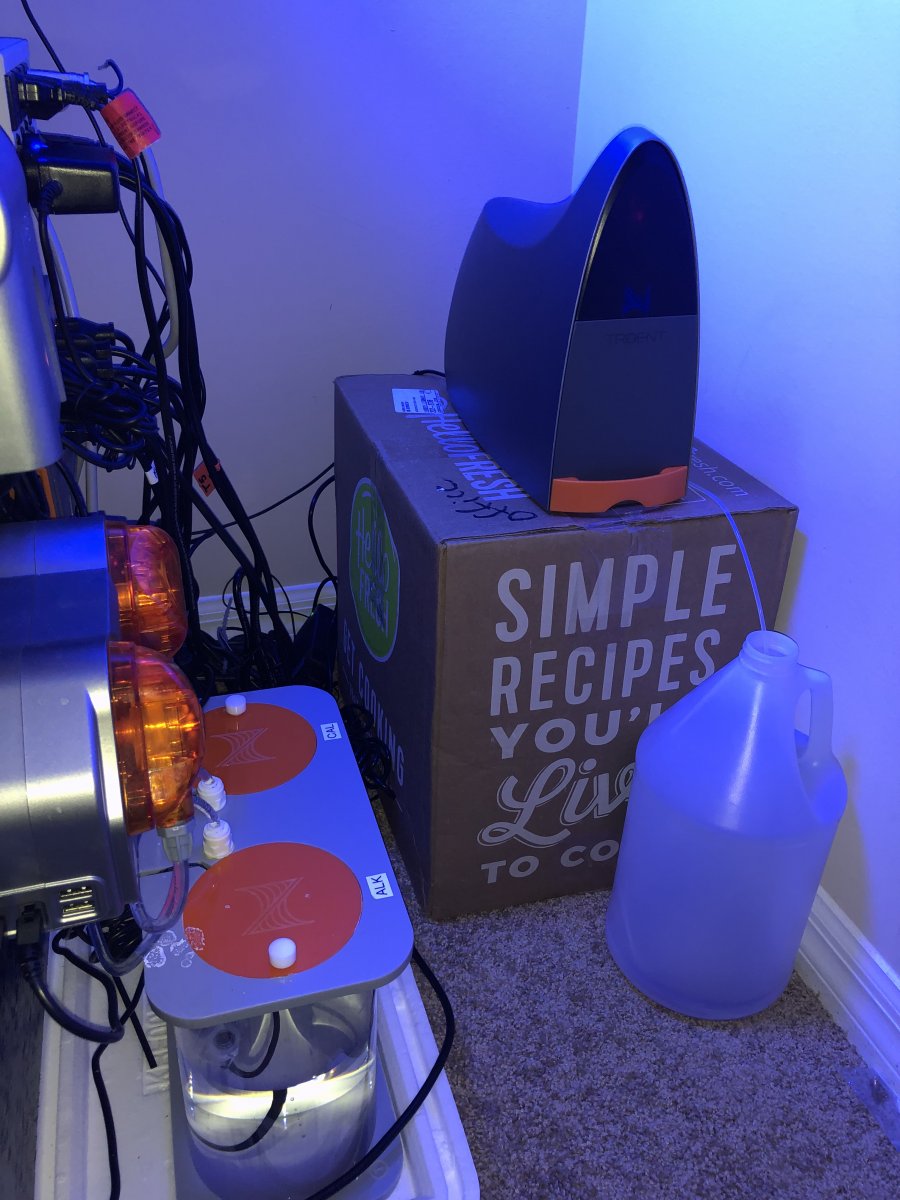

It does, the bottom of the trident sits at the very top of the sump and the water line is 6 inches or so below the top of the sump.
alright, so I had to wait to get to my computer.

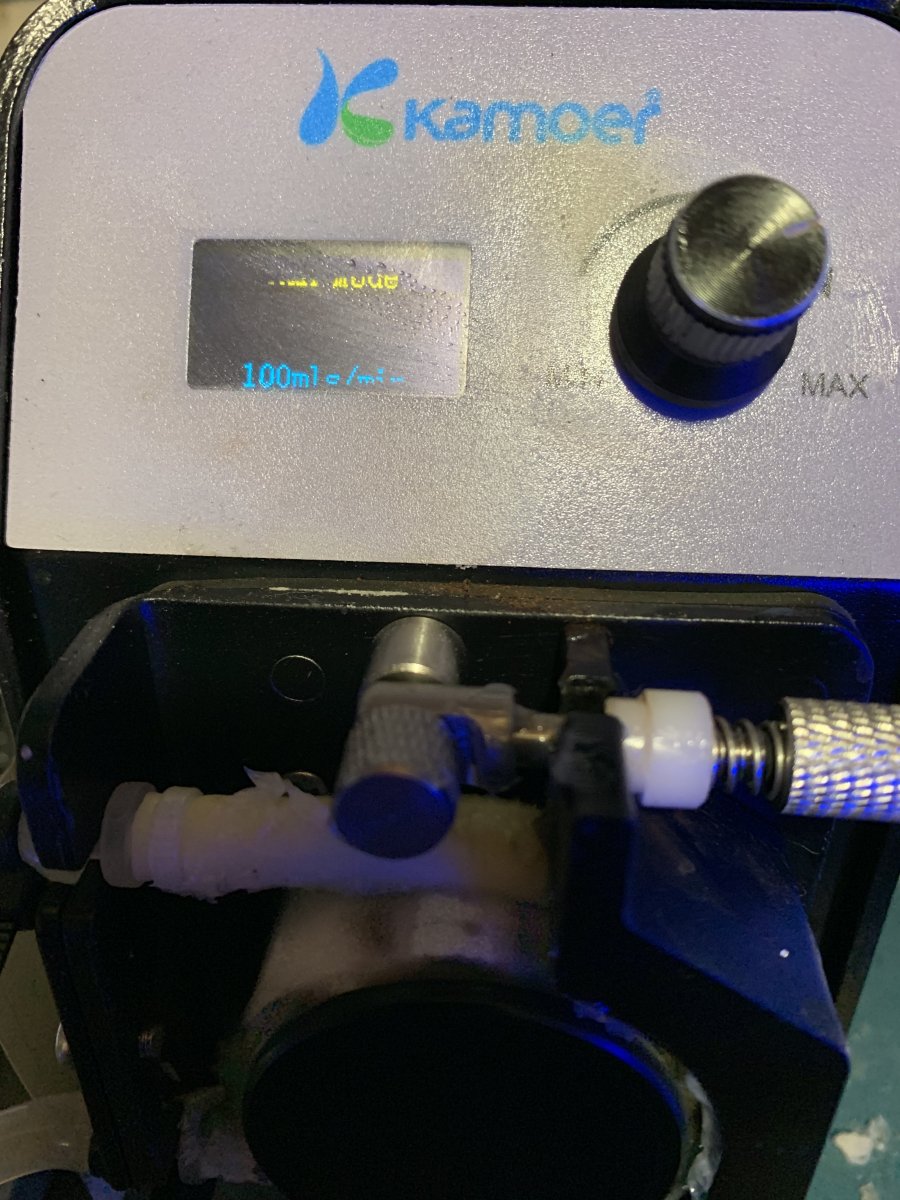

This is the pump that feed's my calcium reactor.
it actually doesn't feed, it pulls. I have a line in the sump that pulls water through and goes into the cal rx. it then does it thing with the c02 and recirculates and what not then comes out of the reactor. It then hits my pump which is basically "pulling" the water through the calcium reactor. It's creating a vacuum in some ways and pulling water through the reactor. it then dumps it into my sump.
Hopefully all that made sense.
This is how I have the pump configured to 100ml it will ALWAYS pull. Whether it's pulling just normal water or water that's been injected with c02. it won't matter. the pump will always stay on.

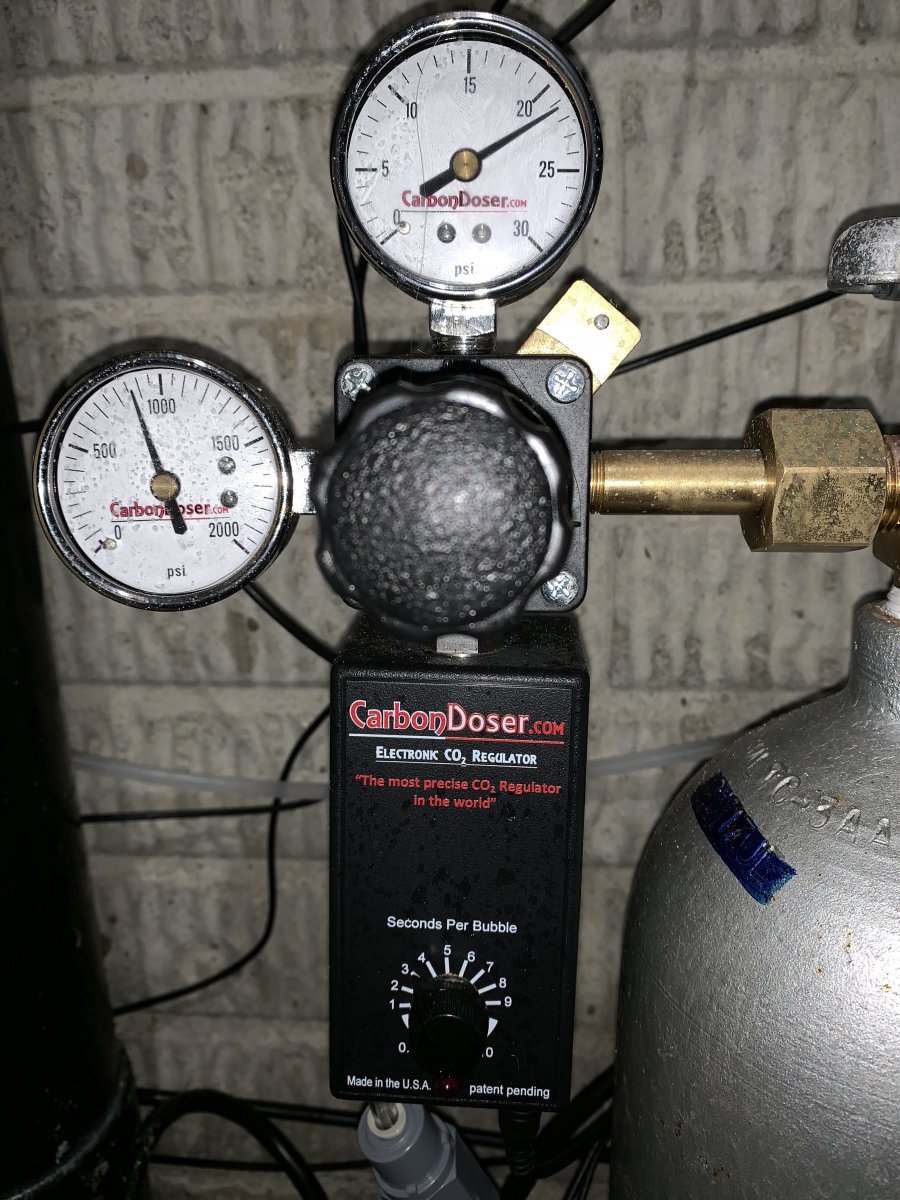

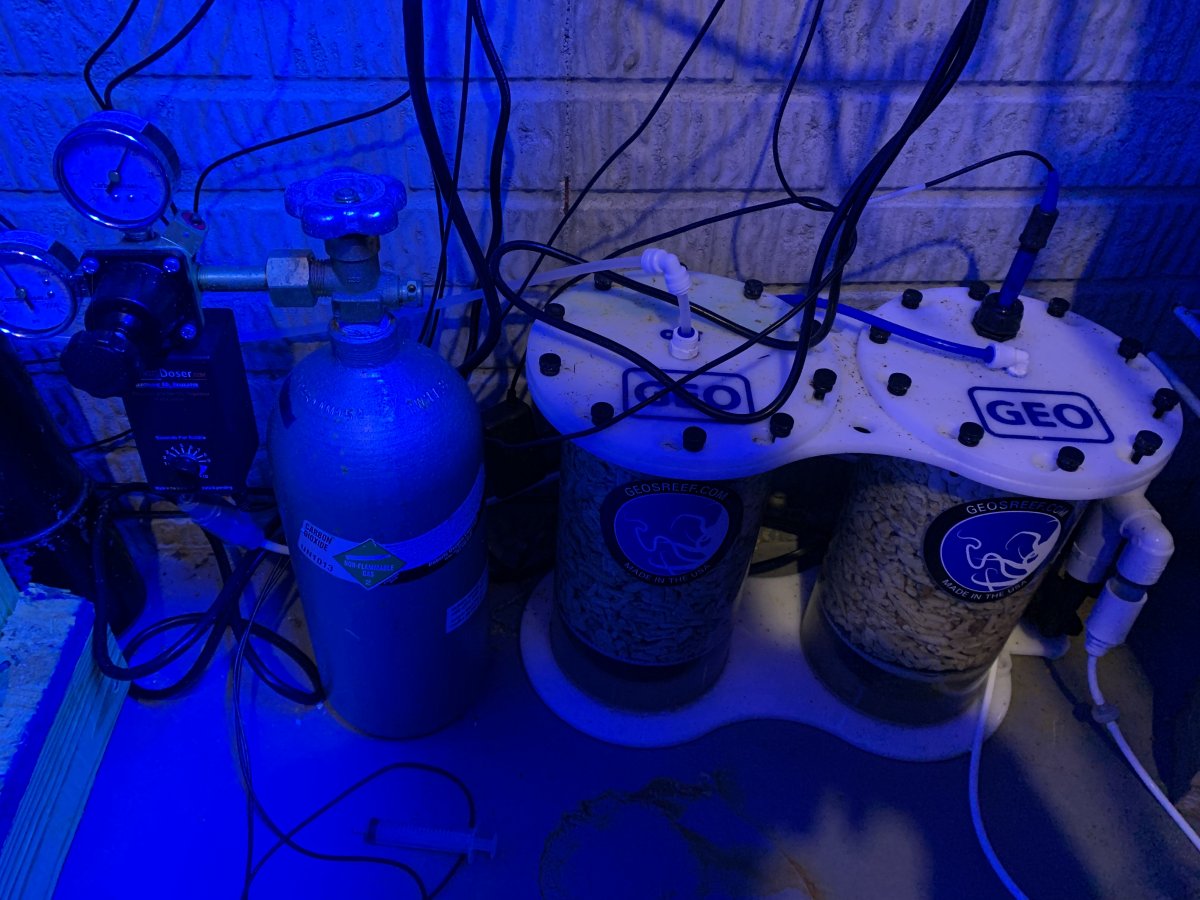

This is the Co2 Regulator & CalRx that I have. A CarbonDoser.com Regulator and a GEO Dual Chamber 12" module.

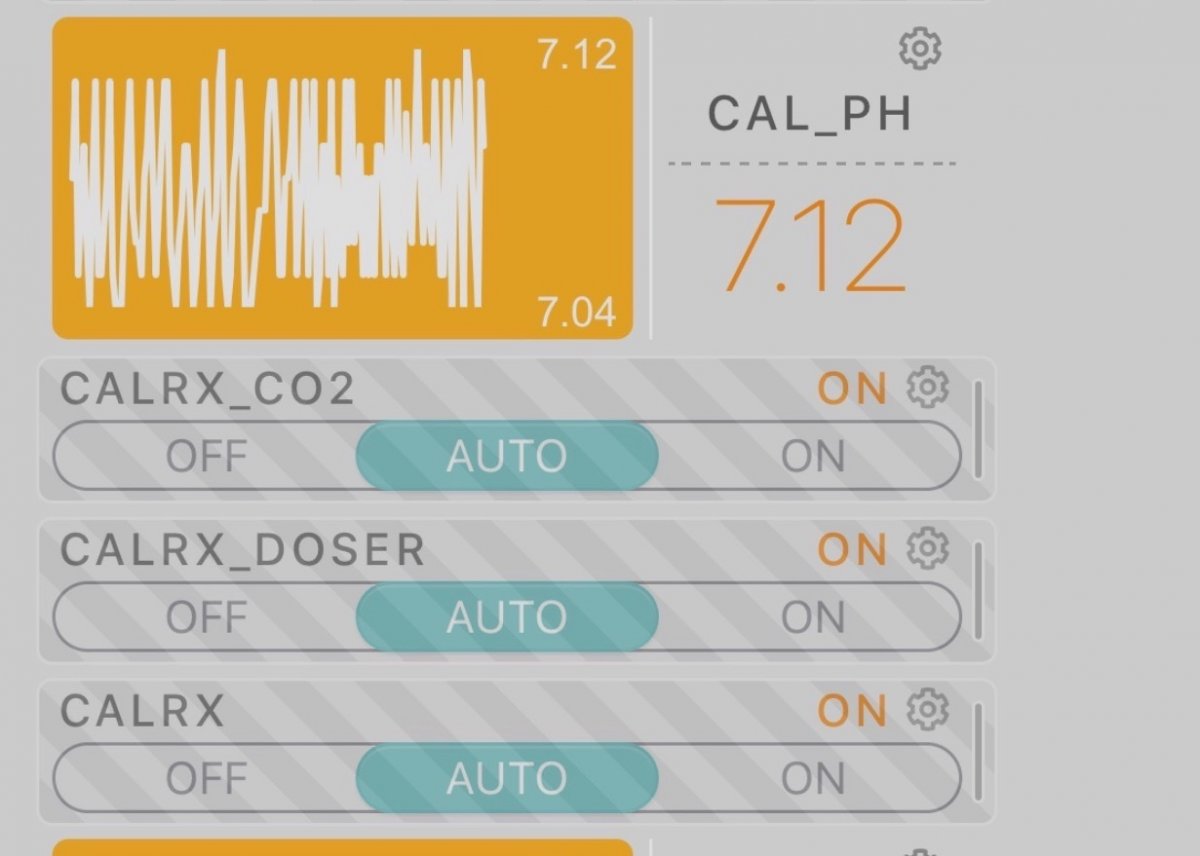

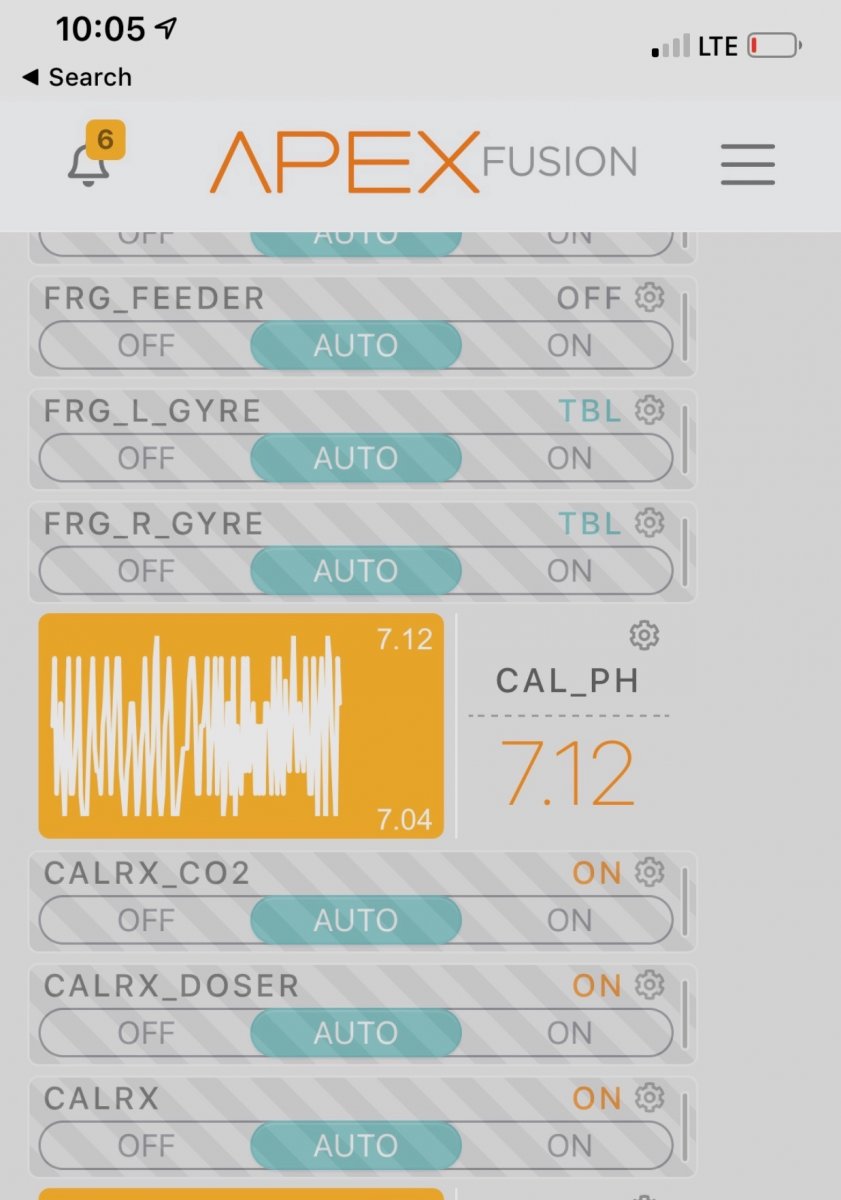

as you can see I also have a PH monitor in the Calcium Reactor. The Carbon Doser is connected to an EB832 Power Bar.
Cal_PH is the Probe inside the reactor which measures the PH
CalRX_C02 is the Carbon Doser Regulator
CalRX_Doser is the Kamoer Pump which pulls water through the reactor
CalRX is the actual recirculating pump on the reactor that mixes up the co2/water to get the media to dissolve.
CalRx_Doser is the Kamoer Pump which is ALWAYS ON
CalRx which is the recirculating pump which is ALWAYS ON

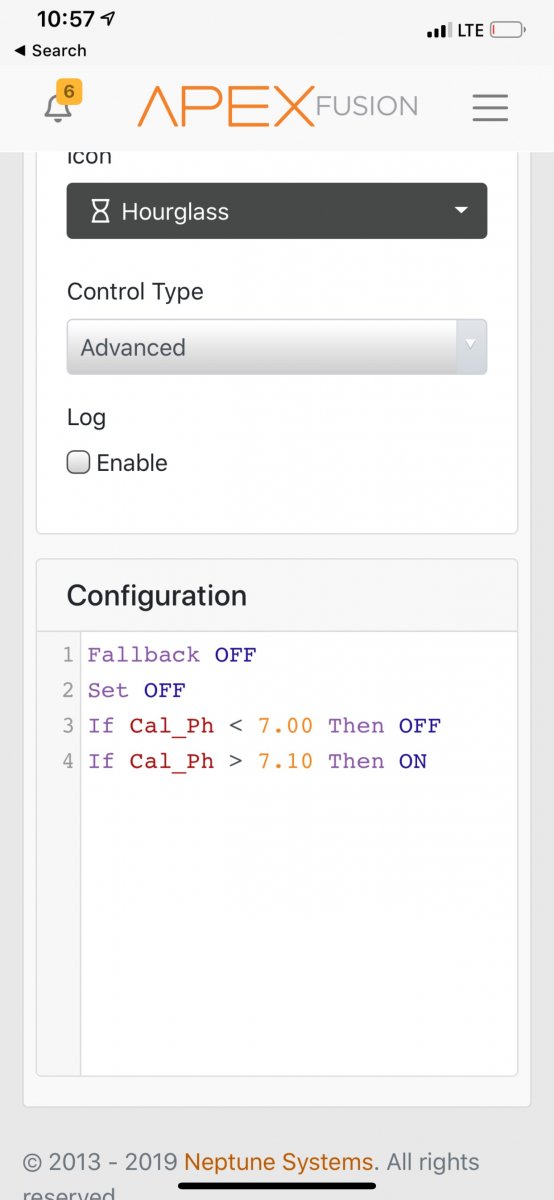

CalRx_C02 is programmed like this
Which basically tells the EB bar to TURN OFF the CarbonDoser when reactor PH is lower than 7.00 and TURN on the reactor when its higher than 7.10. I keep the PH higher in the reactor but low enough to still melt the media. I keep it higher because the Kamoer is moving more water and faster. You could program it like this or how normal people program it and keep the PH at 6.6 or 6.8 and have it dripping. I keep it with a steady flow going through it. So whats the difference?
So whats it come down to? You can have less water go through the reactor at a lower PH and have it dripping to where you count drops per every 10 seconds or something and keep the PH 6.6 or something extremely low
OR
you can have a stream flowing through it and keep the PH a bit higher so that it still melts the media but its having a lot more flow go through it.
Ultimately, the media still melts. I just don't have many PH issues this way compared to dropping water with PH of 6.6 into my sump. Everyone does it different and to each their own.
NOW, WITH THE TRIDENT. The trident is just another module, just like any. which has sensors.

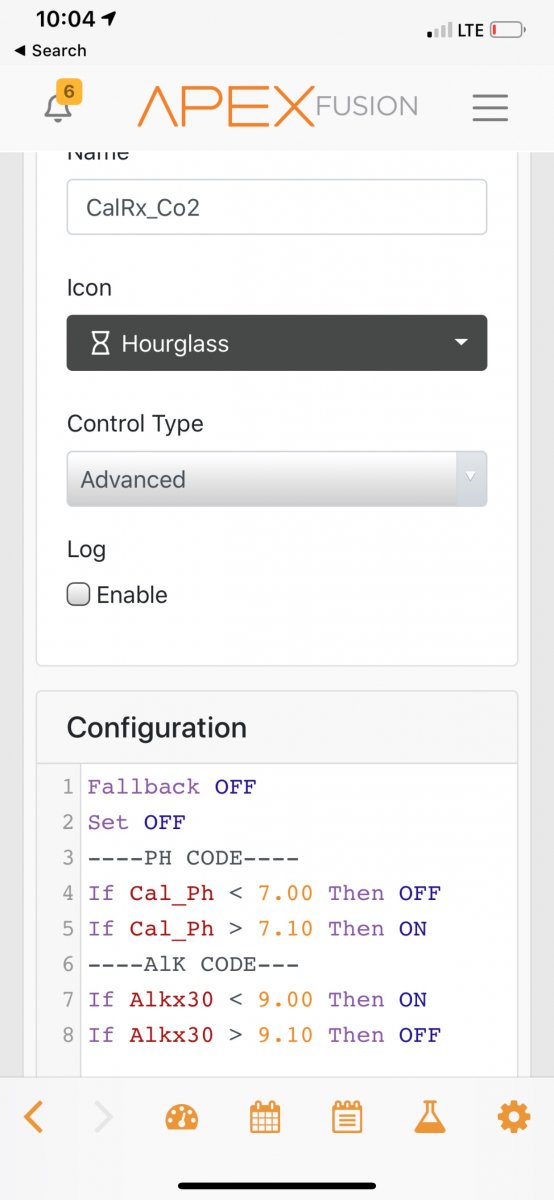

So you can just tell it to turn the carbon doser (c02) ON if your ALK is LOWER then 9 for instance, and to turn OFF the carbon doser regulator (c02) when it gets higher then 9.10. I'm sure you can narrow the parameters to 9.05 or 9.10 but I just stuck those in there for reference. The beauty about the carbon doser is that it's electric. So if it doesn't have power, it won't be injecting anything. So you just kill it when you don't want it injecting C02. When it turns off just the regulator, no c02 is being injected at all, so whats the kamoer doing? Just wasting it's time flowing water through the calcium reactor lol, and thats ultimately fine. its just moving sump water at its normal PH. when it detects your alk higher than the value you want, it will turn on.
I WOULDN'T recommend you running it with just 4 tests a day at first. I would run it at 24 tests a day first until I dial it in completely,. its practically the same code for auto dosing, you tell the DOS to dose when ALKx30 is lower then a certain point and to stop when its higher than a certain point. The same thing with auto dosing, you have to fine tune it. Set your trident to run a test every hour until you find you numbers which will be specific to your tank. (it says 30 because it came up as Module 30 on my apex, yours could be ALKx5, ALKx6, etc, depending on how many modules you have)
I currently have it programmed with the PH code but will be playing with the ALK code tomorrow,

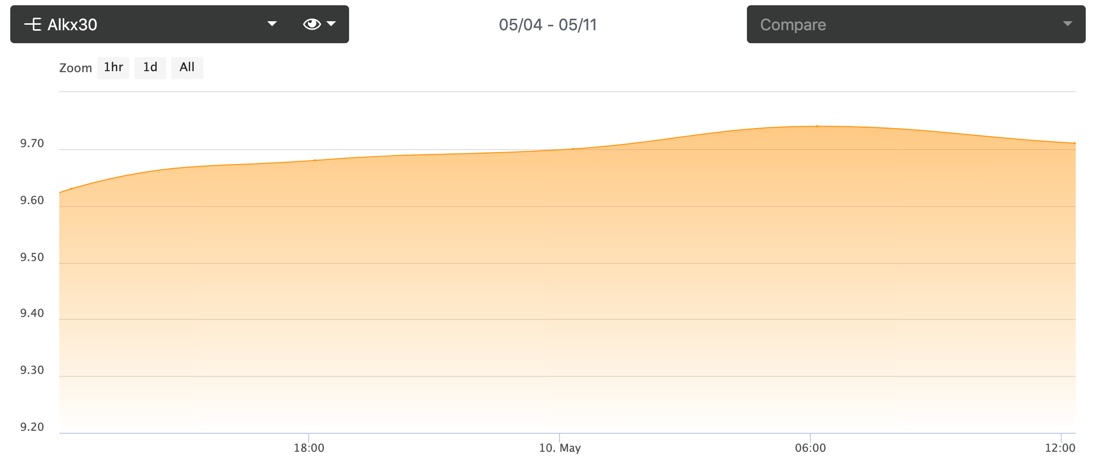

so here you can tell that my ALK was 9.63 with a high point of 9.73 coming back to 9.71 at the end, so it moved roughly .08. Which I'm cool with. I pulled a good bit of frags out and typically try to keep it 9 on the dot but now I will just go back and make some minor changes and it slowly come back down to where I want it.
Hopefully all the crap i said makes some sense....
Anyway, everyone does it differently. not everyone is alike. Others might be doing what I do, others might look down upon it. others might not care. Everyones different and we can all do it differently and thats the beauty of this hobby. not the same thing works for everyone.
everyone is different.
Are you find yet that you have to dose calcium/magnesium even running the CaRx from time to time with your pH being between 7-7.1?
