125 Gallon for Classroom on Flat Solid Countertop

[sadas5017]

Hi everyone, new here!

I’m looking for experienced input on whether my setup is actually unsafe, or if some of the feedback I’ve received is more best-practice vs. requirement.

Tank:

• 125-gallon rimmed glass aquarium
• Plastic top and bottom frame intact
• No cracks, only a very thin cosmetic scratch on the outside of the glass (mid-panel, not edge-connected)

Support surface:

• Flat, solid science classroom countertop. About 20 feet long.
• Countertop is fully supported underneath by cabinets
• Cabinets are anchored to the wall
• No visible sagging, flexing, or unevenness
• Tank sits flush on the rim, no rocking

Current concern:
I do not have a leveling mat under the tank. I posted on Reddit and received many comments saying:

• A leveling mat is required even for rimmed tanks
• Countertops (even with cabinet support) are unsuitable compared to aquarium stands
• The setup is “guaranteed” to fail over time

However, my understanding has always been:

• Rimmed tanks are designed to have the load carried by the plastic frame, not the glass bottom
• Leveling mats are critical for rimless tanks, but optional or unnecessary for rimmed tanks if the surface is flat and rigid
• A continuous, solid surface with distributed support (like a lab counter with cabinets) can be structurally equivalent to a stand, provided it is level and non-flexing

I’m absolutely open to being wrong, I just want evidence-based reasoning, not blanket rules.

My questions:

1. For a rimmed 125, is a leveling mat a true structural necessity, or just an added safety margin?
2. Is a flat, rigid, wall-anchored countertop with full cabinet support inherently unsafe compared to a traditional aquarium stand?
3. Under what specific conditions would this setup actually increase the risk of glass stress or failure?

I’m trying to balance real engineering risk versus internet worst-case assumptions.
Appreciate thoughtful input, especially from those with large-tank experience or structural knowledge.

Thanks in advance.



[Gumbies R Us]

@Troylee



[UncommonSense]

For a rimmed 125, is a leveling mat a true structural necessity, or just an added safety margin?

Most manufacturers of rimmed tanks actually don’t recommend using a leveling mat, and instead have the bottom plastic rim set directly on the stand!

Is a flat, rigid, wall-anchored countertop with full cabinet support inherently unsafe compared to a traditional aquarium stand?

This one depends almost exclusively on the materials composition and structural design of the cabinetry!

Under what specific conditions would this setup actually increase the risk of glass stress or failure?

Well, this tank weighs roughly 1,100-1,200lbs when full of water… that is distributed across a 6ft span, and ~9ft2 of total area…

Aside from the inherent potential for a poorly constructed tank (or old, worn out tank) with compromised structural silicone seam(s) integrity…

the worst case scenarios primarily stem from the potential construction of the counter!

— if the cabinet’s vertical framing is made of MDF (aka particle board), water ingress from inevitable spills will make the MDF swell, eventually loosing its structural strength and even crumbling altogether!

— if the countertop’s support (both horizontal and vertical) on the door side is spread too far apart, or is too spindly; the counter could start sagging, leading to uneven support to the bottom of the tank, and eventual failure!


@RocketEngineer , would you mind lending your expert opinion on stand design?

It would be beneficial to see a few photos of the cabinet/counter framing, if it's not too much trouble to get those?



[sadas5017]

Most manufacturers of rimmed tanks actually don’t recommend using a leveling mat, and instead have the bottom plastic rim set directly on the stand!




This one depends almost exclusively on the materials composition and structural design of the cabinetry!




Well, this tank weighs roughly 1,100-1,200lbs when full of water… that is distributed across a 6ft span, and ~9ft2 of total area…

Aside from the inherent potential for a poorly constructed tank (or old, worn out tank) with compromised structural silicone seam(s) integrity…

the worst case scenarios primarily stem from the potential construction of the counter!

— if the cabinet’s vertical framing is made of MDF (aka particle board), water ingress from inevitable spills will make the MDF swell, eventually loosing its structural strength and even crumbling altogether!

— if the countertop’s support (both horizontal and vertical) on the door side is spread too far apart, or is too spindly; the counter could start sagging, leading to uneven support to the bottom of the tank, and eventual failure!


@RocketEngineer , would you mind lending your expert opinion on stand design?

It would be beneficial to see a few photos of the cabinet/counter framing, if it's not too much trouble to get those?

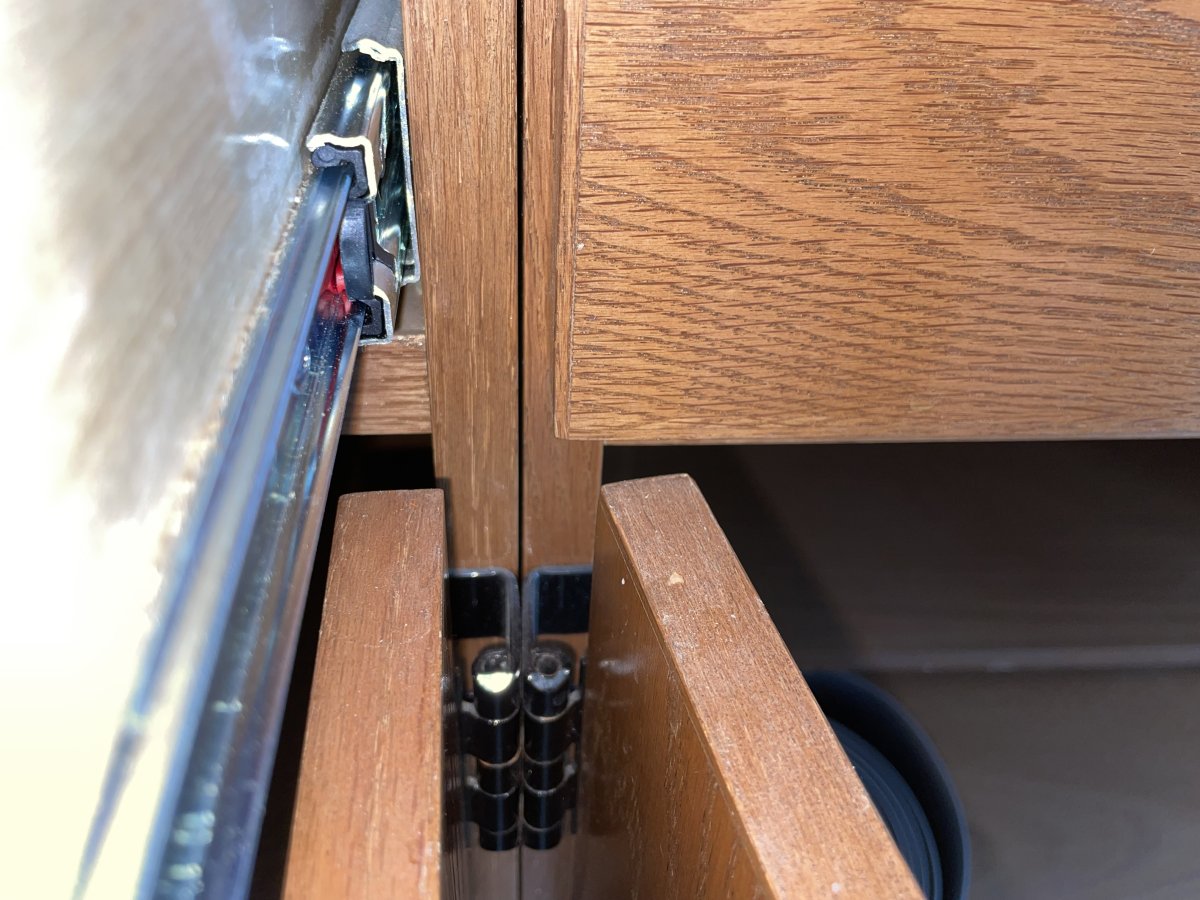

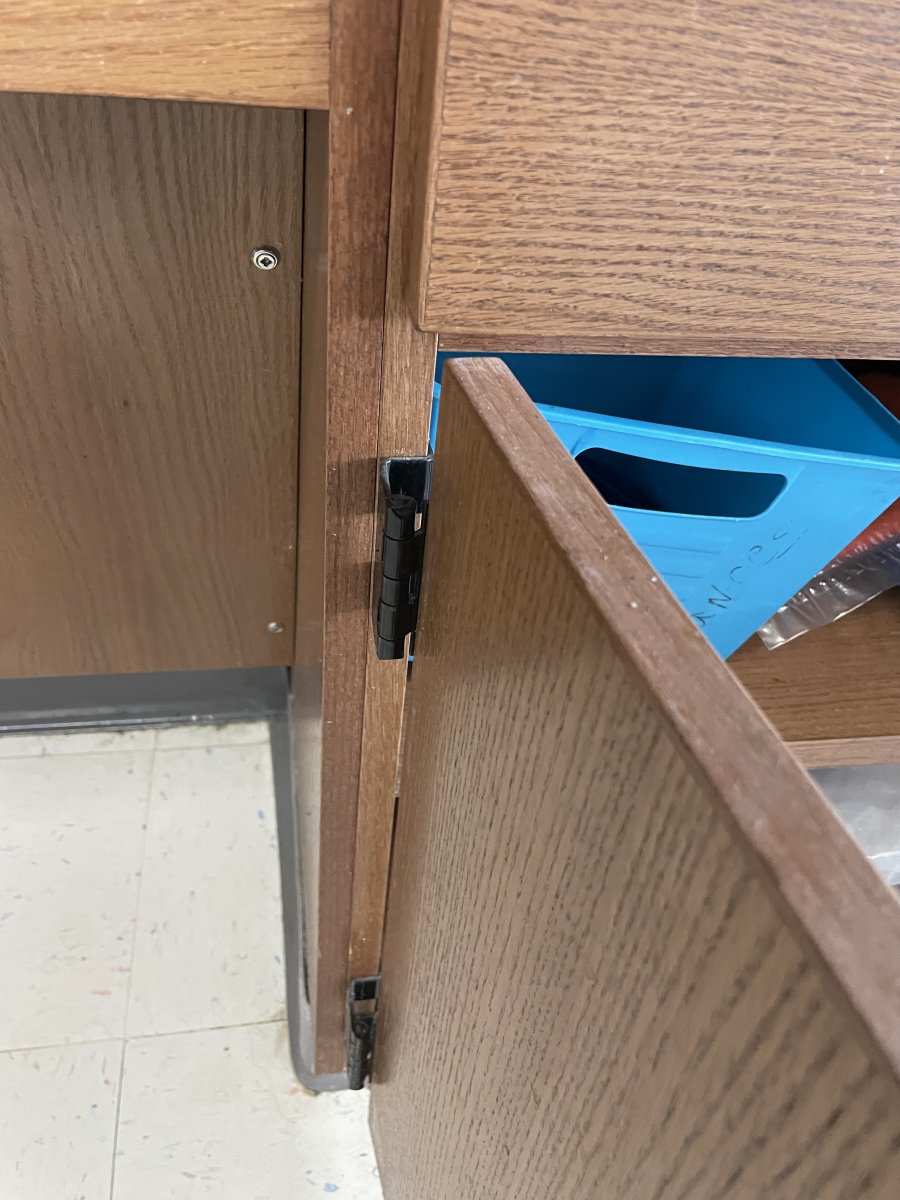

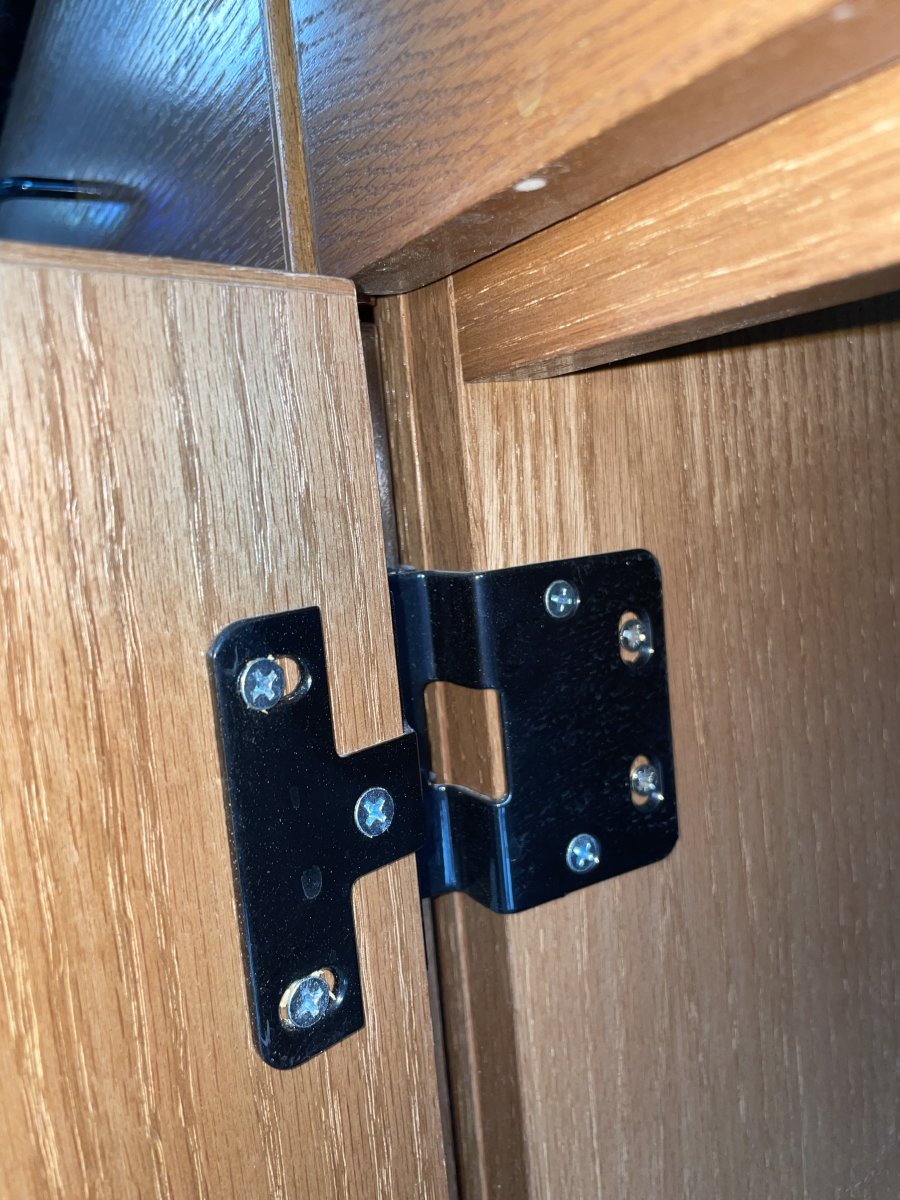

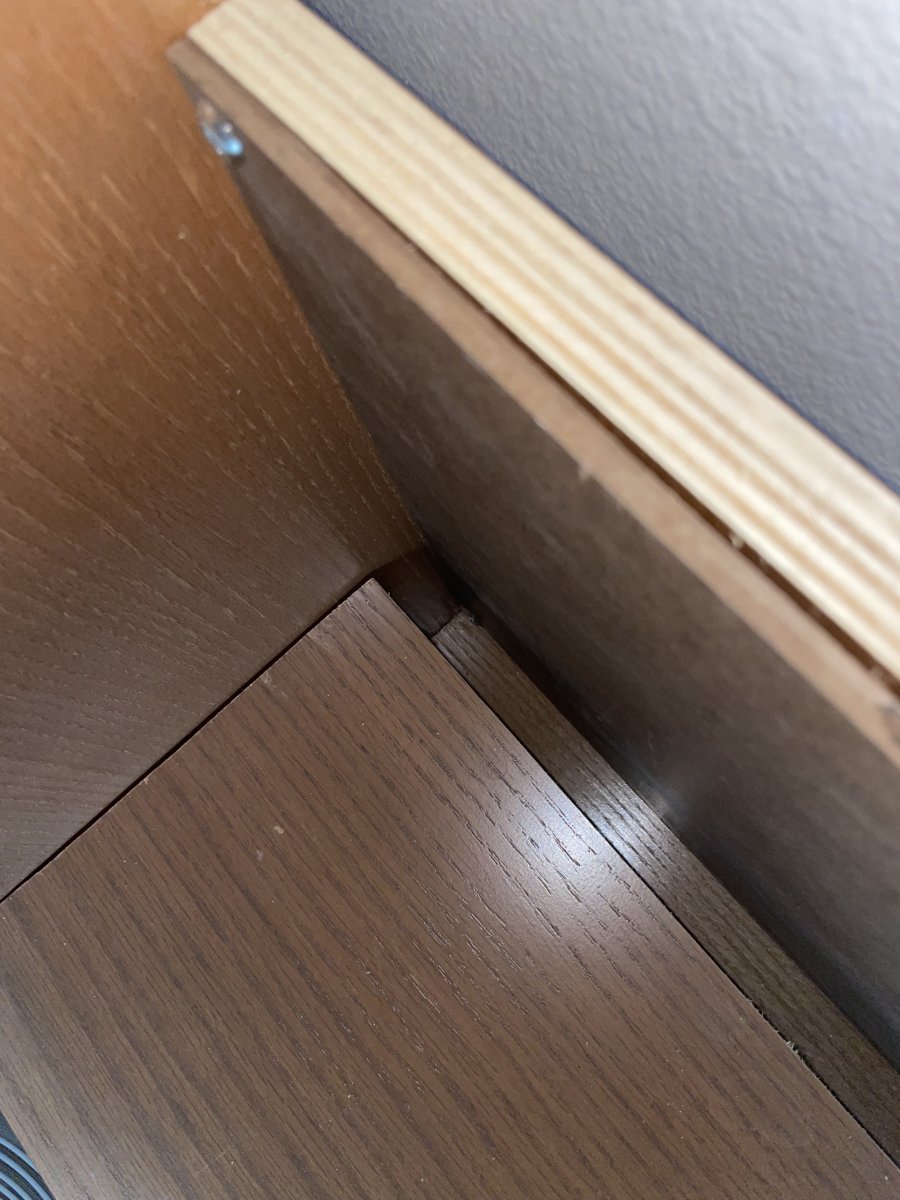

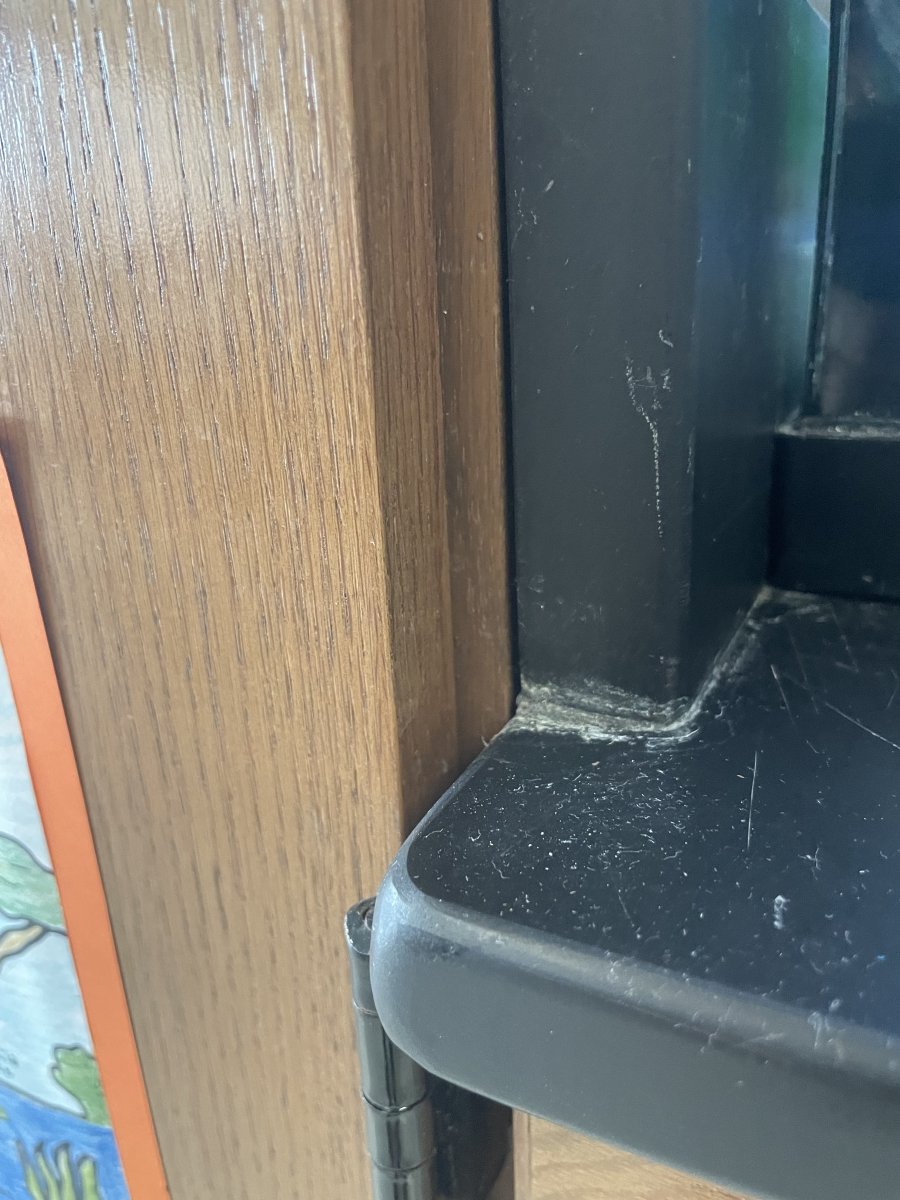

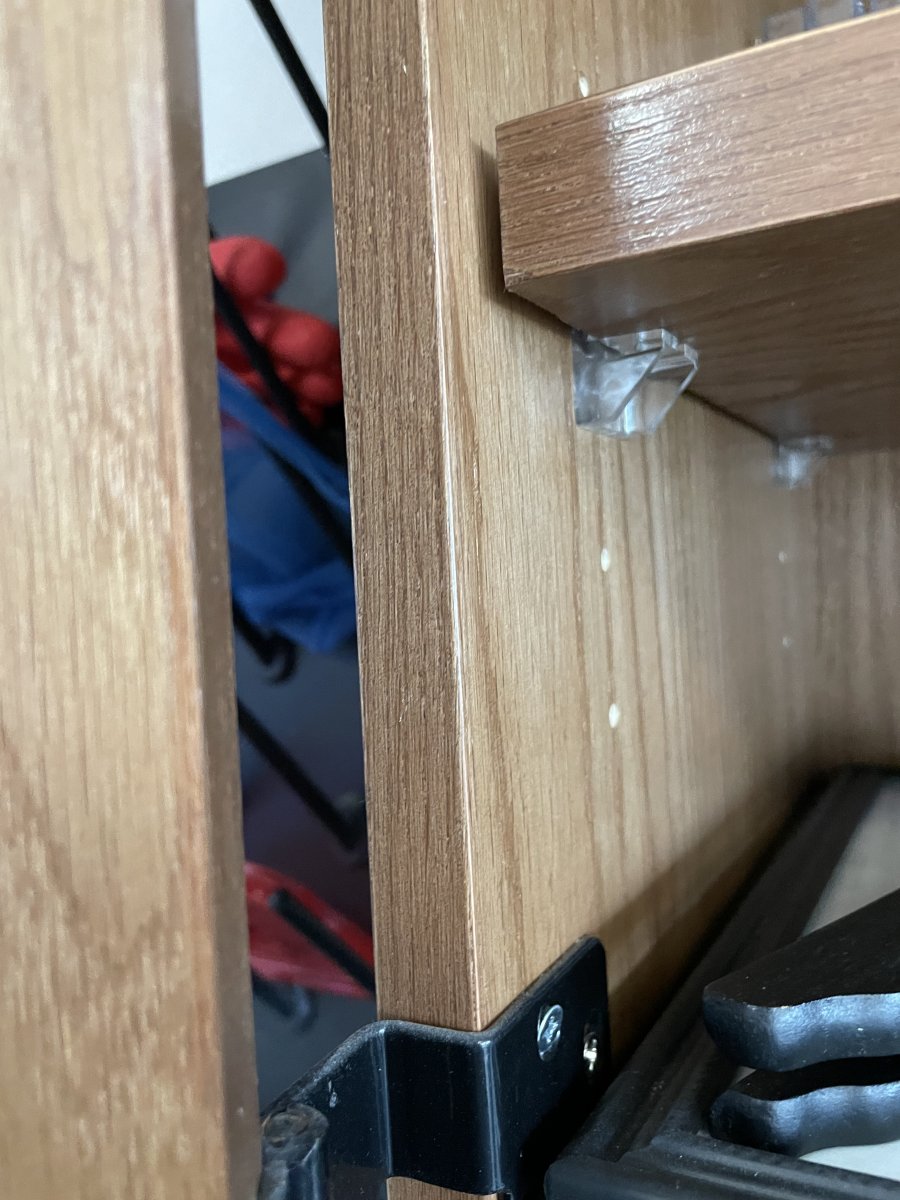

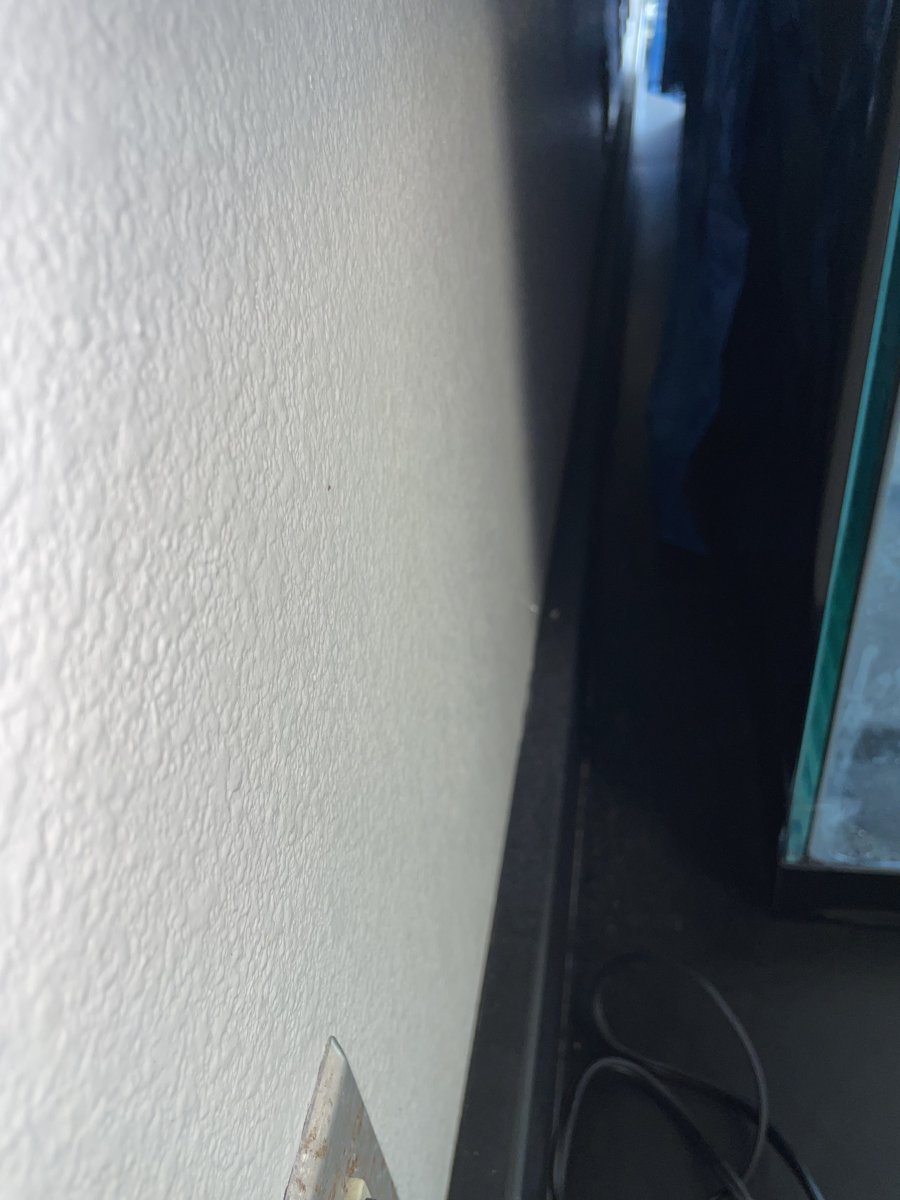

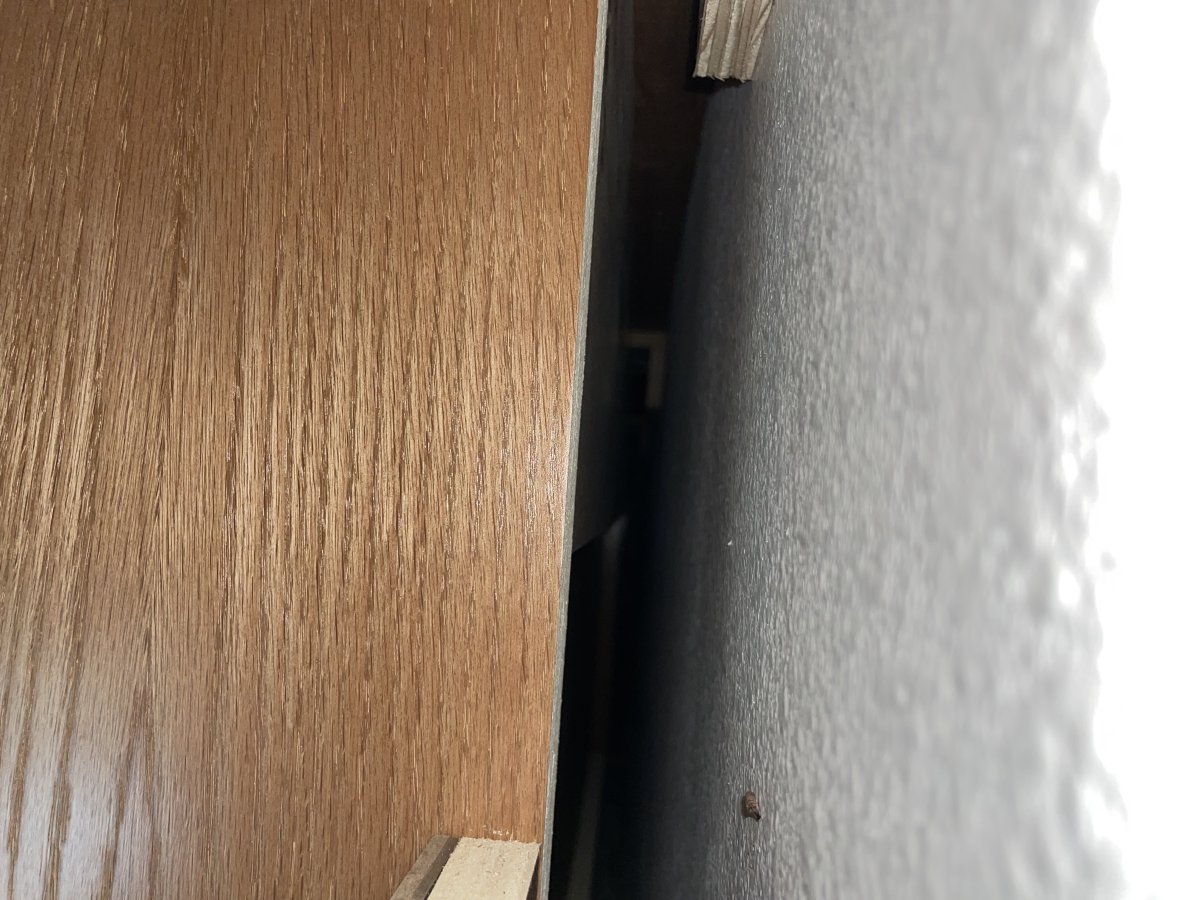

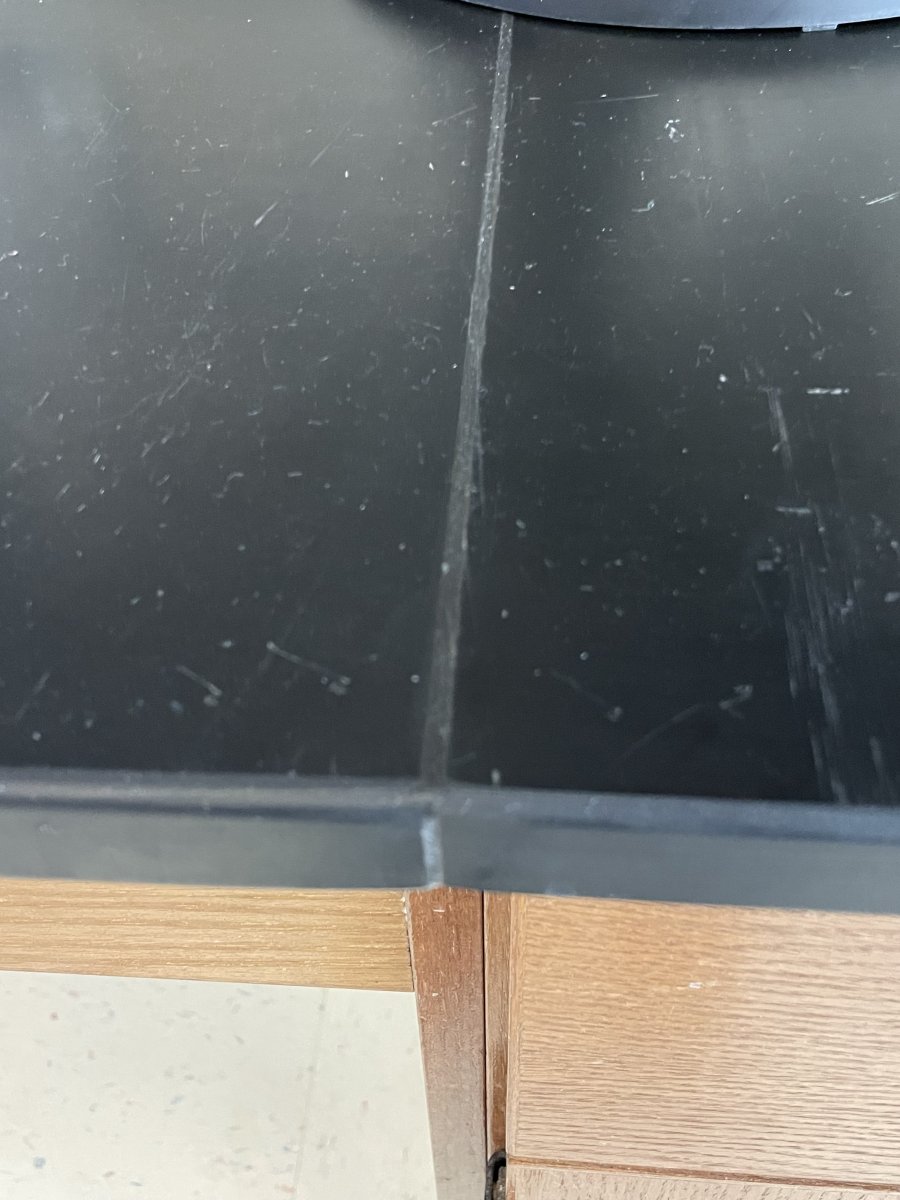

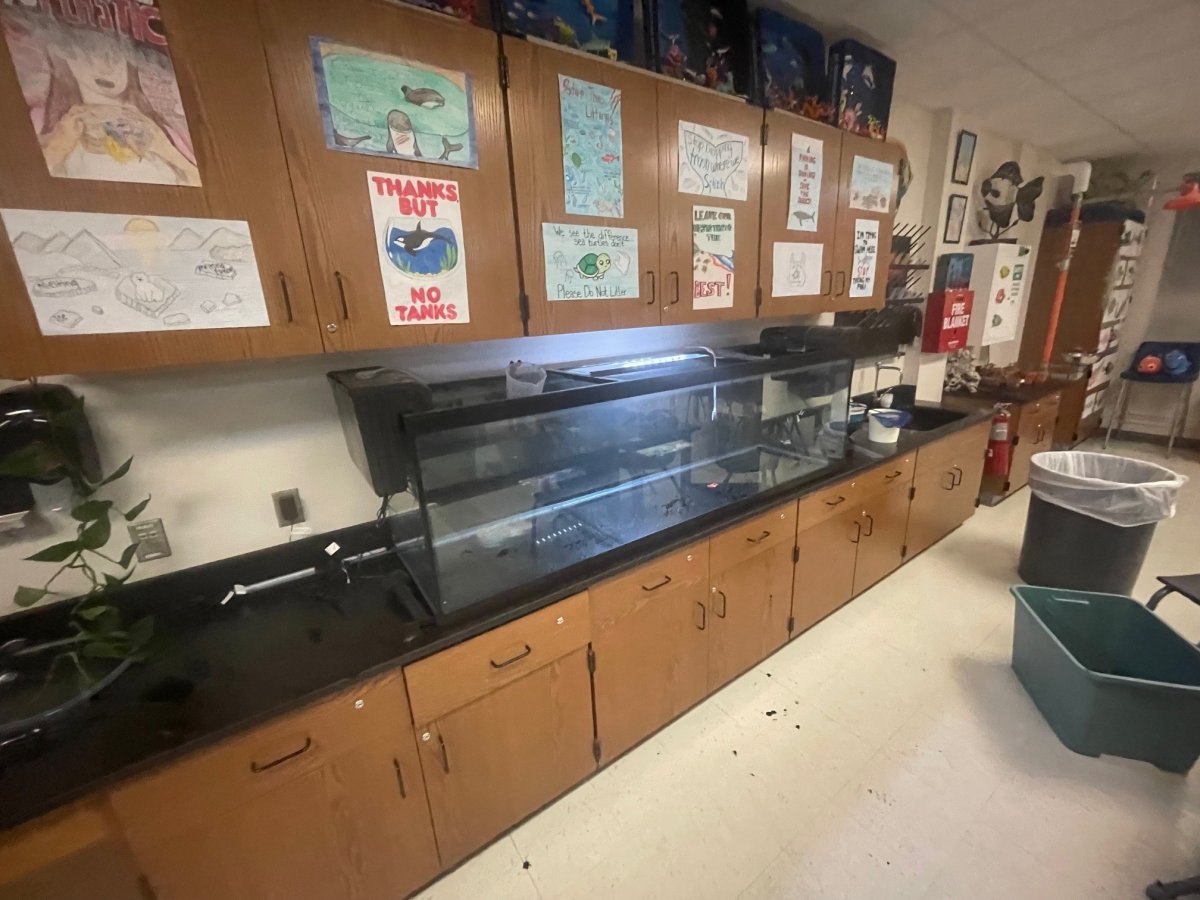

Thank you for your reply and insight! I appreciate it. I will attach some pictures I took of the thickness of the support pieces, materials, and thickness of wood and countertop. There are support “areas” about every 30 inches, where the cabinets connect side by side. The actual countertop is an inch thick. The wood would not get wet, as it is not exposed to any areas that would allow it to. There are two sinks on either side of the tank that get used daily, and even with excessive splashing, water never touches the wood. The counter top is, I’m guessing, epoxy resin, which is heavy duty for lab use. Let me know if there is anything else that you might need to know. Thank you!



[RocketEngineer]

Sorry, one more pic request: with all the cabinet doors open showing the whole area under the tank? I want to see if those cabinets have center walls between every door or a big open area with two doors.



[Ef4life]

Imo it should be fine. But nothing wrong with a little extra bracing underneath. I’d rather not see the aquarium over a countertop seam though, but if it’s flat and level over 6ft it should be fine especially for a plastic trimmed tank

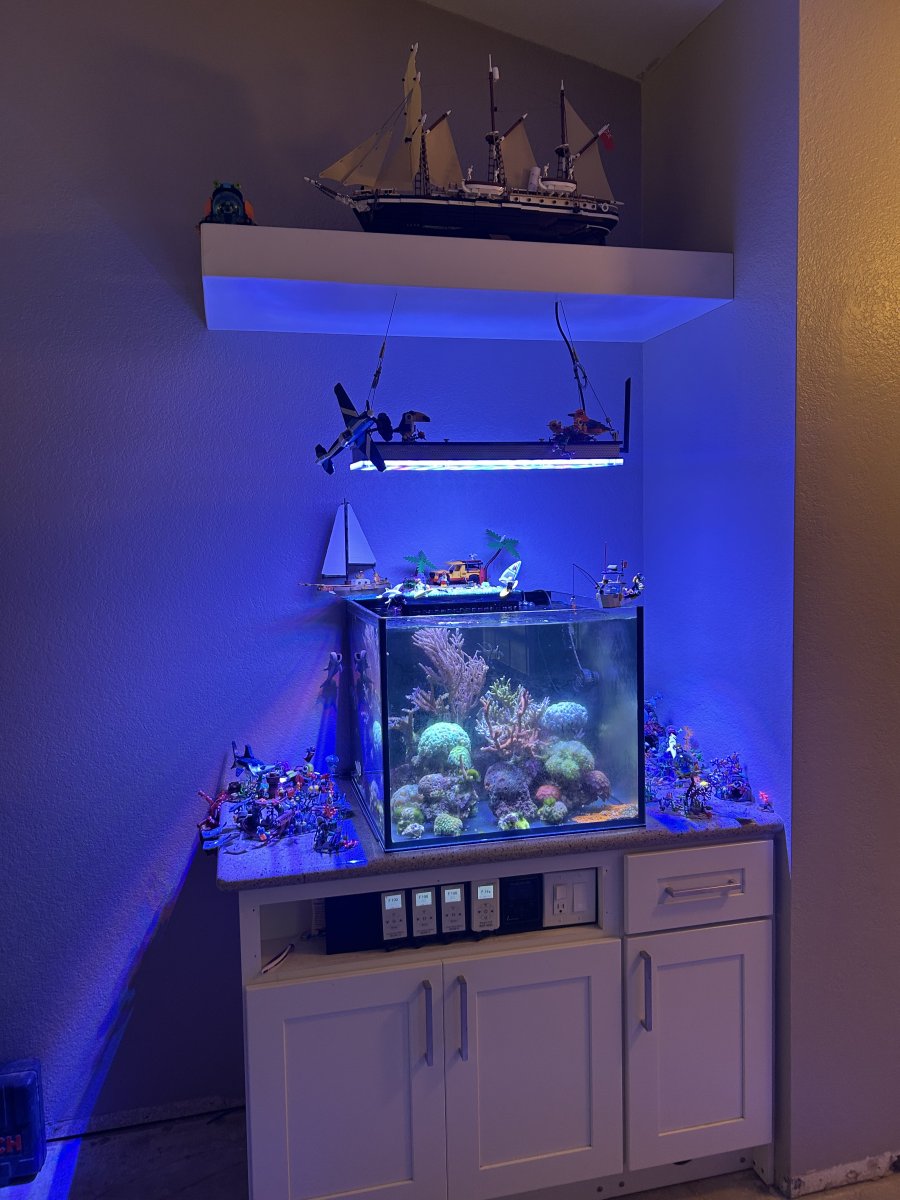

My diy kitchen cabinet stand



[sadas5017]

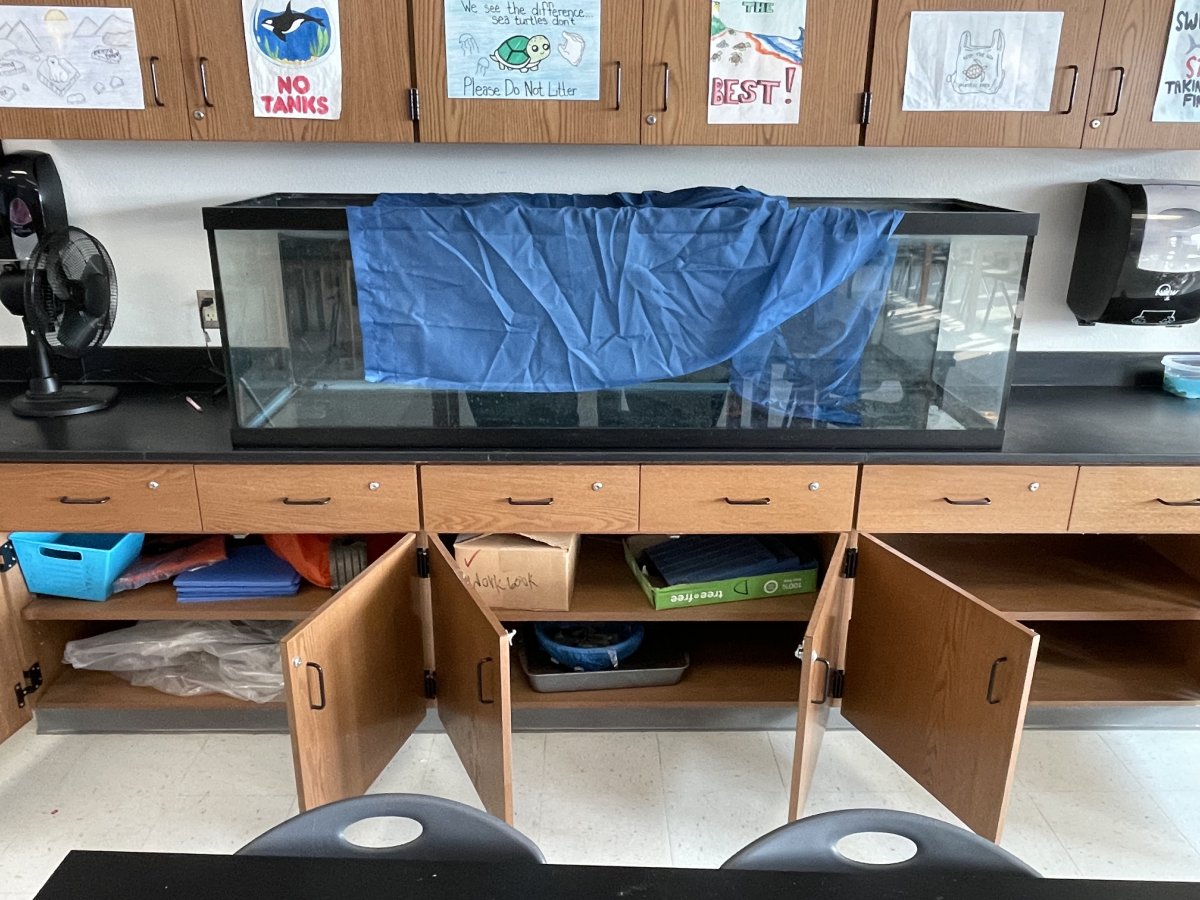

Sorry, one more pic request: with all the cabinet doors open showing the whole area under the tank? I want to see if those cabinets have center walls between every door or a big open area with two doors.

Sorry, one more pic request: with all the cabinet doors open showing the whole area under the tank? I want to see if those cabinets have center walls between every door or a big open area with two doors.

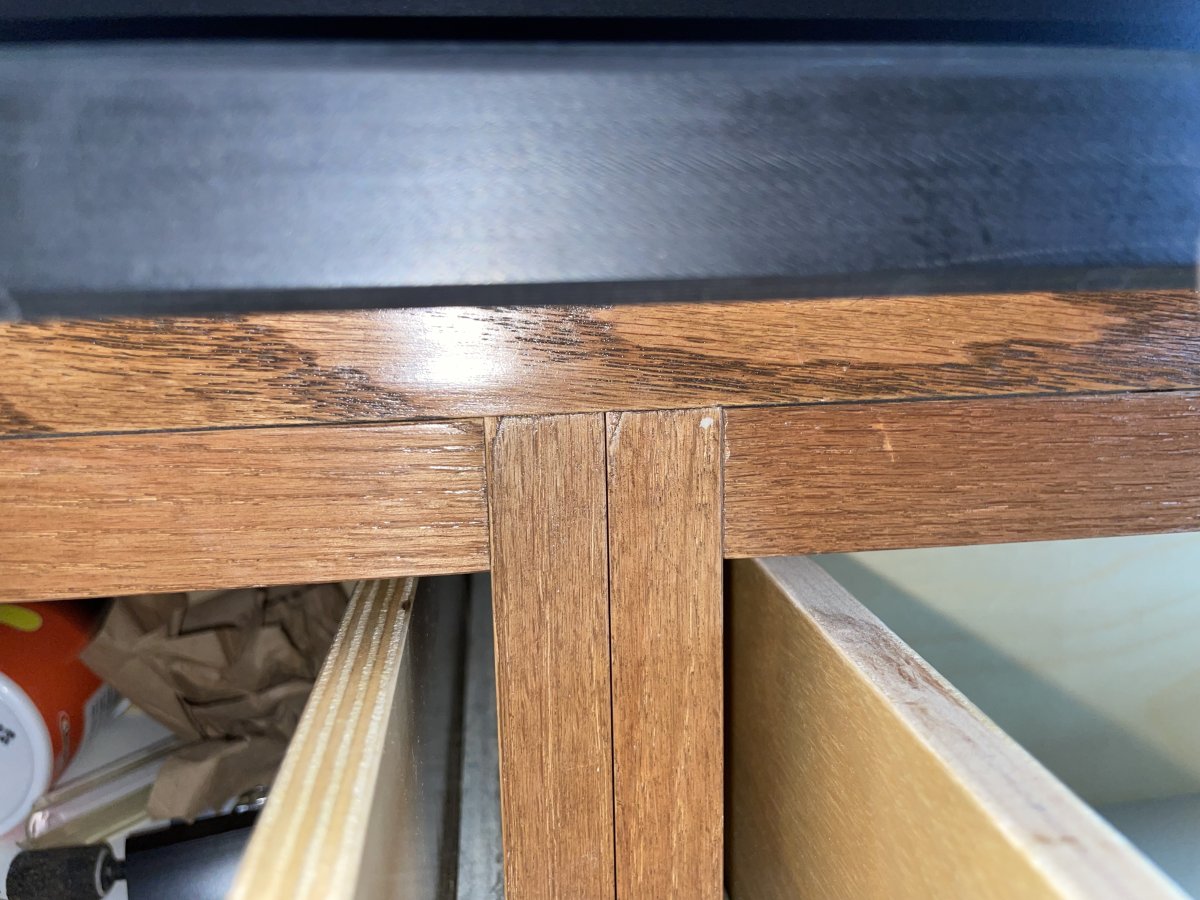

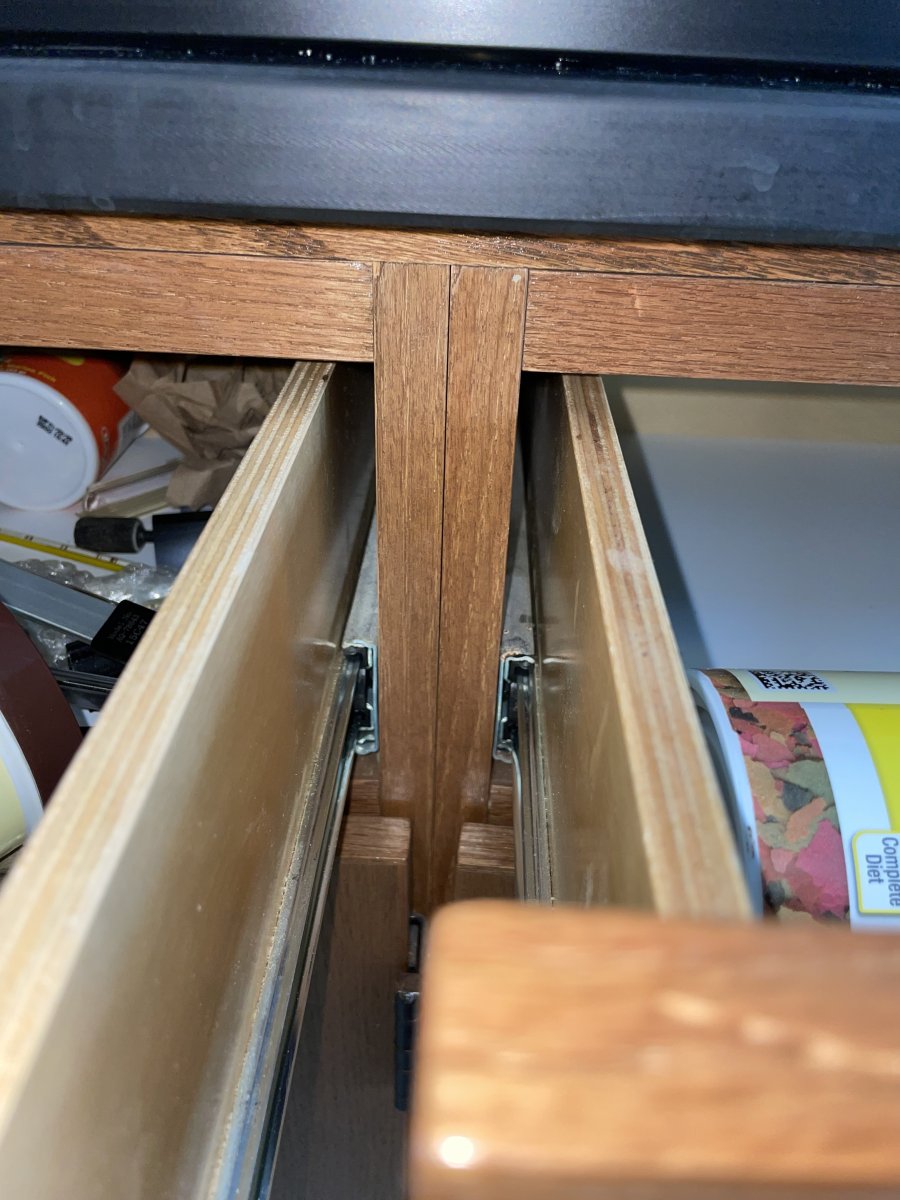

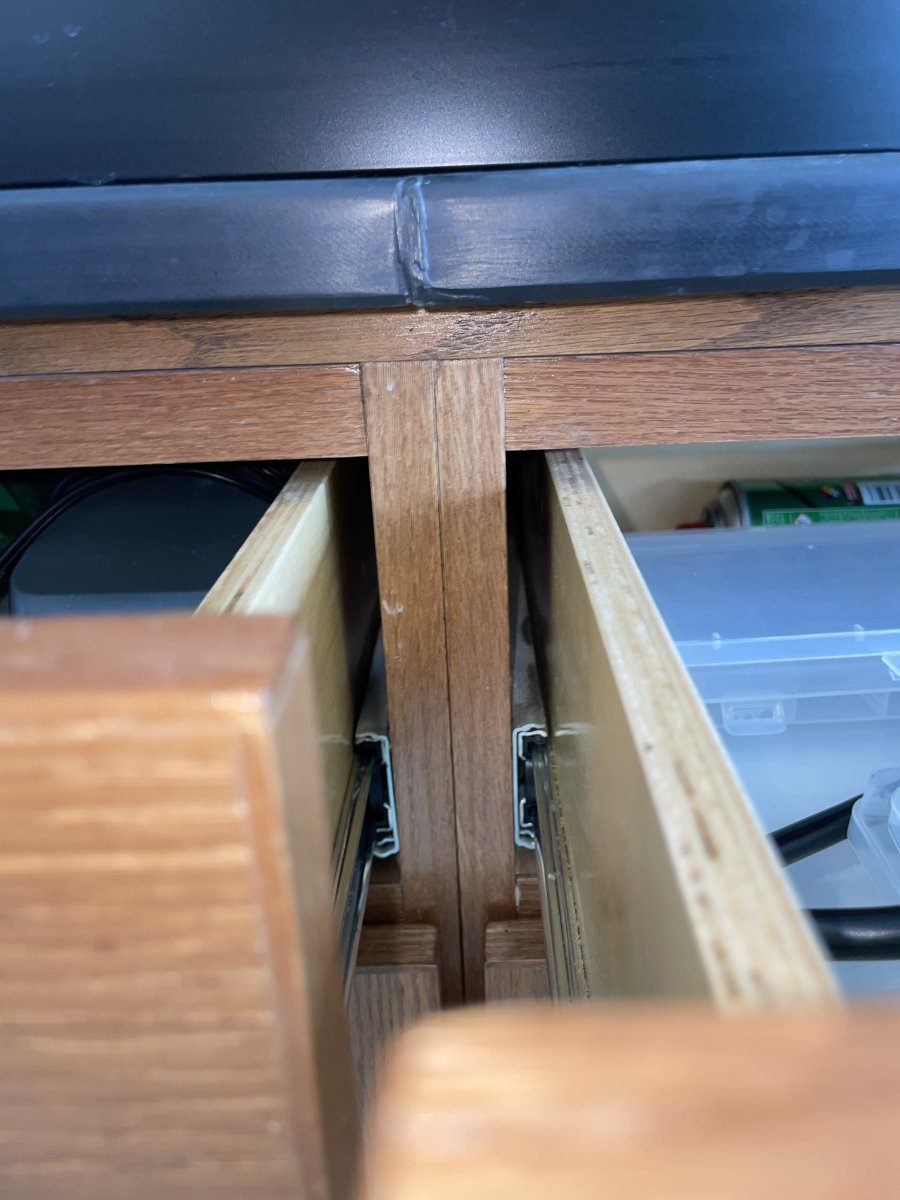

No problem! In between the doors is just open, no middle support. However, the tank sits over 2 connecting supports.



[FUNGI]

Hi everyone, new here!

I’m looking for experienced input on whether my setup is actually unsafe, or if some of the feedback I’ve received is more best-practice vs. requirement.

Tank:

• 125-gallon rimmed glass aquarium
• Plastic top and bottom frame intact
• No cracks, only a very thin cosmetic scratch on the outside of the glass (mid-panel, not edge-connected)

Support surface:

• Flat, solid science classroom countertop. About 20 feet long.
• Countertop is fully supported underneath by cabinets
• Cabinets are anchored to the wall
• No visible sagging, flexing, or unevenness
• Tank sits flush on the rim, no rocking

Current concern:
I do not have a leveling mat under the tank. I posted on Reddit and received many comments saying:

• A leveling mat is required even for rimmed tanks
• Countertops (even with cabinet support) are unsuitable compared to aquarium stands
• The setup is “guaranteed” to fail over time

However, my understanding has always been:

• Rimmed tanks are designed to have the load carried by the plastic frame, not the glass bottom
• Leveling mats are critical for rimless tanks, but optional or unnecessary for rimmed tanks if the surface is flat and rigid
• A continuous, solid surface with distributed support (like a lab counter with cabinets) can be structurally equivalent to a stand, provided it is level and non-flexing

I’m absolutely open to being wrong, I just want evidence-based reasoning, not blanket rules.

My questions:

1. For a rimmed 125, is a leveling mat a true structural necessity, or just an added safety margin?
2. Is a flat, rigid, wall-anchored countertop with full cabinet support inherently unsafe compared to a traditional aquarium stand?
3. Under what specific conditions would this setup actually increase the risk of glass stress or failure?

I’m trying to balance real engineering risk versus internet worst-case assumptions.
Appreciate thoughtful input, especially from those with large-tank experience or structural knowledge.

Thanks in advance.

I can't add much except over 45 years keeping aquariums and IMO:

• A leveling mat is required even for rimmed tanks - Not True. I have never used a leveling mat until my current 125G and that "mat" is foam used for shipping an its used so I dont scratch the bottom of the tank on my DIY stand..
• Countertops (even with cabinet support) are unsuitable compared to aquarium stands - Not True
• The setup is “guaranteed” to fail over time - Not True

IMO, you are good to go, however, I wonder how the school is allowing you to use it considering todays sue happy world.



[malacoda]

IMO you appear good to go as well.

As for leveling mats — it would serve ZERO purpose under a rimmed/plastic-framed tank.

Levelling mats don't actually 'level' a tank. The only purpose they serve is to prevent small abnormalities ... a tiny screw point sticking out, a loose splinter or burr, etc. on the surface ... from creating a point load on the bottom pane of glass in a rimless tank. (.eg. A small lump/protrusion would be absorbed by the mat ... much like your fingernail compressing into a cork.)

The glass in a rimmed tank is well above the stand surface. And any tiny protrusions or bits of debri between the counter top and plastic of the frame are compensated for by the plastic frame.

As long as that counter top is flat (no significant long, or 'deep' gaps between counter and the tank frame), the tank should be fine.

On a separate safety note — if it's not already in your plans, one thing I would suggest though is to see if you could have that standard outlet replace with a GFCI outlet. Or, picking up some short plug-in GFCI powerstrip.



[RocketEngineer]

No problem! In between the doors is just open, no middle support. However, the tank sits over 2 connecting supports.

Given its current position, I have serious concerns. You have a lot of weight overhanging either side. That means nearly all the weight is on that center cabinet. Those were never designed for 1,200 pounds sitting on them. If you could shift it left until it was centered over two full cabinets (as well as off that seam mentioned earlier), I would be a bit more confident. As is, I’m not sure. Sorry.



[Ef4life]

Let’s be honest everyone. A 125g stand you buy at the store isn’t some highly engineered piece of art and structural design. Its particle board junk made to the minimal spec to be as cheap as possible but yet still function under weight. And science room cabinets are the cabinet equivalent of a brick s*** house. Built to hold up to abuse from students for decades.


https://www.petsmart.com/fish/tanks...um-and-stand-ensemble---125-gallon-63807.html



[UncommonSense]

Let’s be honest everyone. A 125g stand you buy at the store isn’t some highly engineered piece of art and structural design. Its particle board junk made to the minimal spec to be as cheap as possible but yet still function under weight. And science room cabinets are the cabinet equivalent of a brick s*** house. Built to hold up to abuse from students for decades.


https://www.petsmart.com/fish/tanks...um-and-stand-ensemble---125-gallon-63807.html

And you’re willing to put the well-being of this classes students on this claim?



[Ef4life]

And you’re willing to put the well-being of this classes students on this claim?

Yes



[tangyluv]

Lawsuit waiting to happen from a concerned parent



[Dogeatbird]

1:leveling mat? Required not necessarily. Adding protection, again is debatable. As the rim does have a center brace. A lot of rimmed aquariums have a tempered bottom pane.

was the sticker still on the bottom saying tempered glass? Probably was removed by original owner.

2: Cabinets and countertops. Cabinets probably are MDF/particle board; skinned veneers. Countertop appears to be corian with epoxy seams. All very standard both commercial and residential.

2(B) most aquarium stands also use particle board/vaneer construction. Almost all aquarium stands are not necessarily anchored to walls. Or features a continuous countertop.

3. Potential increases for failure. Sudden impact of viewing panes. Applies to all glass aquariums. Inadvertent interactions with a strong oxidizer. (Science Lab) electric shorts again applied to all aquariums.

4. liability not necessarily greater then acces to chemicals and burners in a science lab.

5. Public display aquarium sometimes choose acrylic to mitigate liability risk. Also isolated access to equipment/electric access.

Ultimately depends on the requirements of your school board. Administration. Notice to students and their legal guardians.



[MasterClassReefs]

Hi everyone, new here!

I’m looking for experienced input on whether my setup is actually unsafe, or if some of the feedback I’ve received is more best-practice vs. requirement.

Tank:

• 125-gallon rimmed glass aquarium
• Plastic top and bottom frame intact
• No cracks, only a very thin cosmetic scratch on the outside of the glass (mid-panel, not edge-connected)

Support surface:

• Flat, solid science classroom countertop. About 20 feet long.
• Countertop is fully supported underneath by cabinets
• Cabinets are anchored to the wall
• No visible sagging, flexing, or unevenness
• Tank sits flush on the rim, no rocking

Current concern:
I do not have a leveling mat under the tank. I posted on Reddit and received many comments saying:

• A leveling mat is required even for rimmed tanks
• Countertops (even with cabinet support) are unsuitable compared to aquarium stands
• The setup is “guaranteed” to fail over time

However, my understanding has always been:

• Rimmed tanks are designed to have the load carried by the plastic frame, not the glass bottom
• Leveling mats are critical for rimless tanks, but optional or unnecessary for rimmed tanks if the surface is flat and rigid
• A continuous, solid surface with distributed support (like a lab counter with cabinets) can be structurally equivalent to a stand, provided it is level and non-flexing

I’m absolutely open to being wrong, I just want evidence-based reasoning, not blanket rules.

My questions:

1. For a rimmed 125, is a leveling mat a true structural necessity, or just an added safety margin?
2. Is a flat, rigid, wall-anchored countertop with full cabinet support inherently unsafe compared to a traditional aquarium stand?
3. Under what specific conditions would this setup actually increase the risk of glass stress or failure?

I’m trying to balance real engineering risk versus internet worst-case assumptions.
Appreciate thoughtful input, especially from those with large-tank experience or structural knowledge.

Thanks in advance.

From someone who has set many tanks on countertops here is my perspective on this.

#1 aquariums load their weight to the corners and outter edges mostly. This counter seems iffy on supporting the corners without potential sag long term unless they are not laminate and perhaps Corian. It wont take much to strain silicone seals. The cheap stands that come with these at petsmart have walls positioned to take that load and distribute it more evenly to the floor.

#2 mdf and water are a bad mix. As mentioned by others it will swell, the laminate will bubble and the structural integrity will suffer if water messes arent dried fast or reach the particles.

#3 pads are not only not needed for framed tanks, it can be hazardous. Any pressure pushing up on the glass between the frame can be problematic, better to have it sit on a flat surface directlty on the frame.

All this said, can 4 NFL linebackers sit on that counter side by side and not flex it or cause any strain? If so it will likely work. If it was me and I was dead set on doing this Id move the tank to the left a bit to get one more vertical support under it evening the load distribution better.



[sjfishguy]

While you will probably be fine, I wouldn’t do this. Why not just get a smaller tank and put it in the counter?The real risk is you picked such a large tank
