EPIC 33 Long Build

Discussion in 'Reef Aquarium Discussion' started by VSVP bet, Feb 6, 2018.

  1. VSVP bet

    VSVP bet Member Build Thread Contributor

    Joined:
    Mar 29, 2016
    Messages:
    66
    Likes Received:
    52
    Location:
    Antarctica
    Hello all,

    I have a beloved 90-gallon reef aquarium at home in Connecticut. However, as a college student, I am not able to transport my 90-gallon reef back and forth from college to home. To satisfy my urge to reef, I purchased an IM Nuvo 20, I like the tank, however, it is just too small. After research, I discovered the 33 long, it is the same footprint as a 55, but shorter. This tank seems like a perfect size, it is 33 gallons (so it is not huge), but will provide plenty of space for fish and coral. I do not want a sump (as I do not have a permanent residence and want to make transport as easy as possible), so I plan on making an in-tank sump box (similar to the sumps on a biocube or IM tank).

    I have started building a stand, and once the tank arrives (I ordered it), I will get glass made to build the sump boxes. I have attached pictures, please let me know what you think, any suggestions would be helpful.

    Also, to further follow the build (and all my tanks on), check out my Instagram @ruckusreef

    (I also attached a picture of my home 90 for your viewing pleasure)

    THANKS!

    Screen Shot 2018-02-06 at 11.45.14 AM.png





  2. VSVP bet

    VSVP bet Member Build Thread Contributor

    Joined:
    Mar 29, 2016
    Messages:
    66
    Likes Received:
    52
    Location:
    Antarctica
    and to further clarify, each sump box will be identical on either side.

  3. Awesome Dennis

    Awesome Dennis Active Member

    Joined:
    Sep 16, 2016
    Messages:
    223
    Likes Received:
    185
    Why not put the divider parallel with the back glass? Your loosing a lot of side view.

  4. VSVP bet

    VSVP bet Member Build Thread Contributor

    Joined:
    Mar 29, 2016
    Messages:
    66
    Likes Received:
    52
    Location:
    Antarctica
    its a narrow tank already, I was hoping with this setup, I could put low light lps and mushrooms around the side boxes, and glue caps on the top of the boxes. Since the tank is long, I was planning to put the two ai primes closer to the middle to have no middle shadow, and have the low light sections on either side. The design isn't final, I will definitely consider this change, and if this rationale doesn't make sense to you please tell me! I want to get input to make sure I design the closest to perfect tank I can.

    Awesome Dennis likes this.
  5. Awesome Dennis

    Awesome Dennis Active Member

    Joined:
    Sep 16, 2016
    Messages:
    223
    Likes Received:
    185
    Maybe rotate the boxes

  6. VSVP bet

    VSVP bet Member Build Thread Contributor

    Joined:
    Mar 29, 2016
    Messages:
    66
    Likes Received:
    52
    Location:
    Antarctica
    that could definitely work, thanks for the input

  7. VSVP bet

    VSVP bet Member Build Thread Contributor

    Joined:
    Mar 29, 2016
    Messages:
    66
    Likes Received:
    52
    Location:
    Antarctica
    Got the stand all built.

    I ordered acrylic for the in-tank sump. Does anyone have experience adhering acrylic to glass? Apparently, all you have to do is rough the edges of the acrylic so the silicone best attaches? Any advice would be appreciated.





  8. VSVP bet

    VSVP bet Member Build Thread Contributor

    Joined:
    Mar 29, 2016
    Messages:
    66
    Likes Received:
    52
    Location:
    Antarctica
    above are the sample filter boxes

  9. Teddy Marshall

    Teddy Marshall Member

    Joined:
    Nov 27, 2017
    Messages:
    47
    Likes Received:
    4
    really exited to see how this will turn out!

    VSVP bet likes this.
  10. VSVP bet

    VSVP bet Member Build Thread Contributor

    Joined:
    Mar 29, 2016
    Messages:
    66
    Likes Received:
    52
    Location:
    Antarctica

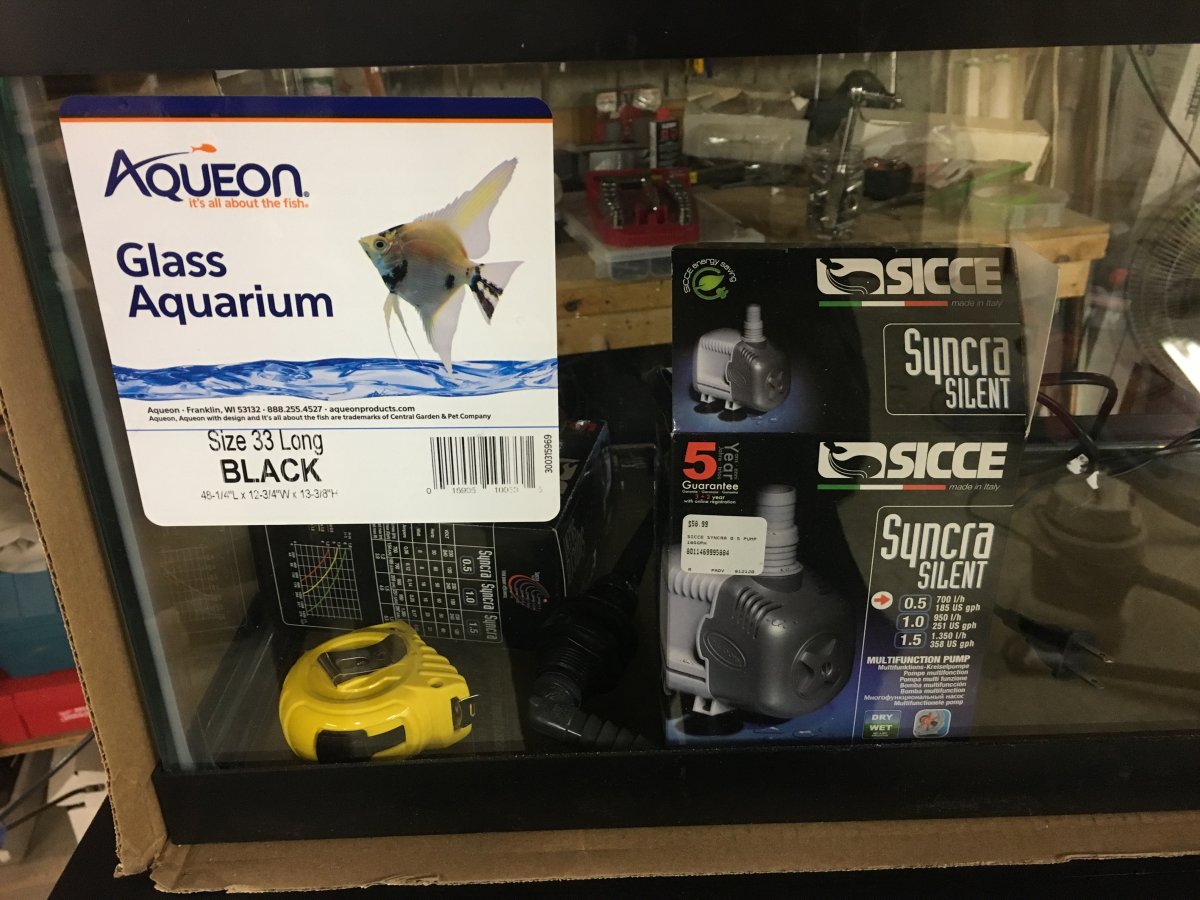

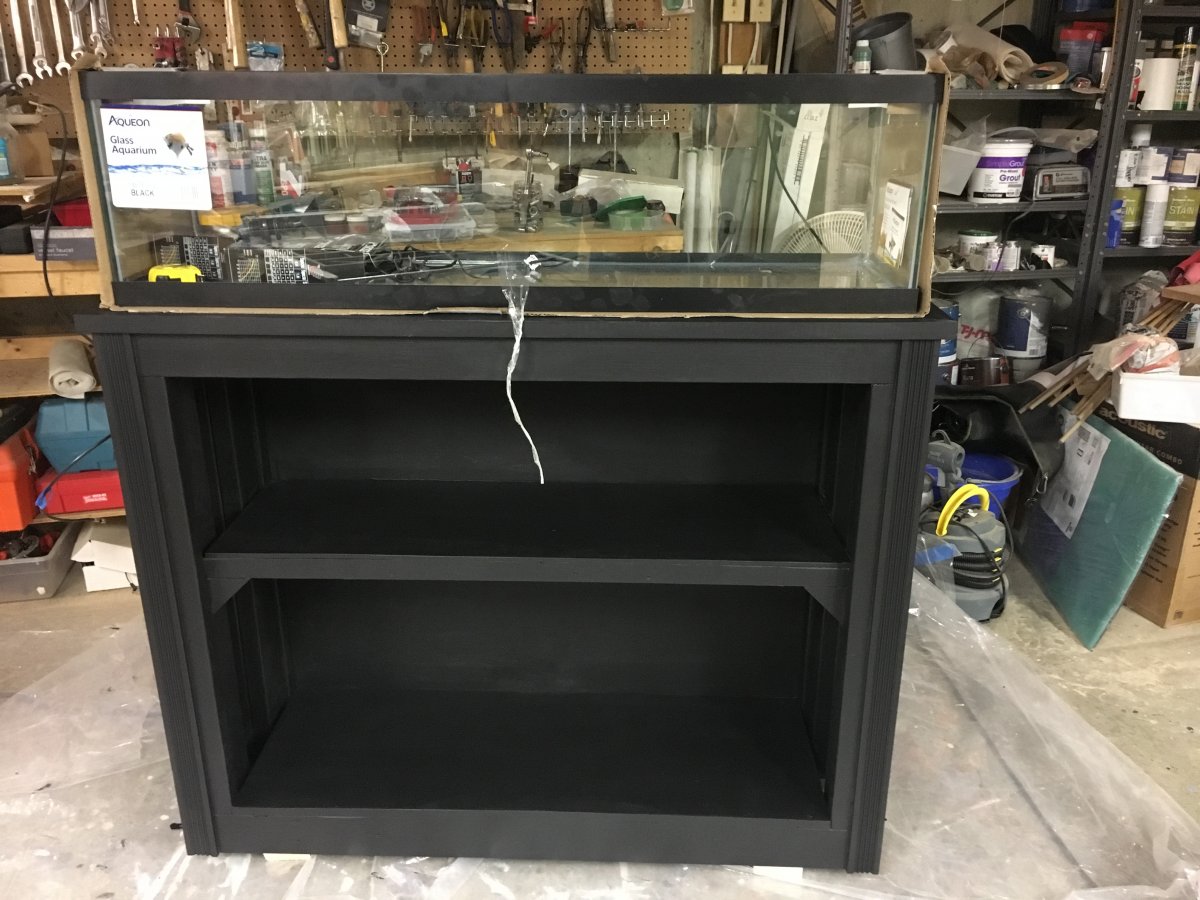

    Got the stand completely built. The tank was delivered as well. Now I'm waiting for the acrylic to be cut, last step is to construct the in-tank filter boxes.



  11. VSVP bet

    VSVP bet Member Build Thread Contributor

    Joined:
    Mar 29, 2016
    Messages:
    66
    Likes Received:
    52
    Location:
    Antarctica

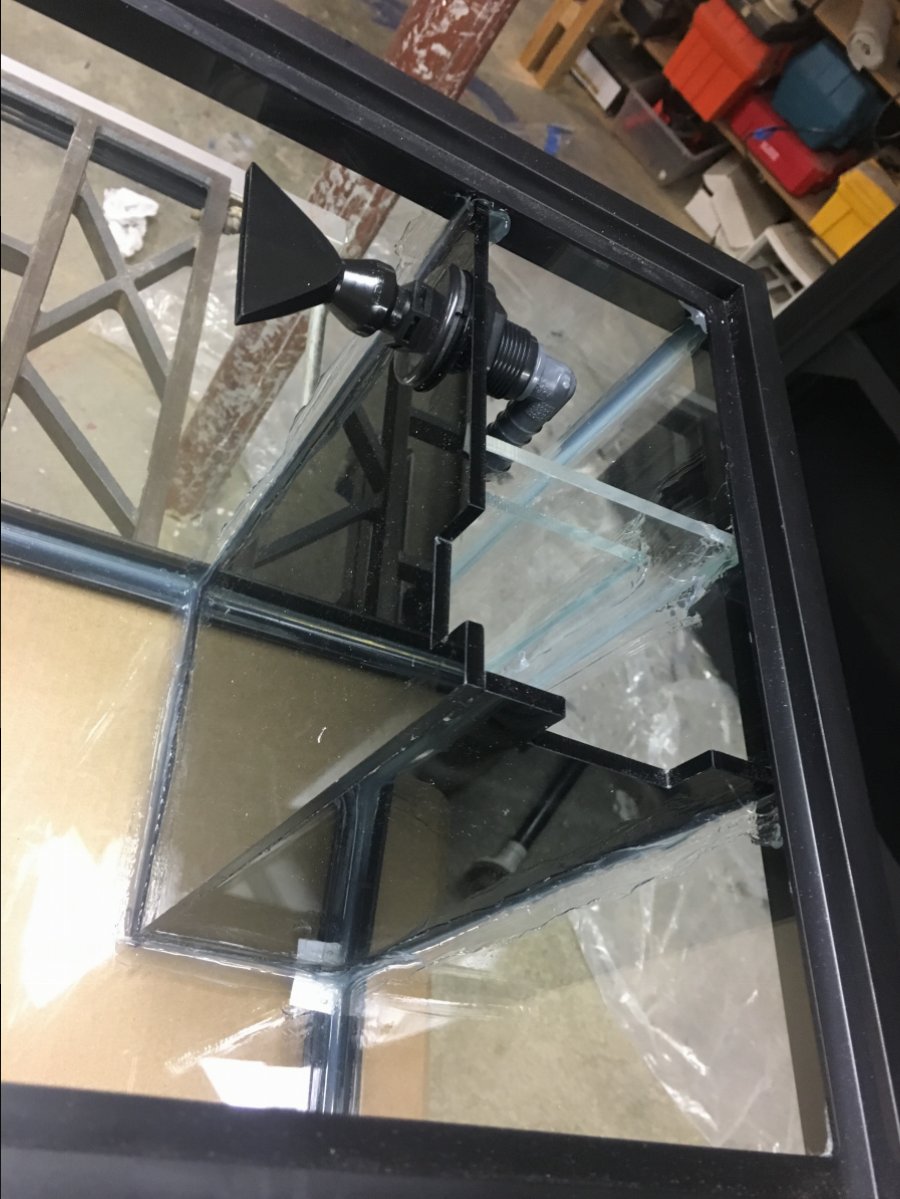

    The acrylic was made (and looked fantastic), got the baffles and boxes all glued in, after a curing period the tank will be water tested. I am curious as to if anyone has done a build similar to this, if you have, please let me know how your tank is running!







  12. Denisk

    Denisk Well-Known Member R2R Supporter R2R Excellence Award Article Contributor Build Thread Contributor Partner Member 2018

    Joined:
    Dec 6, 2016
    Messages:
    924
    Likes Received:
    946
    This is going to be a sweet tank build! I look forward to seeing the progress.

    VSVP bet likes this.
  13. Jisko

    Jisko Valuable Member R2R Supporter Build Thread Contributor

    Joined:
    Feb 19, 2016
    Messages:
    1,009
    Likes Received:
    684
    ooooo i likey...

    VSVP bet likes this.
  14. mdbannister

    mdbannister Ahh...the Reef Life Staff Member Team R2R R2R Supporter R2R Excellence Award Photo of the Month Award Article Contributor Build Thread Contributor Partner Member 2018

    Joined:
    Nov 18, 2012
    Messages:
    22,371
    Likes Received:
    16,007
    Location:
    Ontario, California
    Cool! Following!

    VSVP bet likes this.
  15. VSVP bet

    VSVP bet Member Build Thread Contributor

    Joined:
    Mar 29, 2016
    Messages:
    66
    Likes Received:
    52
    Location:
    Antarctica
    mdbannister, Denisk, and Jisko thanks for the love!

  16. Mccool

    Mccool Active Member Build Thread Contributor

    Joined:
    Jan 28, 2018
    Messages:
    183
    Likes Received:
    169
    Neat idea, I dig it

    VSVP bet likes this.
  17. Kzguns

    Kzguns Active Member Build Thread Contributor

    Joined:
    Jan 9, 2018
    Messages:
    191
    Likes Received:
    113
    Nice work! Looking forward to seeing it filled and running!

    VSVP bet likes this.
  18. Chris Taylor

    Chris Taylor Member

    Joined:
    Jul 30, 2017
    Messages:
    17
    Likes Received:
    13
    Cant wait to see how this comes out

  19. Teddy Marshall

    Teddy Marshall Member

    Joined:
    Nov 27, 2017
    Messages:
    47
    Likes Received:
    4
    This is looking great, I've heard the acrylic cement can be pretty nasty stuff though. Did you bond the panels outside?

    Also anyone on Instagram please feel free to check my 75G setup @TM_Reef

  20. VSVP bet

    VSVP bet Member Build Thread Contributor

    Joined:
    Mar 29, 2016
    Messages:
    66
    Likes Received:
    52
    Location:
    Antarctica
    nothing like the smell of cement and silicone in the morning
